1. To install, reverse the removal procedure.

TAILGATE LOCK CYLINDER

Removal

1. Remove the tailgate handle. Refer to Tailgate Latch Remote Control .

2. Remove the tailgate lock cylinder.

1. Remove the spring clip.

2. Remove the tailgate lock cylinder.

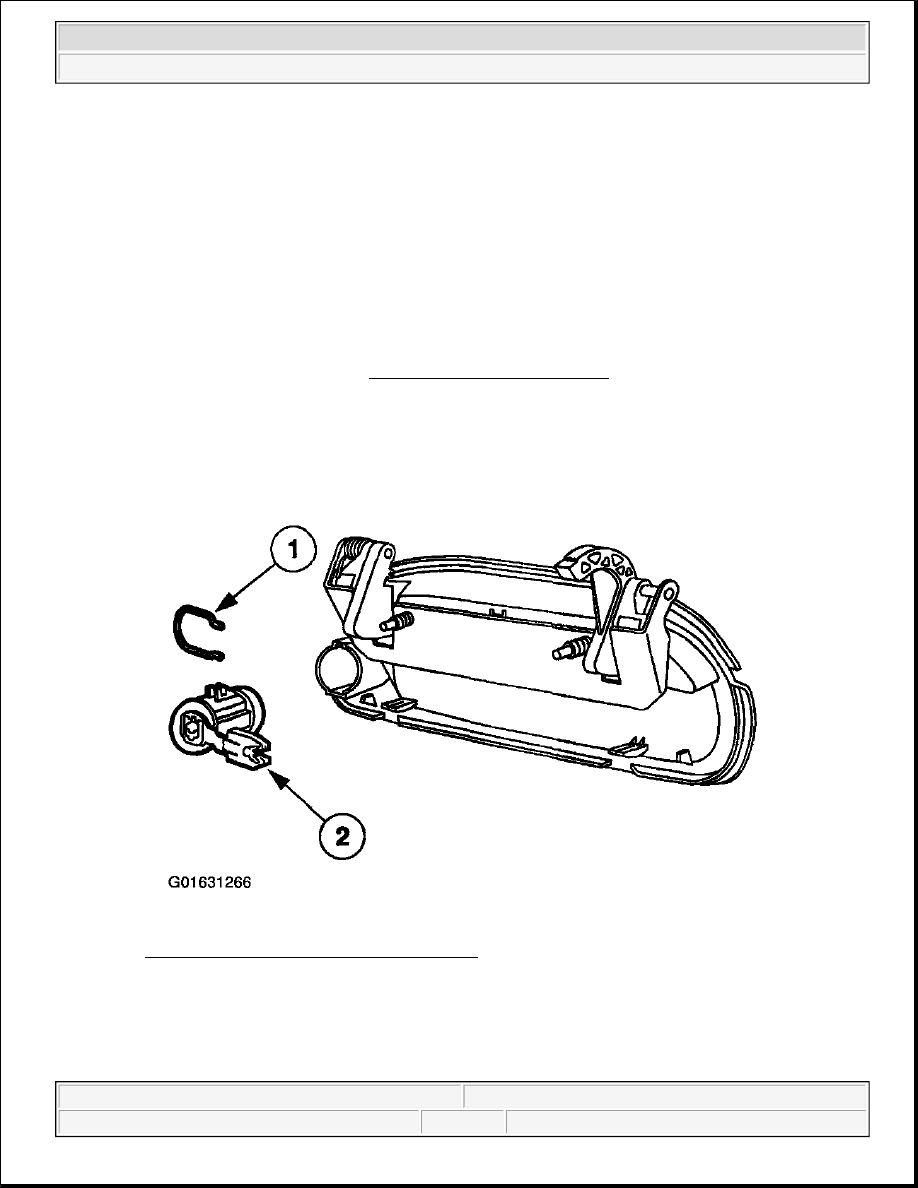

Fig. 138: Removing Tailgate Lock Cylinder
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

NOTE:

Individual lock cylinders are repaired by discarding the inoperative cylinder and
building a new lock cylinder using the appropriate lock repair package. The lock
repair package includes a detailed instruction sheet to build the new lock
cylinder to the correct key code of the vehicle.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



DOOR LATCH REMOTE CONTROL - REAR, F-150

Special Tool(s)

Fig. 139: Door Latch Remote Control Special Tool(s)
Courtesy of FORD MOTOR CO.

Removal

1. Remove the rear door trim panel. Refer to TRIM PANEL -- REAR DOOR .

2. Remove the rear door radio speaker (18808).

1. Remove the screws.

2. Disconnect the electrical connector.

3. Remove the rear door radio speaker.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

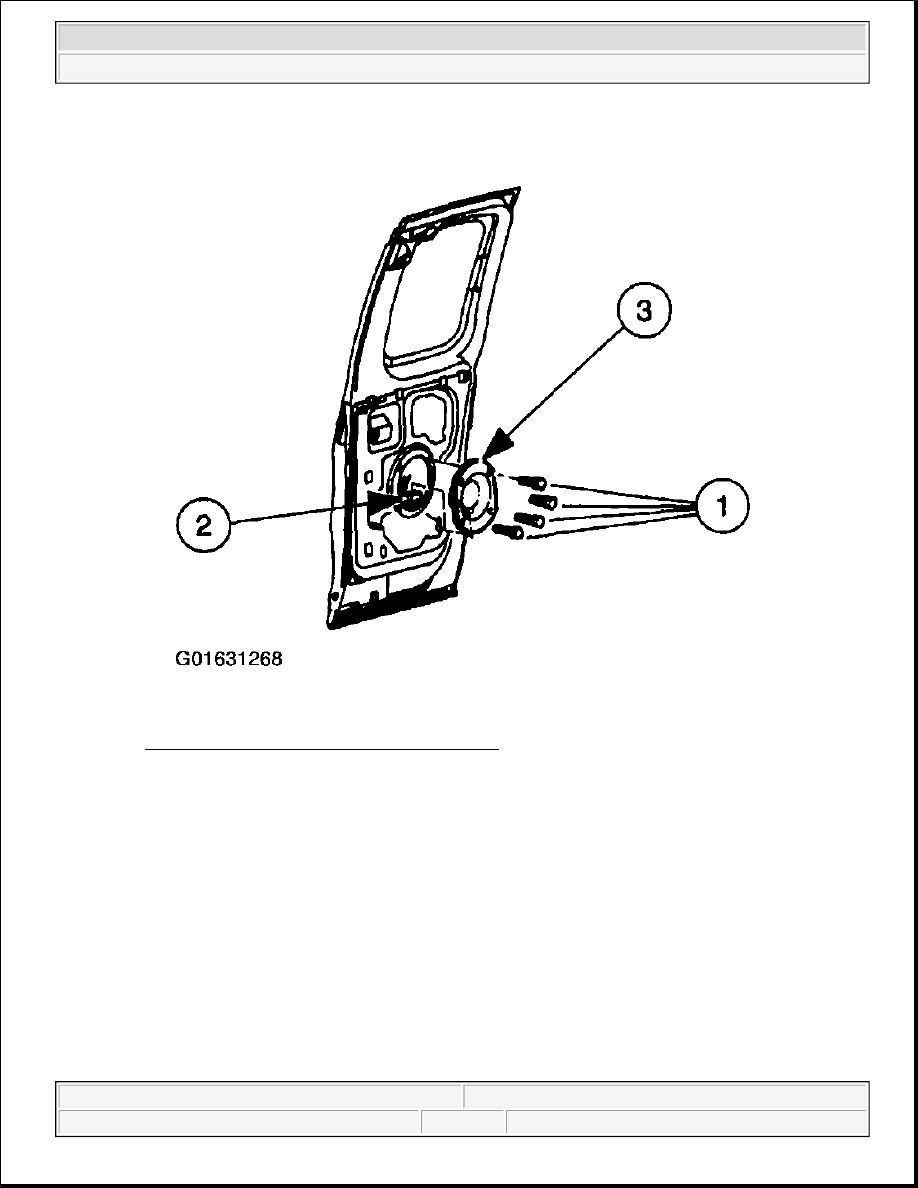

Fig. 140: Removing Rear Door Radio Speaker
Courtesy of FORD MOTOR CO.

3. Remove the watershield.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 141: Removing Watershield
Courtesy of FORD MOTOR CO.

4. Disconnect the necessary rods and cables from the rear door latch remote control.
