Fig. 142: Disconnecting Necessary Rods And Cables
Courtesy of FORD MOTOR CO.

5. Remove the rear door latch remote control.

1. Drill out the rivets.

2. Remove the rear door latch remote control.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 143: Removing Rear Door Latch Remote Control
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

z

Using Heavy Duty Riveter, install the rivets.

NOTE:

Make sure the rear door latch remote control rods are not Preloading the
latch. They should be clipped in a relaxed state with no slack.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 144: Installing Rear Door Speaker
Courtesy of FORD MOTOR CO.

TAILGATE LATCH REMOTE CONTROL

Removal

1. Open the tailgate.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

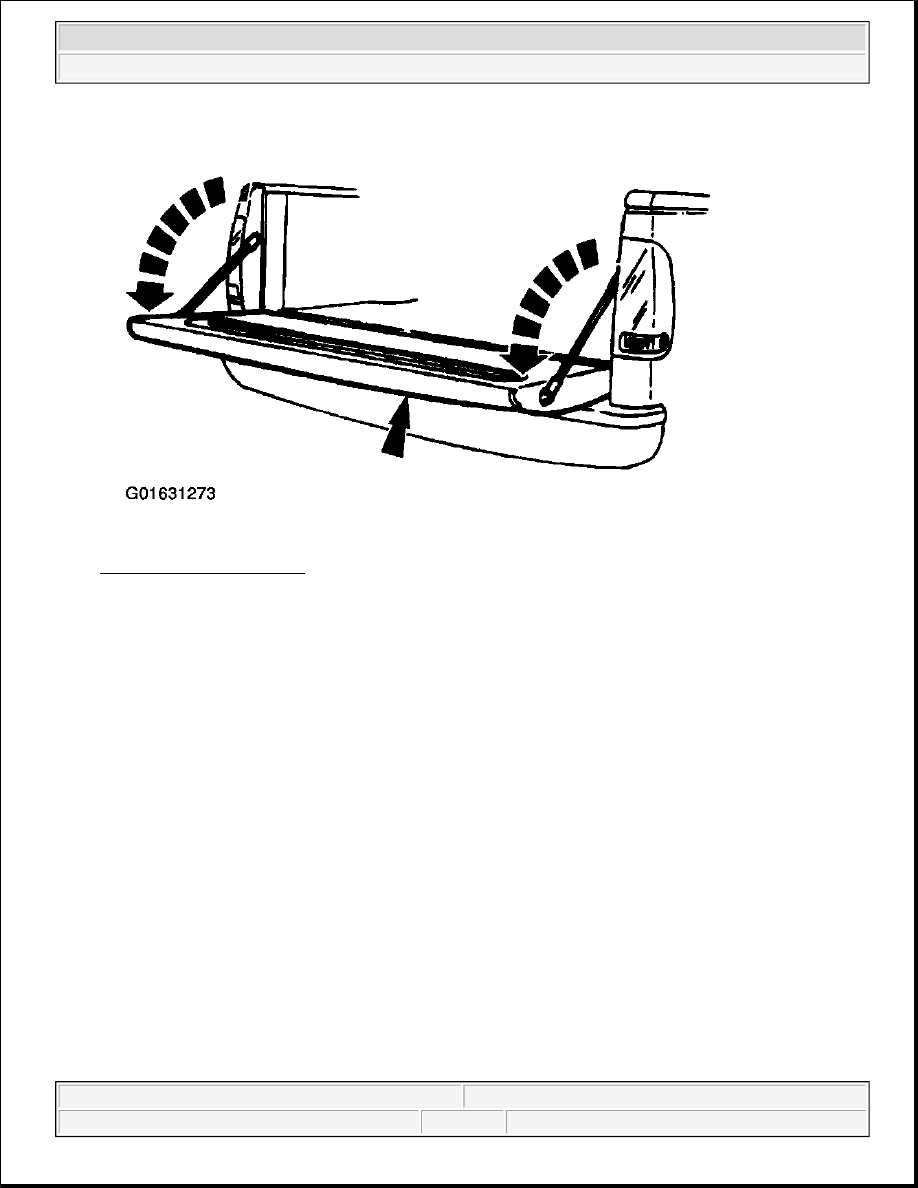

Fig. 145: Opening Tailgate
Courtesy of FORD MOTOR CO.

2. Remove the tailgate access panel.

1. Remove the screws.

2. Remove the tailgate access panel.
