Fig. 130: Twisting Off Cap From Ignition Switch
Courtesy of FORD MOTOR CO.

NOTE:

The lock cylinder is repaired by discarding the inoperative lock cylinder



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



5. Remove the ignition switch lock cylinder.

z

Use a 1/8-inch diameter drill bit to drill out the lock cylinder retaining pin.

z

Use a 3/8-inch drill bit to drill down the middle of the ignition lock key slot until the ignition
switch lock cylinder breaks loose.

z

Remove and discard the ignition switch lock cylinder and clean the drill shavings from the steering
column.

Fig. 131: Identifying Measurement To Drill Down The Middle Of The Ignition Lock Key Slot
Courtesy of FORD MOTOR CO.

6. Remove the bearing retainer.

and building a new lock cylinder using the appropriate lock repair package
(F85Z-11582-AA). The lock repair package includes a detailed instruction
sheet to build the new lock cylinder to the current key code of the vehicle.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

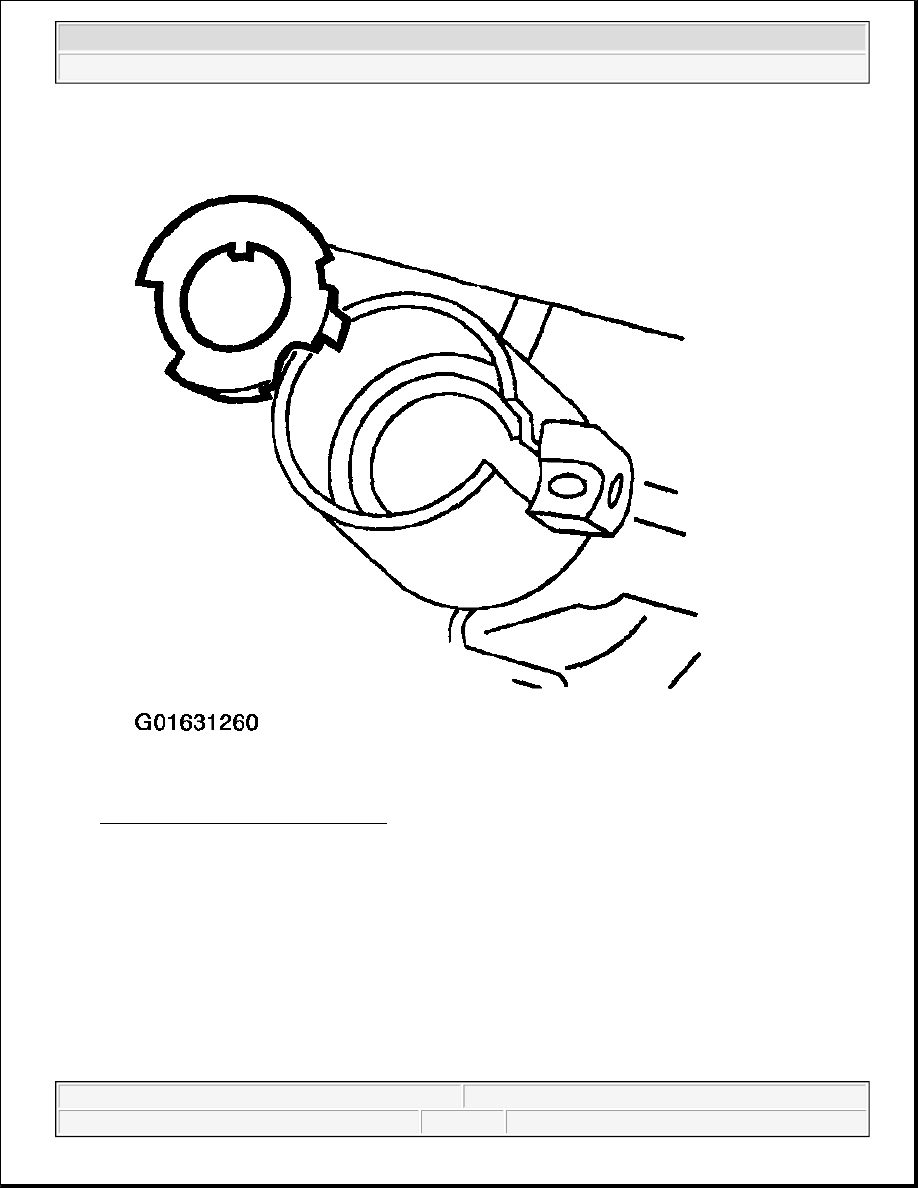

Fig. 132: Removing Bearing Retainer
Courtesy of FORD MOTOR CO.

7. Remove the bearing and gear.

z

Thoroughly clean all drill shavings from the steering column and inspect it for damage.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 133: Removing Bearing And Gear
Courtesy of FORD MOTOR CO.

8. To install, reverse the removal procedure.

z

Install a new ignition switch lock cylinder.

z

Verify ignition switch lock cylinder operation.
