Fig. 147: Locating Clean Air Tubes (5.4L Expedition)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



Fig. 148: Removing EVR Solenoid Bracket (5.4L Expedition)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



Fig. 149: Locating EGR Valve Bolts (5.4L Expedition)
Courtesy of FORD MOTOR CO.

EGR VALVE & TUBE ASSEMBLY

Removal & Installation (5.4L Navigator)

Remove the upper intake manifold. See INTAKE MANIFOLD under AIR INDUCTION SYSTEMS.
Disconnect the EGR valve vacuum line. Remove the bolts from the EGR adapter. See Fig. 150 . Disconnect the
differential pressure feedback (EGR) hoses and the EGR valve tube fittings. Remove the EGR valve and tube as
an assembly. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



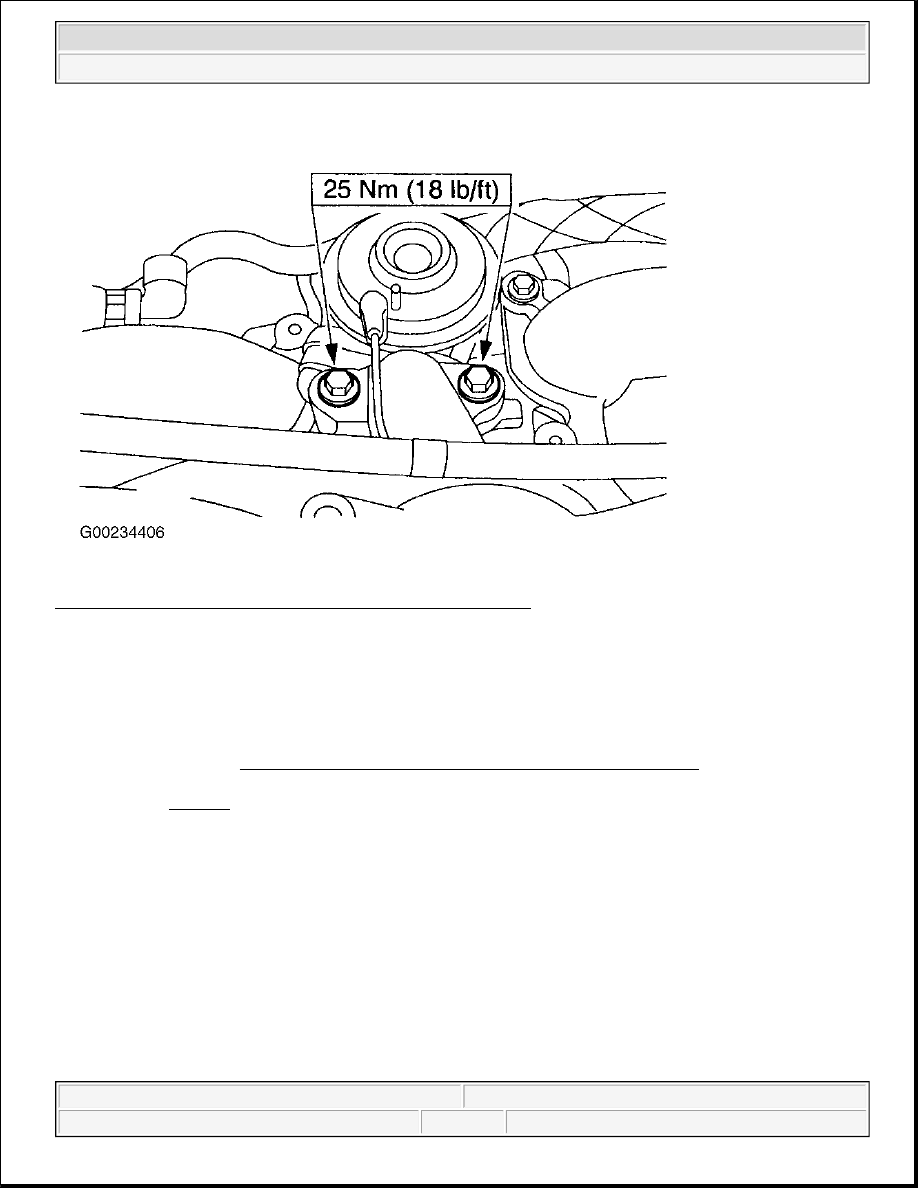

Fig. 150: Locating EGR Valve Adapter Bolts (5.4L Navigator)
Courtesy of FORD MOTOR CO.

EGR VALVE TUBE

Removal & Installation (4.2L)

Disconnect the Differential Pressure Feedback EGR (DPFE) system electrical connector and the wiring harness
pin-type retainer (1). See DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR under SENSORS &
SWITCHES. Remove the system vacuum hoses from the EGR tube (2). Remove the exhaust manifold-to-EGR
valve tube. See Fig. 151 . To install, reverse the removal procedure.
