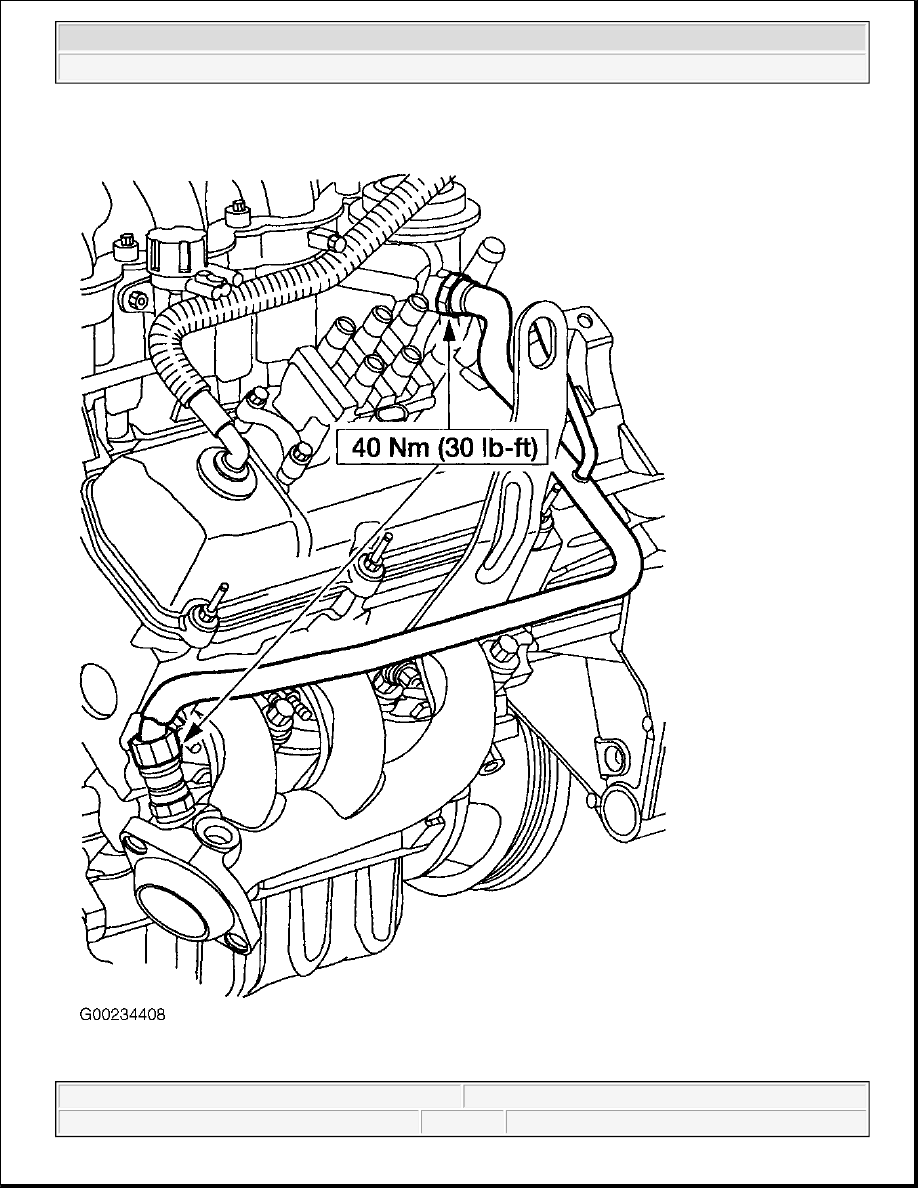

Fig. 151: Locating EGR Valve Tube Nuts (4.2L)
Courtesy of FORD MOTOR CO.

Removal & Installation (4.6L)

Remove appearance cover and bracket, if equipped. Remove the differential pressure feedback EGR sensor. See
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR under SENSORS & SWITCHES. Disconnect
the upper and lower EGR valve tube fittings. See Fig. 152 . Remove the EGR valve tube. To install, reverse the
removal procedure.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline





2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

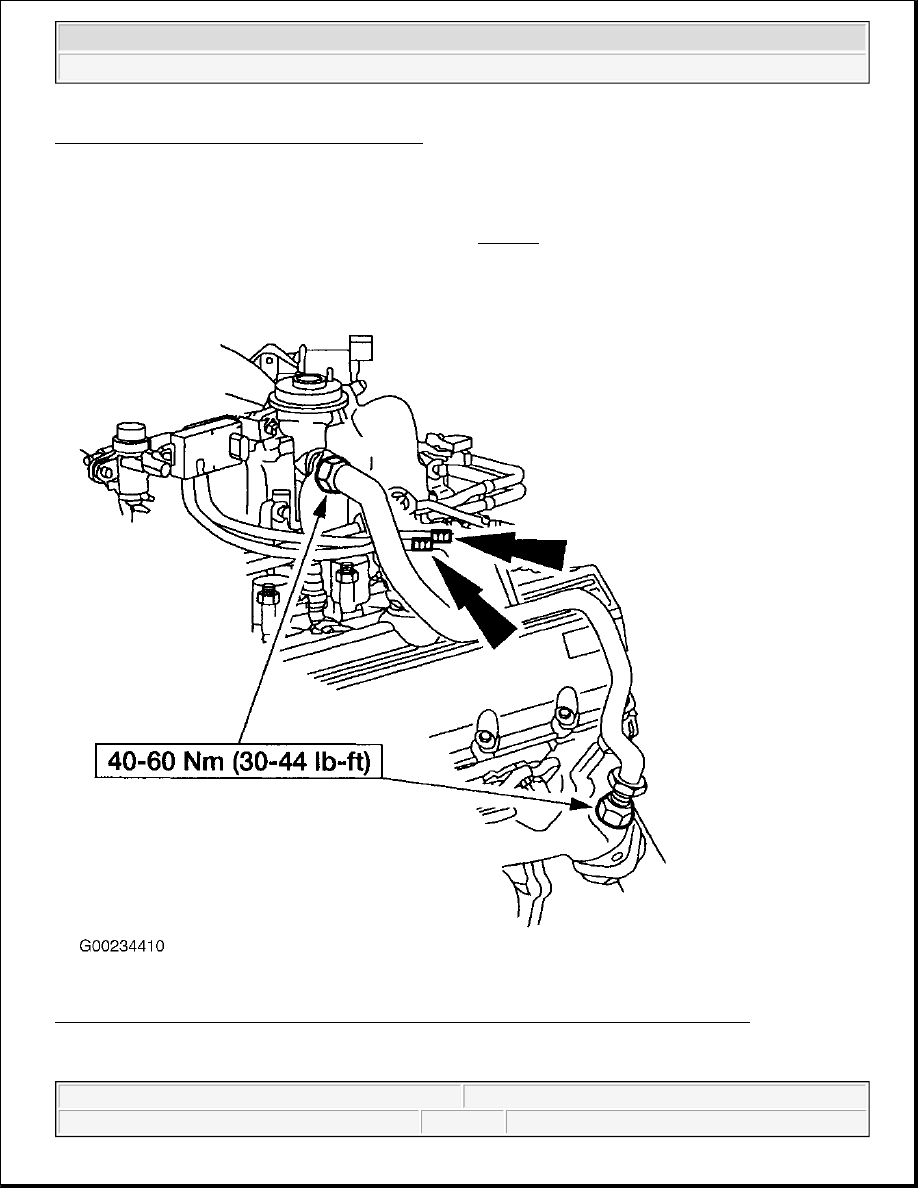

Fig. 152: Locating EGR Valve Tube Nuts (4.6L)
Courtesy of FORD MOTOR CO.

Removal & Installation (5.4L Expedition & F150)

Disconnect the upper and lower EGR valve tube nuts. See Fig. 153 . Disconnect the two differential pressure
feedback EGR hoses. Remove the EGR valve tube. To install, reverse the removal procedure.

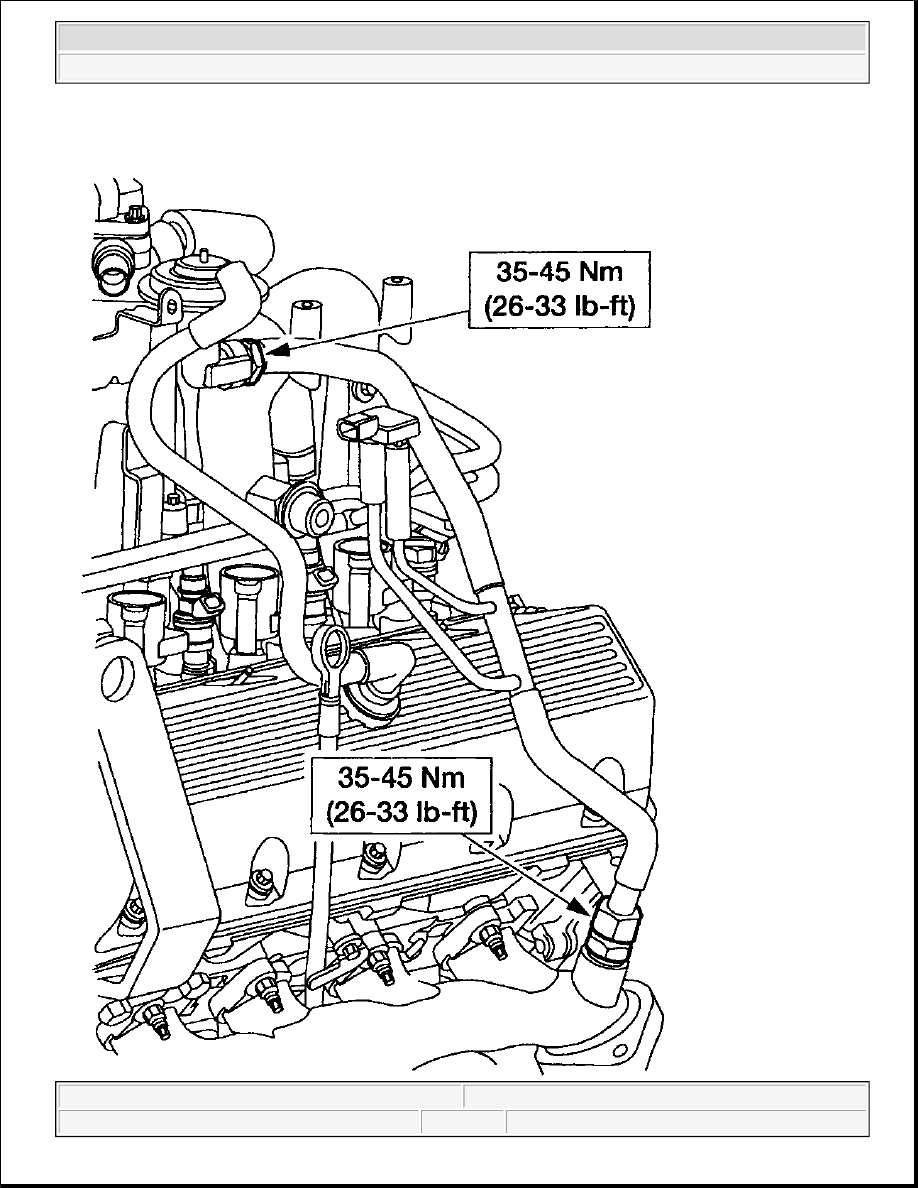

Fig. 153: Locating DPFE Sensor Hoses & EGR Valve Tube Nuts (5.4L Expedition & F150)
Courtesy of FORD MOTOR CO.
