Fig. 135: Removing Canister Bracket Bolts (Blackwood & F150 - 1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



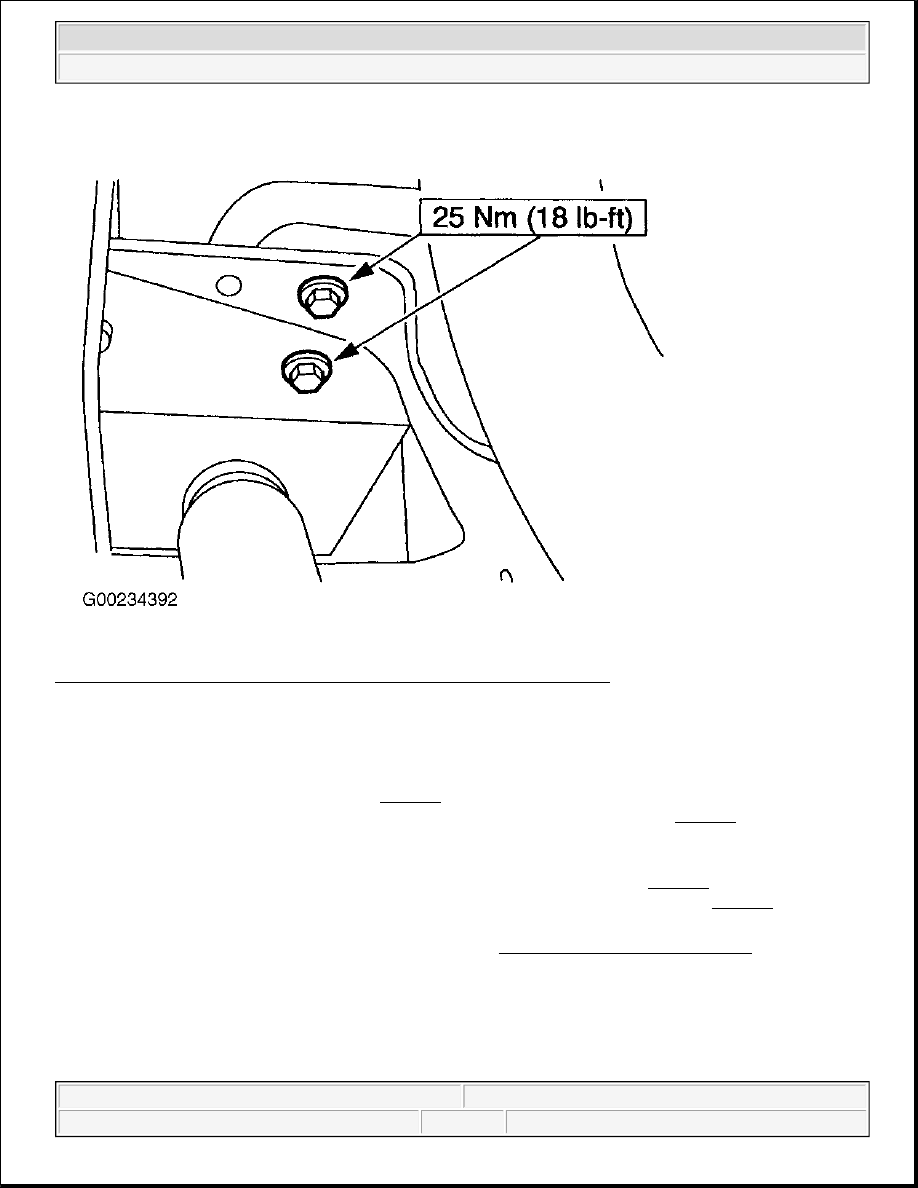

Fig. 136: Removing Canister Bracket Bolts (Blackwood & F150 - 2 Of 2)
Courtesy of FORD MOTOR CO.

Removal & Installation (Expedition & Navigator)

1. Disconnect the battery ground cable. Remove the spare tire. Raise and support the vehicle. Disconnect the

fuel filler pipe remote vapor hose. See Fig. 137 . Disconnect the fuel vapor hoses from the Evaporative
(EVAP) emissions canister. Remove the canister assembly mounting bolts. See Fig. 138 . Remove the
EVAP canister bracket assembly.

2. Disconnect the EVAP canister vent solenoid electrical connector. Place the EVAP canister bracket

assembly on a clean work surface. Remove the vapor connector sleeve. See Fig. 139 . Disconnect the
vapor hose from the EVAP canister vent solenoid. Remove the EVAP canisters. See Fig. 140 .

3. To install, reverse removal procedure. Lubricate all "O" rings with MERPOL(R) "O" ring Seal Lubricant

before installation. Perform after repair procedure. See AFTER REPAIR PROCEDURE .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



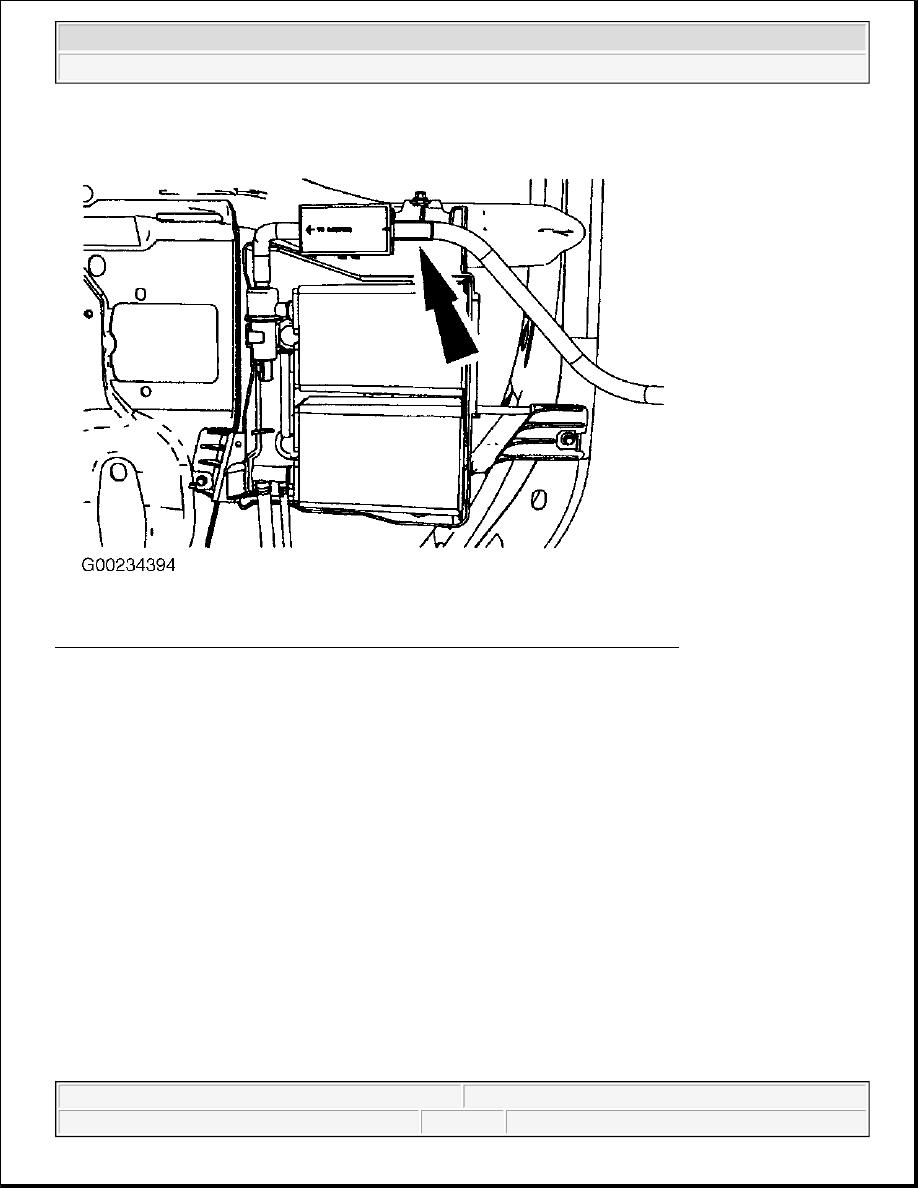

Fig. 137: Locating Fuel Filler Pipe Remote Vapor Hose (Expedition & Navigator)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



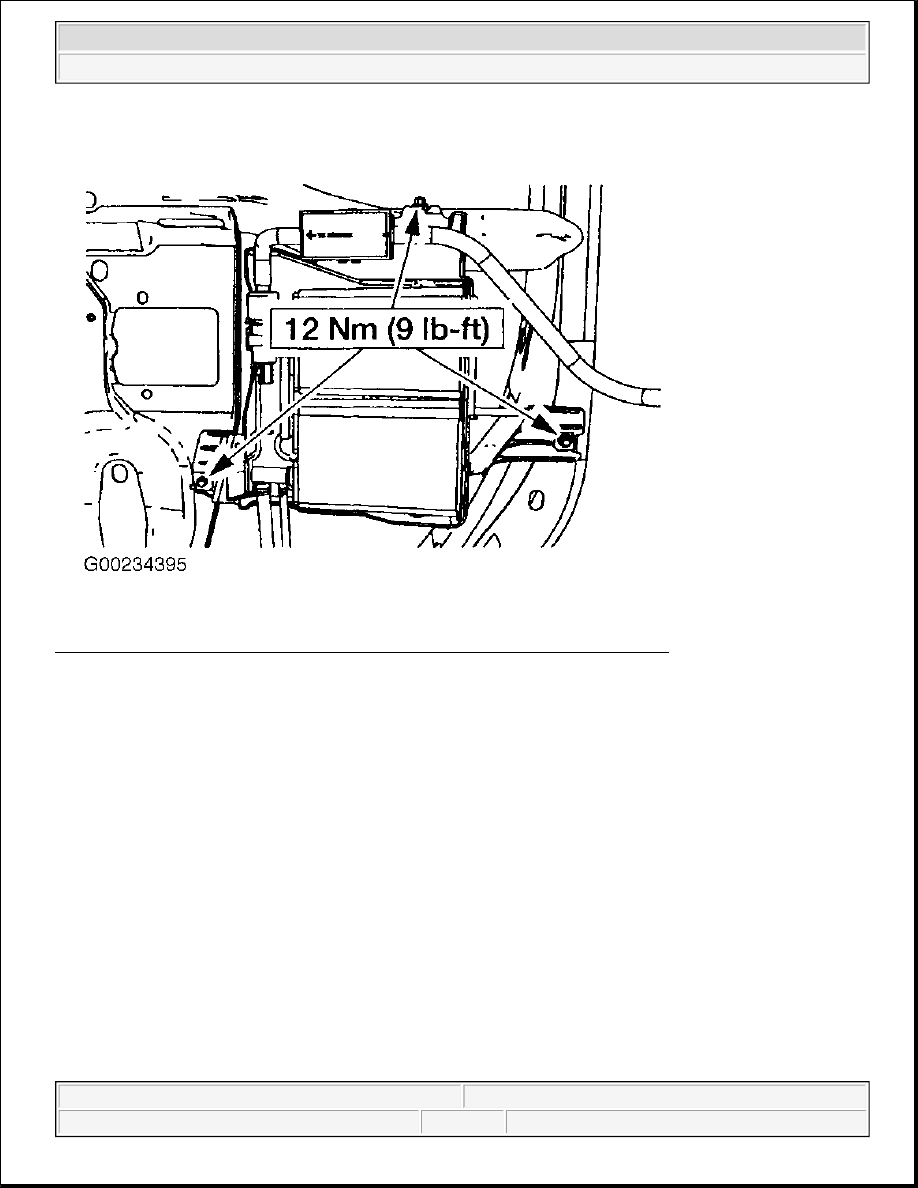

Fig. 138: Locating Canister Assembly Mounting Bolts (Expedition & Navigator)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline
