Ford F150 Pickup. Instruction - part 131

Fig. 79: Removing Watershield
Courtesy of FORD MOTOR CO.

4. Position the lower rear door latch outside of the door.

1. Remove the screws.

2. Position the lower rear door latch outside of the door.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 80: Removing Screws And Positioning Lower Rear Door Latch
Courtesy of FORD MOTOR CO.

5. Remove the lower rear door latch.

z

Disconnect the cable and conduit.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 81: Identifying Rear Door Latch Cable And Conduit
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

z

If necessary, use Multi-Purpose Grease Spray F5AZ-19G209-AA or equivalent meeting Ford
specification ESR-M1C159-A to lubricate the latches.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

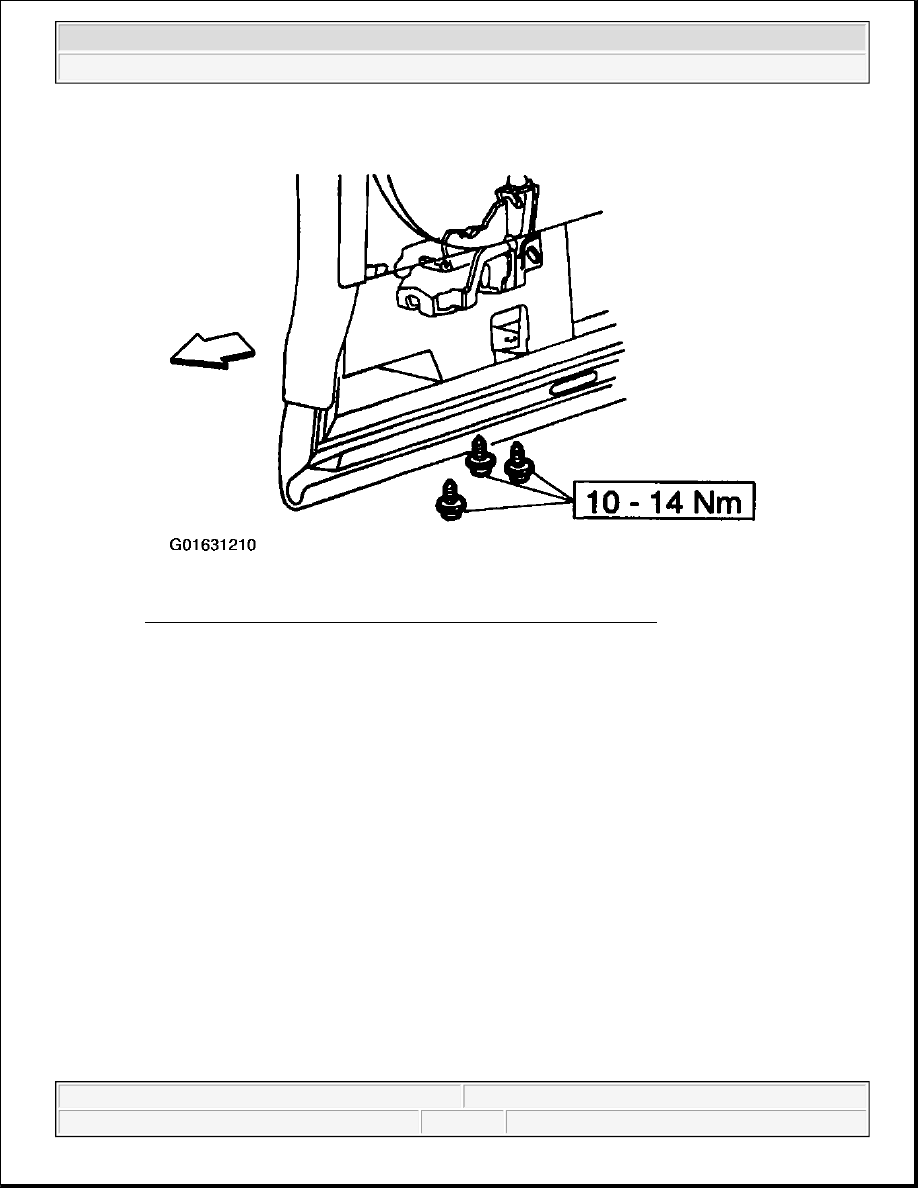

Fig. 82: Installing Screws And Positioning Lower Rear Door Latch
Courtesy of FORD MOTOR CO.
