Ford F150 Pickup. Instruction - part 1303

Fig. 77: Removing IAT Sensor (Intake Manifold Sensor)
Courtesy of FORD MOTOR CO.

KNOCK SENSOR

Removal & Installation (4.2L)

Remove knock sensor from rear of left cylinder head. See Fig. 78 . To install, reverse removal procedure.
Tighten knock sensor to specification. See TORQUE SPECIFICATIONS .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

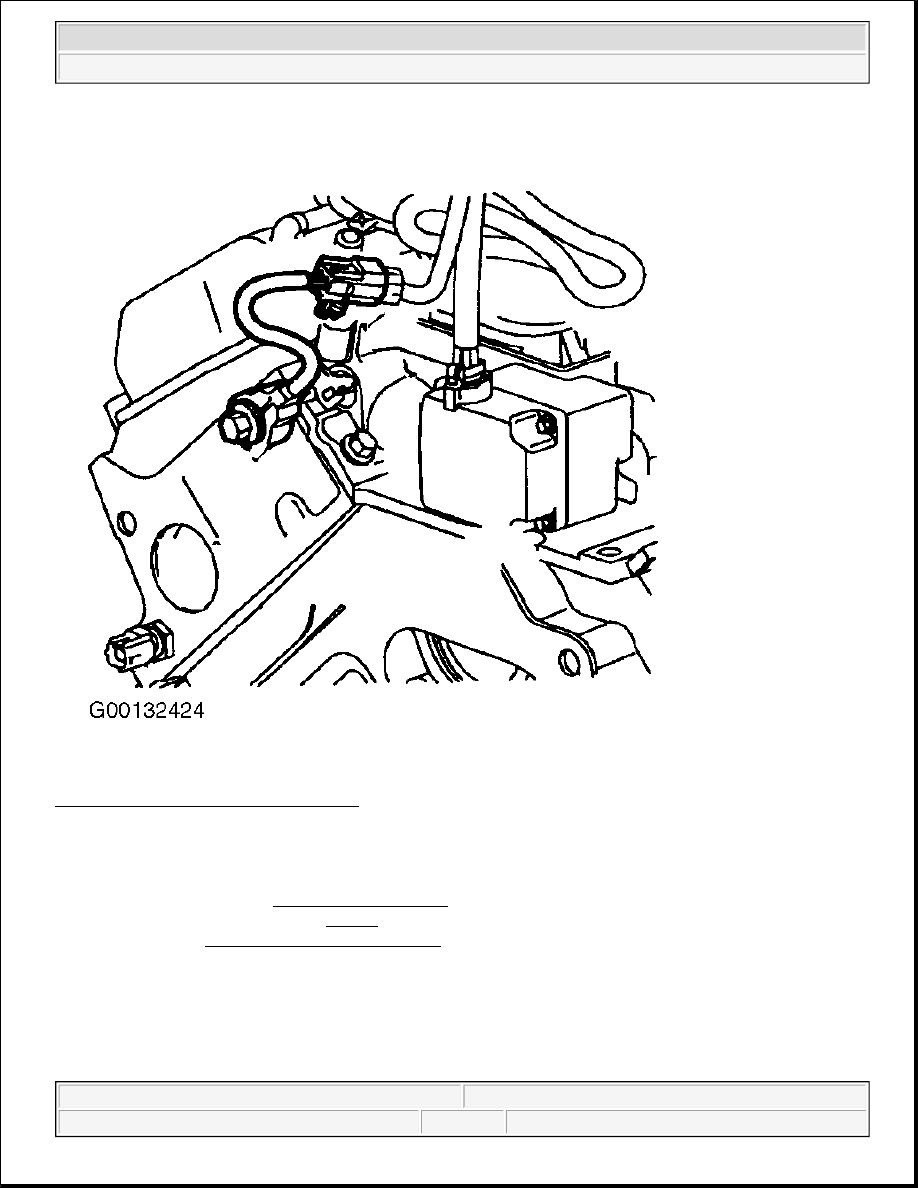

Fig. 78: Removing Knock Sensor (4.2L)
Courtesy of FORD MOTOR CO.

Removal & Installation (4.6L & 5.4L)

Remove intake manifold. See INTAKE MANIFOLD under AIR INDUCTION SYSTEMS. Remove knock
sensor from engine block valley. See Fig. 79 . To install, reverse removal procedure. Tighten knock sensor bolt
to specification. See TORQUE SPECIFICATIONS .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

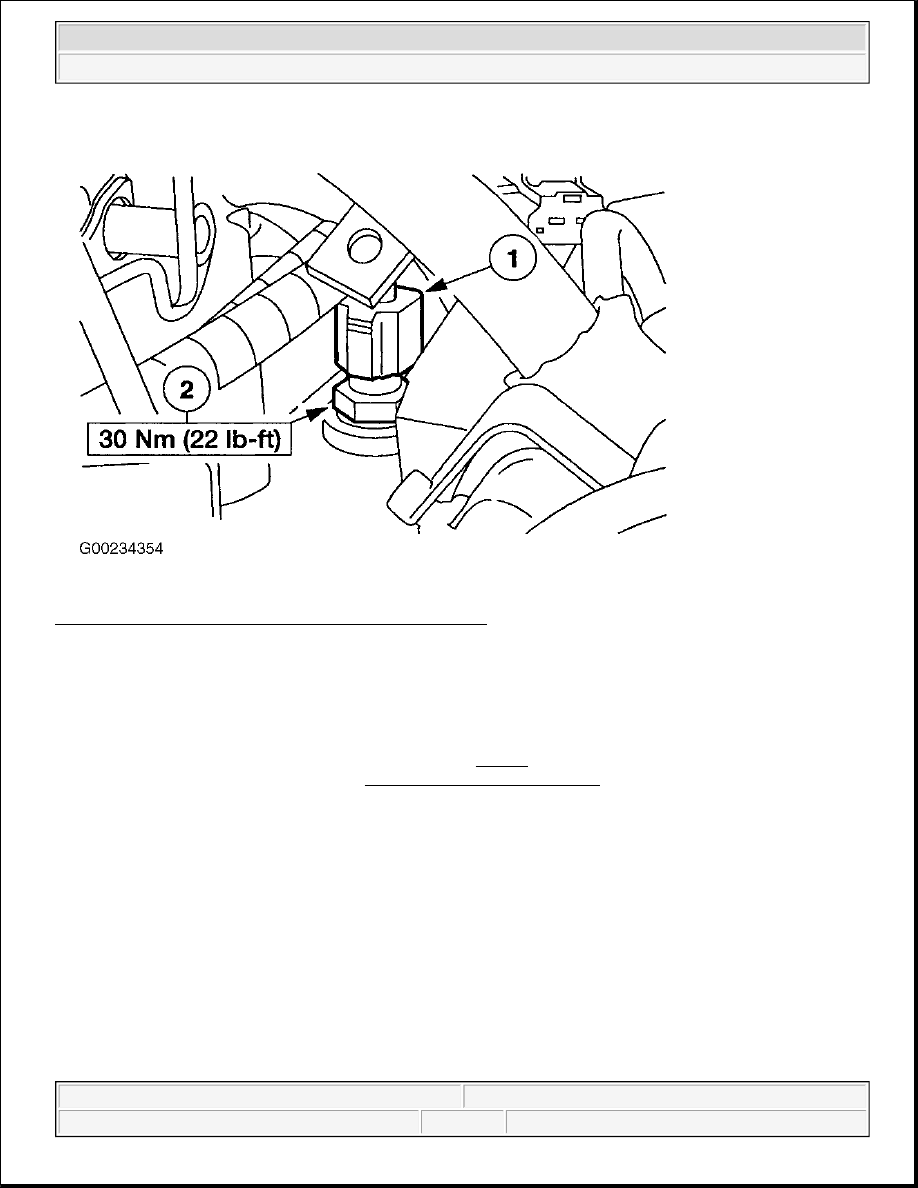

Fig. 79: Removing Knock Sensor (4.6L & 5.4L)
Courtesy of FORD MOTOR CO.

MASS AIRFLOW SENSOR

Removal & Installation (Except Supercharged)

1. Disconnect the battery ground cable. Open the engine air cleaner. Disconnect the MAF sensor electrical

connector from the wiring harness. Release the air cleaner clamp. Separate the inlet side of the air cleaner
from the outlet side of the air cleaner.

CAUTION: Do not cut the MAF sensor wires when cutting the tape on the wire

loom.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



2. Cut the tape on the wire loom of the extension harness. Peel back the wire loom from the extension

harness near the grommet in the air cleaner. Remove the grommet from the outlet side of the air cleaner
and slide the grommet down the extension harness. Remove the MAF sensor plate and MAF sensor from
the outlet side of the engine air cleaner. See Fig. 80 . Disconnect the MAF sensor electrical connector.
Remove the nuts and separate the MAF plate from the MAF sensor.

3. Use the alignment notch to properly align the inlet side and the outlet side of the engine air cleaner. To

install, reverse the removal procedure.

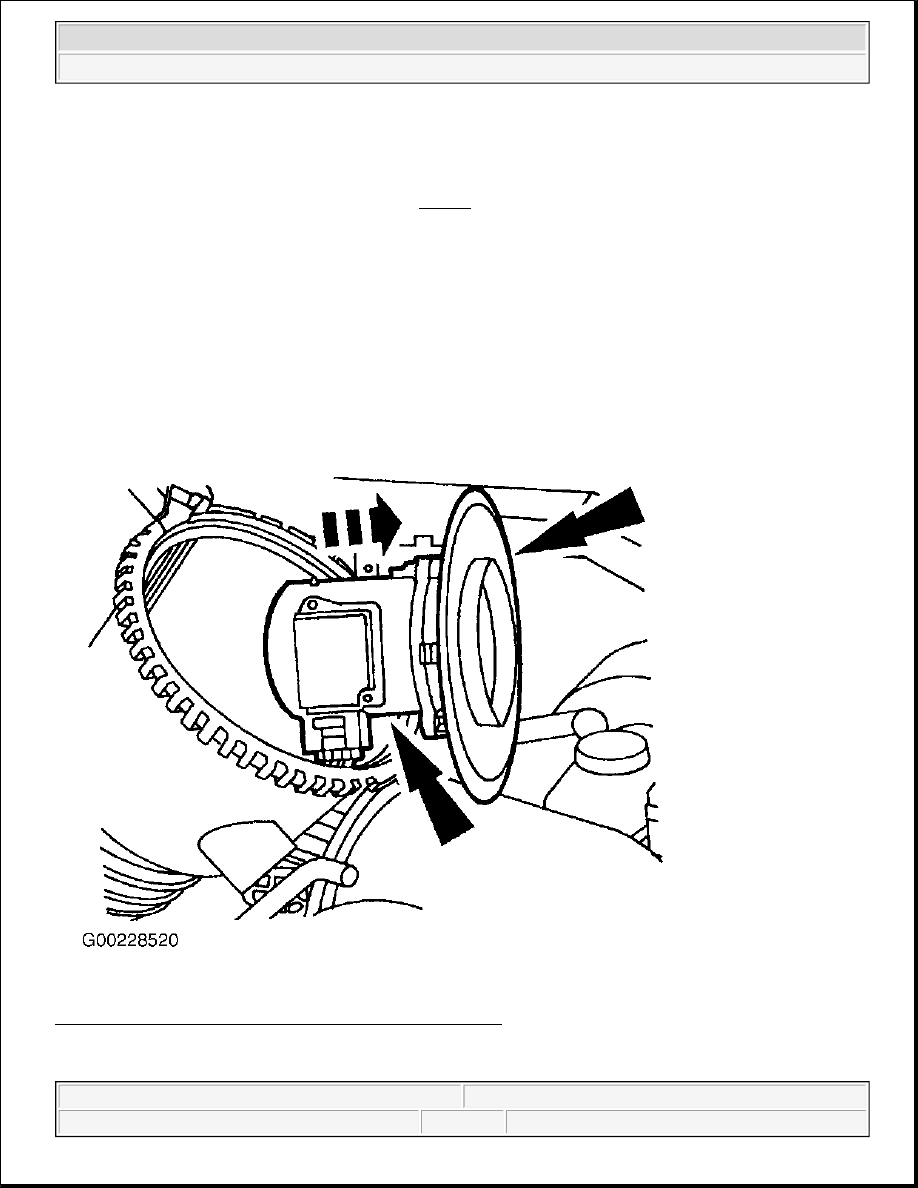

Fig. 80: Removing MAF Assembly (Except Supercharged)
Courtesy of FORD MOTOR CO.

Removal & Installation (Supercharged)

NOTE:

The grommet used to seal the engine air cleaner housing at the extension
harness must be fully seated. Failure to do so will result in unmetered air
entering the engine. The MAF sensor module and body are calibrated and
replaced as a unit.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline
