Ford F150 Pickup. Instruction - part 1295

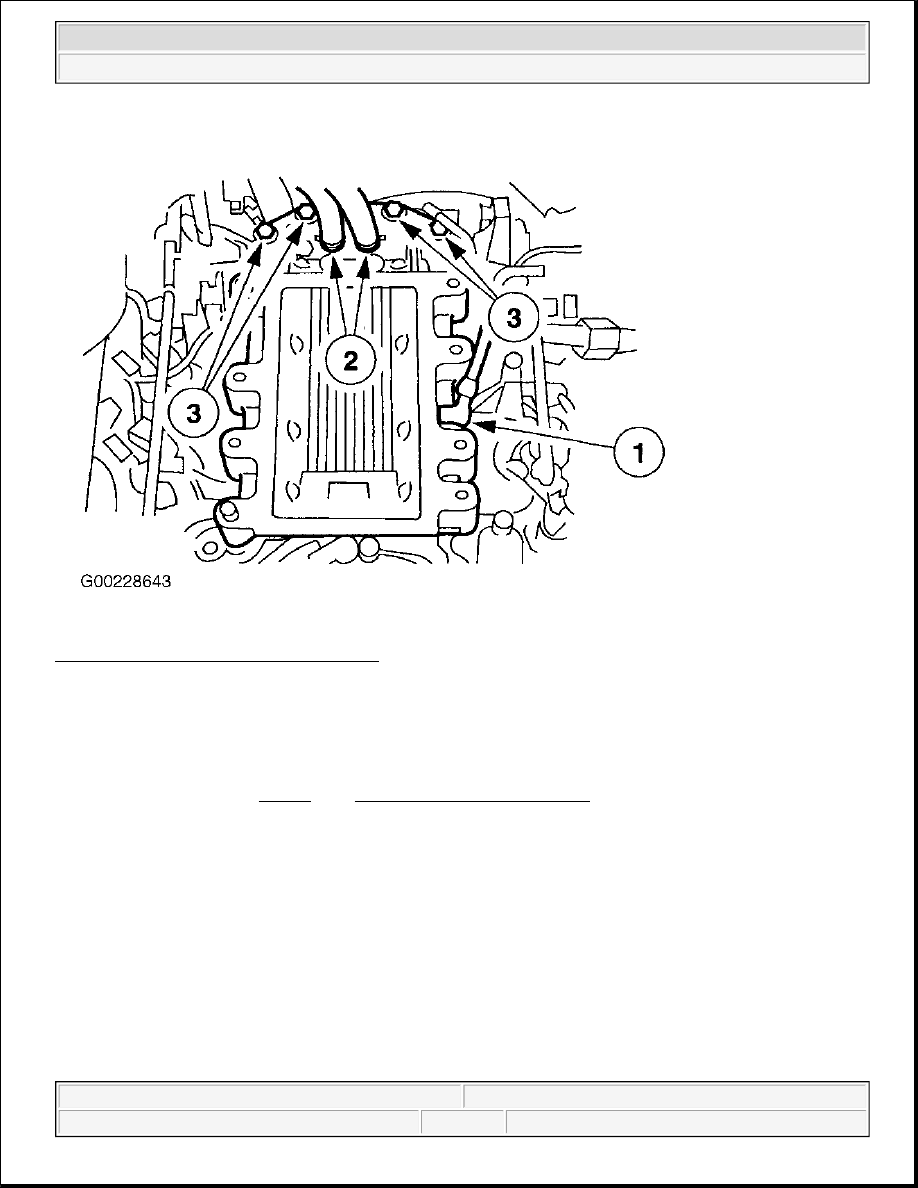

Fig. 47: Locating EVR Bracket Bolts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

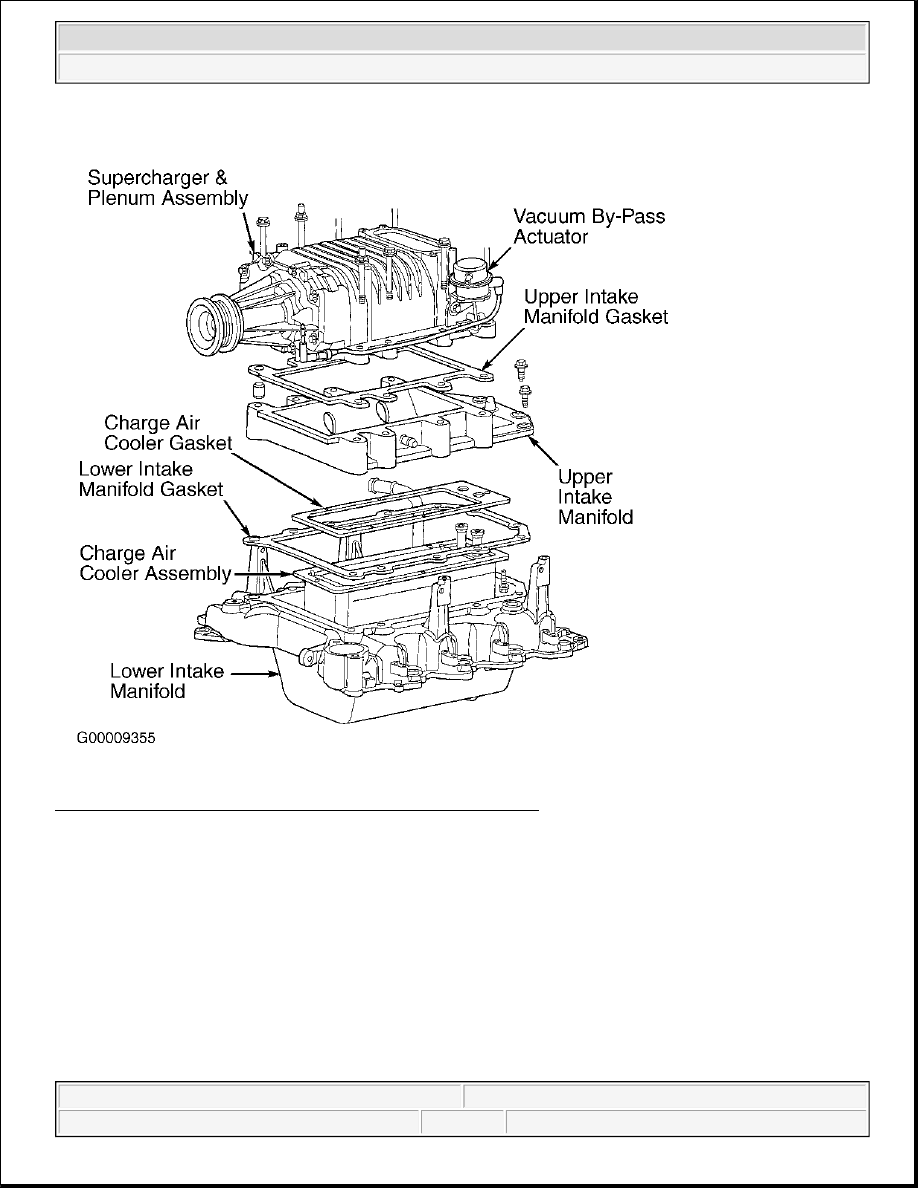

Fig. 48: Exploded View Of Supercharger & Intercooler System
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



Fig. 49: Removing Upper Intake Manifold
Courtesy of FORD MOTOR CO.

Installation

Using new gaskets and bolts, install charge air cooler. Install upper intake manifold and 4 rear bolts loosely.
Connect vacuum hose and charge air cooling hoses to upper intake manifold. Install supercharger and plenum.
Torque bolts in 2 steps. See Fig. 50 . See TORQUE SPECIFICATIONS . To complete installation, reverse
removal procedure. Fill and bleed charge air cooling system.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

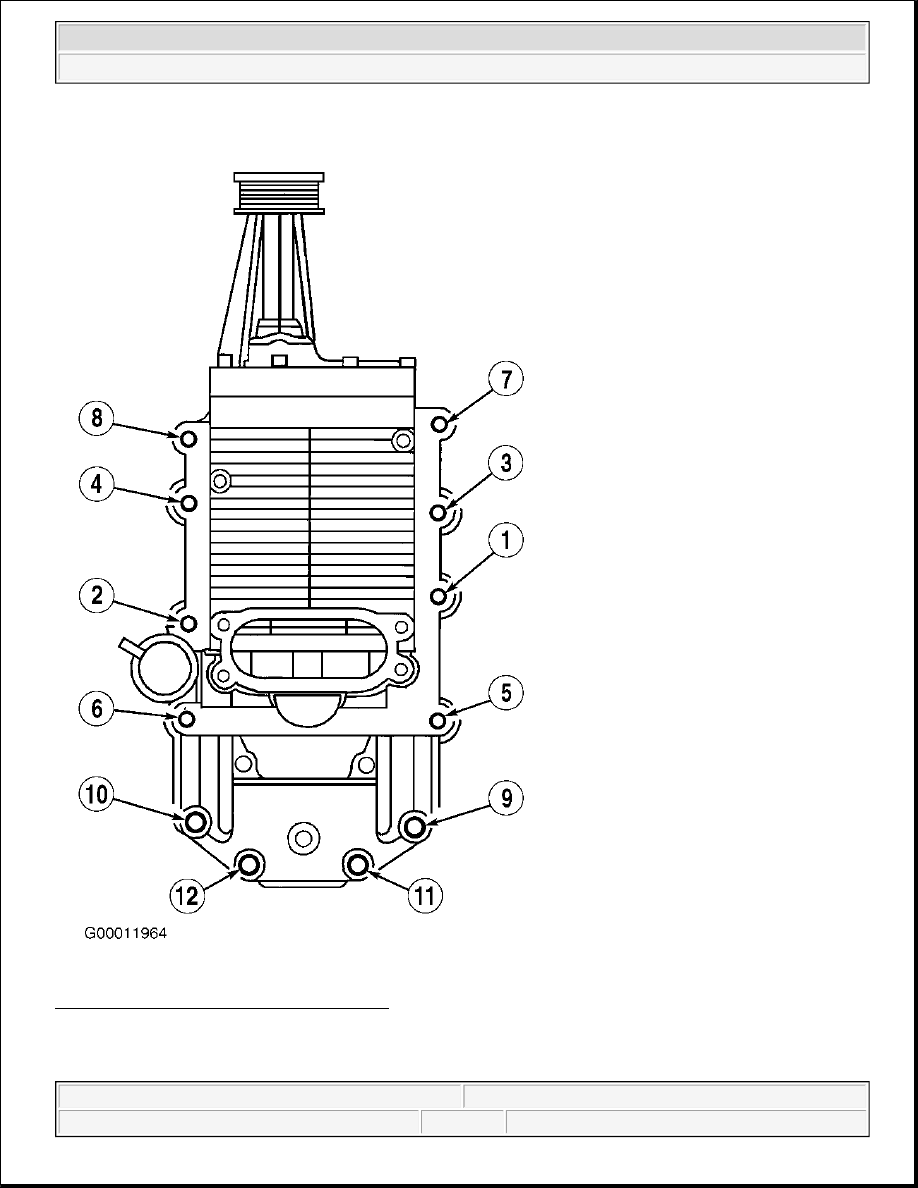

Fig. 50: Supercharger Tightening Sequence
Courtesy of FORD MOTOR CO.
