Ford F150 Pickup. Instruction - part 1263

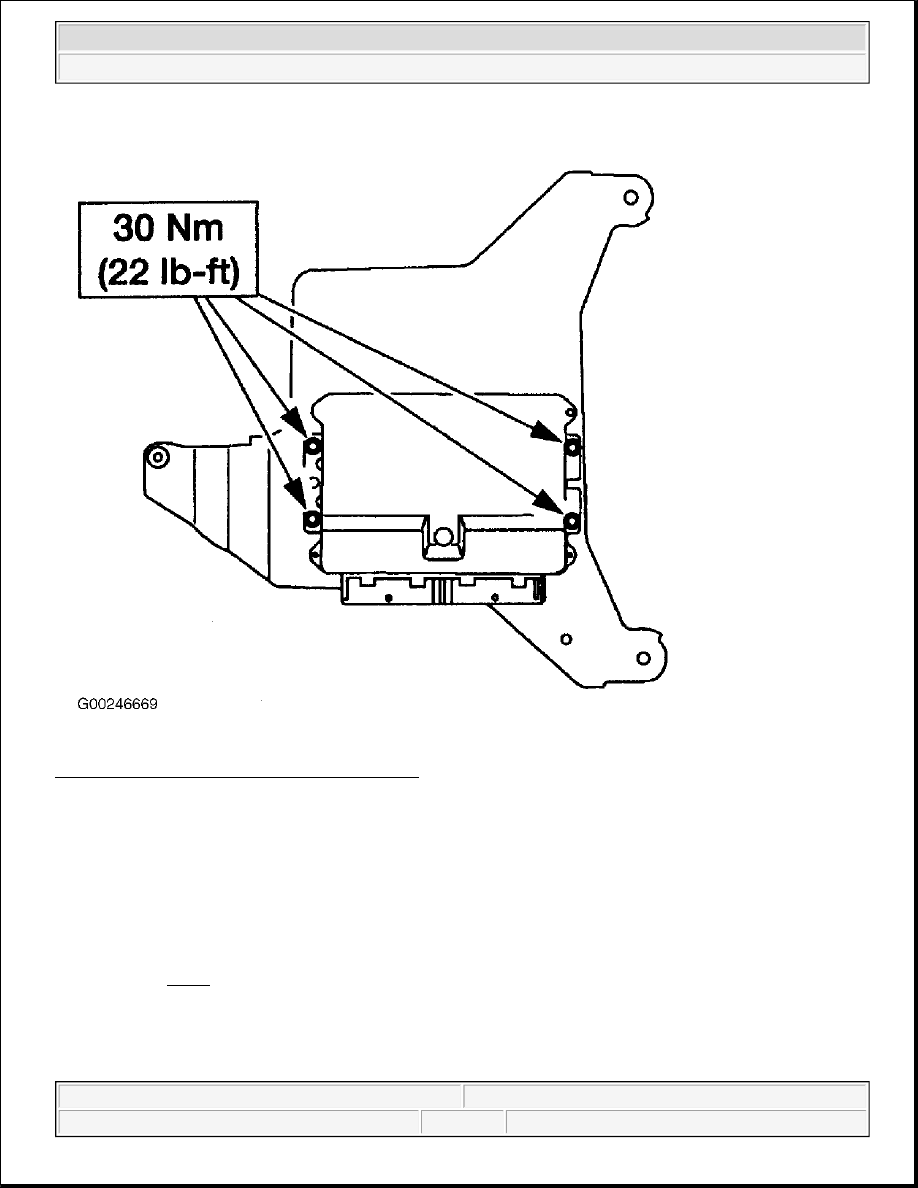

Fig. 5: Locating AFCM Attaching Bolts & Nuts
Courtesy of FORD MOTOR CO.

SENSORS & SWITCHES

FUEL RAIL PRESSURE SENSOR

Removal & Installation

The fuel rail pressure sensor is mounted in fuel rail. The manufacturer does not provide a procedure to replace
the sensor. See Fig. 6 .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/CNG



Fig. 6: Locating Fuel Rail Pressure Sensor
Courtesy of FORD MOTOR CO.

FUEL RAIL TEMPERATURE SENSOR

Removal & Installation

The fuel rail temperature sensor is mounted in fuel rail. The manufacturer does not provide a procedure to
replace the sensor. See Fig. 7 .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/CNG



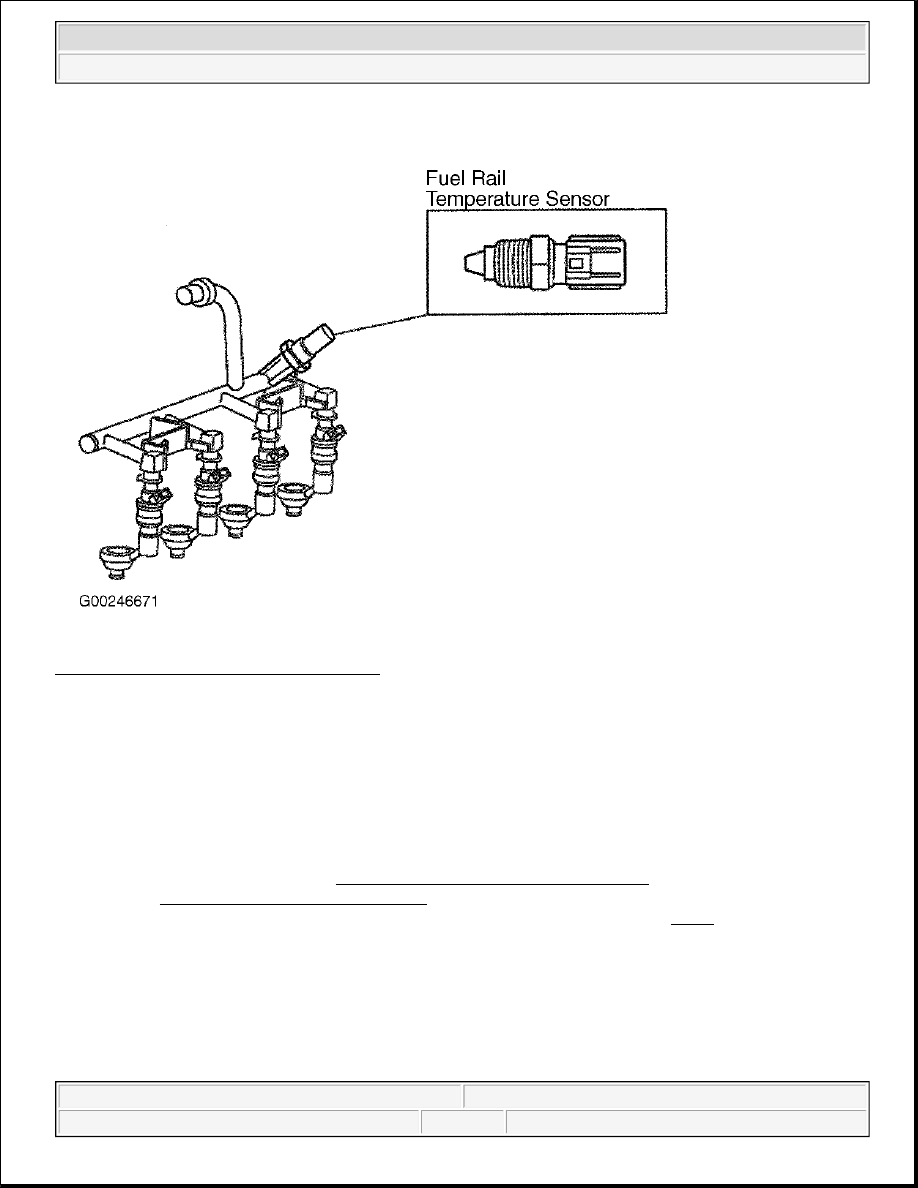

Fig. 7: Locating Fuel Rail Pressure Sensor
Courtesy of FORD MOTOR CO.

FUEL TANK PRESSURE SENSOR

Removal & Installation

Release system and tank pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove fuel pressure
regulator. See FUEL PRESSURE REGULATOR under FUEL SYSTEMS. Disconnect FTP sensor electrical
connector. Remove FTP sensor using Fuel Pressure Sensor Socket (164-R0907). See Fig. 8 . To install, reverse
removal procedure.

NOTE:

Always replace Fuel Tank Pressure (FTP) sensor and spacer "O" rings.
Lubricate FTP sensor and spacer "O" rings with 5W-30 engine oil.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/CNG



Fig. 8: Removing Fuel Tank Pressure Sensor
Courtesy of FORD MOTOR CO.

FUEL TANK TEMPERATURE SENSOR

Removal & Installation

Disconnect the electrical connector. Remove the epoxy coating (1). See Fig. 9 . Make sure not to increase the
exposed metal surface area when removing the epoxy coating. Remove the fuel tank temperature sensor (2).
Clean surface area where the sensor is to be mounted. Epoxy fuel tank temperature sensor in place on fuel tank.

NOTE:

Numbers in parenthesis refer to numbers in illustration.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/CNG
