Ford F150 Pickup. Instruction - part 1249

Fig. 92: 6.8L Pickup (M/T) - Inputs
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

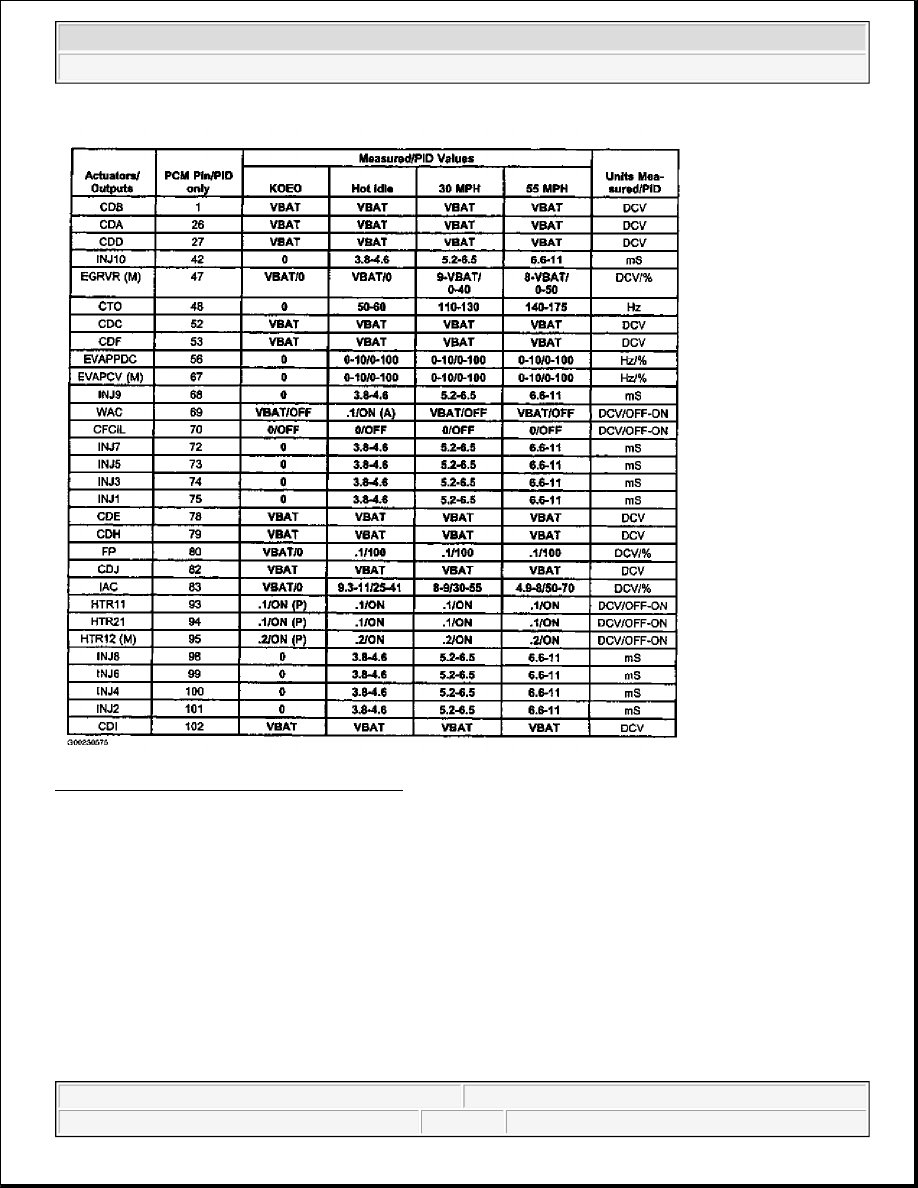

Fig. 93: 6.8L Pickup (M/T) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 94: 6.8L Pickup (M/T) - Outputs (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 95: 6.8L Pickup (M/T) - Other
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 96: 6.8L Pickup (M/T) - Generic OBD-II Values
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG
