Fig. 86: 6.8L Econoline & Pickup (A/T) - Inputs (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 87: 6.8L Econoline & Pickup (A/T) - Inputs (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 88: 6.8L Econoline & Pickup (A/T) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

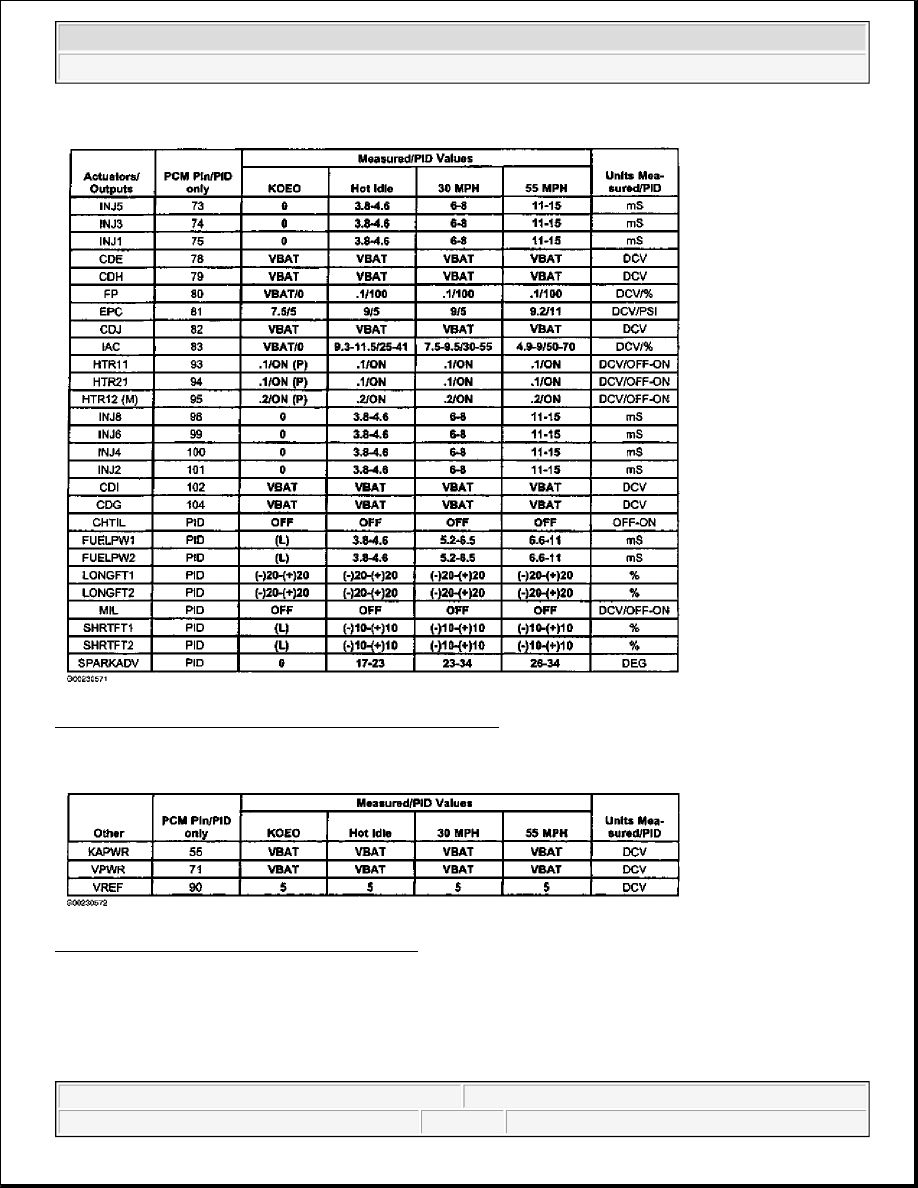

Fig. 89: 6.8L Econoline & Pickup (A/T) - Outputs (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 90: 6.8L Econoline & Pickup (A/T) - Other
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

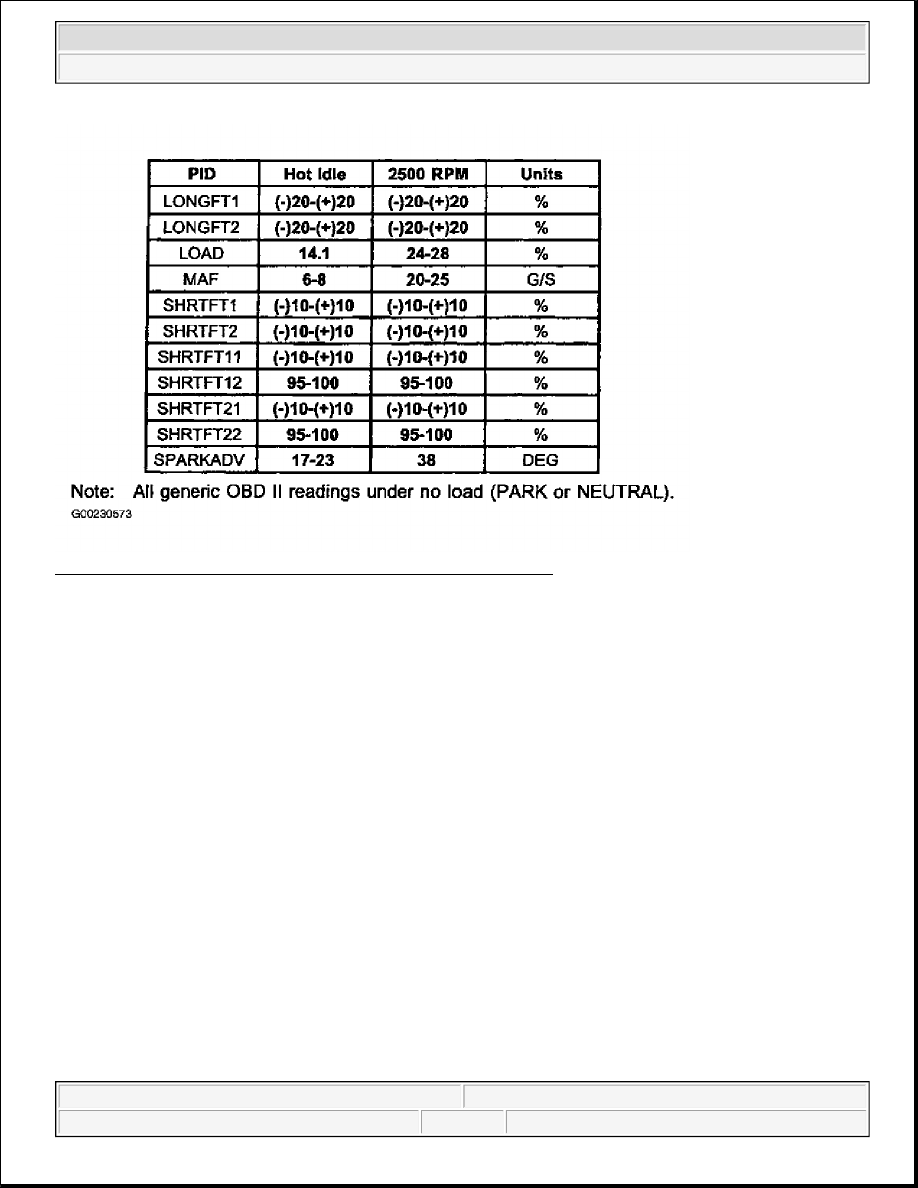

Fig. 91: 6.8L Econoline & Pickup (A/T) - Generic OBD-II Values
Courtesy of FORD MOTOR CO.

Typical Diagnostic Reference Value Charts - 6.8L Pickup (M/T)
