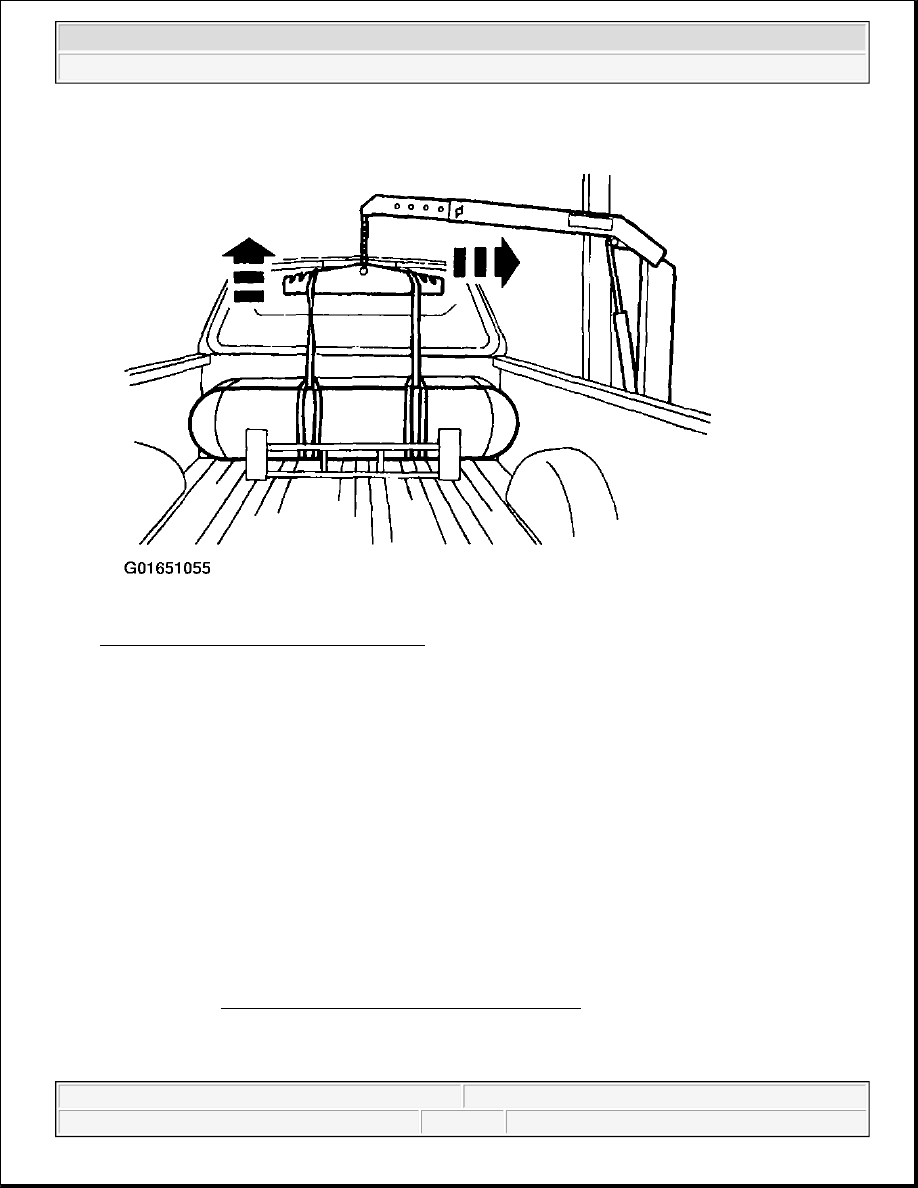

Fig. 45: Positioning Heavy Duty Floor Crane, Separator Lift Bar And Endless Lifting Slings
Courtesy of FORD MOTOR CO.

NOTE:

Use extra care so that the sensors are not damaged during removal.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



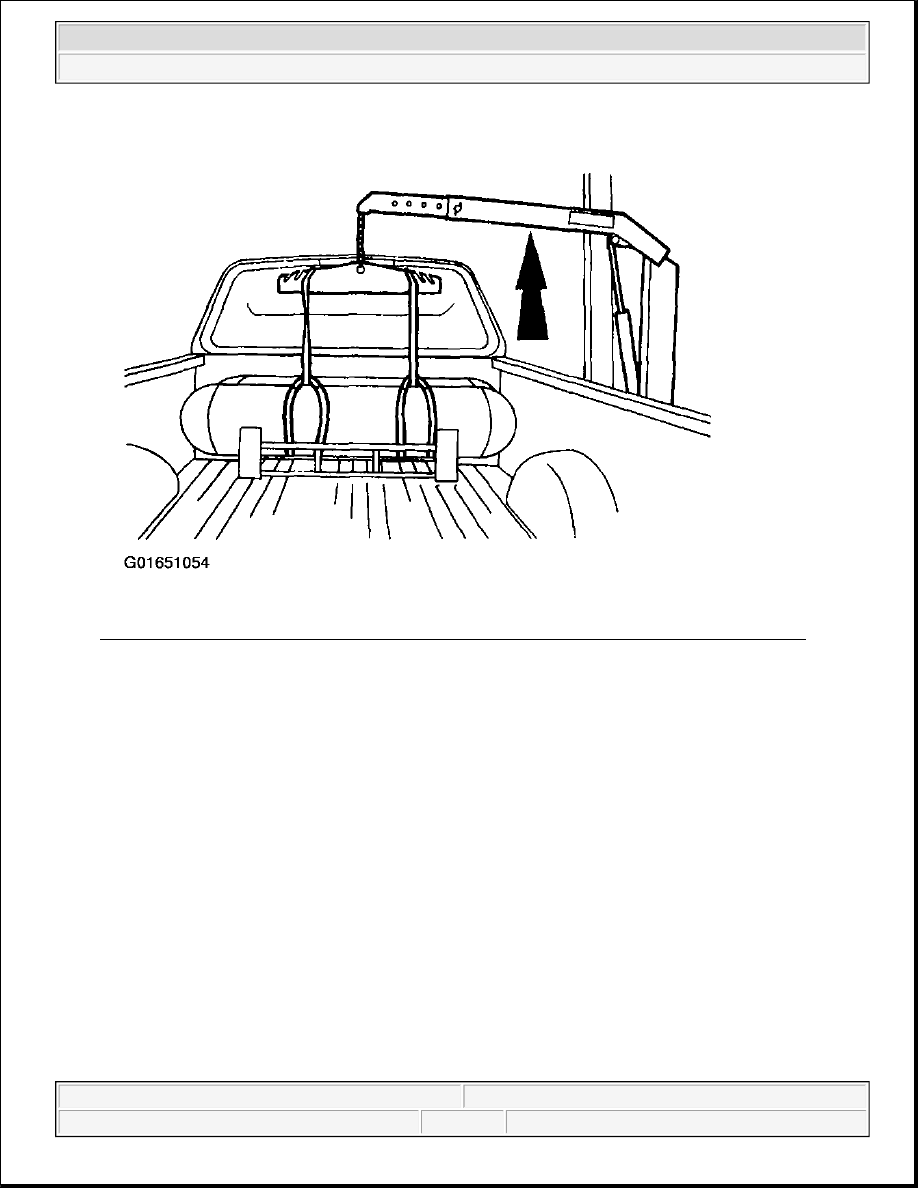

Fig. 46: Removing Rear In-Bed Fuel Tank
Courtesy of FORD MOTOR CO.

9. Carefully raise and remove the rear in-bed fuel tank.

Installation

1. Follow the removal procedure in reverse order.

z

Align the identification marks on the upper in-bed fuel tank straps and tank.

NOTE:

Replace the fuel line O-ring seals.

NOTE:

Lubricate the fuel line O-ring seals with 5W3O engine oil meeting Ford
specification WSS-M2C153-G or equivalent prior to installation, to help
seal and ease the installation.

NOTE:

When tightening the fuel line, a torque wrench adapter must be used with
the torque wrench. The use of a torque wrench adapter will alter the
effective torque of the torque wrench being used. To correct the effective
torque, a torque multiplication conversion must be used; Refer to
TORQUE MULTIPLICATION CONVERSION .



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



z

Make sure that the electrical connectors are fully installed and locked in place to ensure a water-
tight seal.

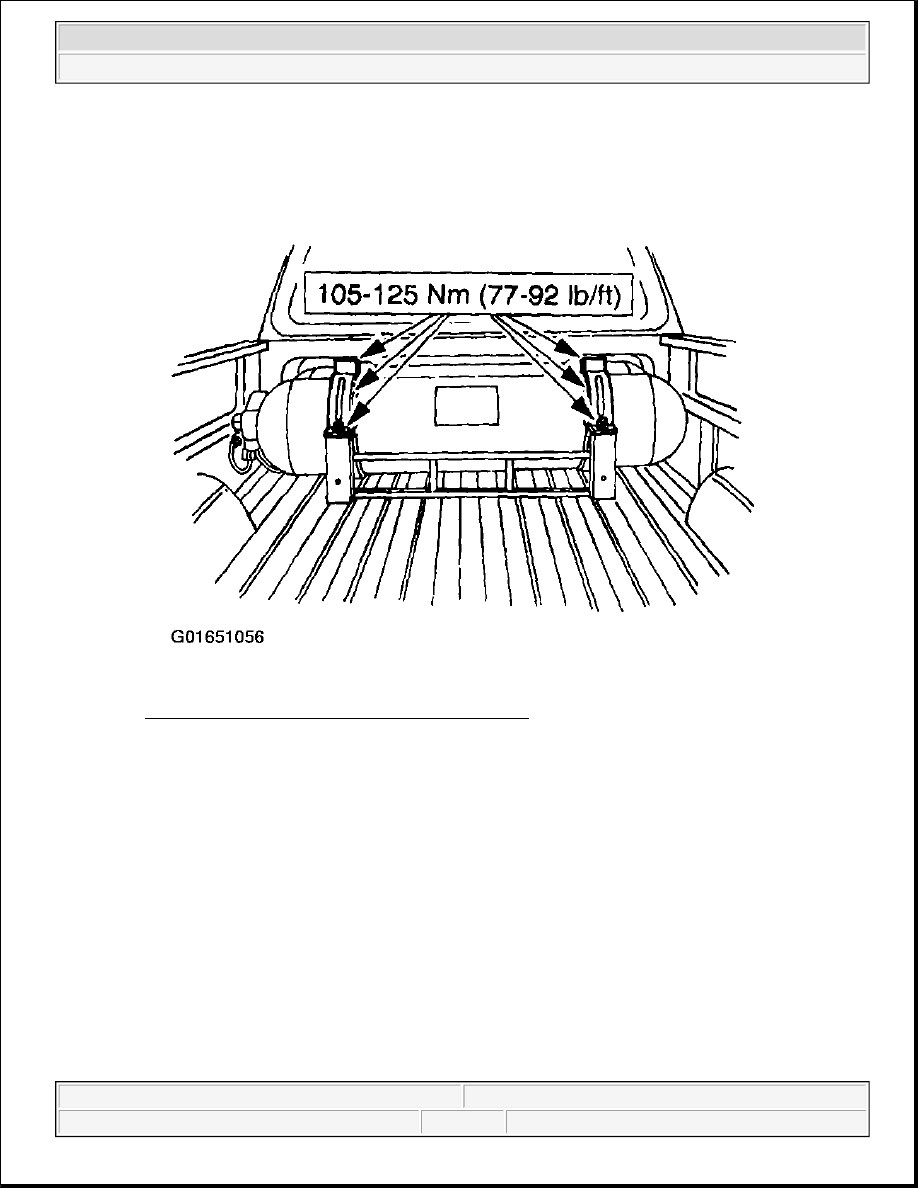

Fig. 47: Installing Upper In Bed Fuel Tank Straps
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



Fig. 48: Connecting Fuel Tank Assembly Solenoid Valves
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup
