Ford F150 Pickup. Instruction - part 1197

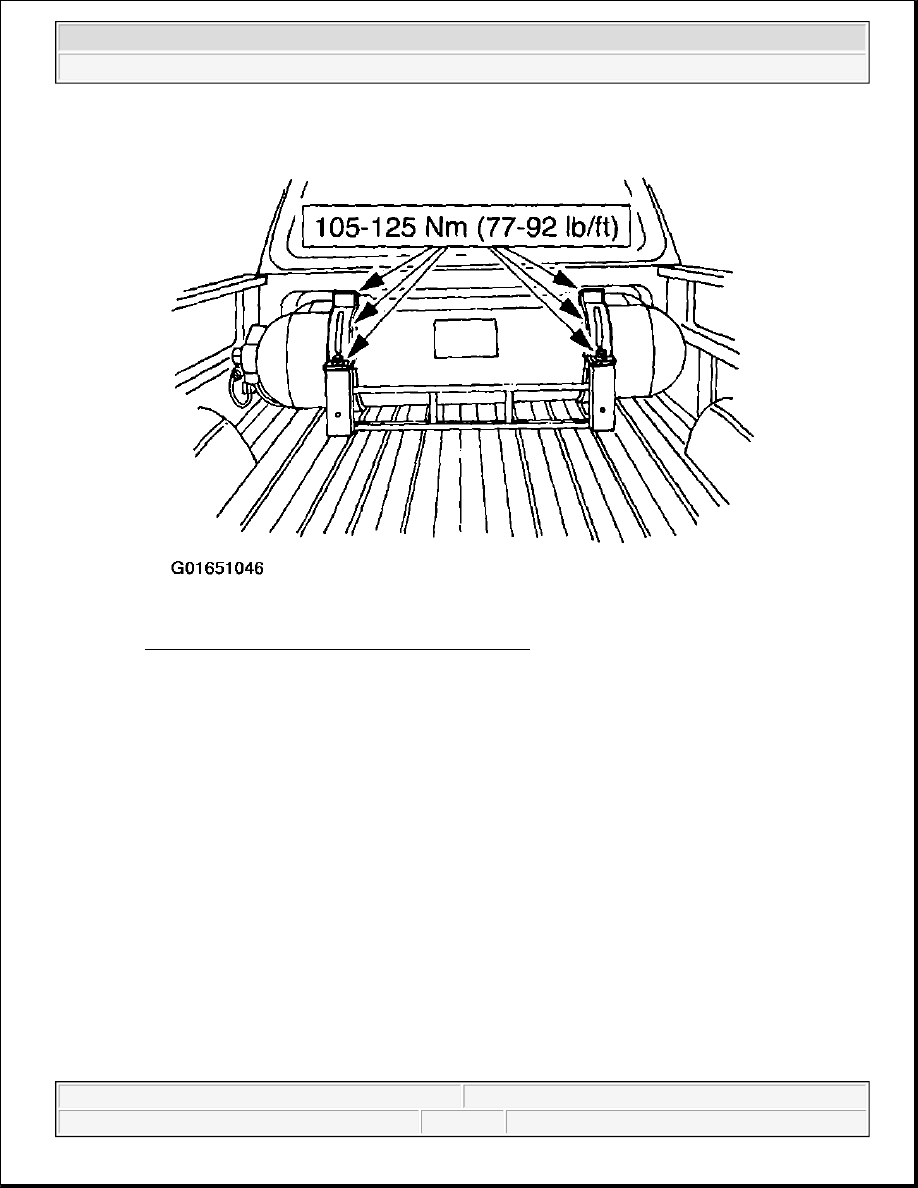

Fig. 37: Installing Upper In-Bed Fuel Tank Straps
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

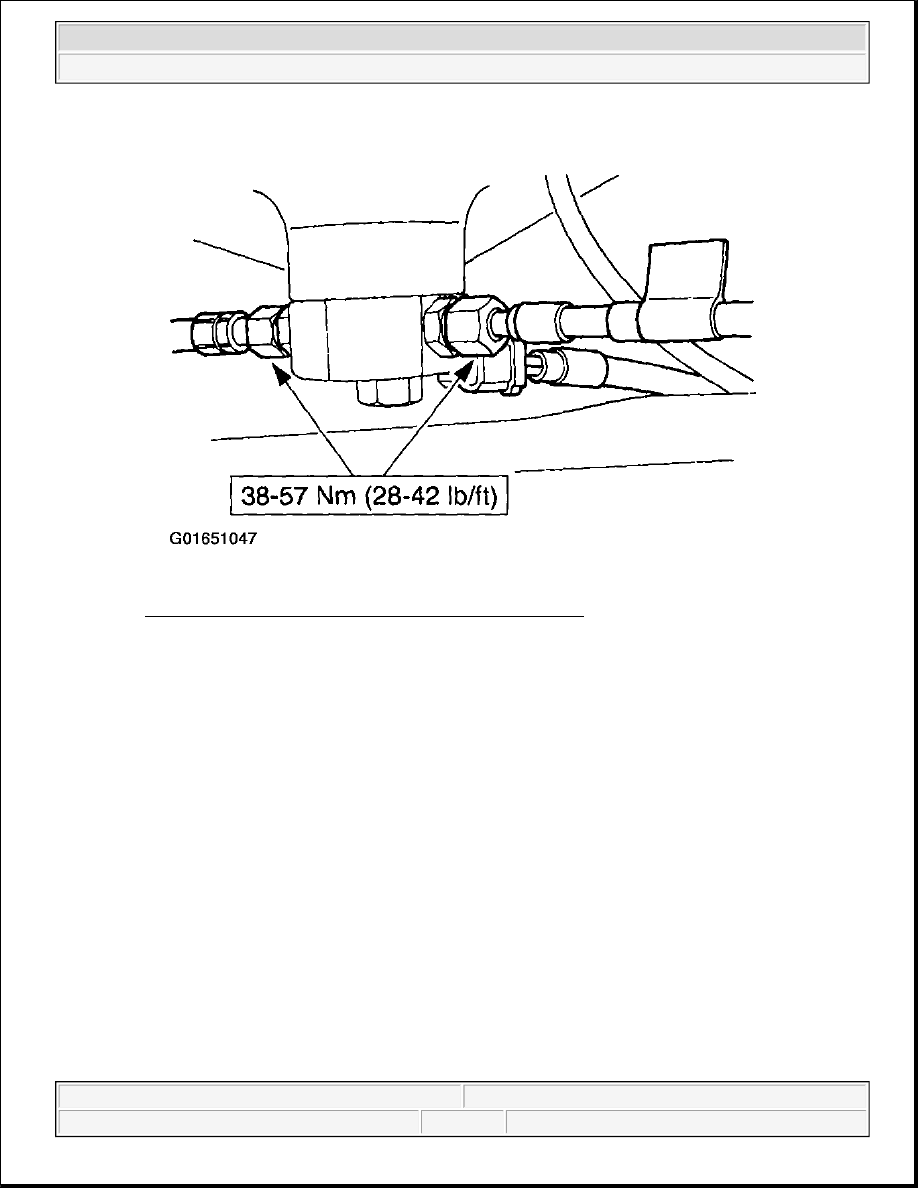

Fig. 38: Connecting Fuel Tank Assembly Solenoid Valves
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



Fig. 39: Installing In Bed Tank Assembly Cover
Courtesy of FORD MOTOR CO.

2. Perform the fuel system leak test procedure; Refer to FUEL SYSTEM LEAK TEST .

TANK - REAR IN-BED

Special Tool(s)



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



Fig. 40: Identifying Special Tools
Courtesy of FORD MOTOR CO.

Removal

1. Turn in the instruction lockdown valve jackscrew on the front in-bed fuel tank solenoid valve.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup
