Ford F150 Pickup. Instruction - part 1195

Fig. 29: Installing Inboard Stone Shield Retaining Nut
Courtesy of FORD MOTOR CO.

2. Perform the fuel system leak test procedure; Refer to FUEL SYSTEM LEAK TEST .

TANK - FORWARD IN-BED

Special Tool(s)



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



Fig. 30: Identifying Special Tools
Courtesy of FORD MOTOR CO.

Removal

1. Turn in the instruction lockdown valve jackscrew on the rear in-bed fuel tank solenoid valve.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



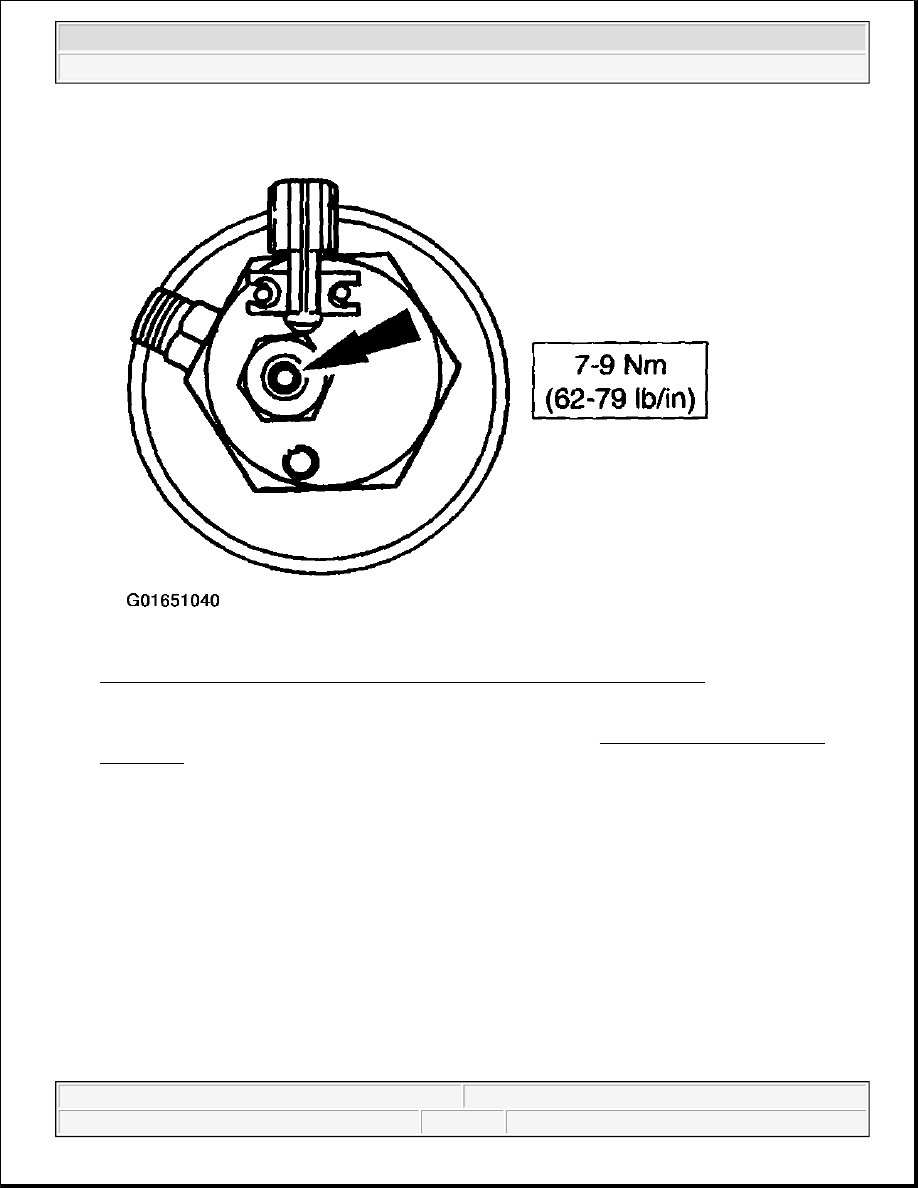

Fig. 31: Identifying Tightening Torque Of Instruction Lockdown Valve Jackscrew
Courtesy of FORD MOTOR CO.

2. Perform the Pressure Relief - Fuel Tank Venting procedure; Refer to FUEL SYSTEM PRESSURE

RELEASE .

3. Disconnect the battery ground cable.

4. Remove the in-bed tank assembly cover.

1. Remove the retaining bolts.

2. Remove the in-bed tank assembly cover.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



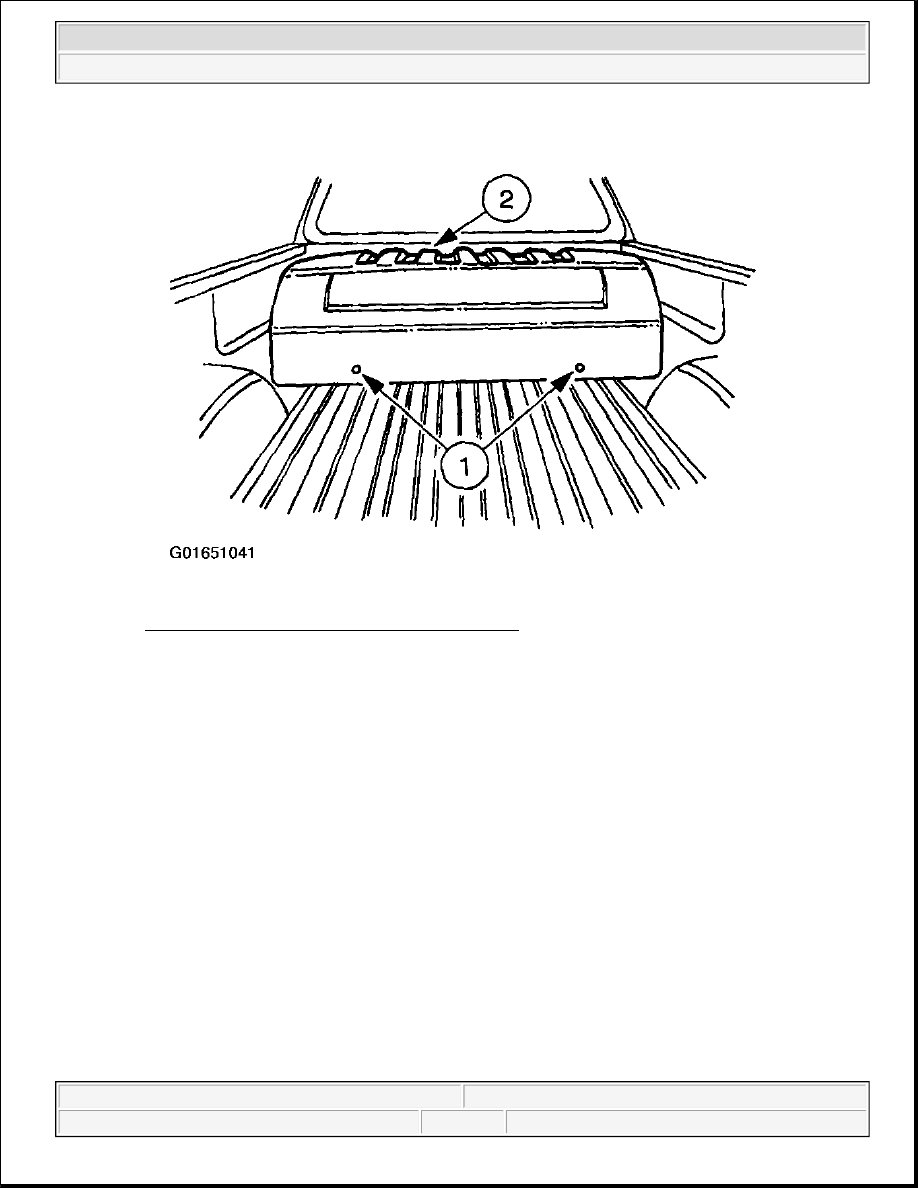

Fig. 32: Removing In-Bed Tank Assembly Cover
Courtesy of FORD MOTOR CO.

5. Disconnect the fuel tank assembly solenoid valves.

1. Disconnect the electrical connector from the forward in-bed fuel tank solenoid valve.

2. Disconnect the high-pressure fuel line from the forward in-bed fuel tank solenoid valve.

3. Disconnect the jumper fuel line from the forward in-bed fuel tank solenoid valve.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup
