Ford F150 Pickup. Instruction - part 1192

Fig. 17: Removing Stone Shield
Courtesy of FORD MOTOR CO.

8. Disconnect the fuel tank solenoid valve.

1. Disconnect the high-pressure fuel line from the fuel tank solenoid valve.

2. Disconnect the electrical connector from the fuel tank solenoid valve.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup





2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



Fig. 18: Disconnecting Fuel Tank Solenoid Valve
Courtesy of FORD MOTOR CO.

9. Place identification marks on the fuel tank support straps and tank.

10. Remove the upper stone shield support strap.

1. Remove the retaining bolt and nut.

2. Remove the upper stone shield support strap.

Fig. 19: Removing Upper Stone Shield Support Strap
Courtesy of FORD MOTOR CO.

11. Install the powertrain lift with tilting plate.

1. Position the powertrain lift with tilting plate.

2. Secure the fuel tank with a nylon tie-down strap.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



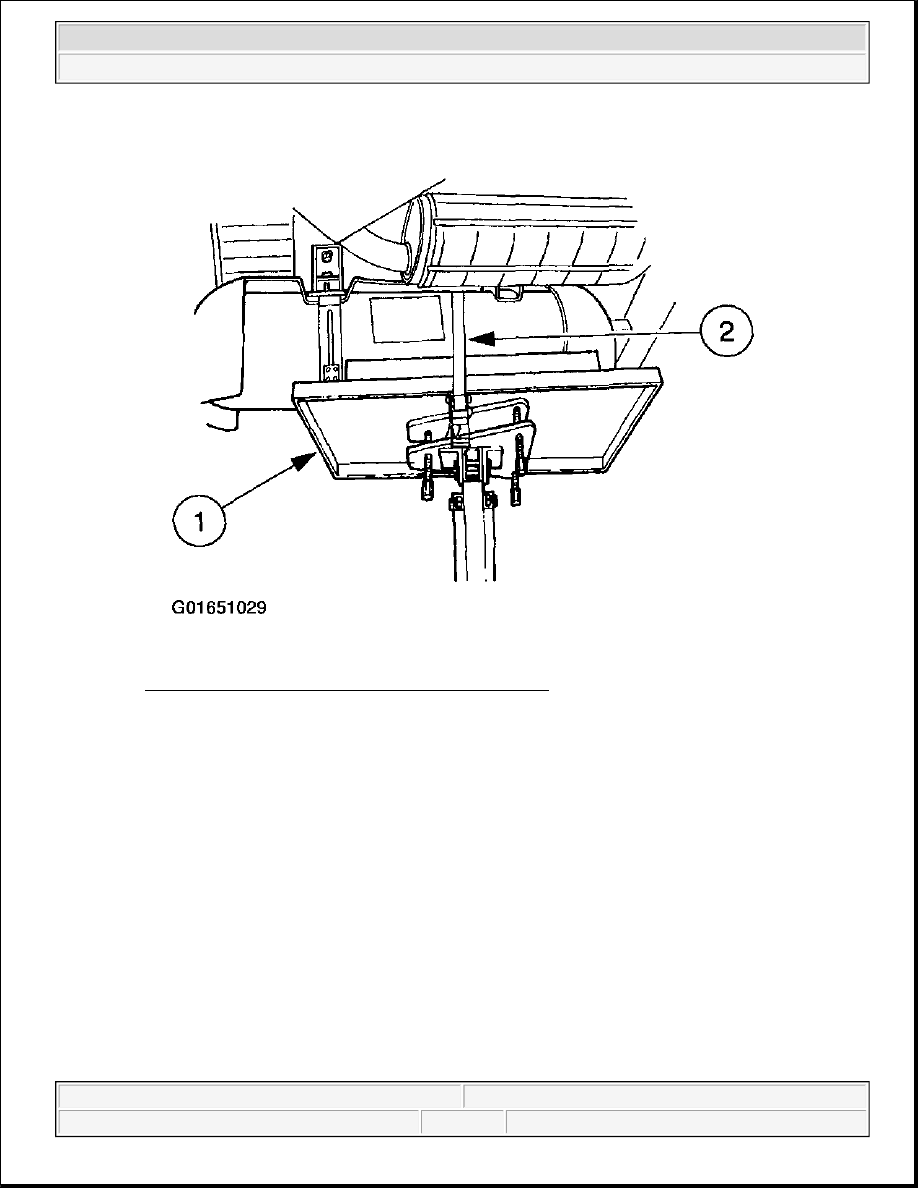

Fig. 20: Installing Powertrain Lift With Tilting Plate
Courtesy of FORD MOTOR CO.

12. Remove the rear fuel tank support strap.

1. Remove the retaining nut.

2. Remove the rear fuel tank support strap, and position aside.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup
