Ford F150 Pickup. Instruction - part 1132

1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING

AND CABLES - F150 PICKUP .

2. Relieve the fuel system pressure. For additional information, refer to PRESSURE RELIEF .

3. Compress the clip legs and push the clip into the fitting.

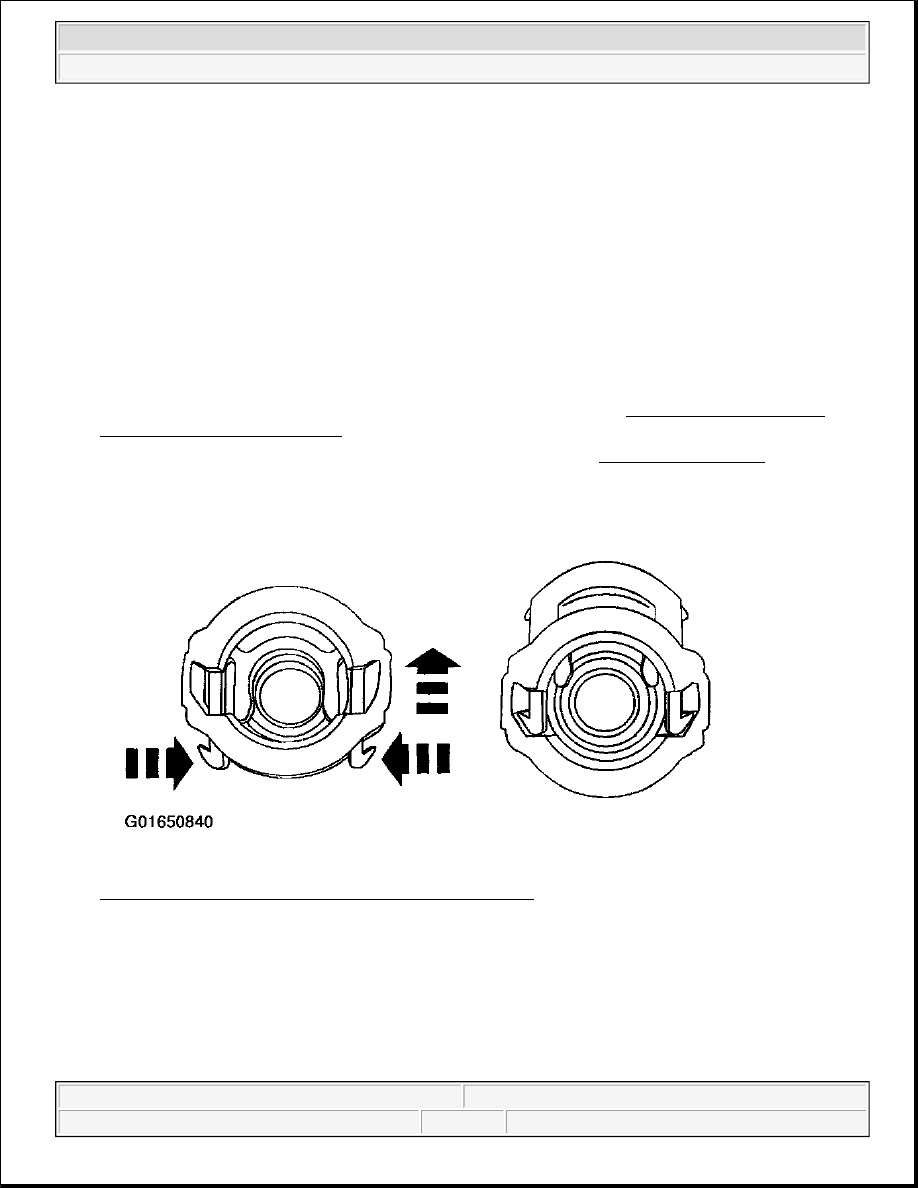

Fig. 24: Compressing Clip Legs & Push Clip Into Fitting
Courtesy of FORD MOTOR CO.

4. Separate the fitting from the tube.

mixtures are always present and can be ignited, resulting in possible
personal injury.

WARNING:

Fuel in the fuel system remains under high pressure even when the
engine is not running. Before servicing or disconnecting any of the fuel
tubes or fuel system components, the fuel system pressure must be
relieved to prevent accidental spraying of fuel, causing possible personal
injury or a fire hazard.

CAUTION: Do not use any tools. The use of tools can cause a deformity in the clip

components which can cause fuel leaks.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup



Fig. 25: Separating Fitting From Tube
Courtesy of FORD MOTOR CO.

Connect

1. Inspect the fitting and the tube for damage. Remove any dirt or obstructions.

2. Apply a light coat of clean engine oil to the male tube end.

3. Fully insert the male tube end in the fitting and push the clip downward to lock the fuel tubes together.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup



Fig. 26: Locking Fuel Tubes
Courtesy of FORD MOTOR CO.

4. Pull on the connection to make sure it is fully engaged.

Fig. 27: Checking Engagement
Courtesy of FORD MOTOR CO.

5. Connect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES -

F150 PICKUP .

FITTINGS - VAPOR TUBE

Disconnect

1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES -

F150 PICKUP .

2. Disconnect the vapor tube from the fitting.

1. Squeeze the fitting.

2. Disconnect the vapor tube from the fitting.

WARNING:

The evaporative emission system contains fuel vapor and condensed fuel
vapor. Although not present in large quantities, it still presents the danger
of explosion or fire. Disconnect the battery ground cable from the battery
to minimize the possibility of an electrical spark occurring, possibly
causing a fire or explosion if fuel vapor or fuel liquid is present in the
area.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup



Fig. 28: Disconnecting Vapor Tube From Fitting
Courtesy of FORD MOTOR CO.

Connect

1. Inspect the fitting and the tube for damage.

2. Remove any dirt or obstructions.

3. Lubricate the vapor tube fittings with MERPOL(R), or equivalent, meeting specification ESE-

M99B144B-B.

4. Push the tube into the fitting until it snaps in place.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup
