Ford F150 Pickup. Instruction - part 1130

Fig. 12: Removing Disconnect Tool
Courtesy of FORD MOTOR CO.

Connect

1. Connect the fitting.

z

Inspect and clean both the coupling ends.

z

Lubricate the O-rings with clean engine oil meeting Ford specification WSS-M2C153-F.

z

Connect the fitting.

z

Pull on the fitting to make sure it is fully engaged.

z

Install the safety clip.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup



Fig. 13: Connecting Fitting
Courtesy of FORD MOTOR CO.

FUEL LINE FITTINGS - PUSH CONNECT

Special Tool(s)

Fig. 14: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup



Disconnect

1. Relieve the fuel pressure. For additional information, refer to PRESSURE RELIEF .

2. Disconnect the safety clip from the male hose.

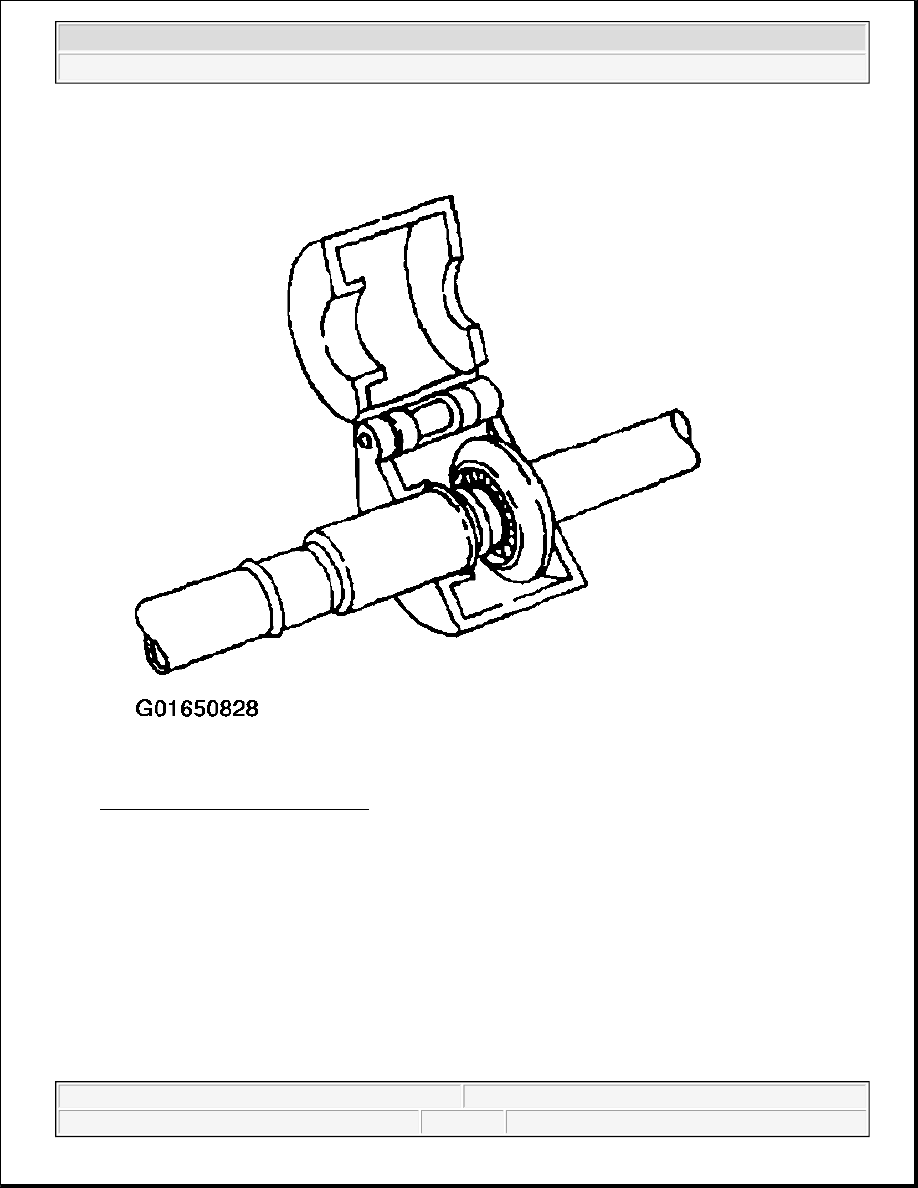

Fig. 15: Disconnecting Safety Clip From Male Hose
Courtesy of FORD MOTOR CO.

3. Install the Fuel Line Disconnect Set and push into the fitting.

WARNING:

Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel-related component. Highly flammable
mixtures are always present and may be ignited, resulting in possible
personal injury.

WARNING:

Fuel in the fuel system remains under high pressure even when the
engine is not running. Before servicing or disconnecting any of the fuel
lines or fuel system components, the fuel system pressure must be
relieved to prevent accidental spraying of fuel, causing personal injury or
a fire hazard.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup

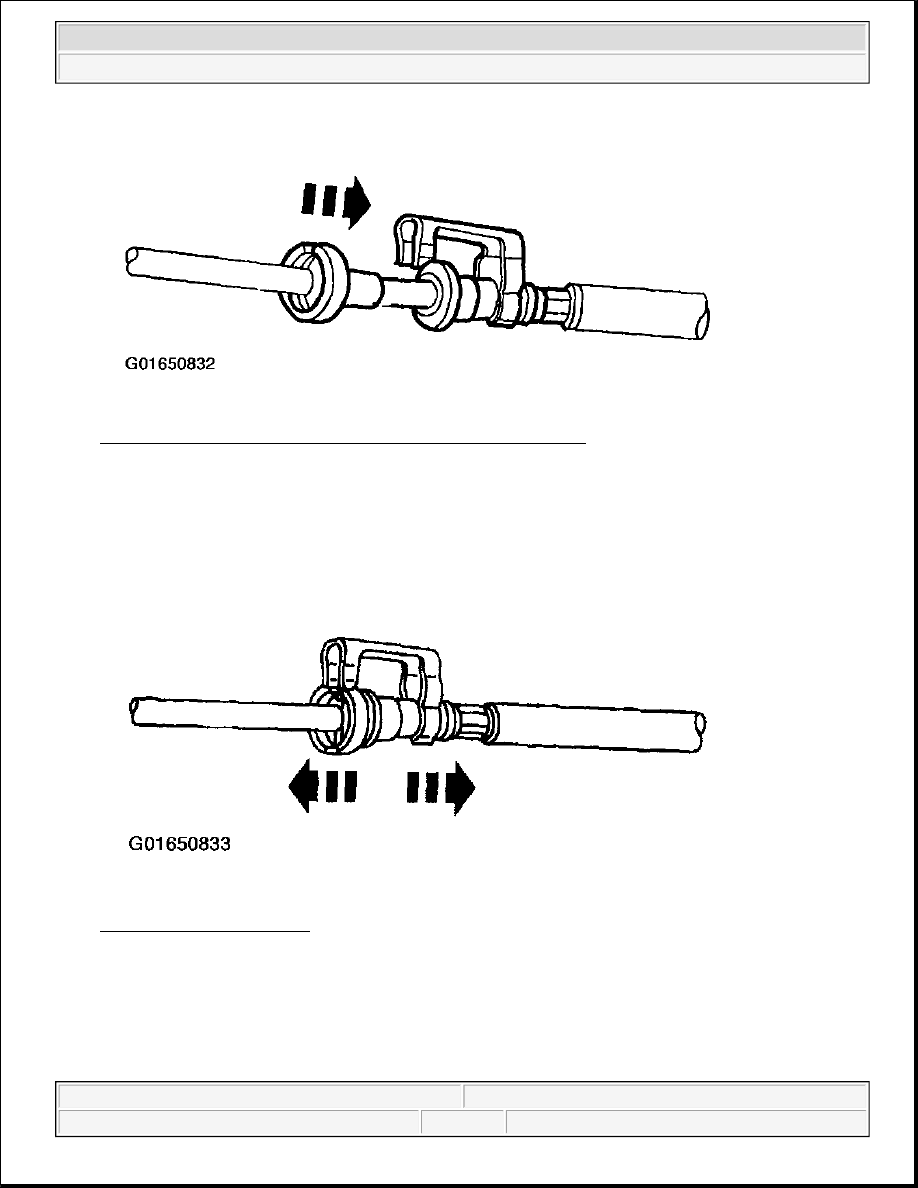

Fig. 16: Installing Fuel Line Disconnect Set & Push Into Fitting
Courtesy of FORD MOTOR CO.

4. Separate the fittings.

z

Inspect for damage.

z

Clean the fittings.

Fig. 17: Separating Fittings
Courtesy of FORD MOTOR CO.

Connect

1. Connect the fitting.

z

Lubricate the tube end with clean engine oil meeting Ford specification WSS-M2C153-F to ease
assembly.
