Align the tube to the fitting and push until you hear a click.

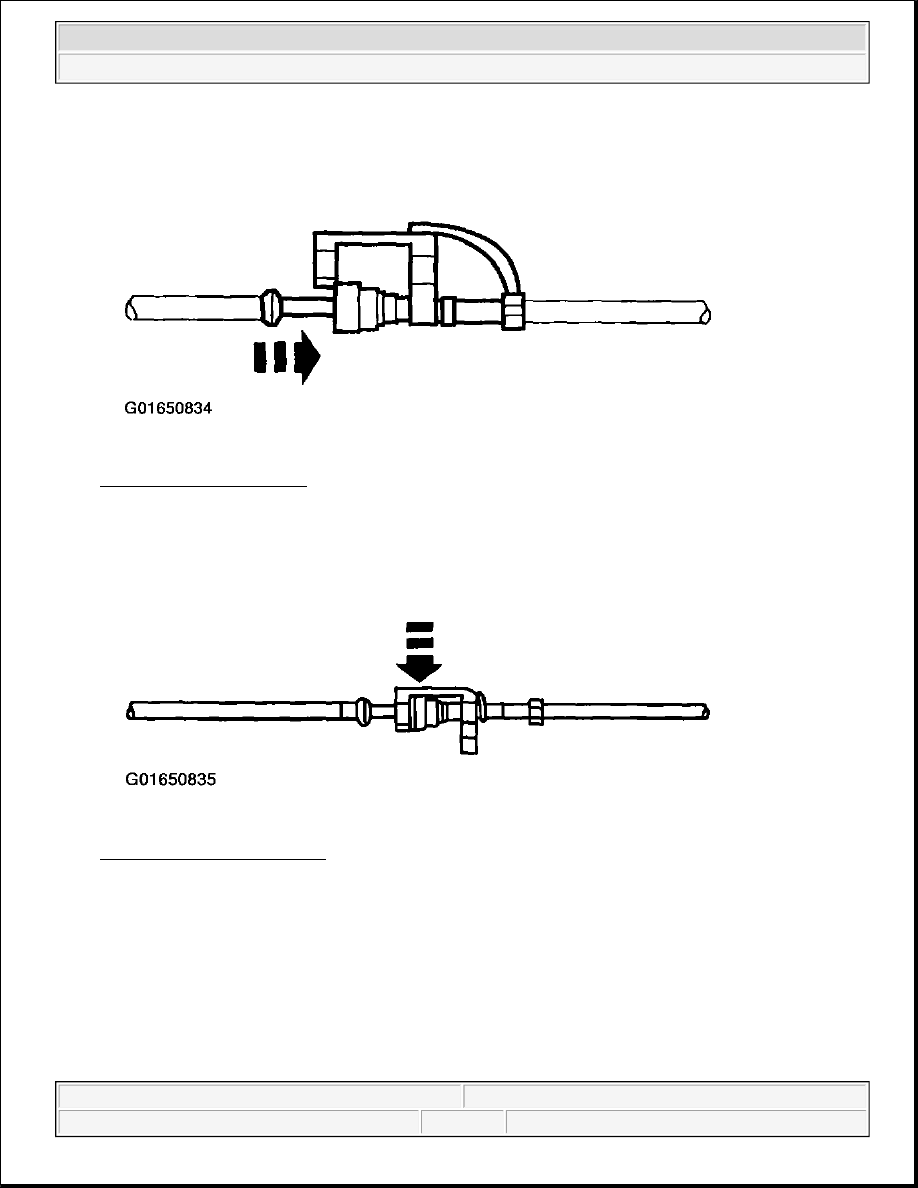

Fig. 18: Connecting Fitting
Courtesy of FORD MOTOR CO.

2. Pull on the fitting to make sure it is fully engaged, then install the safety clip.

Fig. 19: Installing Safety Clip
Courtesy of FORD MOTOR CO.

QUICK RELEASE COUPLING - DUAL LOCKING

Disconnect

WARNING:

Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel- related component. Highly flammable
mixtures are always present and can be ignited, resulting in possible
personal injury.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup



1. Release the fuel system pressure. For additional information, refer to PRESSURE RELIEF .

2. Unclip the tab.

Fig. 20: Unclipping Tab
Courtesy of FORD MOTOR CO.

WARNING:

Fuel in the fuel system remains under high pressure even when the
engine is not running. Before servicing or disconnecting any of the fuel
lines or fuel system components, the fuel system pressure must be
relieved to prevent accidental spraying of fuel, causing personal injury or
a fire hazard.

NOTE:

These couplings are used to connect the fuel tank fuel lines to the front fuel
lines, and the pump/sender assembly ports.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup



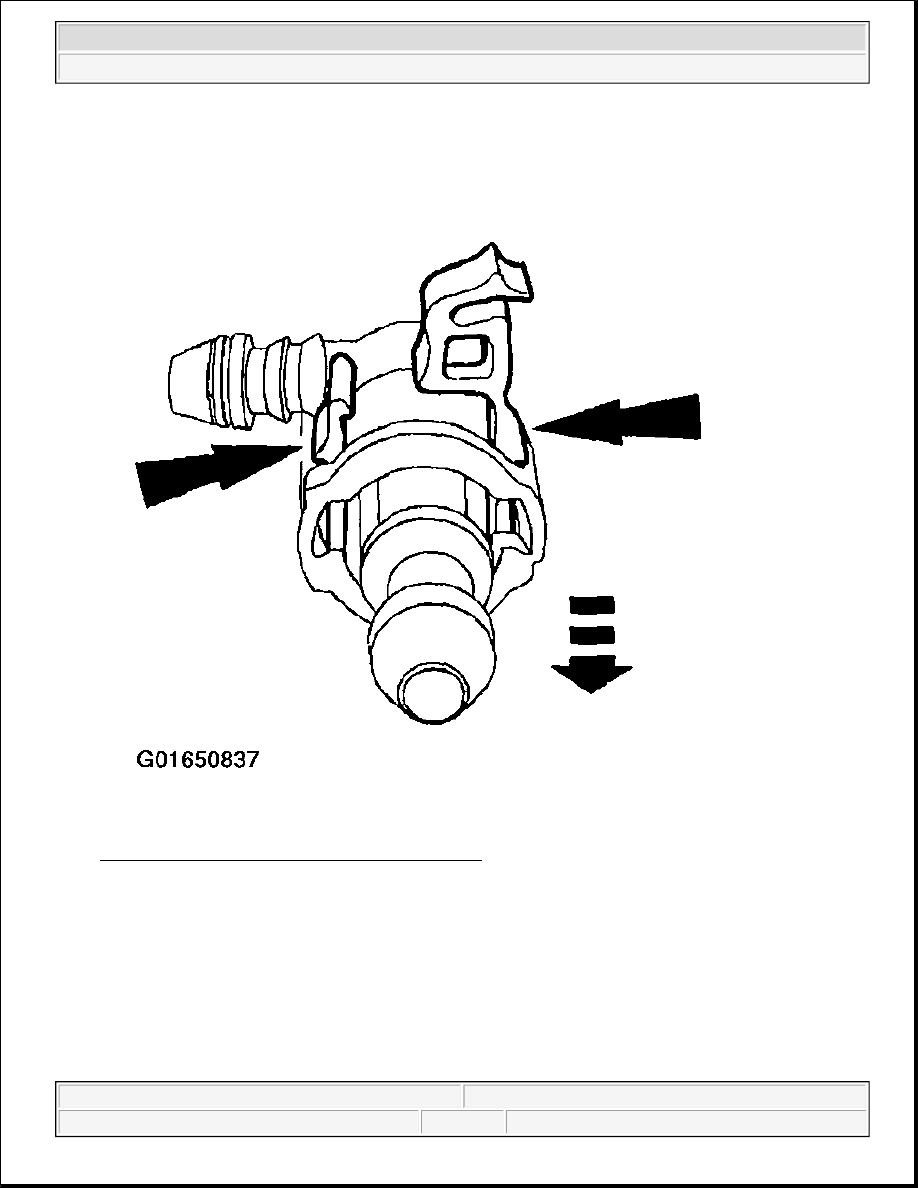

3. Depress the tabs and press the clip downward.

Fig. 21: Depressing Tabs & Press Clip Downward
Courtesy of FORD MOTOR CO.

4. Separate the fittings.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - F150 Pickup



Fig. 22: Separating Fittings
Courtesy of FORD MOTOR CO.

5. To connect the fittings, reverse the disconnect procedure.

QUICK RELEASE COUPLING - SINGLE LOCKING

Material

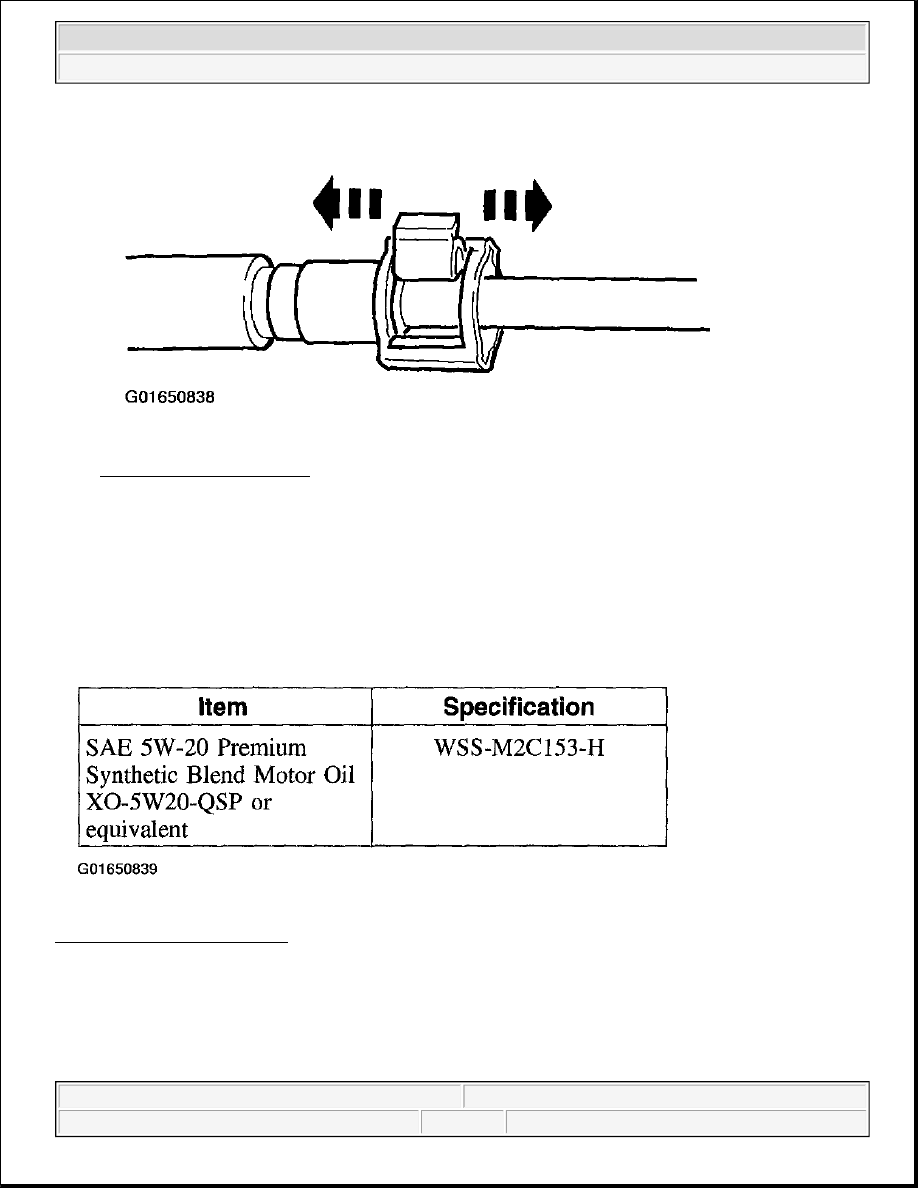

Fig. 23: Material Specification
Courtesy of FORD MOTOR CO.

Disconnect

WARNING:

Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel-related component. Highly flammable
