Ford F150 Pickup. Instruction - part 111

Fig. 95: Removing Storage Tray
Courtesy of FORD MOTOR CO.

1. Remove the storage tray.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



2. Remove the rear floor console front bolts.

Fig. 96: Removing Rear Floor Console Front Bolts
Courtesy of FORD MOTOR CO.

3. Tilt the rear seats forward.

4. Remove the two bolts (one each side) and the rear floor console.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 97: Removing Two Bolts And Rear Floor Console
Courtesy of FORD MOTOR CO.

5. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



2003 ACCESSORIES AND BODY, CAB

Antenna - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

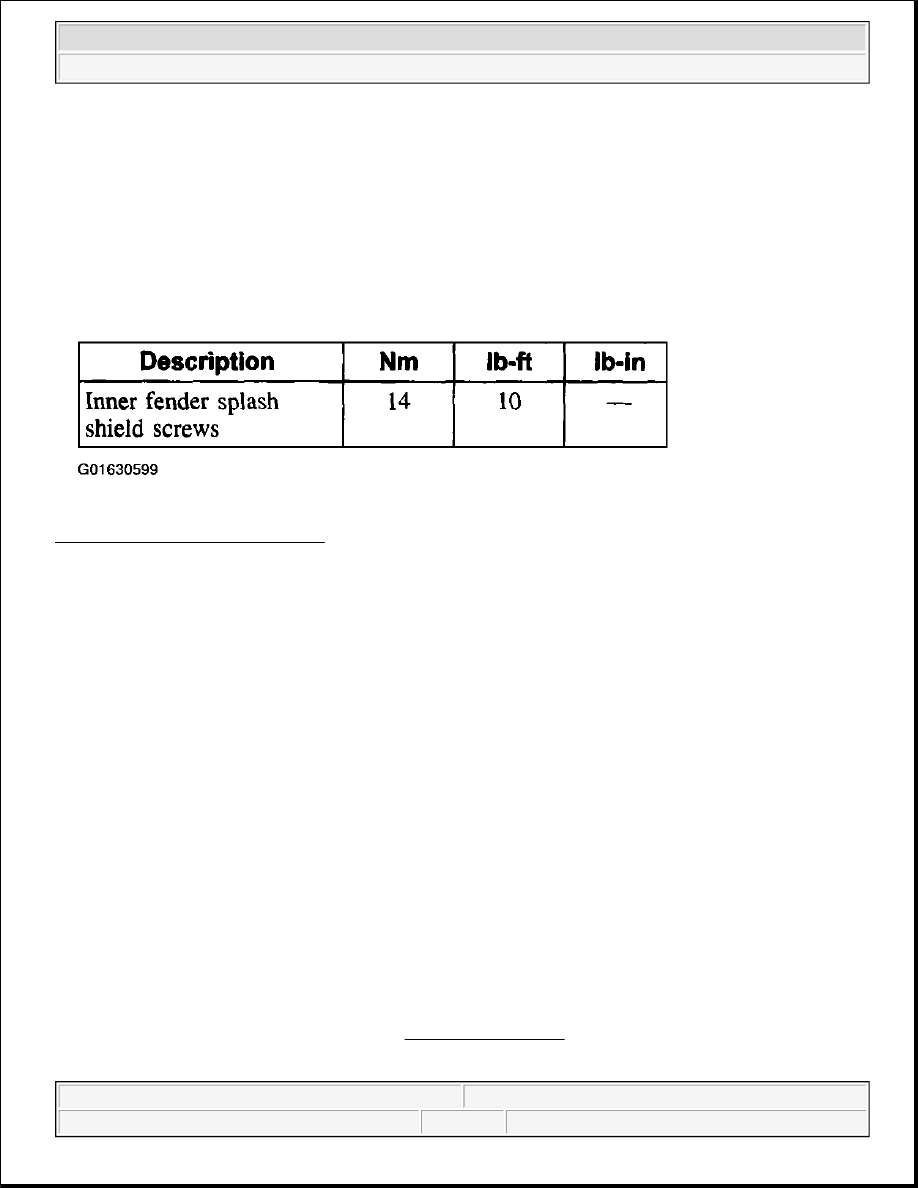

Fig. 1: Torque Specifications Table
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

ANTENNA

The antenna and related components consist of the:

z

radio antenna lead-in cable (18812)

z

antenna mast (18813)

z

radio antenna base cap (18A927)

z

radio antenna base and gasket assembly (19A182)

The antenna receives AM and FM waves. The radio waves are sent to the audio unit through the radio
antenna lead-in cable.

REMOVAL AND INSTALLATION

CABLE - LEAD-IN

Removal and Installation

1. Remove the front wheel and tire. Refer to WHEEL AND TIRE .

2. On 4x4 vehicles, remove the front wheel opening moulding.
