Ford F150 Pickup. Instruction - part 110

Fig. 91: Removing Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.

6. Remove the instrument cluster panel.

1. Remove the screws.

2. Remove the instrument cluster panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



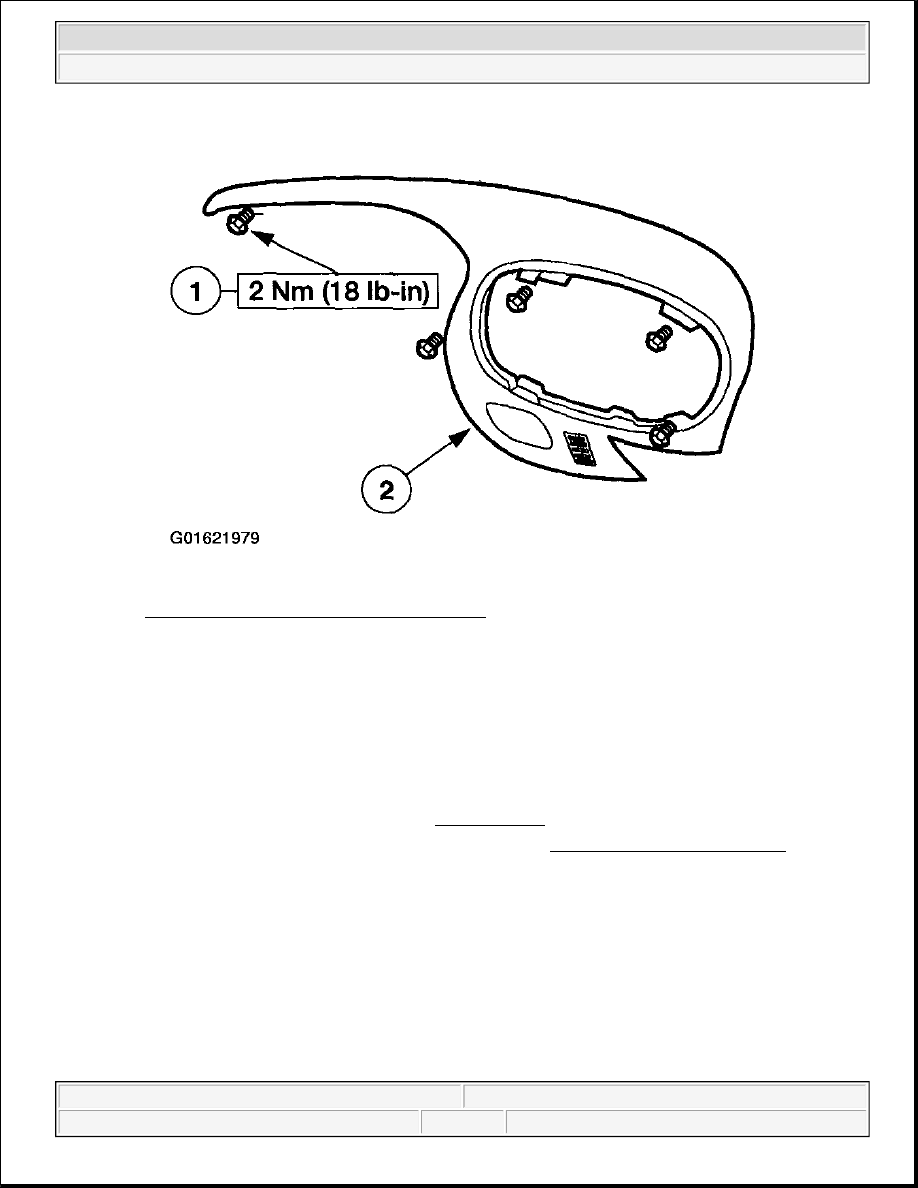

Fig. 92: Removing Instrument Cluster Panel
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

CONSOLE - FLOOR

Removal and Installation

1. Open the floor console cover.

2. If equipped, remove the CD changer. Refer to AUDIO UNIT .

3. If equipped, remove the video cassette player (VCP). Refer to VIDEO CASSETTE PLAYER .

4. If equipped, remove the floor console tray mat.

5. Remove the floor console cupholder assembly.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 93: Removing Floor Console Cupholder Assembly
Courtesy of FORD MOTOR CO.

6. Remove the nuts and the floor console.

z

Feed the wiring harness through the floor console.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 94: Removing Nuts And The Floor Console
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

FLOOR CONSOLE - REAR

Removal and Installation

NOTE:

Pull upward on the center of the storage tray to release the clips.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup
