Ford F150 Pickup. Instruction - part 65

Fig. 21: Pinpoint Test D: Incorrect Oil Pressure Gauge Indication (D1 - D2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

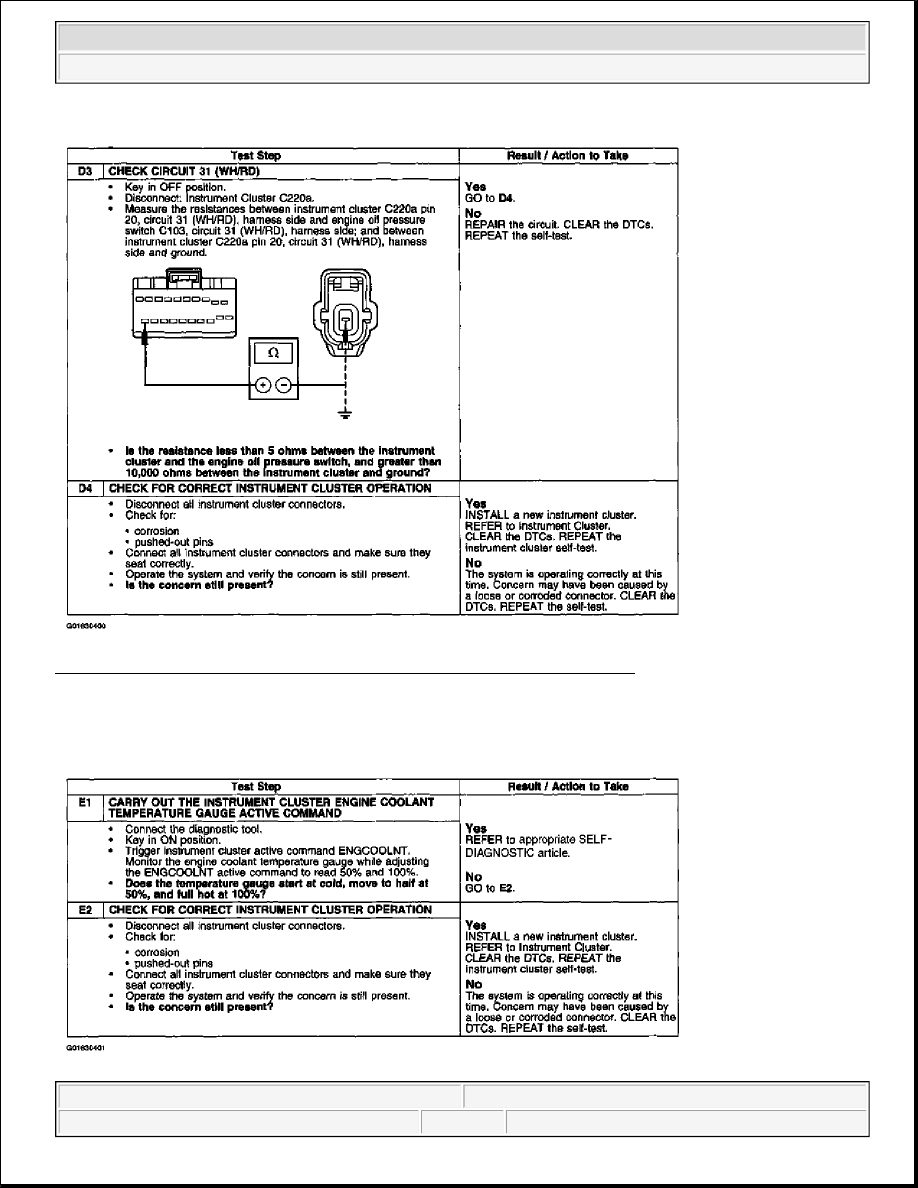

Fig. 22: Pinpoint Test D: Incorrect Oil Pressure Gauge Indication (D3 - D4)
Courtesy of FORD MOTOR CO.

PINPOINT TEST E: INCORRECT TEMPERATURE GAUGE INDICATION



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 23: Pinpoint Test E: Incorrect Temperature Gauge Indication (E1 - E2)
Courtesy of FORD MOTOR CO.

PINPOINT TEST F: INCORRECT BOOST GAUGE INDICATION

Fig. 24: Pinpoint Test F: Incorrect Boost Gauge Indication (F1 - F2)
Courtesy of FORD MOTOR CO.

PINPOINT TEST G: LOW FUEL WARNING INDICATOR IS NEVER/ALWAYS ON

Fig. 25: Pinpoint Test G: Low Fuel Warning Indicator Is Never/Always On (G1)
Courtesy of FORD MOTOR CO.

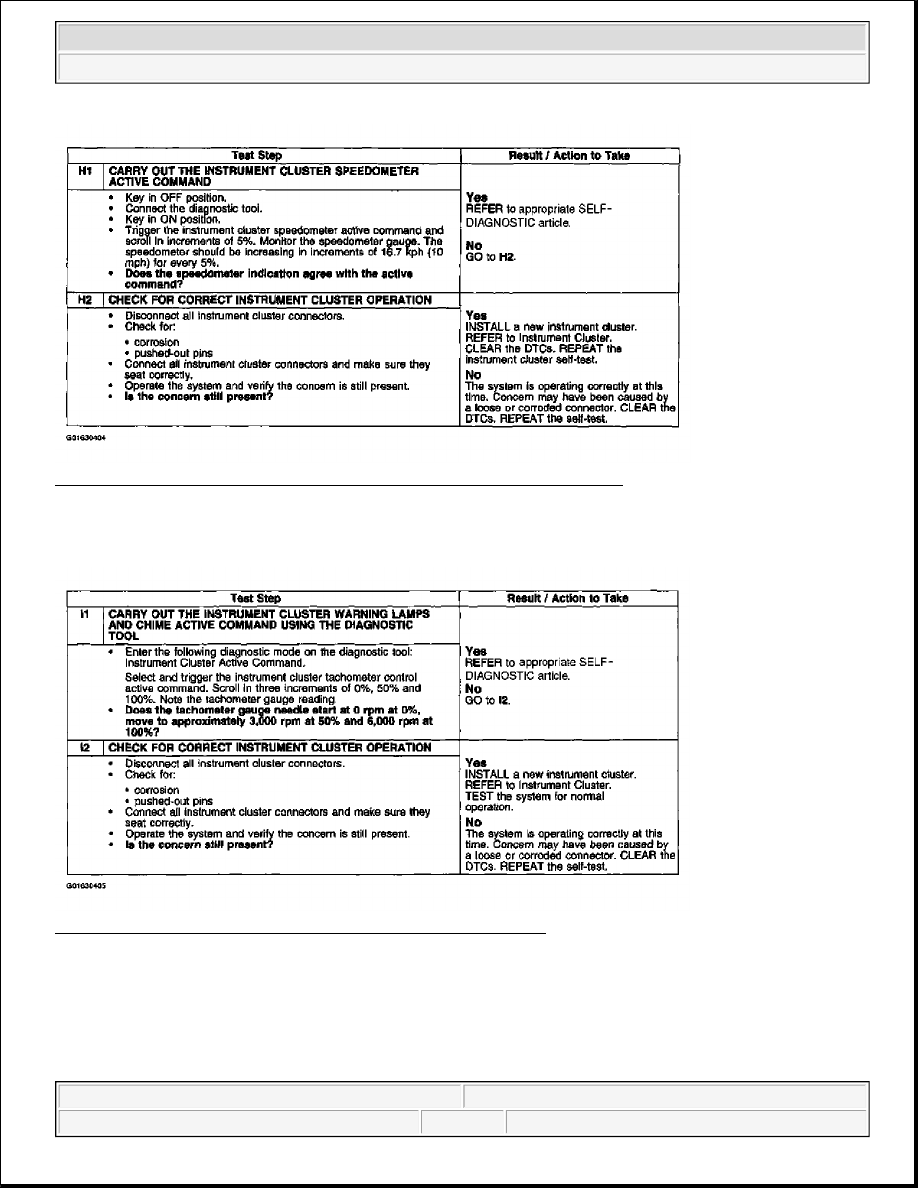

PINPOINT TEST H: SPEEDOMETER/ODOMETER IS INOPERATIVE



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 26: Pinpoint Test H: Speedometer/Odometer Is Inoperative (H1 - H2)
Courtesy of FORD MOTOR CO.

PINPOINT TEST I: THE TACHOMETER IS INOPERATIVE

Fig. 27: Pinpoint Test I: The Tachometer Is Inoperative (I1 - I2)
Courtesy of FORD MOTOR CO.

PINPOINT TEST J: THE SAFETY BELT WARNING INDICATOR IS INOPERATIVE (CHIME IS OPERATIVE)

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup
