Ford F150 Pickup. Instruction - part 63

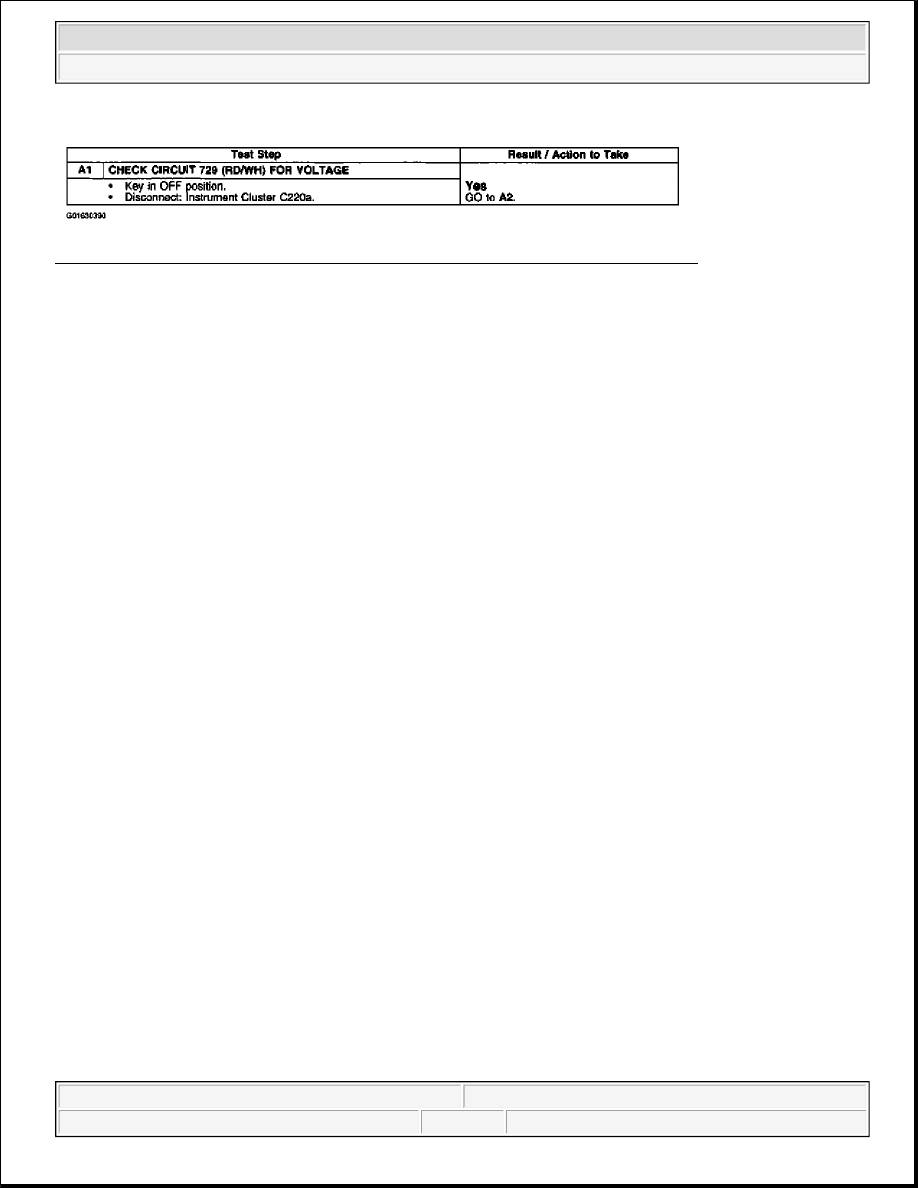

Fig. 12: Pinpoint Test A: No Communication With Instrument Cluster Module (A1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

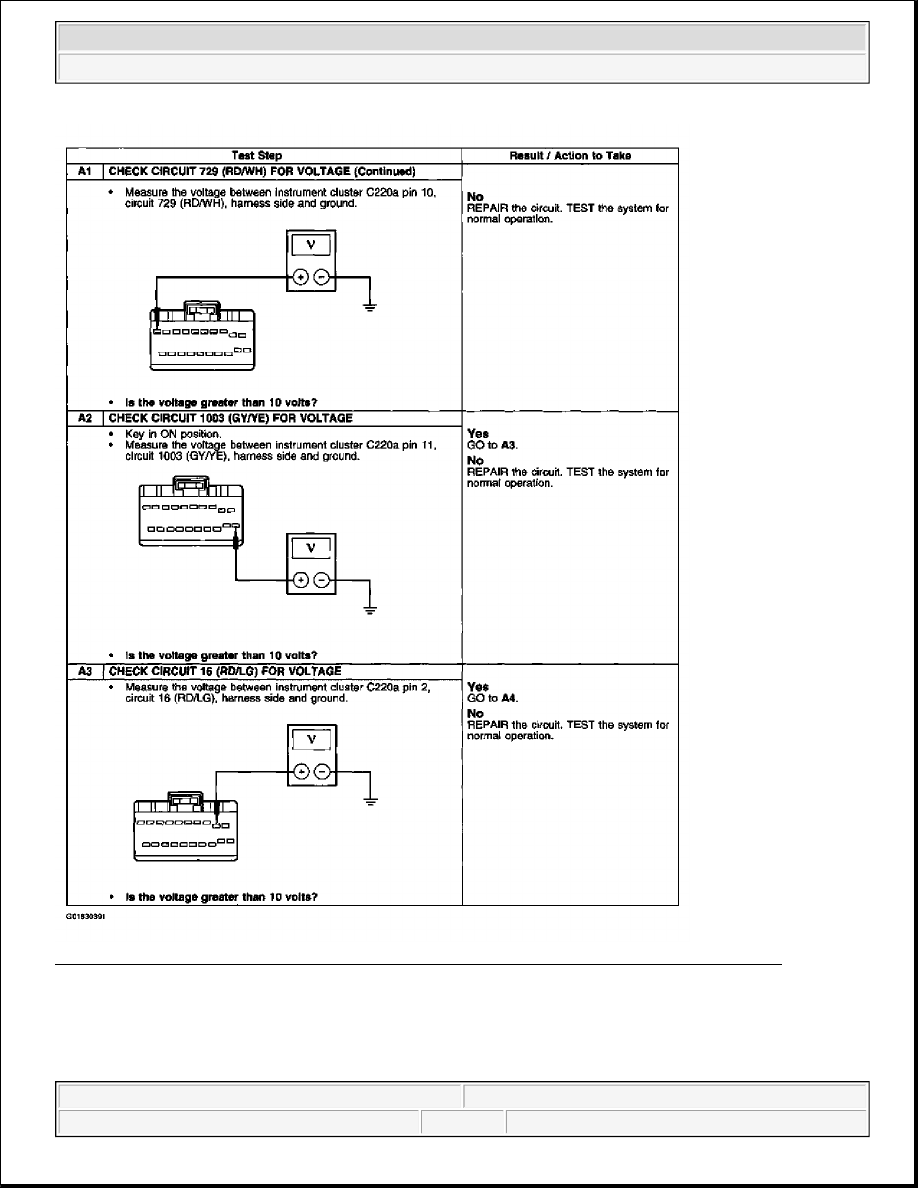

Fig. 13: Pinpoint Test A: No Communication With Instrument Cluster Module (A1 Cont. - A3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 14: Pinpoint Test A: No Communication With Instrument Cluster Module (A4 - A5)
Courtesy of FORD MOTOR CO.

PINPOINT TEST B: INCORRECT FUEL GAUGE INDICATION

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

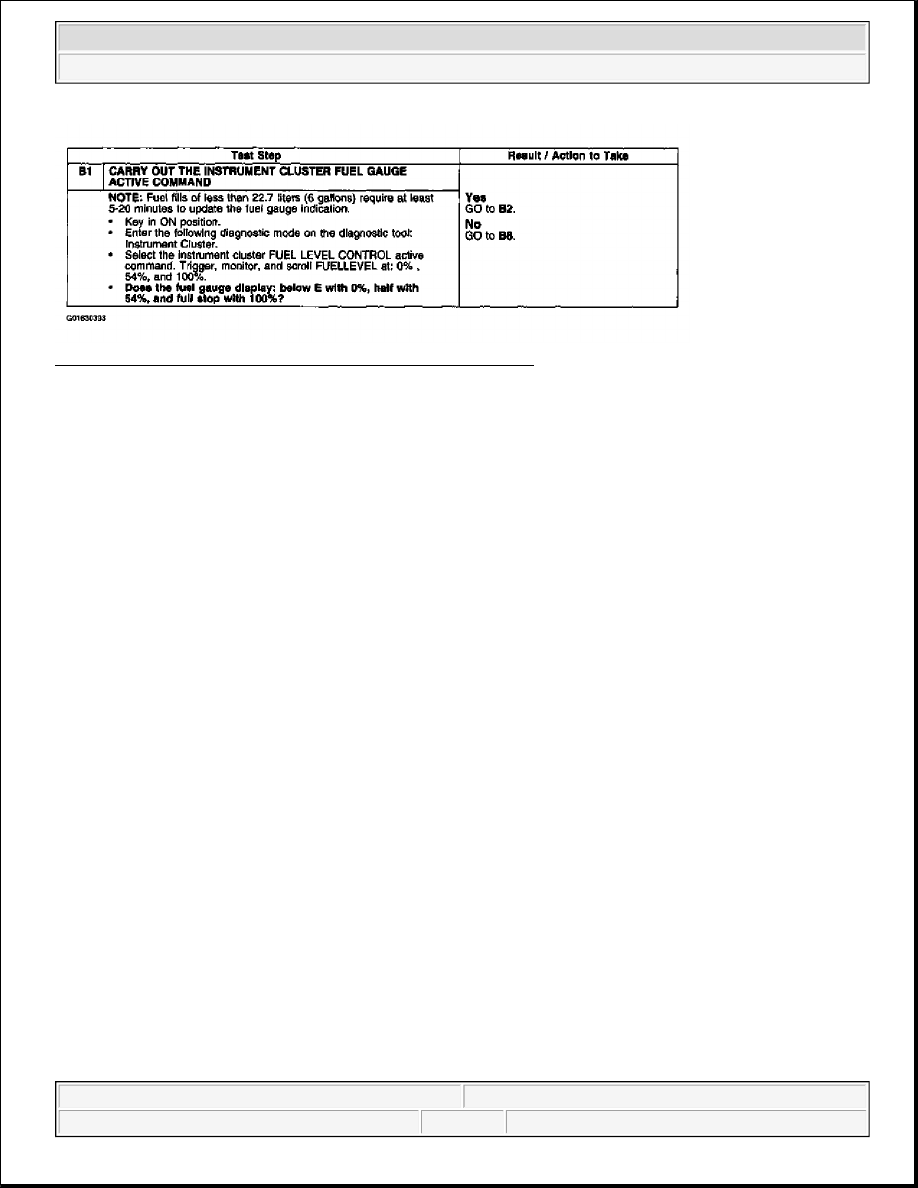

Fig. 15: Pinpoint Test B: Incorrect Fuel Gauge Indication (B1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup
