Ford F150 Pickup. Instruction - part 64

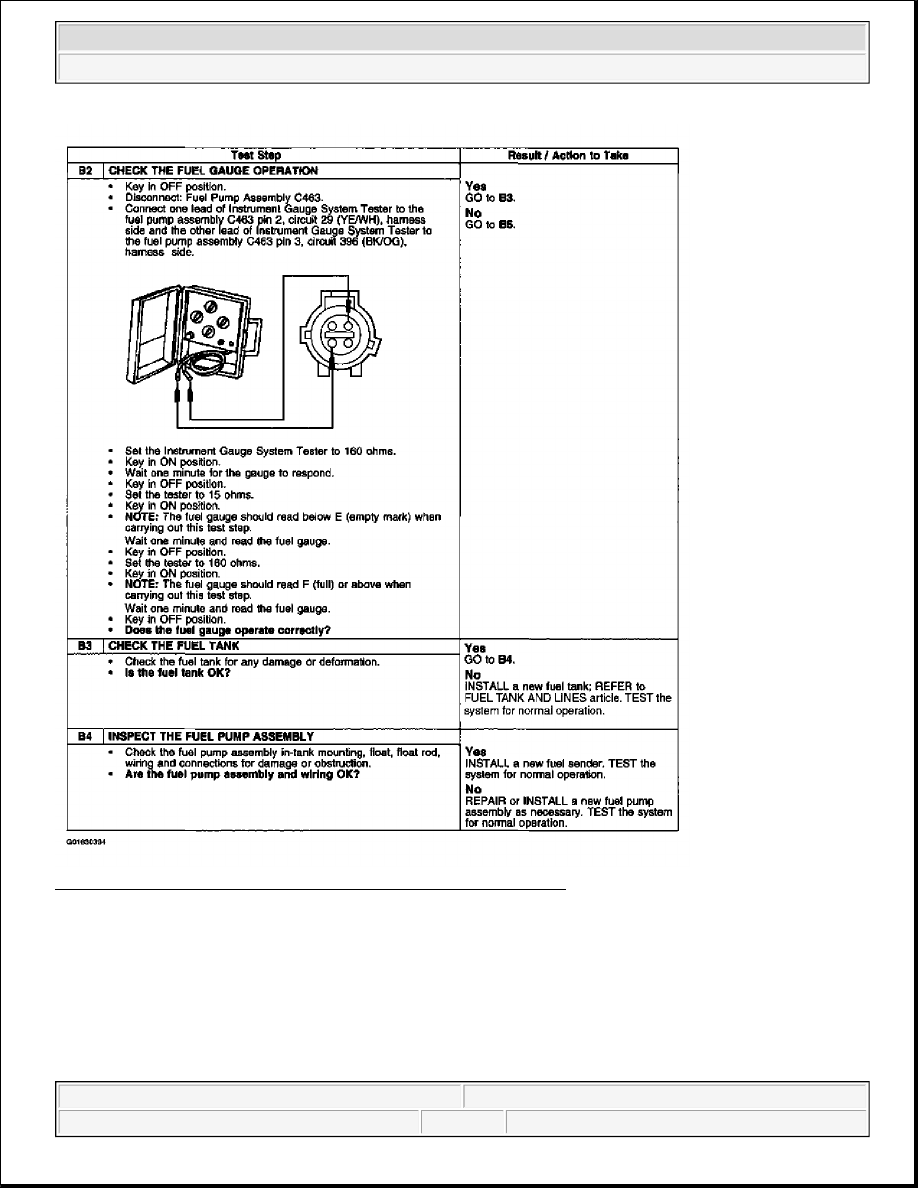

Fig. 16: Pinpoint Test B: Incorrect Fuel Gauge Indication (B2 -B4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 17: Pinpoint Test B: Incorrect Fuel Gauge Indication (B5 - B6)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 18: Pinpoint Test B: Incorrect Fuel Gauge Indication (B7 - B8)
Courtesy of FORD MOTOR CO.

PINPOINT TEST C: INCORRECT VOLTAGE GAUGE INDICATION

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup



Fig. 19: Pinpoint Test C: Incorrect Voltage Gauge Indication (C1 - C2)
Courtesy of FORD MOTOR CO.

Fig. 20: Pinpoint Test C: Incorrect Voltage Gauge Indication (C3)
Courtesy of FORD MOTOR CO.

PINPOINT TEST D: INCORRECT OIL PRESSURE GAUGE INDICATION

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup
