Ford F150 Pickup. Instruction - part 51

Fig. 2: Electrical Visual Inspection Chart
Courtesy of FORD MOTOR CO.

3. If the fault is not visually evident, determine the symptom and proceed to Symptom Chart .

Symptom Chart

Fig. 3: Problem Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

NOTE:

Refer to INSTRUMENT CLUSTER for connector numbers stated in the pinpoint
test.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster and Panel Illumination - F150 Pickup

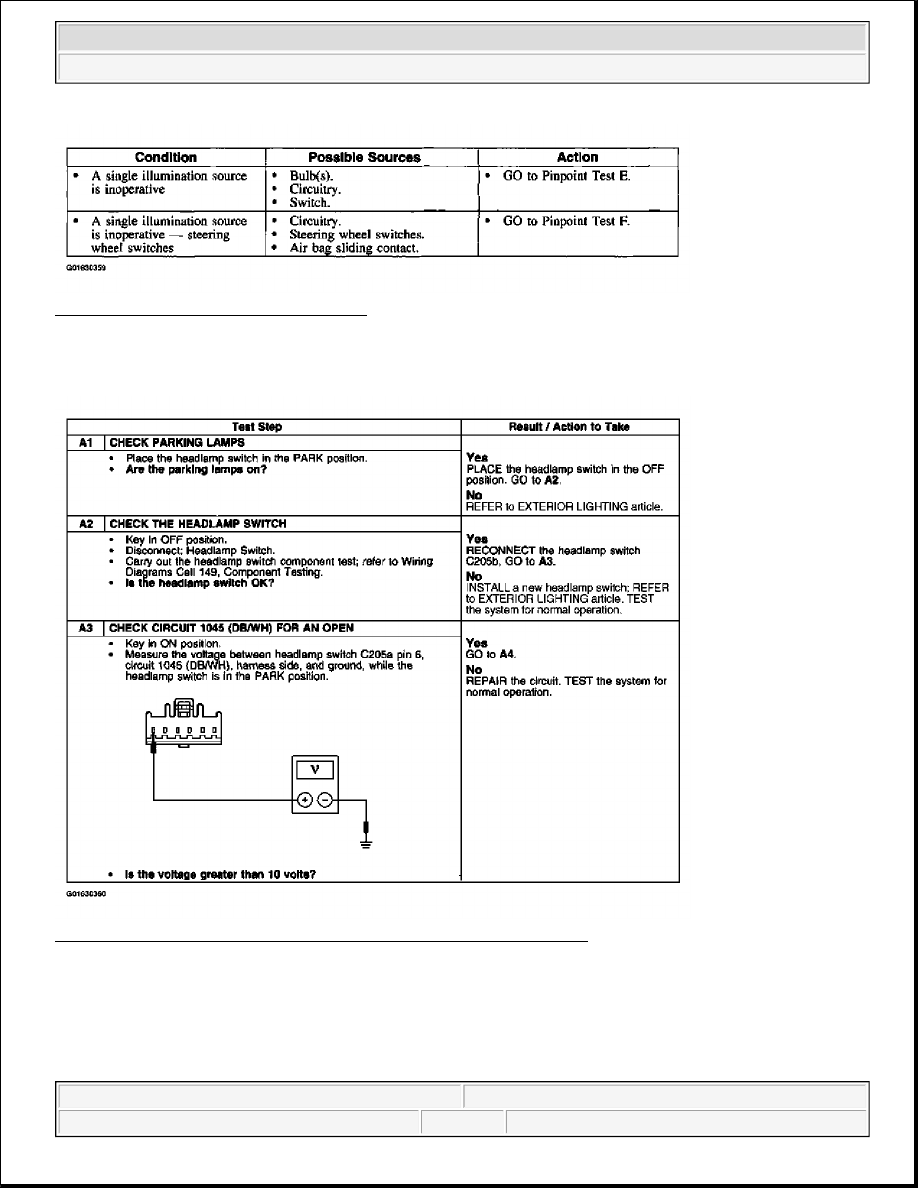

Fig. 4: Problem Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.

Pinpoint Test A: Control Illumination Is Inoperative

Fig. 5: Pinpoint Test A: Control Illumination Is Inoperative (A1 - A3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster and Panel Illumination - F150 Pickup

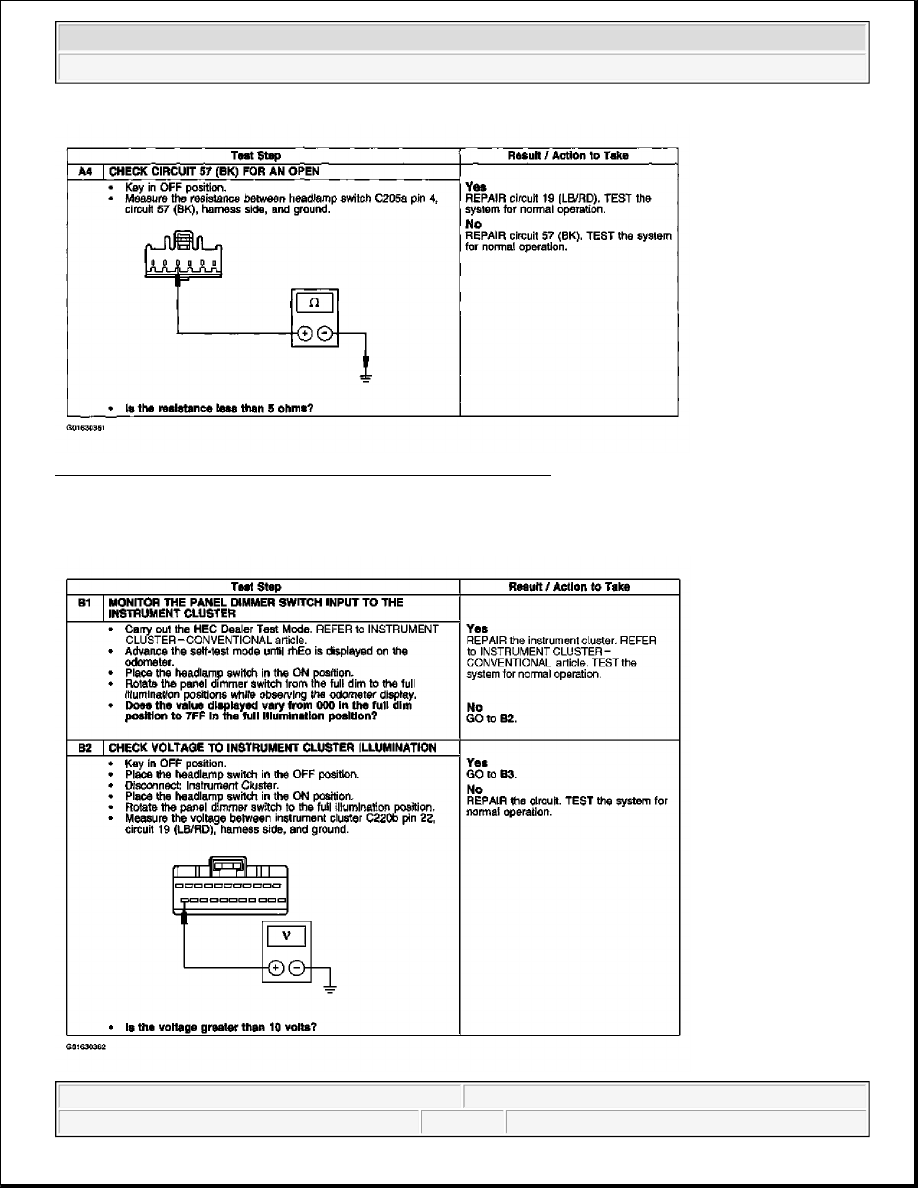

Fig. 6: Pinpoint Test A: Control Illumination Is Inoperative (A4)
Courtesy of FORD MOTOR CO.

Pinpoint Test B: Instrument Cluster Illumination Is Inoperative



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster and Panel Illumination - F150 Pickup



Fig. 7: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B1 - B2)
Courtesy of FORD MOTOR CO.

Fig. 8: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B3)
Courtesy of FORD MOTOR CO.

Pinpoint Test C: Climate Control Illumination Is Imputative

Fig. 9: Pinpoint Test C: Climate Control Illumination Is Imputative (C1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster and Panel Illumination - F150 Pickup
