Fig. 9: Pinpoint Test B: Outside Air Temperature Is Inaccurate/Inoperative (B4 - B6)
Courtesy of FORD MOTOR CO.

GENERAL PROCEDURES

COMPASS ZONE ADJUSTMENT

1. Determine the zone in which the vehicle is located.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Electronic Compass - F150 Pickup

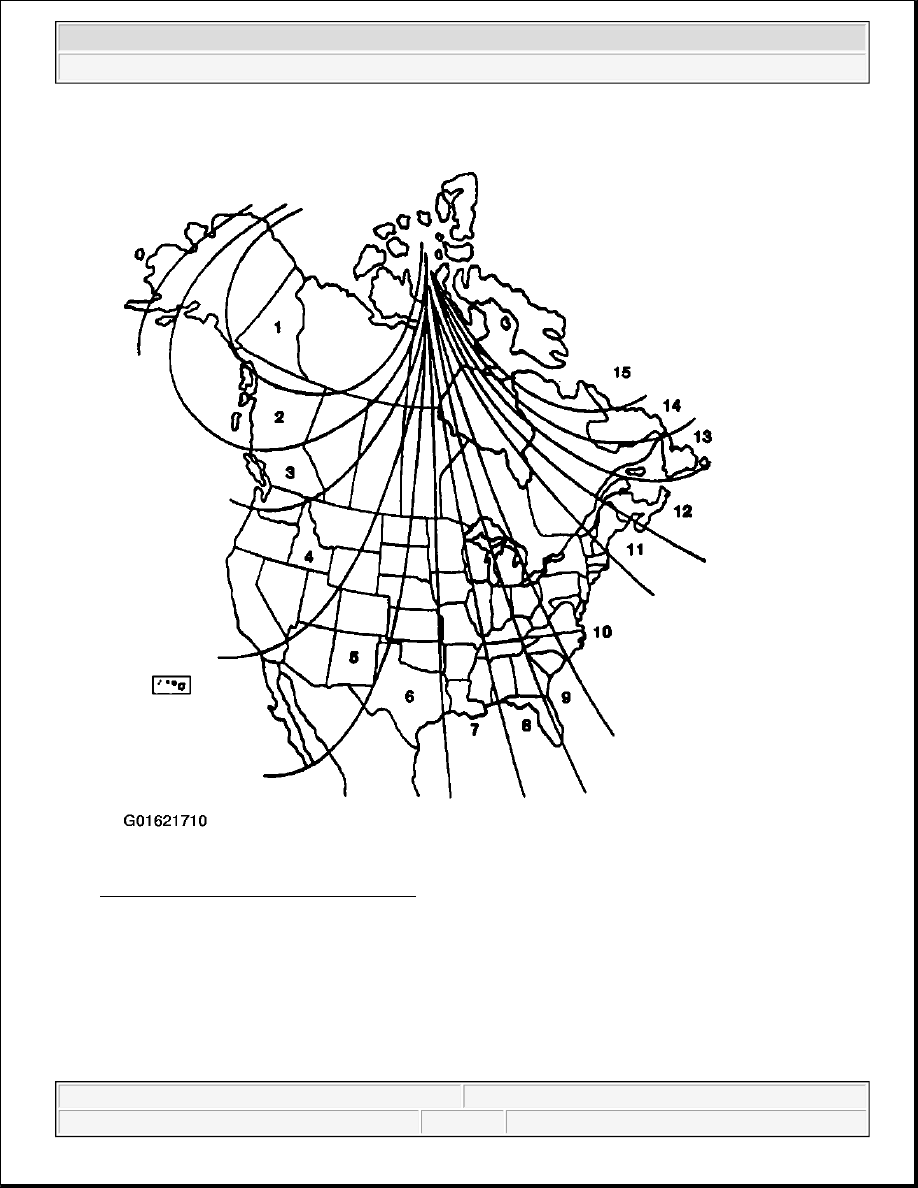

Fig. 10: Identifying Compass Zone Chart
Courtesy of FORD MOTOR CO.

2. Press and hold the MODE button until VAR appears on the display. Release the MODE button.

3. Momentarily press the MODE button to increment the zone by one. Set the zone according to the map.

NOTE:

After a few seconds, the compass will exit the VAR mode if the button is
no longer pressed.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Electronic Compass - F150 Pickup



COMPASS CALIBRATION

1. Start the vehicle.

2. Locate the electronic compass/temperature display on the overhead console, press and hold the MODE

button until CAL appears in the display, then release the MODE button.

3. Drive the vehicle slowly (less than 5 km/h [3 mph]) in complete circles until CAL disappears from the

display.

VEHICLE DEMAGNETIZING

1. Demagnetize the front third of the vehicle roof.

1. Turn on the demagnetizer at least 1 m (3 ft) away from the vehicle.

2. Holding the demagnetizer no more than 2.5 cm (1 in) from the vehicle roof and starting on the

passenger side, demagnetize the front third of the vehicle roof closest to the windshield using a
constant circular motion. Keep the circle radius within 30 cm (12 in) while sweeping across the

NOTE:

For optimum calibration, drive to an open, level location away from large
metallic objects or structures. Switch off all non-essential electrical
accessories (rear window defrost, heater A/C, map lamps, wipers, etc.) and
make sure all doors are closed.

NOTE:

To exit CAL mode before carrying out a compass adjustment, turn the
ignition switch to the OFF position.

NOTE:

If the CAL indicator does not turn off after the vehicle has been driven in a
circle no more than five times, demagnetize the vehicle and repeat the
procedure.

CAUTION: During demagnetizing, the demagnetizer coil will be pulled toward the

vehicle. Place a cloth over the vehicle roof to protect the vehicle surface if
contact occurs. Make sure the cloth covers the front third and the entire
width of the roof.

NOTE:

The demagnetizing process requires the use of a demagnetizing coil commonly
used by television repair technicians to demagnetize television tubes.

NOTE:

To demagnetize, use a constant circular motion over the vehicle roof. Do not
turn off the demagnetizer while sweeping the vehicle roof to prevent re-
magnetizing ferrous materials contained in the vehicle.

NOTE:

During the demagnetizing process, make sure the phenolic surface of the tool
(the side opposite the handle) is closest to the vehicle surface.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Electronic Compass - F150 Pickup



entire surface of the vehicle roof closest to the windshield. Continue the circular motion four times.

3. After the fourth pass and without stopping, move the demagnetizer at least 1 m (3 ft) away from the

vehicle.

4. Turn the demagnetizer off.

2. Carry out the Compass Zone Adjustment procedure. Refer to COMPASS ZONE ADJUSTMENT .

3. Carry out the Compass Calibration Adjustment procedure. Refer to COMPASS CALIBRATION .

REMOVAL AND INSTALLATION

COMPASS DISPLAY

Removal and Installation

1. Remove the overhead console. Refer to INSTRUMENT PANEL AND CONSOLE .

2. Remove the screws and disconnect the electrical connector.

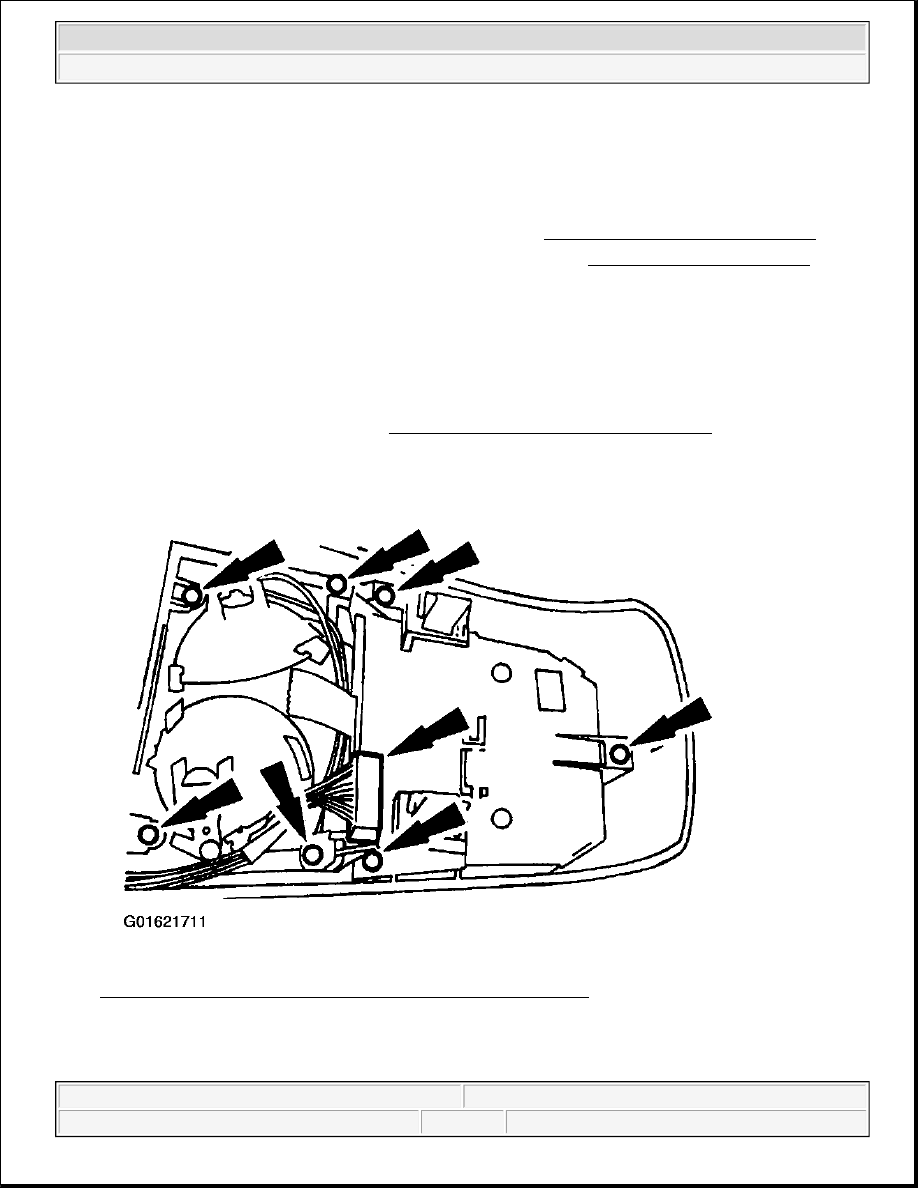

Fig. 11: Removing Screws And Disconnect Electrical Connector
Courtesy of FORD MOTOR CO.

3. Remove the compass/lamp bezel from the console housing.

1. Push the clip.



2003 Ford Pickup F150
