Ford F150 Pickup. Instruction - part 50

2. Remove the compass/lamp bezel from the console housing.

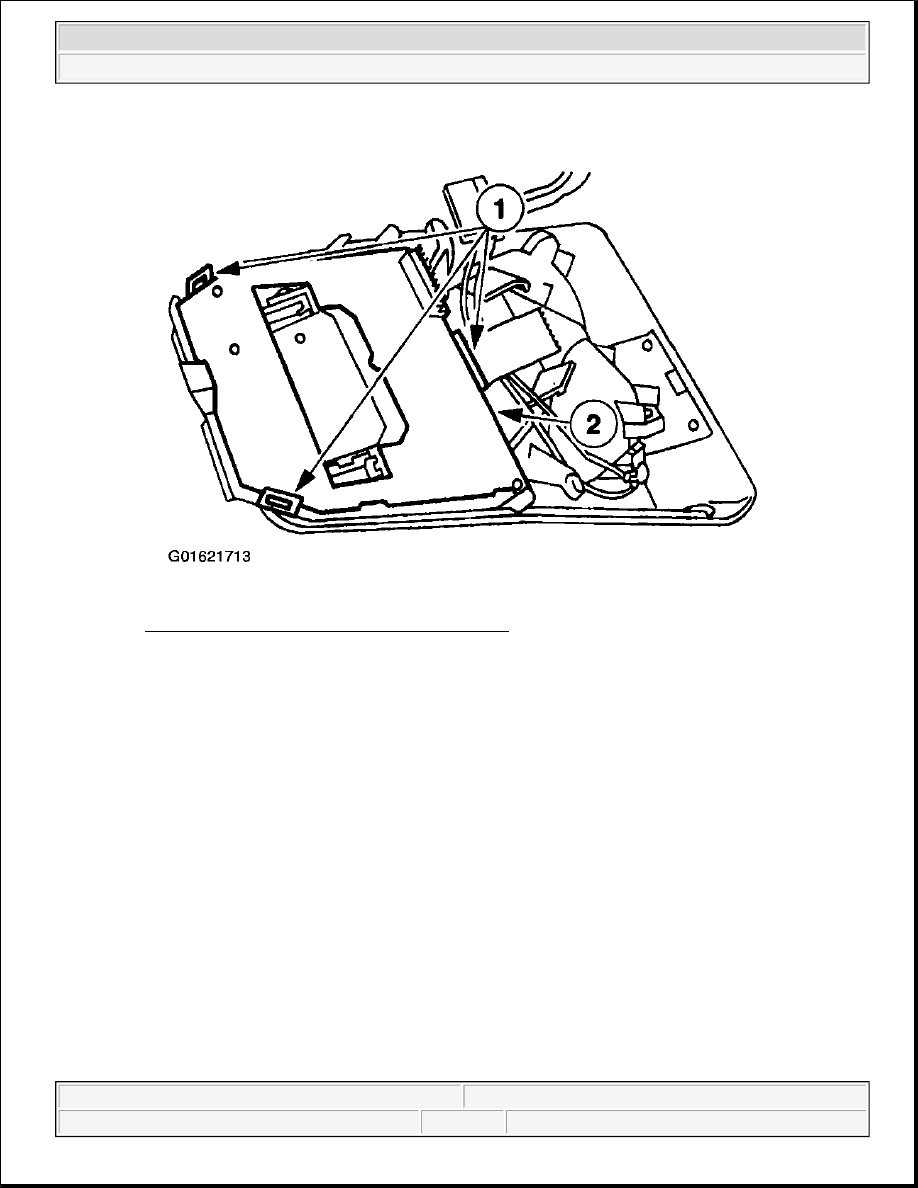

Fig. 12: Removing Compass/Lamp Bezel
Courtesy of FORD MOTOR CO.

4. Remove the compass and thermometer (19A548).

1. Push the three locking tabs.

2. Remove the compass and thermometer.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Electronic Compass - F150 Pickup



Fig. 13: Removing Compass And Thermometer
Courtesy of FORD MOTOR CO.

5. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Electronic Compass - F150 Pickup



2003 ACCESSORIES AND BODY, CAB

Instrument Cluster and Panel Illumination - F150 Pickup

DESCRIPTION AND OPERATION

INSTRUMENT PANEL ILLUMINATION

The instrument cluster and panel lighting illuminates the following components:

z

headlamp switch (11654)

z

instrument cluster (10849)

z

audio unit (18806)

z

climate control assembly

z

ash tray

z

A4WD mode switch

z

steering wheel switches

z

power window switches

z

power door lock switches

DIAGNOSIS AND TESTING

INSTRUMENT PANEL ILLUMINATION

Refer to INSTRUMENT CLUSTER for schematic and connector information.

Special Tool(s)



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster and Panel Illumination - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster and Panel Illumination - F150 Pickup



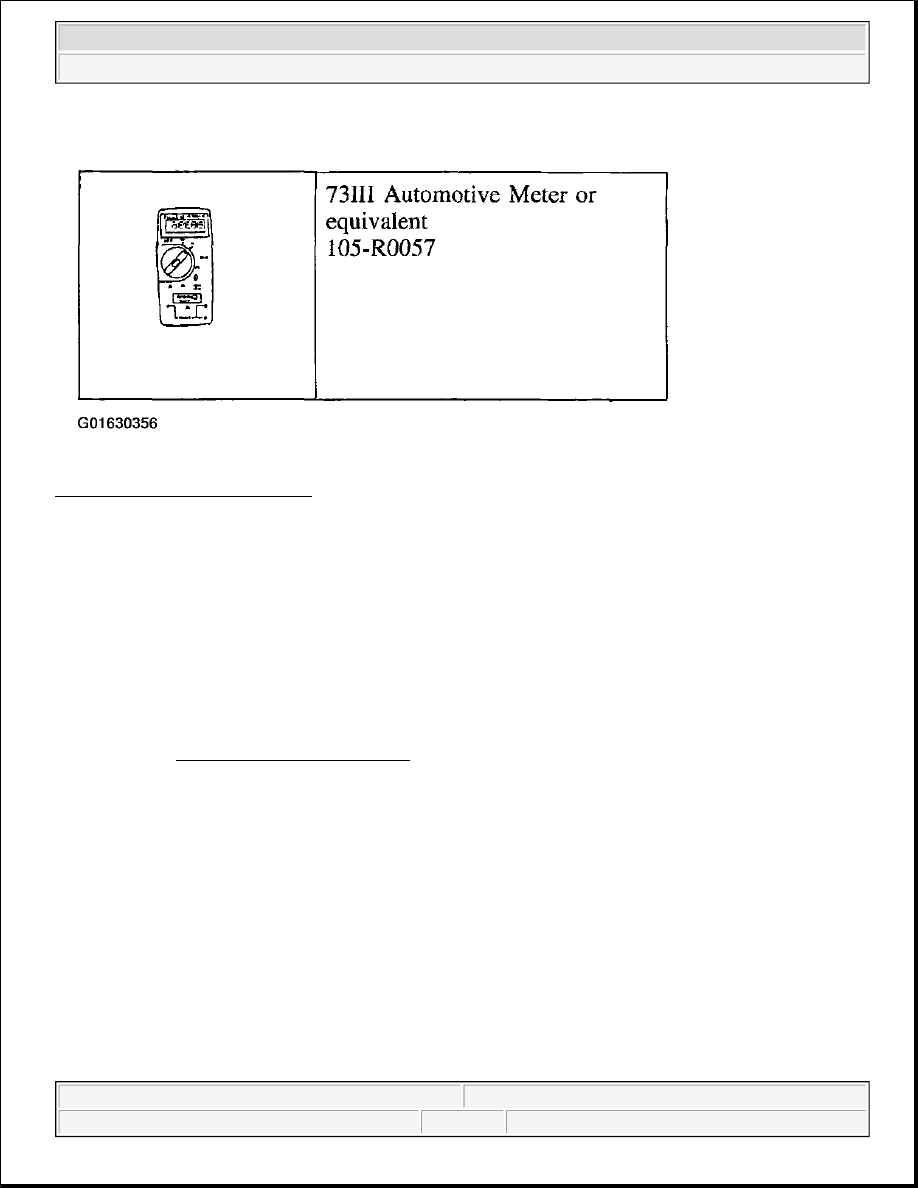

Fig. 1: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Principles of Operation

The instrument cluster and panel lighting is illuminated by the headlamp switch. For all models, except
Lightning, the instrument cluster is illuminated by an incandescent bulb. A new one can be installed separately
as necessary. The Lightning is illuminated with a florescent lamp element, and a new element cannot be
installed separately.

Inspection and Verification

1. Verify the customer concern by operating the headlamp switch for the instrument panel illumination.

2. Visually inspect for obvious signs of electrical damage.

Visual Inspection Chart

NOTE:

The instrument cluster must be reconfigured upon replacement. Refer to
MODULE CONFIGURATION .



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster and Panel Illumination - F150 Pickup
