Ford F150 Pickup. Instruction - part 37

Fig. 46: Installing Deactivator Switch
Courtesy of FORD MOTOR CO.

1. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



2003 ACCESSORIES AND EQUIPMENT

Multifunction Electronic Module - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

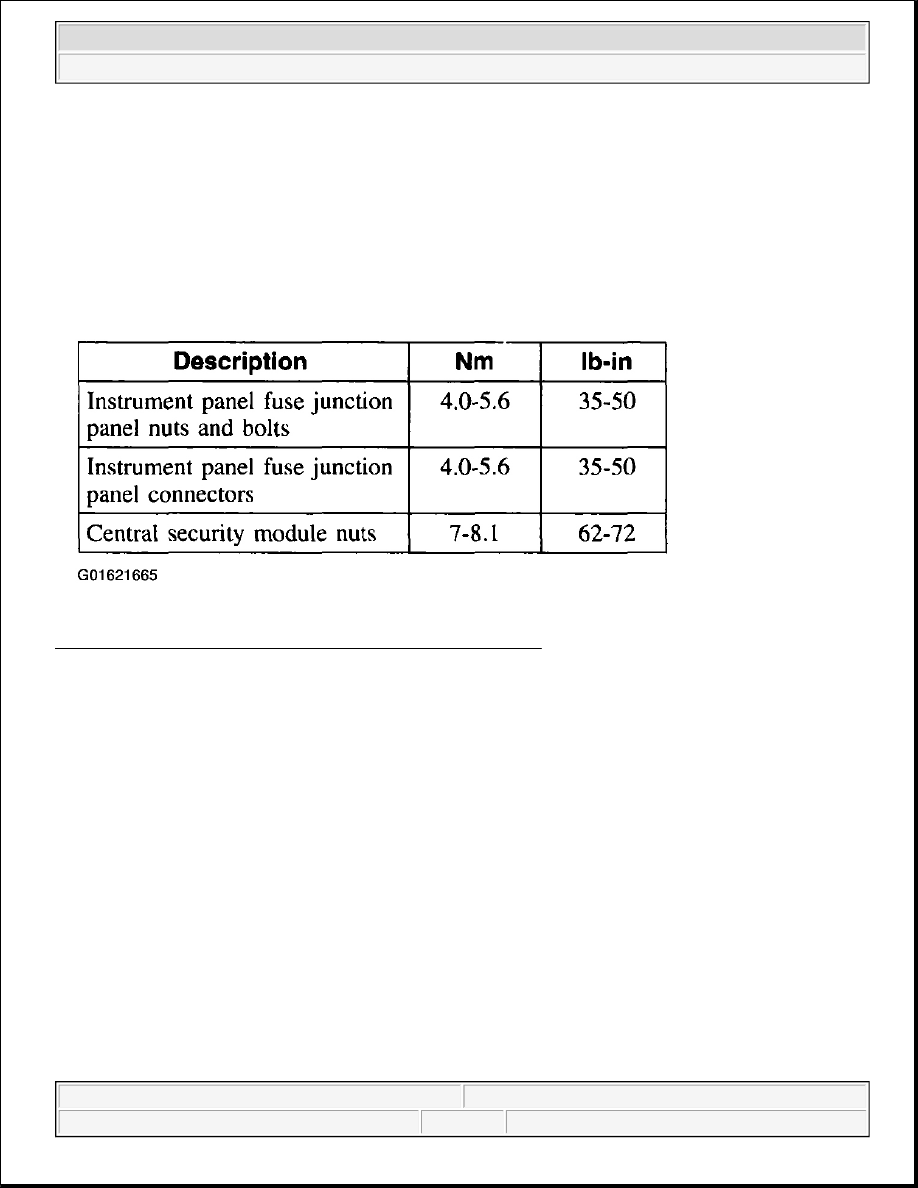

Fig. 1: Multifunction Electronic Modules Torque Specifications
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

MODULE CONTROLLED FUNCTIONS

The multifunction electronic control modules consist of the following:

z

central security module

z

CTM with diagnostic connector

z

GEM

DIAGNOSIS AND TESTING

DIAGNOSTIC TROUBLE CODE CHART

NOTE:

Each vehicle has either a generic electronic module (GEM) or central timer
module (CTM) depending on option content.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Multifunction Electronic Module - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Multifunction Electronic Module - F150 Pickup



For central timer module (CTM), generic electronic module (GEM) or central security module, Refer to BODY
CONTROL MODULES for schematic and connector information.

DIAGNOSTIC TROUBLE CODE CHART

DTC

Description

Source

Action

B1202 Fuel Sender Open Circuit

IC

Module

REFER to FUEL TANK & LINES-BI-FUEL - F150

PICKUP .

B1204 Fuel Sender Circuit Short

to Ground

IC

Module

REFER to FUEL TANK & LINES-BI-FUEL - F150

PICKUP .

B1213

Anti-Theft Number of

Programmed Keys is

Below Minimum

PATS

Module

REFER to ANTI-THEFT - PATS - F150 .

B1219 Fuel Tank Pressure Sensor

Circuit Failure

NGVM

REFER to FUEL TANK & LINES-NATURAL GAS -

F150 .

B1220 Fuel Tank Pressure Sensor

Circuit Open

NGVM

REFER to FUEL TANK & LINES-NATURAL GAS -

F150 .

B1222 Fuel Temperature Sensor

No. 1 Circuit Failure

NGVM

REFER to FUEL TANK & LINES-NATURAL GAS -

F150 .

B1223 Fuel Temperature Sensor

No. 1 Circuit Open

NGVM

REFER to FUEL TANK & LINES-NATURAL GAS -

F150 .

B1224 Fuel Temperature Sensor

No. 1 Circuit Short to

Battery

NGVM

REFER to FUEL TANK & LINES-NATURAL GAS -

F150 .

B1225 Fuel Temperature Sensor

No. 1 Circuit Short to

Ground

NGVM

REFER to FUEL TANK & LINES-NATURAL GAS -

F150 .

B1231 Longitudinal Acceleration

Threshold Exceeded

RCM

REFER to AIR BAG RESTRAINT SYSTEMS - F150

PICKUP .

B1240 Rear Wiper Washer Pump

Relay Circuit Failure

GEM

REFER to AIR BAG RESTRAINT SYSTEMS - F150

PICKUP .

B1241 Rear Wiper Washer Pump

Relay Circuit Short to

Battery

GEM

REFER to WIPERS AND WASHERS - F150 .

B1302

Accessory Delay Relay

Circuit Failure

GEM

REFER to GLASS, FRAMES AND MECHANISMS -

F150 .

B1304

Accessory Delay Relay
Circuit Short to Battery

GEM

REFER to GLASS, FRAMES AND MECHANISMS -

F150 .

B1309 Power Door Lock Circuit

Short to Ground

Central

Security

Module

REFER to HANDLES, LOCKS, LATCHES AND

ENTRY SYSTEMS - F150 .

B1313 Battery Saver Relay Coil

Circuit Failure

CTM

REFER to INTERIOR LIGHTING - F150 .

B1313 Battery Saver Relay Coil

Circuit Open, Short to

GEM

REFER to INTERIOR LIGHTING - F150 .



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Multifunction Electronic Module - F150 Pickup



Ground

B1315

Battery Saver Relay

Circuit Short to Battery

GEM

REFER to INTERIOR LIGHTING - F150 .

B1315 Battery Saver Relay Coil

Circuit Short to Battery

CTM

REFER to INTERIOR LIGHTING - F150 .

B1317

Battery Voltage High

CTM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1317

Battery Voltage High

GEM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1317

Battery Voltage High

NGVM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1317

Battery Voltage High

IC

Module

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1317

Battery Voltage High

AFCM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1318

Battery Voltage Low

CTM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1318

Battery Voltage Low

GEM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1318

Battery Voltage Low

IC

Module

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1318

Battery Voltage Low

NGVM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1318

Battery Voltage Low

RCM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1318

Battery Voltage Low

AFCM

REFER to GENERATORS & REGULATORS - F150

PICKUP .

B1322 Door Ajar LF Circuit Short

to Ground

GEM

REFER to INTERIOR LIGHTING - F150 .

B1322 Driver Door Ajar Short to

Ground

CTM

REFER to INTERIOR LIGHTING - F150 .

B1323

Door Ajar Lamp Circuit

Failure

CTM

REFER to INSTRUMENT CLUSTER-

CONVENTIONAL - F150 .

B1323

Door Ajar Lamp Circuit

Failure

GEM

REFER to WARNING DEVICES - F150 .

B1325

Door Ajar Lamp Circuit

Short to Battery

CTM

REFER to INSTRUMENT CLUSTER-

CONVENTIONAL - F150 .

B1325

Door Ajar Lamp Circuit

Short to Battery

GEM

REFER to INSTRUMENT CLUSTER-

CONVENTIONAL - F150 .

B1330 Passenger Door Ajar Short

to Ground

CTM

REFER to INTERIOR LIGHTING - F150 .

B1330

Door Ajar RF Circuit

Short to Ground

GEM

REFER to INTERIOR LIGHTING - F150 .

B1334

Decklid Ajar Rear Door

Central

REFER to INTERIOR LIGHTING - F150 .
