Ford F150 Pickup. Instruction - part 34

Fig. 34: Removing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.

2. Disconnect the speed control cable from the throttle nail head.

1. Open the throttle valve.

2. Slide the throttle cable to disconnect from the throttle cam nail head.

3. Squeeze the speed control cable tabs and remove from the throttle cable bracket.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



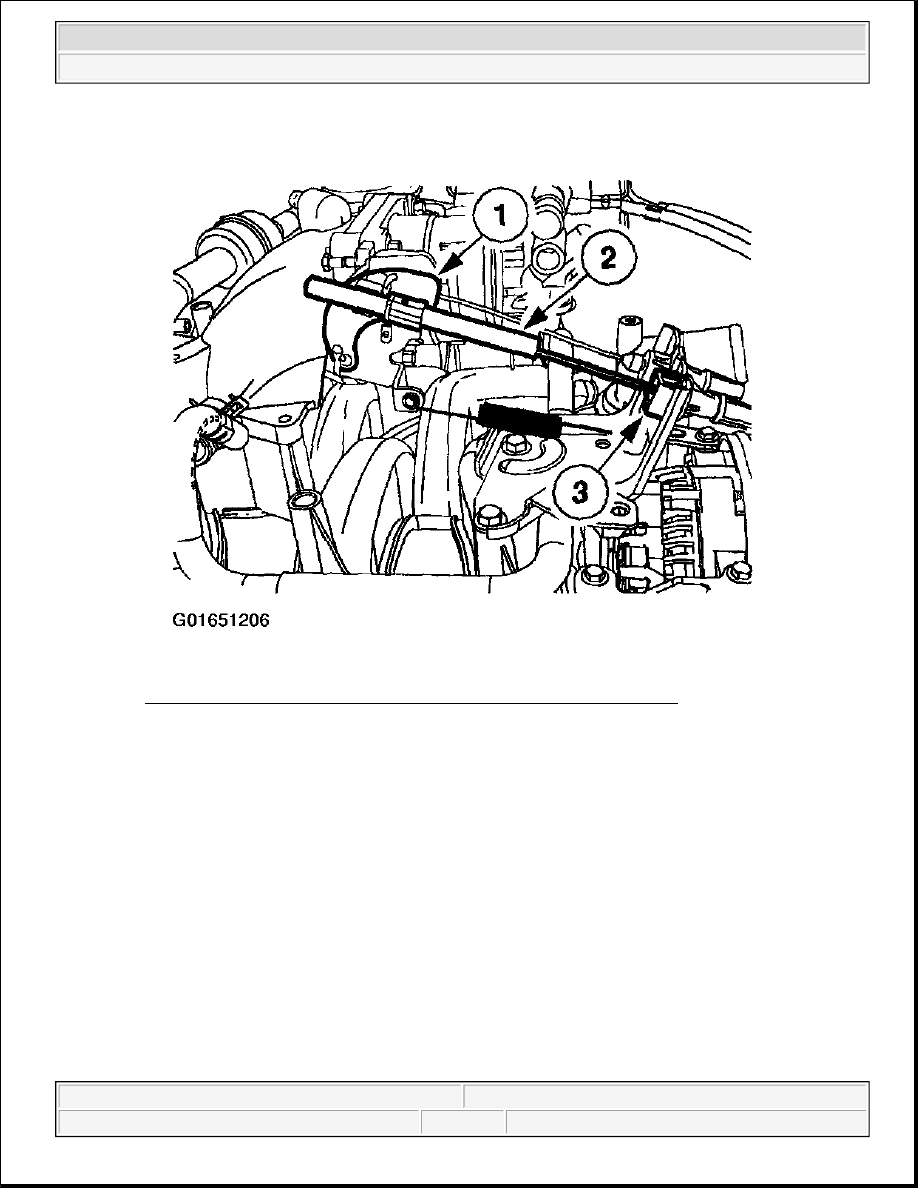

Fig. 35: Disconnecting Speed Control Cable From Throttle Nail Head
Courtesy of FORD MOTOR CO.

3. Remove the speed control cable from the retaining clips.

4. Depress the locking tab and rotate the speed control cable cap to remove.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



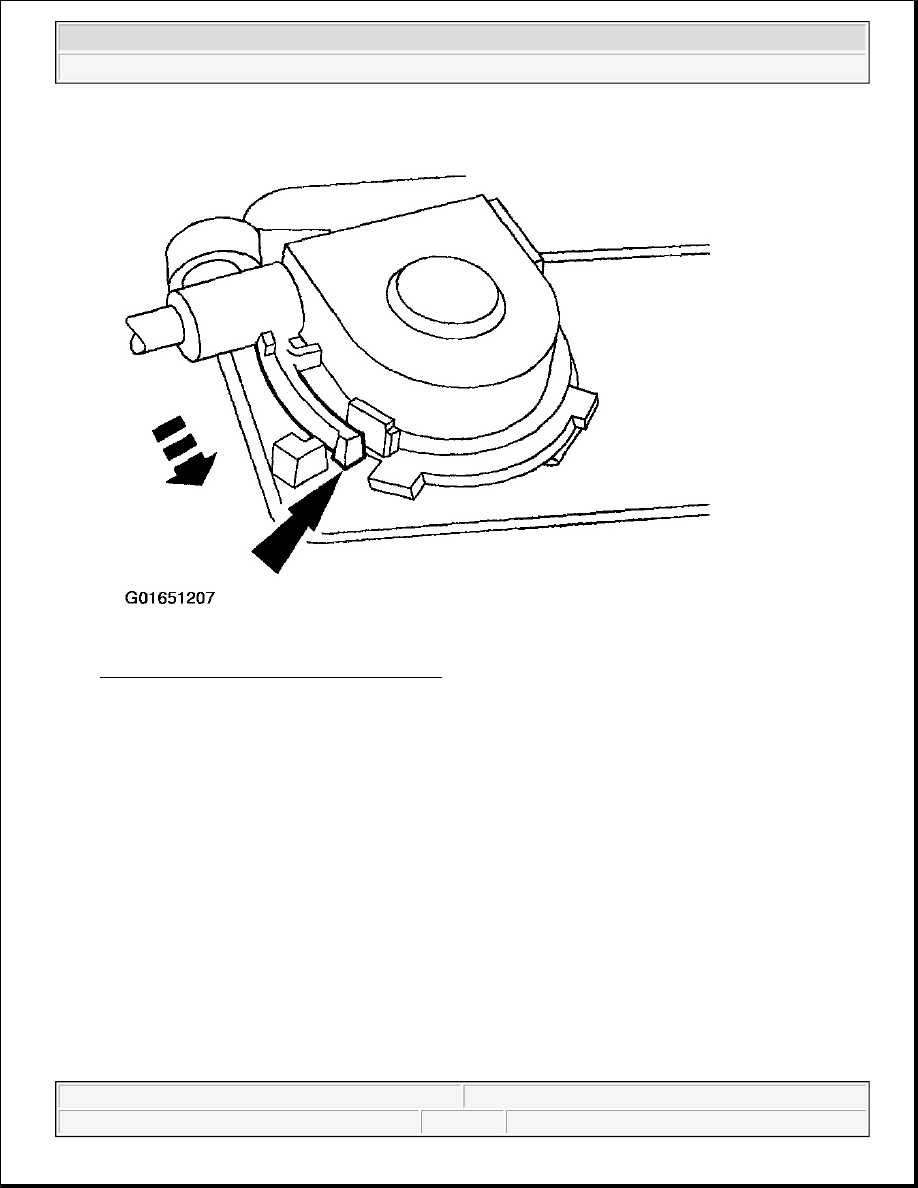

Fig. 36: Removing Speed Control Cable Cap
Courtesy of FORD MOTOR CO.

5. Remove the speed control cable.

1. Gently push the retaining spring.

2. Disconnect the speed control cable slug from the speed control servo pulley.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



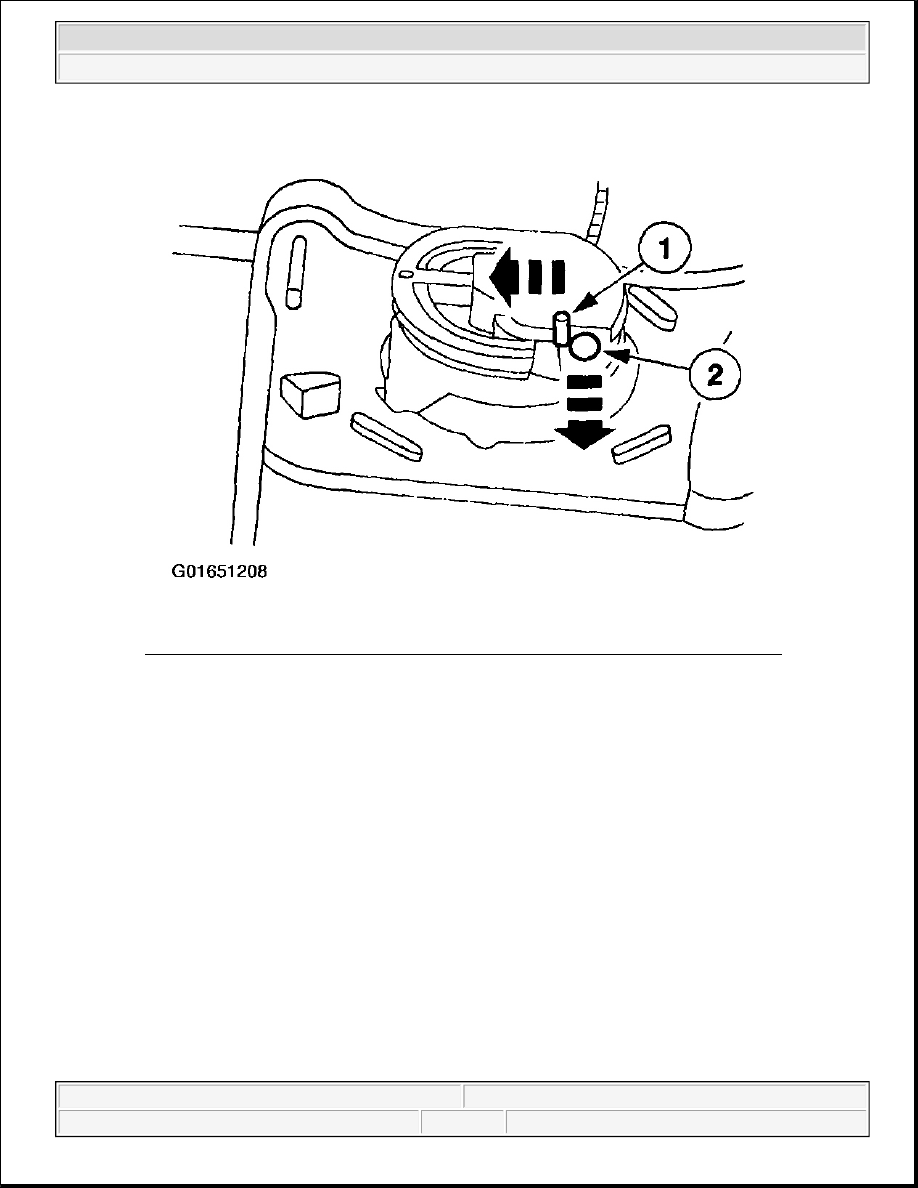

Fig. 37: Disconnecting Speed Control Cable Slug From Speed Control Servo Pulley
Courtesy of FORD MOTOR CO.

6. To install, reverse the removal procedure.

SPEED CONTROL SERVO

Removal and Installation

1. To remove the speed control cable cap depress the locking tab and rotate the cap.

NOTE:

Make sure the rubber seal is fully seated onto the speed control cable cap.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup
