Ford F150 Pickup. Instruction - part 32

Fig. 22: The Speed Control Does Not Disengage When The Brakes Are Applied: Pinpoint Test C9
Courtesy of FORD MOTOR CO.

Pinpoint Test D: The Speed Control Does Not Disengage When The Clutch Is Applied

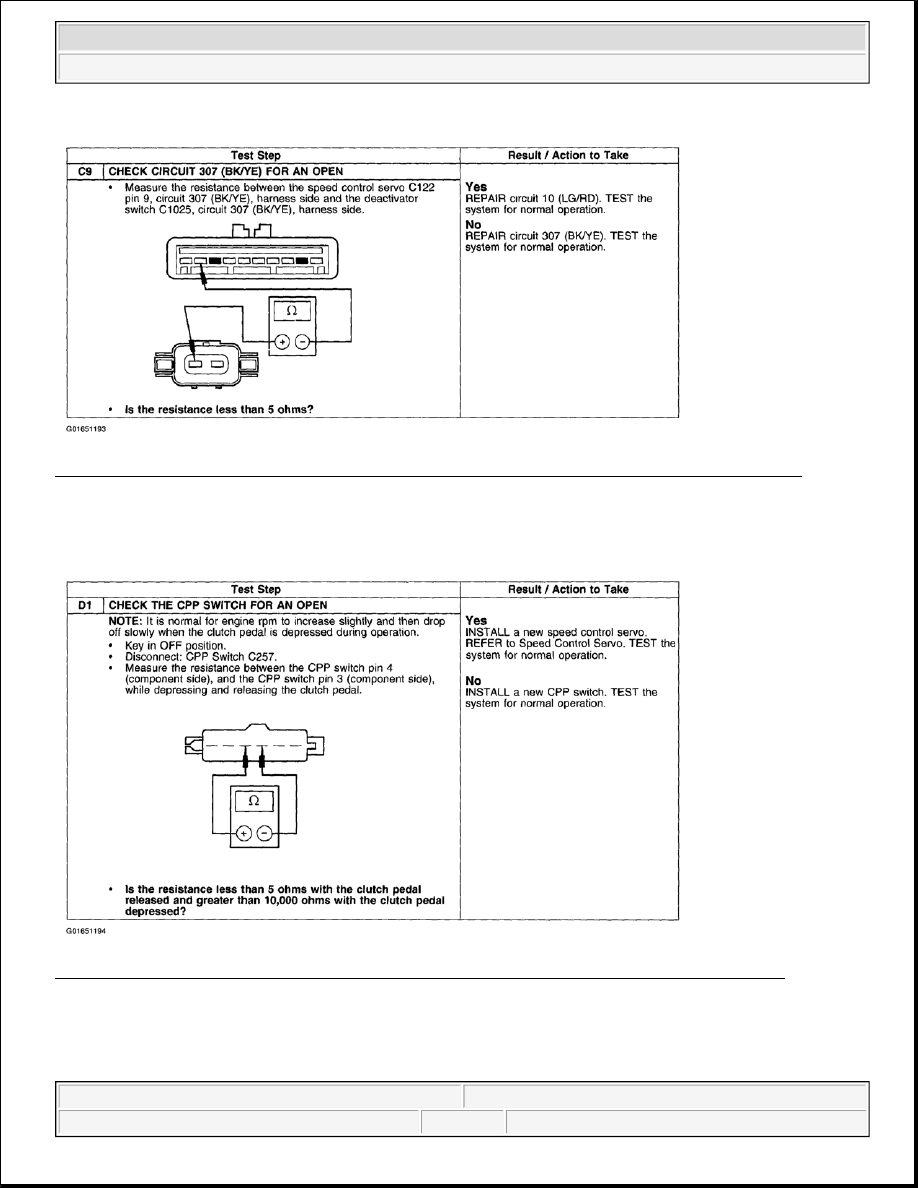

Fig. 23: The Speed Control Does Not Disengage When The Clutch Is Applied: Pinpoint Test D1
Courtesy of FORD MOTOR CO.

Pinpoint Test E: Speed Control Switch Is Inoperative



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

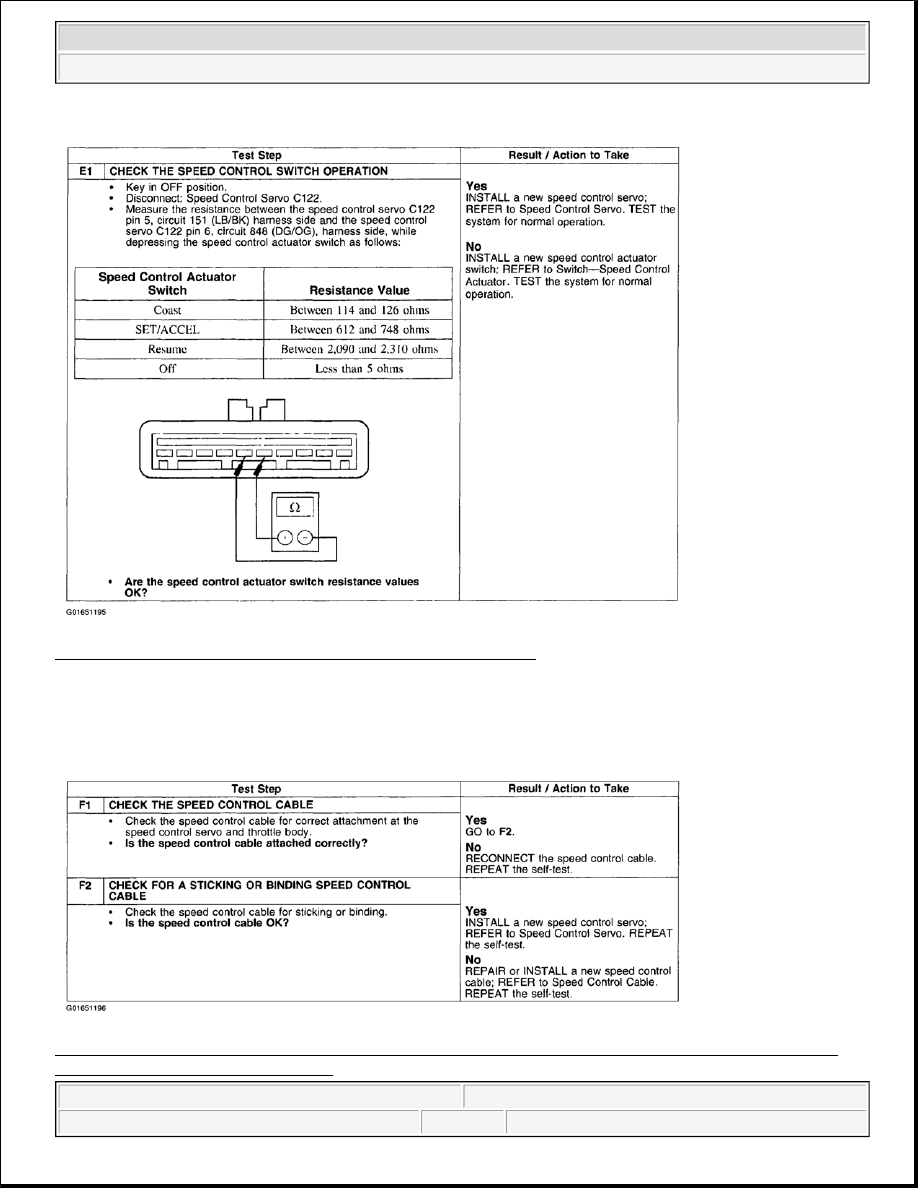

Fig. 24: Speed Control Switch Is Inoperative: Pinpoint Test E1
Courtesy of FORD MOTOR CO.

Pinpoint Test F: Flash With Last Switch Pressed, But No Dynamic Pull Occurs At Throttle And Speed Control
Inoperative

Fig. 25: Flash With Last Switch Pressed, But No Dynamic Pull Occurs At Throttle And Speed Control
Inoperative: Pinpoint Test F1 To F2



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



Courtesy of FORD MOTOR CO.

Pinpoint Test G: Flash Code 2 - Brake Pedal Position Switch Circuit Failure

Fig. 26: Flash Code 2 - Brake Pedal Position Switch Circuit Failure: Pinpoint Test G1 To G3
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

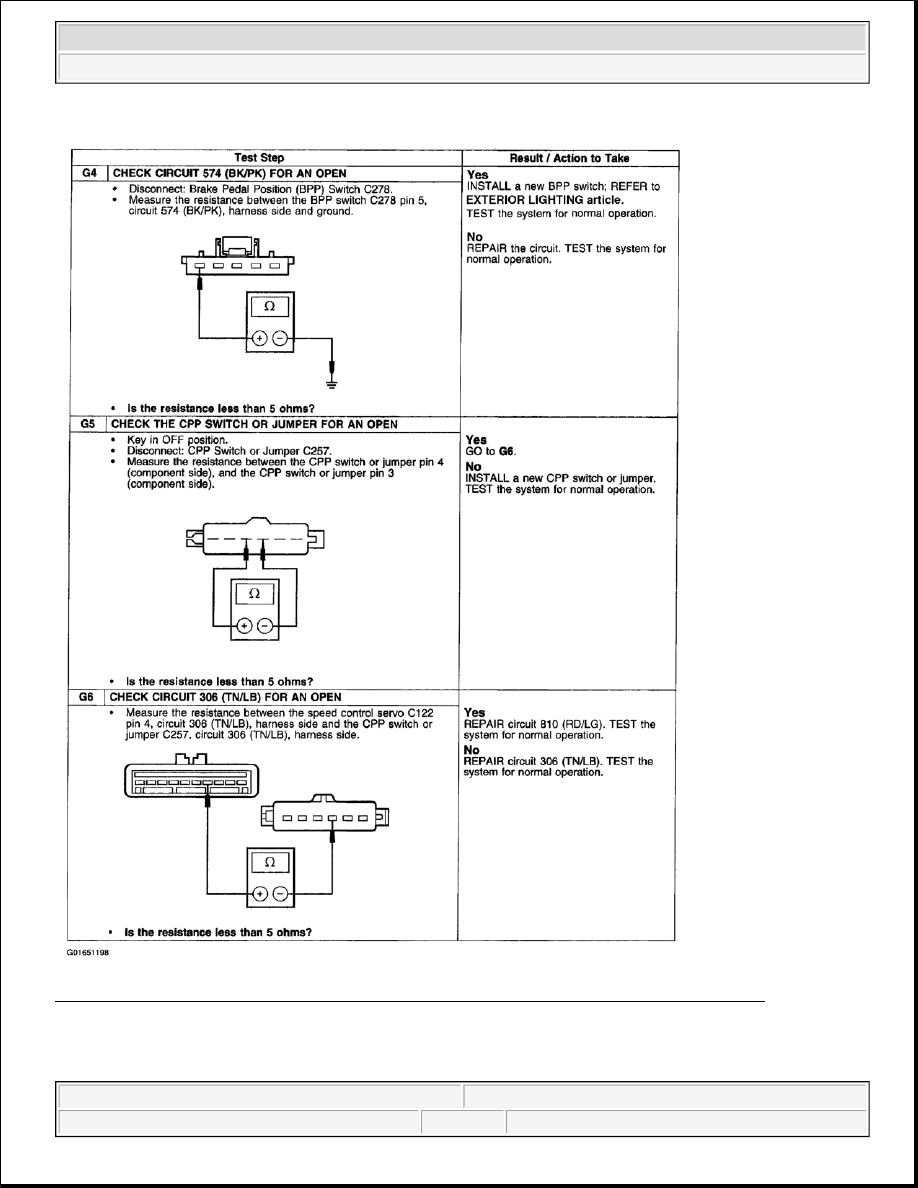

Fig. 27: Flash Code 2 - Brake Pedal Position Switch Circuit Failure: Pinpoint Test G4 To G6
Courtesy of FORD MOTOR CO.

Pinpoint Test H: Flash Code 3 - Deactivator Switch Circuit Failure



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup
