Fig. 16: The Speed Control Is Inoperative - No Flash Codes: Pinpoint Test A21 Cont.
Courtesy of FORD MOTOR CO.

Pinpoint Test B: The Set Speed Fluctuates

Fig. 17: The Set Speed Fluctuates: Pinpoint Test B1 To B2
Courtesy of FORD MOTOR CO.

Pinpoint Test C: The Speed Control Does Not Disengage When The Brakes Are Applied



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



Fig. 18: The Speed Control Does Not Disengage When The Brakes Are Applied: Pinpoint Test C1
Courtesy of FORD MOTOR CO.

Fig. 19: The Speed Control Does Not Disengage When The Brakes Are Applied: Pinpoint Test C2 To C3
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



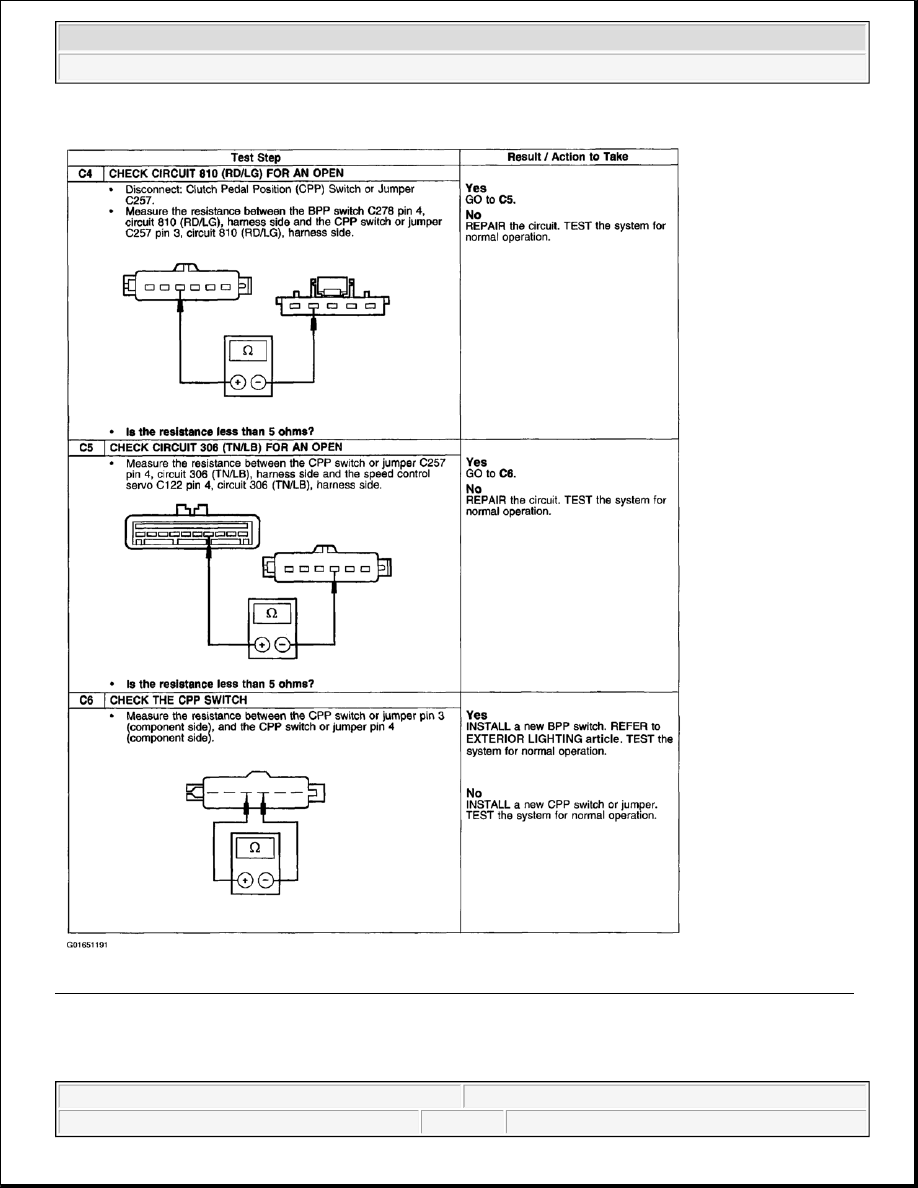

Fig. 20: The Speed Control Does Not Disengage When The Brakes Are Applied: Pinpoint Test C4 To C6
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

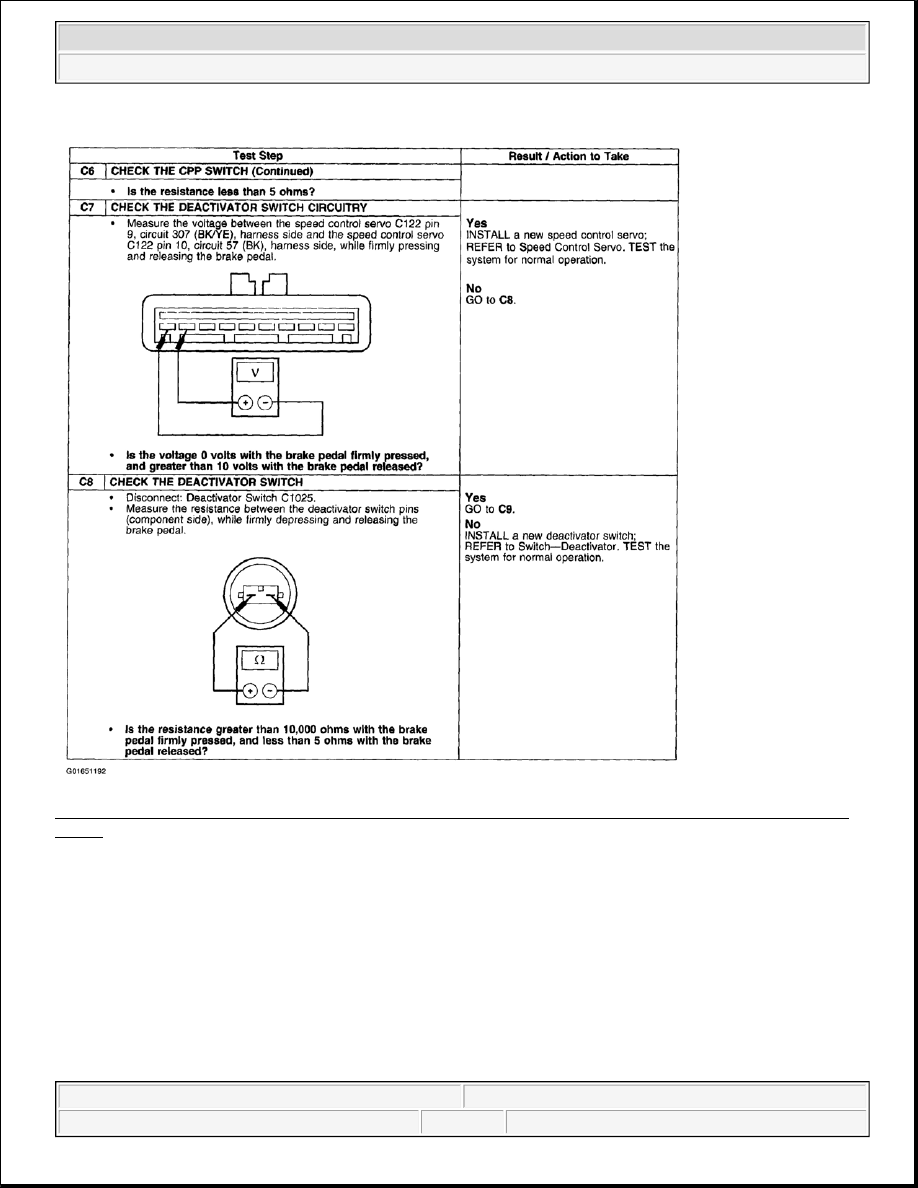

Fig. 21: The Speed Control Does Not Disengage When The Brakes Are Applied: Pinpoint Test C6 Cont.
To C8
Courtesy of FORD MOTOR CO.
