Ford F150 Pickup. Instruction - part 29

Fig. 8: The Speed Control Is Inoperative - No Flash Codes: Pinpoint Test A4 To A6
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

Fig. 9: The Speed Control Is Inoperative - No Flash Codes: Pinpoint Test A6 Cont. To A8
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

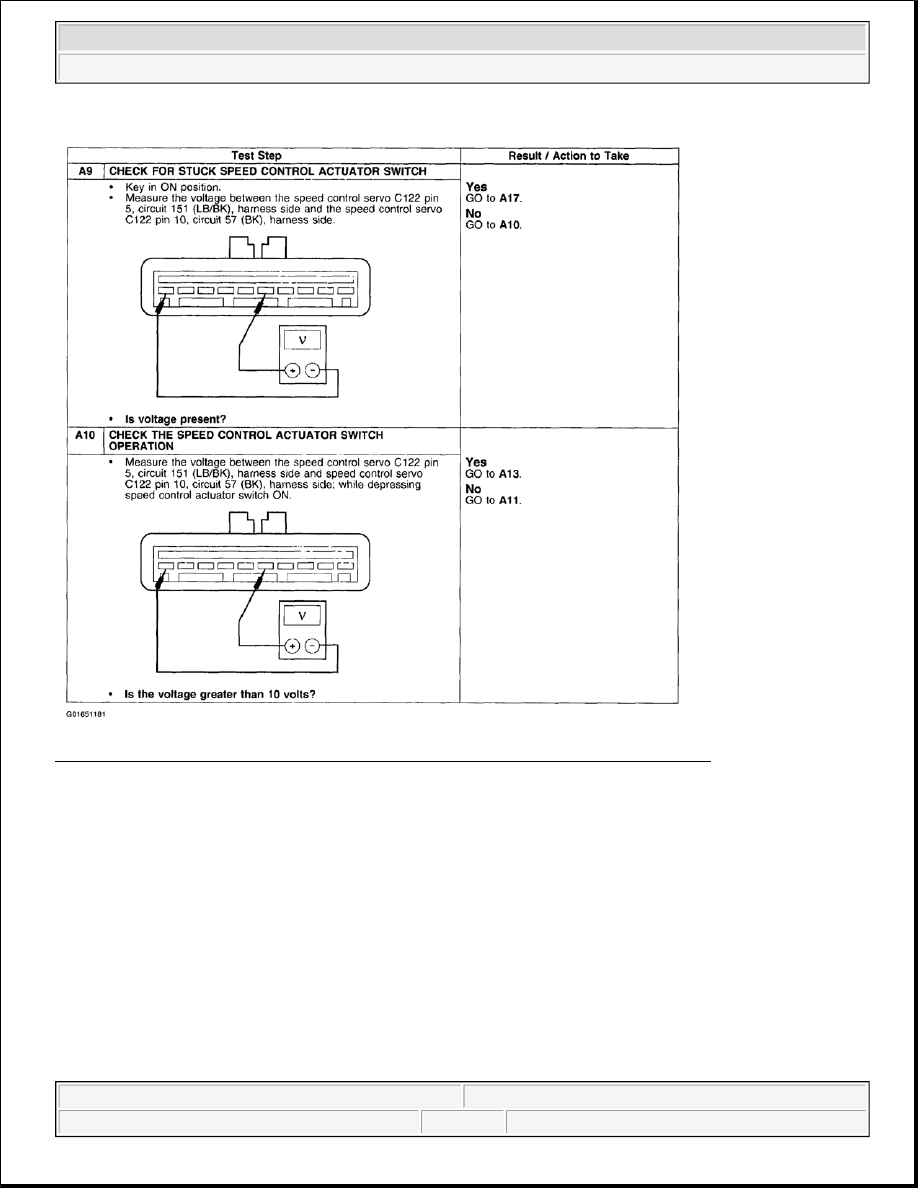

Fig. 10: The Speed Control Is Inoperative - No Flash Codes: Pinpoint Test A9 To A10
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

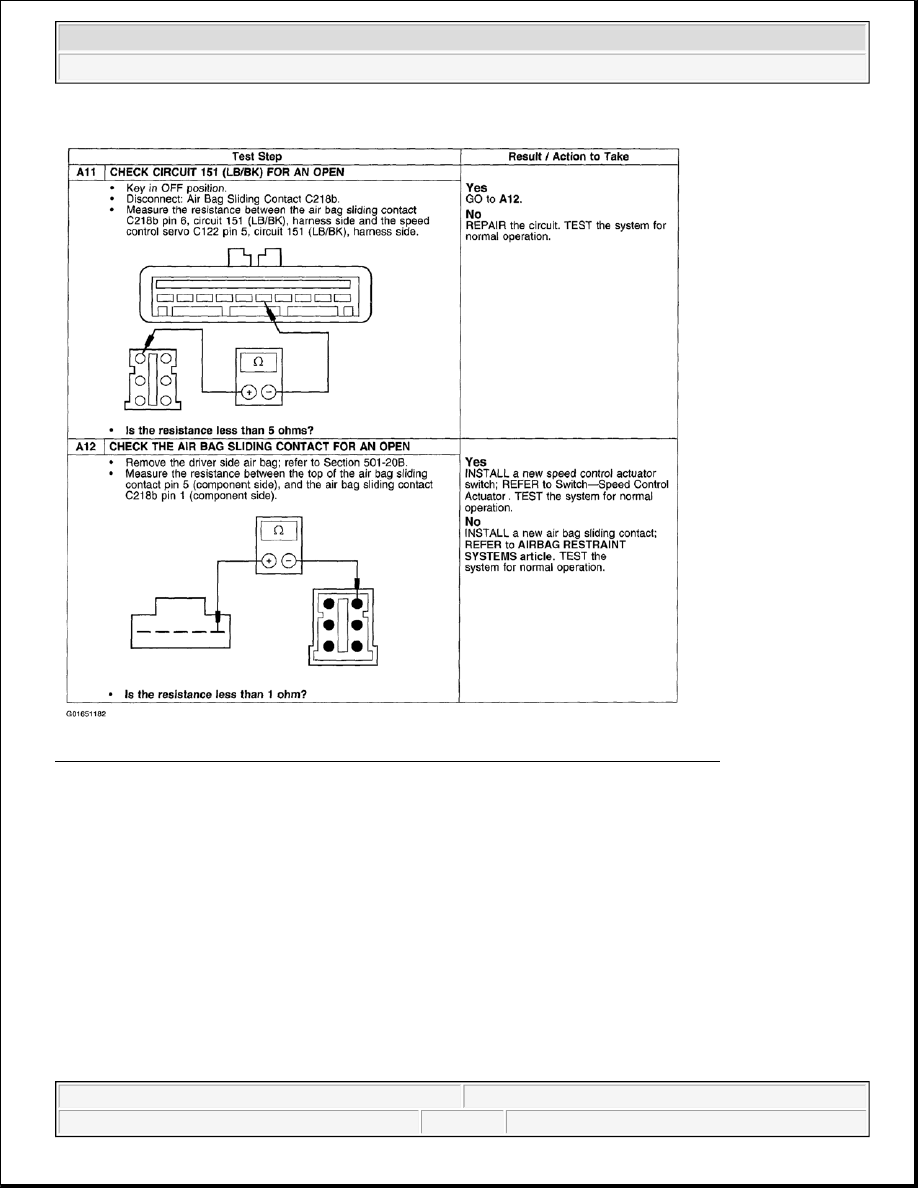

Fig. 11: The Speed Control Is Inoperative - No Flash Codes: Pinpoint Test A11 To A12
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup
