INTERNAL EQUIPMENT

Storage

Glove Compartment

The glove compartment is located on the passenger side of
the instrument panel.

To open the glove compartment, pull the release handle.

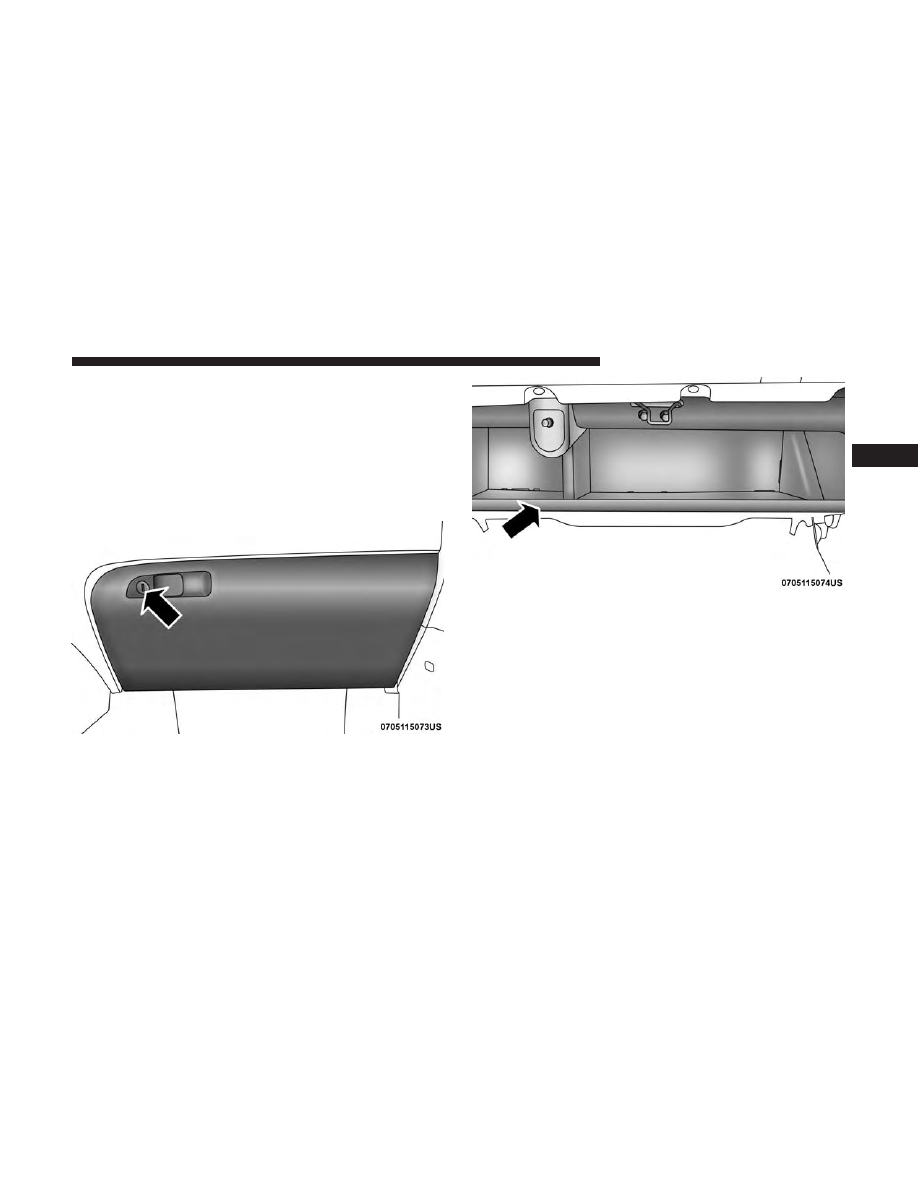

Glove Compartment

Opened Glove Compartment

GETTING TO KNOW YOUR VEHICLE

Console Storage

The center console has a storage compartment located
underneath the armrest. The compartment contains a 12
Volt power outlet, and is also equipped with a USB port
featuring active charging, which will continue charging
your device up to 60 minutes after the ignition is turned
off. The USB port also may be equipped with an IPOD/
USB control, or Apple CarPlay and Android Auto. Refer to
“IPOD/USB/MP3 Control – If Equipped” in “Multimedia”
for further information. If equipped with Apple CarPlay
and Android Auto, refer to the Uconnect Owner’s Manual
Supplement.

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the console
compartment lid open may result in injury in a colli-
sion.

Cupholders

The front cupholders are located in the center console and
in the door panels.

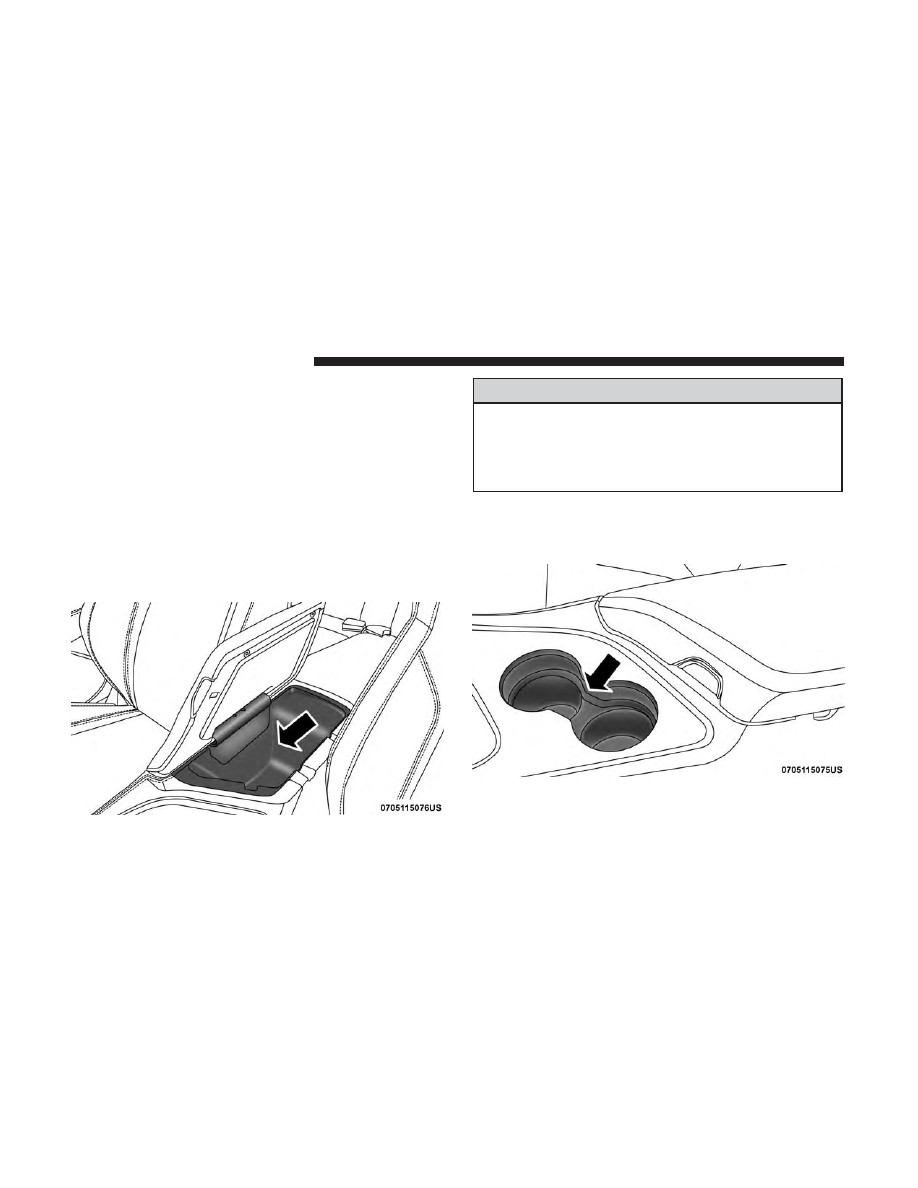

Center Console

Front Cupholders

GETTING TO KNOW YOUR VEHICLE

WARNING!

If containers of hot liquid are place in the cupholder,
they can spill when the door is closed, burning the
occupants. Be careful when closing the doors to avoid
injury.

The rear seat cupholders are located in the center armrest
between the rear seats. The cupholders are positioned
forward in the armrest and side-by-side to provide conve-
nient access to beverage cans or bottles while maintaining
a resting place for the rear occupant’s elbows.

Electrical Power Outlets

Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
Power outlets labeled with a “key” can be powered when
the ignition is in the ON or ACC position, while the outlets
labeled with a “battery” are connected directly to the
battery and powered at all times.

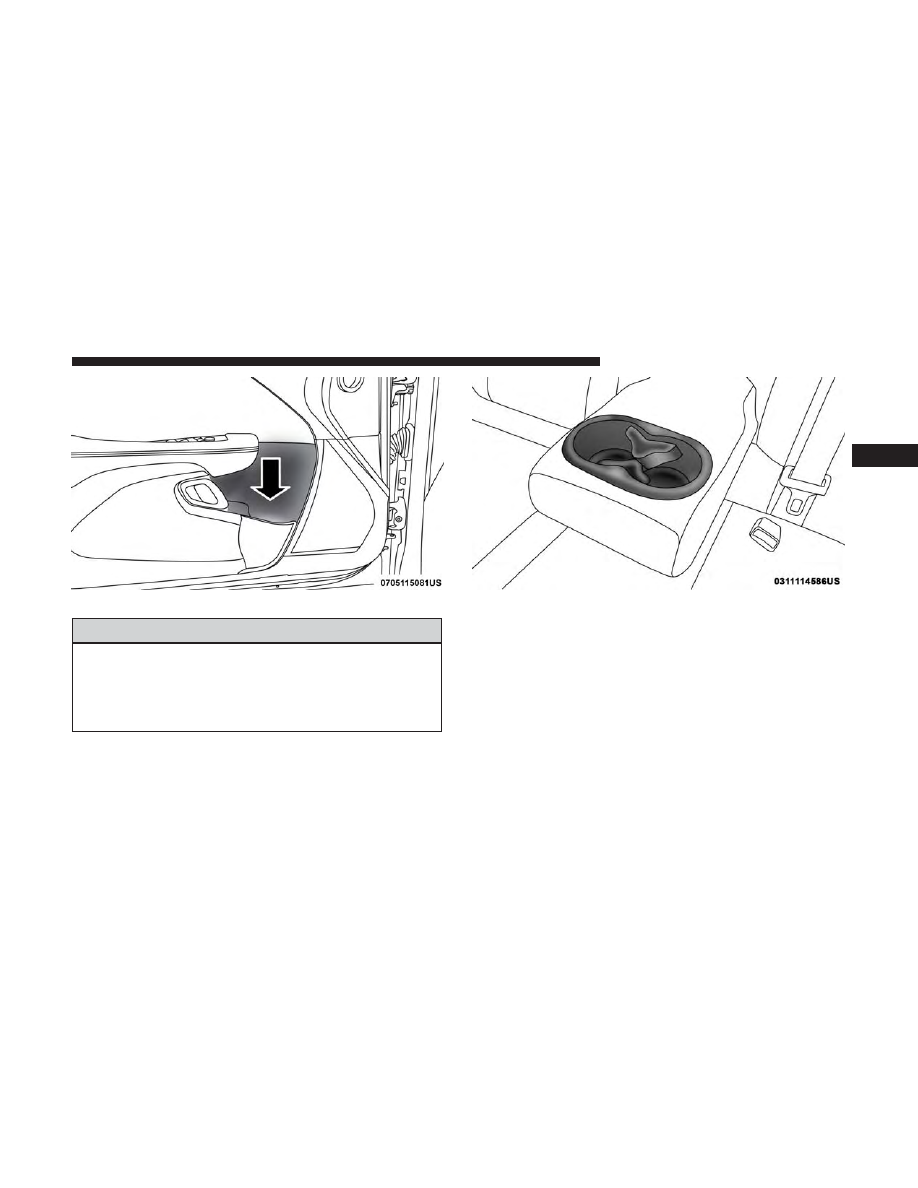

Door Cupholder

Rear Cupholders

GETTING TO KNOW YOUR VEHICLE

These power outlets can also operate a conventional cigar
lighter unit.

The front power outlet is located next to the storage area on
the integrated center stack of the instrument panel.

NOTE:
• The front integrated center stack power outlet can be

changed from switched “ignition” to constant “battery”
powered all the time by moving the integrated center
stack fuse #12 in the Rear Power Distribution Center
from fuse location “IGN” to “B+.” Refer to “Fuses” in
“In Case Of Emergency.”

In addition to the front center stack power outlet, there is
also a power outlet located in the center console to the left
of the media hub.

NOTE:

All accessories connected to these powered outlets

should be removed or turned off when the vehicle is not in
use to protect the battery against discharge.

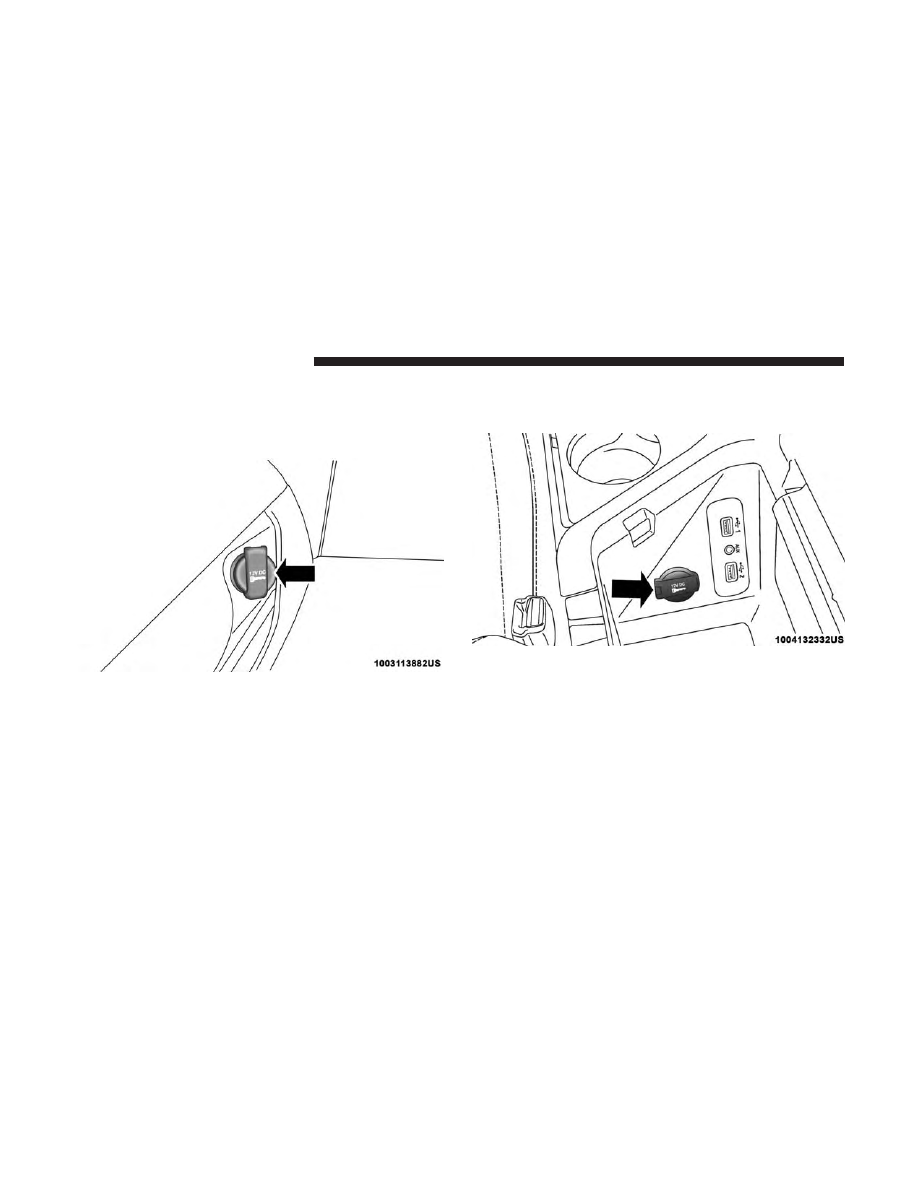

Power Outlet — Integrated Center Stack Front

Power Outlet — Center Console

GETTING TO KNOW YOUR VEHICLE

WARNING!

To avoid serious injury or death:
• Only devices designed for use in this type of outlet

should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

(Continued)

WARNING! (Continued)

• Close the lid when not in use and while driving the

vehicle.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CAUTION!

• Do not exceed the maximum power of 160 Watts

(13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.

• Power outlets are designed for accessory plugs only.

Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.

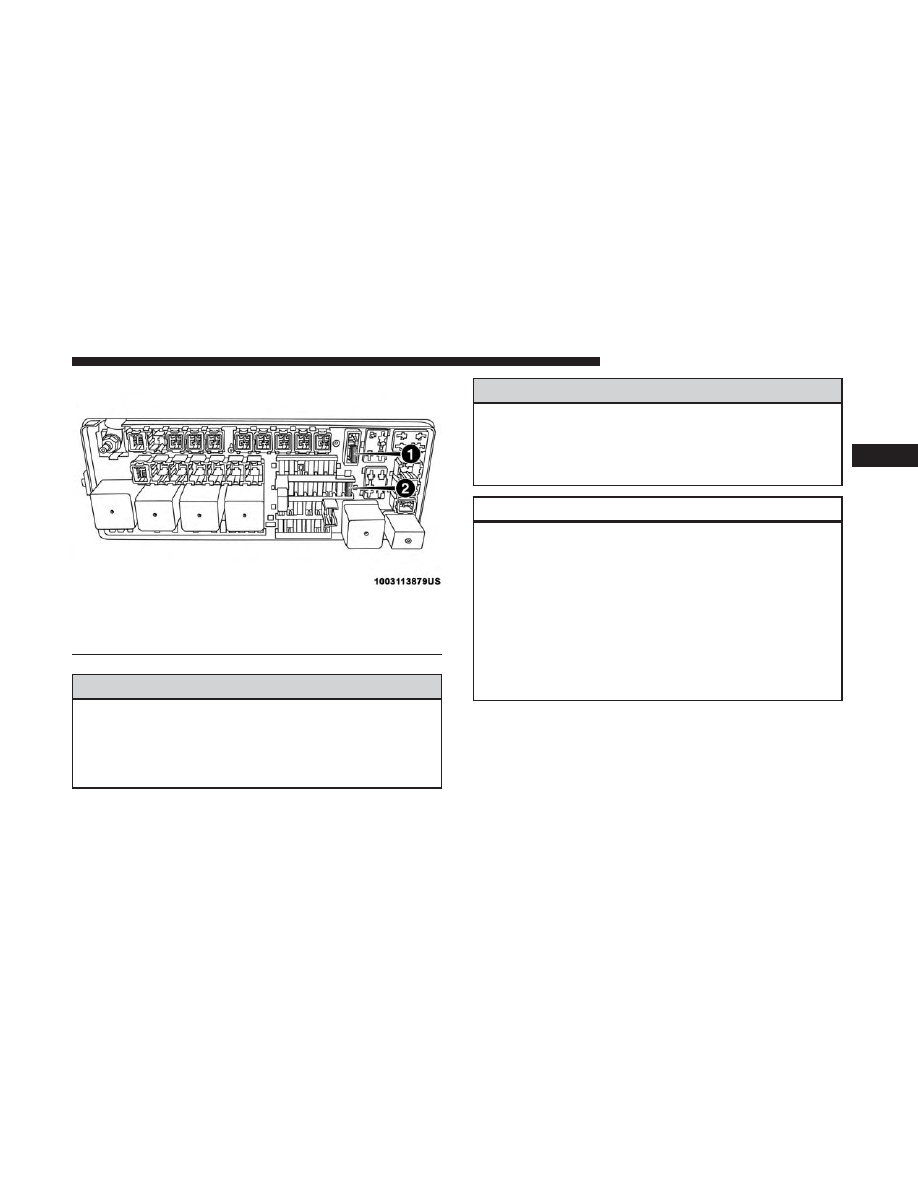

Power Outlet Fuse Locations

1 — #12 Fuse 20A Yellow Power Outlet Integrated Center Stack
2 — #38 Fuse 20A Yellow Power Outlet Center Console

GETTING TO KNOW YOUR VEHICLE

CAUTION!

• Many accessories that can be plugged in draw power

from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.

• Accessories that draw higher power (i.e., coolers,

vacuum cleaners, lights, etc.), will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.

• After the use of high power draw accessories, or long

periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the alternator to
recharge the vehicle’s battery.

• Power outlets are designed for accessory plugs only.

Do not hang any type of accessory or accessory
bracket from the plug. Improper use of the power
outlet can cause damage.

Wireless Charging Pad — If Equipped

Your vehicle may be equipped with an Open Dots compat-
ible wire-free phone charging surface located in the center
console. The wireless charger features continuous wireless
charging during vehicle operation and allows for uninter-
rupted Bluetooth streaming to properly equipped vehicle
audio systems.

In order to enjoy the convenience of Open Dots wire-free
charging, you must obtain an aftermarket wireless-enabled
case and then install the case on your phone. Set the phone

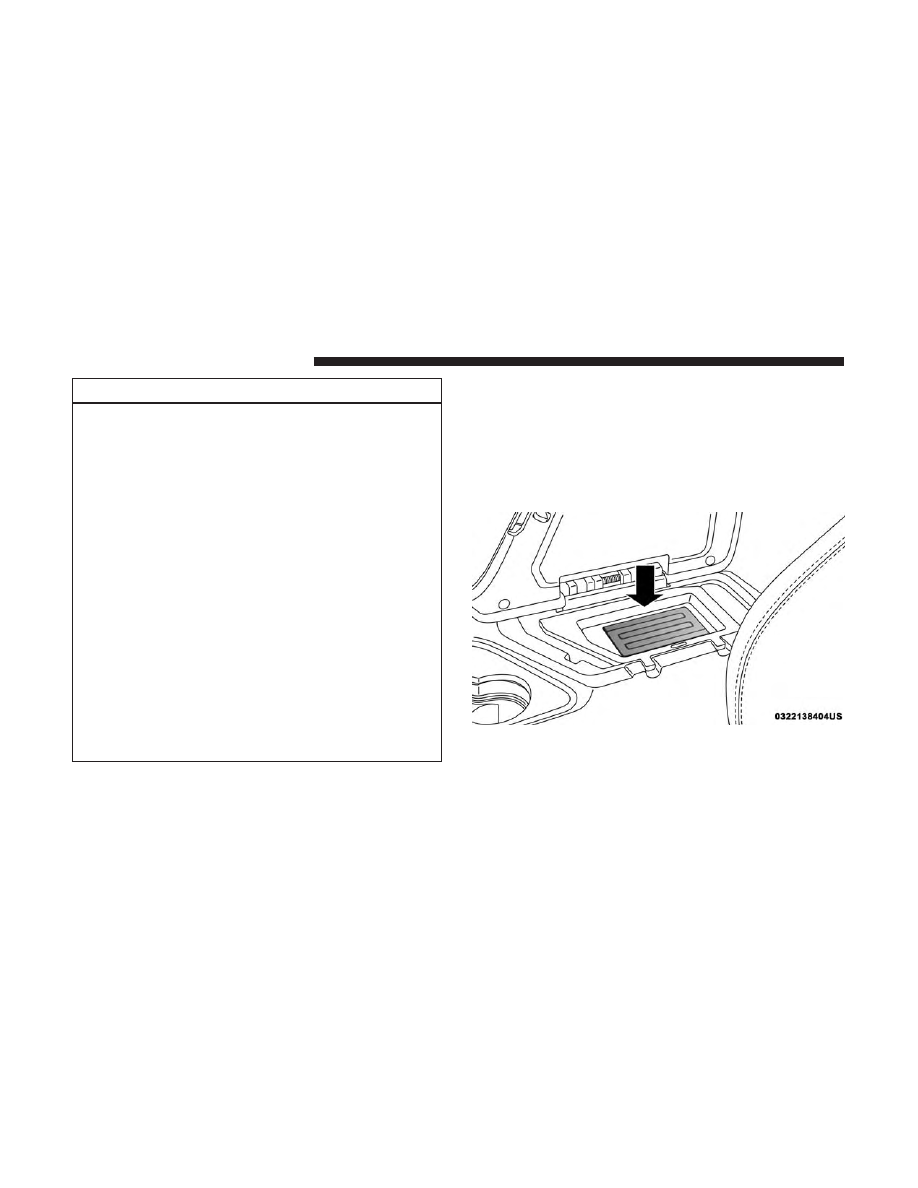

Wireless Charging Pad

GETTING TO KNOW YOUR VEHICLE

on the wireless charging pad face up. The charging indi-
cator on your phone will light up indicating that your
phone is charging.

NOTE:

The charging pad is safe to the touch. However, if

metallic items are placed on the charging surface while in
use, the device will turn off. Clean all spills immediately
and allow to dry before using.

For phones that already have built-in wireless charging
capability (Samsung, Apple iPhone 8, 8 Plus and X
Phones), a Qi Adapter is available to charge your phone
using the Open Dot wire-free phone charging surface.
Simply place the Qi Adapter (dot side down) on the
charging surface and then place your built-in charging
capable phone face up on top of the Qi Adapter. This
product may not be compatible with all vehicle/Open Dots
compatible wire-free phone charging surface combina-
tions.

CAUTION!

The key fob should not be placed on the charging pad
or within 15 cm (150 mm) of it. Doing so can cause
excessive heat buildup and damage to the fob. Placing
the fob in close proximity of the charging pad blocks
the fob from being detected by the vehicle and pre-
vents the vehicle from starting.

To get your free aftermarket phone case or Qi Adapter, go
to http://invehiclewirelesscharging.com. You will need
your vehicle/voucher identification number (located in
your vehicle’s glove box). If you have any questions or are
not sure if you need a phone case or the Qi Adapter, please
call our customer support line for assistance: 877–360–7702

GETTING TO KNOW YOUR VEHICLE

GETTING TO KNOW YOUR INSTRUMENT PANEL

CONTENTS

䡵 INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . . .102

▫ Instrument Cluster Descriptions. . . . . . . . . . . . .103

䡵 INSTRUMENT CLUSTER DISPLAY . . . . . . . . . . .105

▫ Location And Controls . . . . . . . . . . . . . . . . . . .105
▫ Engine Oil Life Reset . . . . . . . . . . . . . . . . . . . .107
▫ Performance Shift Indicator (PSI) —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . .108

▫ Instrument Cluster Display Selectable Menu

Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

▫ Battery Saver On/Battery Saver Mode

Message — Electrical Load Reduction Actions —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . .113

䡵 WARNING LIGHTS AND MESSAGES . . . . . . . . .115

▫ Red Warning Lights . . . . . . . . . . . . . . . . . . . . .115
▫ Yellow Warning Lights . . . . . . . . . . . . . . . . . . .119
▫ Yellow Indicator Lights. . . . . . . . . . . . . . . . . . .123
▫ Green Indicator Lights . . . . . . . . . . . . . . . . . . .123
▫ White Indicator Lights . . . . . . . . . . . . . . . . . . .124
▫ Blue Indicator Lights . . . . . . . . . . . . . . . . . . . .125

䡵 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .125

▫ Onboard Diagnostic System (OBD II)

Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . .126

䡵 EMISSIONS INSPECTION AND MAINTENANCE

PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . .126

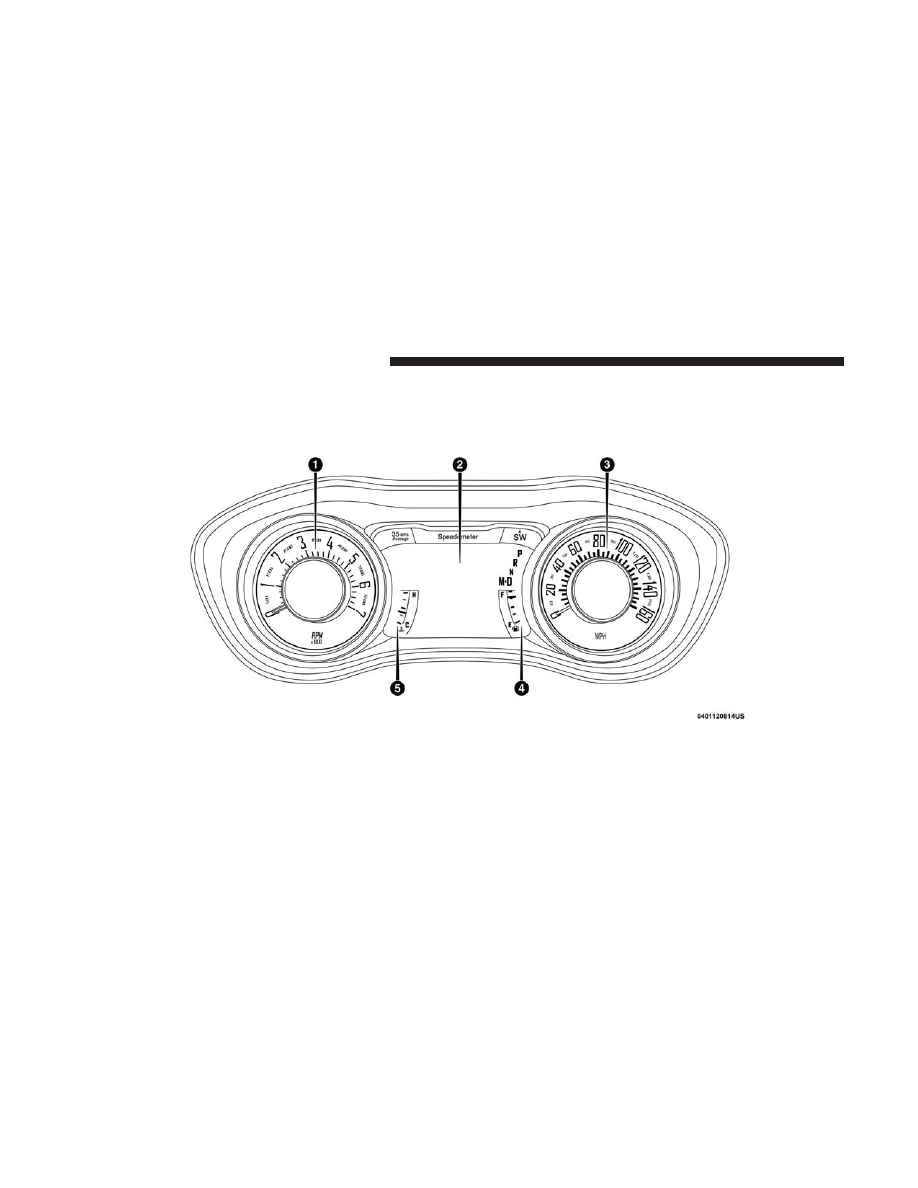

INSTRUMENT CLUSTER

Instrument Cluster For 3.6L or 5.7L Engine

102

GETTING TO KNOW YOUR INSTRUMENT PANEL

Instrument Cluster Descriptions

1. Tachometer

• Indicates the engine speed in revolutions per minute

(RPM x 1000).

2. Instrument Cluster Display

• When the appropriate conditions exist, this display

shows the instrument cluster display messages. Refer
to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.

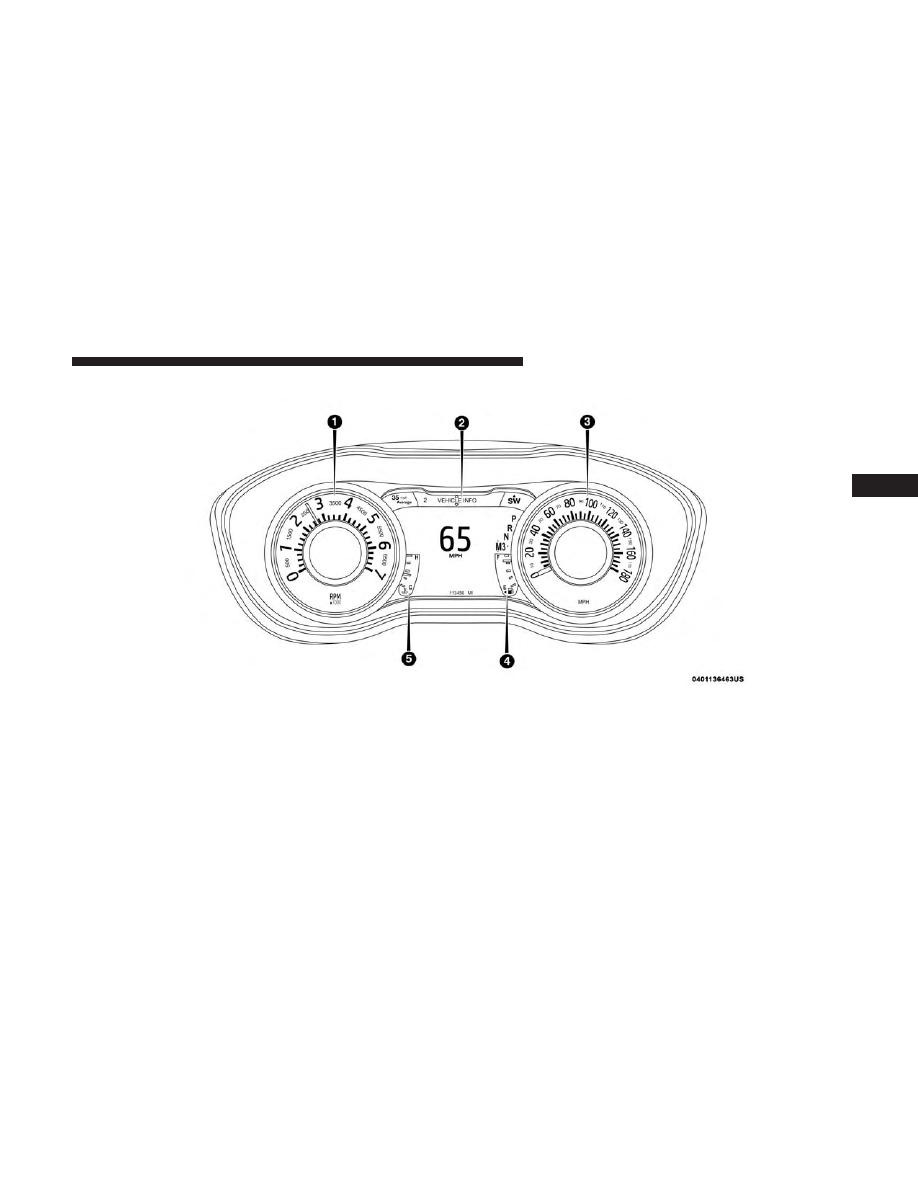

Instrument Cluster For 6.4L Engine

GETTING TO KNOW YOUR INSTRUMENT PANEL

103

3. Speedometer

• Indicates vehicle speed.

4. Fuel Gauge

• The pointer shows the level of fuel in the fuel tank

when the Keyless Push Button Ignition is in the
ON/RUN position.

•

The fuel pump symbol points to the side of the

vehicle where the fuel door is located.

5. Temperature Gauge

• The temperature gauge shows engine coolant tem-

perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.

• The gauge pointer will likely indicate a higher tem-

perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats. If you decide to look
under the hood yourself, see “Servicing And Mainte-
nance.” Follow the warnings under the Cooling System
Pressure Cap paragraph.

CAUTION!

Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H,” turn the engine off immediately and call an
authorized dealer for service.

NOTE:

The hard telltales will illuminate for a bulb check

when the ignition is first cycled.

104

GETTING TO KNOW YOUR INSTRUMENT PANEL

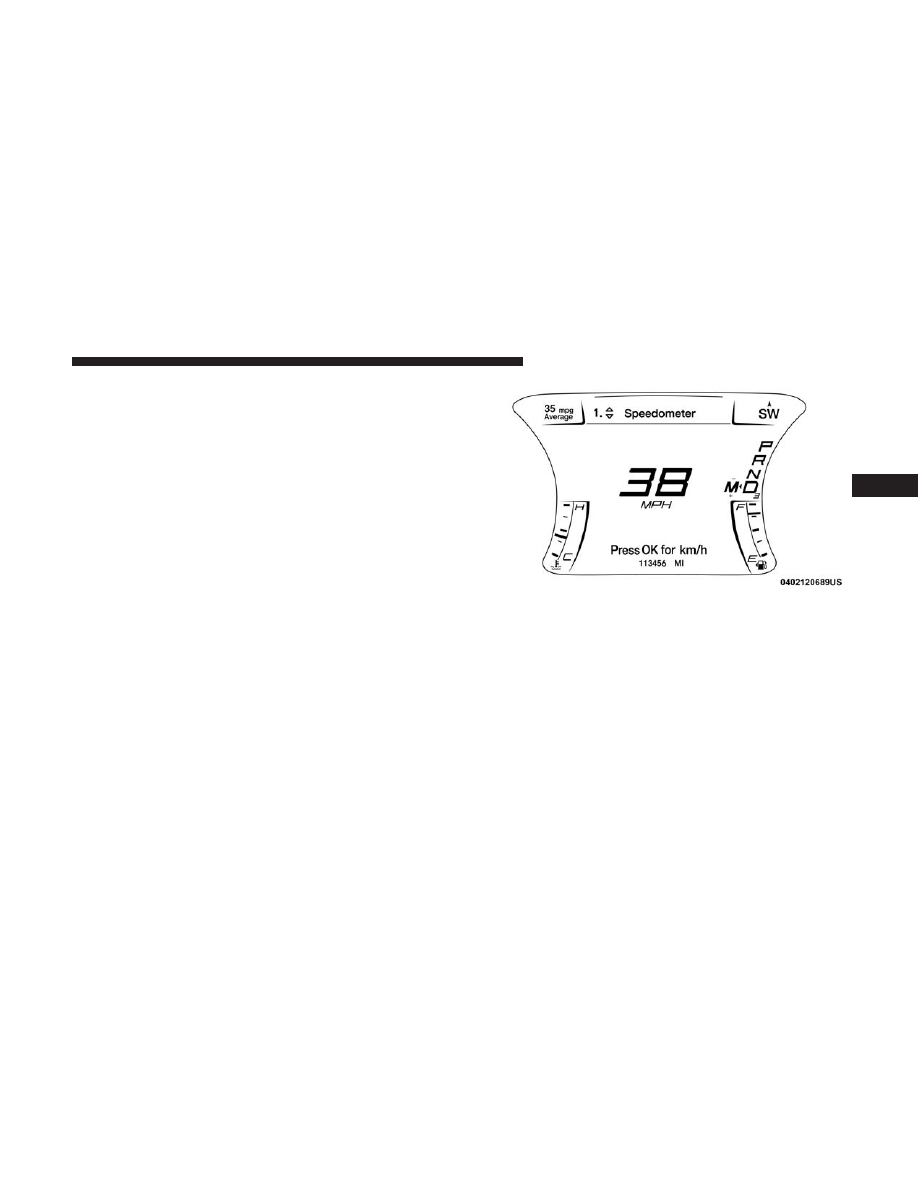

INSTRUMENT CLUSTER DISPLAY

Your vehicle will be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the STOP/OFF mode, opening/closing of a
door will activate the display for viewing, and display the
total miles, or kilometers, in the odometer. Your instrument
cluster display is designed to display important informa-
tion about your vehicle’s systems and features. Using a
driver interactive display located on the instrument panel,
your instrument cluster display can show you how sys-
tems are working and give you warnings when they are
not. The steering wheel mounted controls allow you to
scroll through the main menus and submenus. You can
access the specific information you want and make selec-
tions and adjustments.

Location And Controls

The instrument cluster display features an interactive
display which is located in the instrument cluster.

This system conveniently allows the driver to select a
variety of useful information by pushing the arrow buttons
located on the left side of the steering wheel. The instru-
ment cluster display menu items consist of the following:
• Speedometer
• Vehicle Info
• Driver Assist — If Equipped
• Fuel Economy
• Trip
• Audio

Instrument Cluster Display

GETTING TO KNOW YOUR INSTRUMENT PANEL

105

• Messages
• Screen Setup
The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:

Up And Down Arrow Buttons:

Using the up or down arrows allows you to cycle through
the Main Menu Items.

Changes the Main Screen area and Menu Title area.

Left And Right Arrow Buttons:

Using the left or right arrow button allows you to cycle
through the submenu items of the Main menu item.

NOTE:
• Holding the up/down or left/right arrow button will

loop the user through the currently selected menu or
options presented on the screen.

• Main menu and submenu’s wrap for continuous scroll-

ing.

• Upon returning to a main menu, the last submenu

screen viewed within that main menu will be displayed.

OK Button:

For Digital Speedometer:
• Pushing the OK button changes units (MPH or km/h).
For Screen Setup:
• OK button allows user to enter menu and submenus.
• Within each submenu layer, the up and down arrows

will allow the user to select the item of interest.

• Pushing the OK button makes the selection and a

confirmation screen will appear (returning the user to
the 1st page of the submenu).

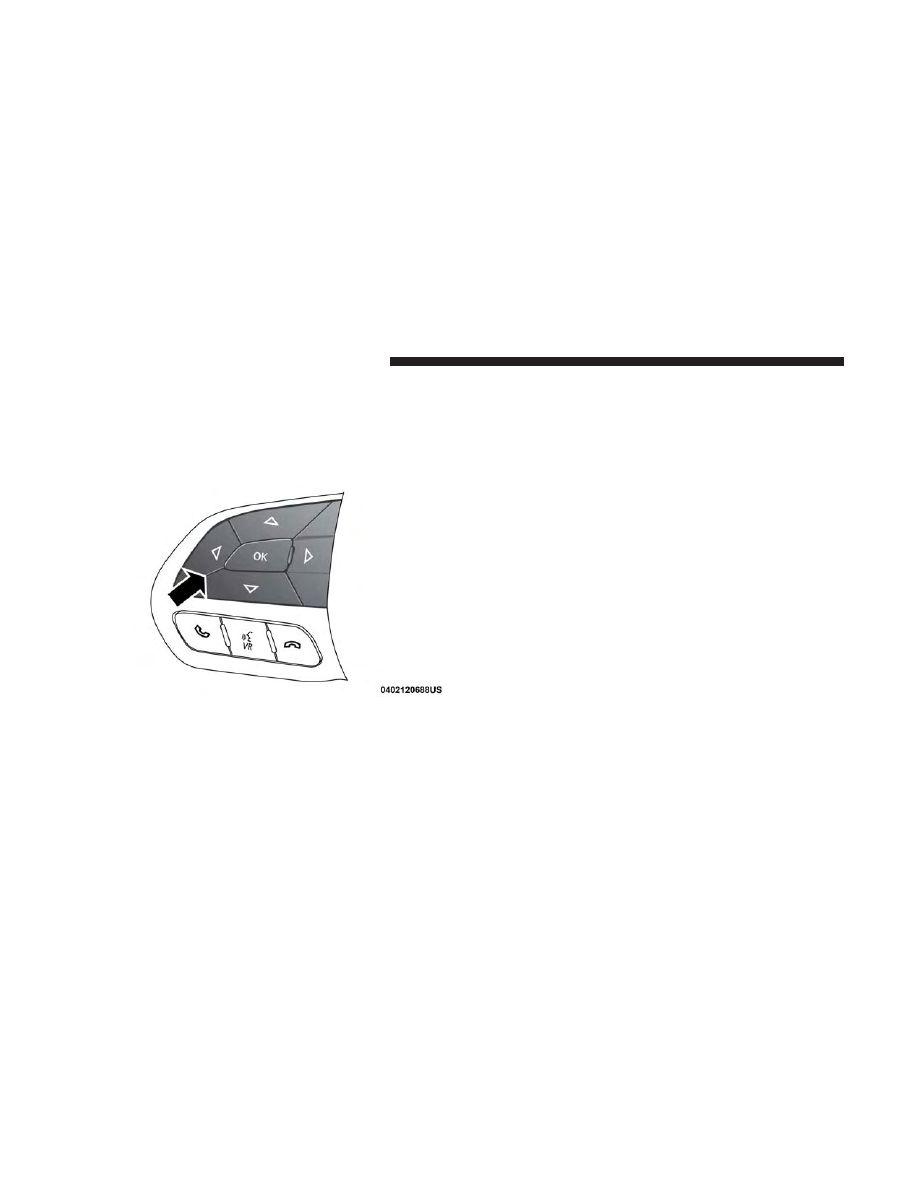

Instrument Cluster Display Controls

106

GETTING TO KNOW YOUR INSTRUMENT PANEL

• Pushing the left arrow button will exit each submenu

layer and return to the main menu.

For the Trip and Fuel Economy menus (and new Perfor-
mance Timers):
• Information is reset by pushing and holding the OK

button.

Engine Oil Life Reset

Oil Change Required

Your vehicle is equipped with an engine oil change indi-
cator system. The “Oil Change Required” message will
display in the instrument cluster display for five seconds
after a single chime has sounded, to indicate the next
scheduled oil change interval. The engine oil change indi-
cator system is duty cycle based, which means the engine
oil change interval may fluctuate, dependent upon your
personal driving style.

Unless reset, this message will continue to display each
time you place the ignition in the ON/RUN position. To
turn off the message temporarily, push and release the OK
or arrow buttons. To reset the oil change indicator system
(after performing the scheduled maintenance), refer to the
following procedure.

Vehicles Equipped With Keyless Enter-N-Go — Ignition

Use the steering wheel instrument cluster display controls
for the following procedure(s):

1. Without pressing the brake pedal, push the ENGINE

START/STOP button and place the ignition in the
ON/RUN position (do not start the engine).

2. Push and release the down arrow button to scroll

downward through the main menu to “Vehicle Info.”

3. Push and release the right arrow button to access the

”Oil Life” screen.

4. Push and hold the OK button to reset oil life. If

conditions are met, the gauge and numeric display will
update to show 100%. If conditions are not met a popup
message of

⬙To reset oil life engine must be off with

ignition in run

⬙ will be displayed (for five seconds), and

the user will remain at the Oil Life screen.

5. Push and release the up or down arrow button to exit

the submenu screen.

NOTE:

If the indicator message illuminates when you

start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.

GETTING TO KNOW YOUR INSTRUMENT PANEL

107

Secondary Method Of Resetting Engine Oil Life

1. Without pressing the brake pedal, push the ENGINE

START/STOP button and place the ignition to the
ON/RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times

within ten seconds.

3. Without pushing the brake pedal, push the ENGINE

START/STOP button once to return the ignition to the
OFF/LOCK position.

NOTE:

If the indicator message illuminates when you start

the vehicle, the oil change indicator system did not reset. If
necessary, repeat this procedure.

Performance Shift Indicator (PSI) — If Equipped

The Performance Shift Indicator (PSI) is enabled on ve-
hicles with manual transmission, or when a vehicle with
automatic transmission is in manual shift mode. The PSI
provides the driver with a visual indication within the
instrument cluster display when the driver configured gear
shift point has been reached and the driver is still acceler-
ating. This indication notifies the driver to change gear
corresponding to the configured RPMs in the head unit.

Instrument Cluster Display Selectable Menu Items

Push and release the up or down arrow button until the
desired Selectable Menu item is displayed in the instru-
ment cluster display.

Follow the Menu or submenu prompts as desired.

Speedometer

Push and release the up or down arrow button until the
speedometer menu is displayed in the instrument cluster
display. Push and release the OK button to toggle units
(km/h or MPH) of the speedometer.

Vehicle Info

Push and release the up or down arrow button until the
“Vehicle Info” menu is displayed in the instrument cluster
display. Push and release the right or left arrow button to
scroll through the sub menus items of “Vehicle Info.”
Follow the directional prompts to access or reset any of the
following “Vehicle Info” sub menu items:

Tire Pressure Monitor

If tire pressure is OK for all tires, a vehicle ICON is
displayed with tire pressure values in each corner of the
ICON.

108

GETTING TO KNOW YOUR INSTRUMENT PANEL

Content .. 4 5 6 7 ..
