Dodge Challenger (2019 year). Manual

NOTE:

If allowed by law in the country in which the

vehicle was purchased, the Daytime Running Lights can be
turned on and off using the Uconnect System, refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion.

High/Low Beam Switch

Push the multifunction lever away from you to switch the
headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.

Automatic High Beam Headlamp Control — If
Equipped

The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the windshield. This camera detects vehicle
specific light and automatically switches from high beams
to low beams until the approaching vehicle is out of view.

NOTE:
• The Automatic High Beam Headlamp Control can be

turned on or off using the Uconnect System. Refer to
“Uconnect Settings” in “Multimedia” for further infor-
mation.

• Broken, muddy, or obstructed headlights and taillights

of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera lens
will cause the system to function improperly.

If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed to
ensure proper performance. See your local authorized
dealer.

Flash-To-Pass

You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.

NOTE:

If the multifunction lever is held in the flash-to pass

position for more than 20 seconds, the high beams will shut
off.

Automatic Headlights

This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the AUTO
position. When the system is on, the headlight time delay
feature is also on. This means the headlights will stay on

GETTING TO KNOW YOUR VEHICLE

for up to 90 seconds after you place the ignition into the
OFF position. The headlight time delay can be pro-
grammed 0/30/60/90 seconds.

Refer to “Uconnect Settings” in “Multimedia” for further
information.

To turn the automatic system off, move the headlight
switch out of the AUTO position.

NOTE:

The engine must be running before the headlights

will come on in the automatic mode.

Parking Lights

Turn the headlight switch knob to the first detent to turn
the parking lights on. This also turns on all instrument
panel lighting.

Headlights On With Wipers

When this feature is active, the headlights will turn on after
the wipers are turned on if the headlight switch is placed in
the AUTO position and programmable feature is set to on.
In addition, the headlights will turn off when the wipers
are turned off if they were turned on by this feature.

NOTE:

The “Headlights On With Wipers” feature can be

turned on or off using the Uconnect System. Refer to
“Uconnect Settings” in “Multimedia” for further information.

Headlight Time Delay

This feature provides the safety of headlight illumination
for up to 90 seconds when leaving your vehicle in an unlit
area with the headlight switch in the O (off) position.

To activate the delay feature, turn OFF the ignition switch
while the headlights are still on. Then, turn off the head-
lights within 45 seconds. The delay interval begins when
the headlight switch is turned off.

NOTE:

The lights must be turned off within 45 seconds of

turning the ignition OFF to activate this feature.

If you turn the headlights, park lights or ignition switch
ON again, the system will cancel the delay.

If you turn the headlights off before the ignition, they will
turn off in the normal manner.

NOTE:

The Headlight Time Delay is programmable using

the Uconnect System, refer to “Uconnect Settings” in
“Multimedia” for further information.

Lights-On Reminder

If the headlights or parking lights are on after the ignition
is placed in the OFF position, a chime will sound to alert
the driver when the driver’s door is opened.

GETTING TO KNOW YOUR VEHICLE

Fog Lights — If Equipped

The front fog light switch is built into the headlight switch.

To activate the front fog lights, turn on the parking lights or
the low beam headlights and push the headlight switch. To
turn off the front fog lights, either push the headlight
switch a second time or turn off the headlight switch.

An indicator light in the instrument cluster display illumi-
nates when the fog lights are turned on.

NOTE:

The fog lights will operate with the low beam

headlights or parking lights on. However, selecting the
high beam headlights will turn off the fog lights.

Turn Signals

Move the multifunction lever up or down and the arrows
on each side of the instrument cluster display flash to show
proper operation of the front and rear turn signal lights.

NOTE:
• If either light remains on and does not flash, or there is

a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.

• A “Turn Signal On” message will appear in the instru-

ment cluster display and a continuous chime will sound
if the vehicle is driven more than 1 mile (1.6 km) with
either turn signal on.

Lane Change Assist — If Equipped

Tap the multifunction lever up or down once, without
moving beyond the detent, and the turn signal (right or
left) will flash three times then automatically turn off.

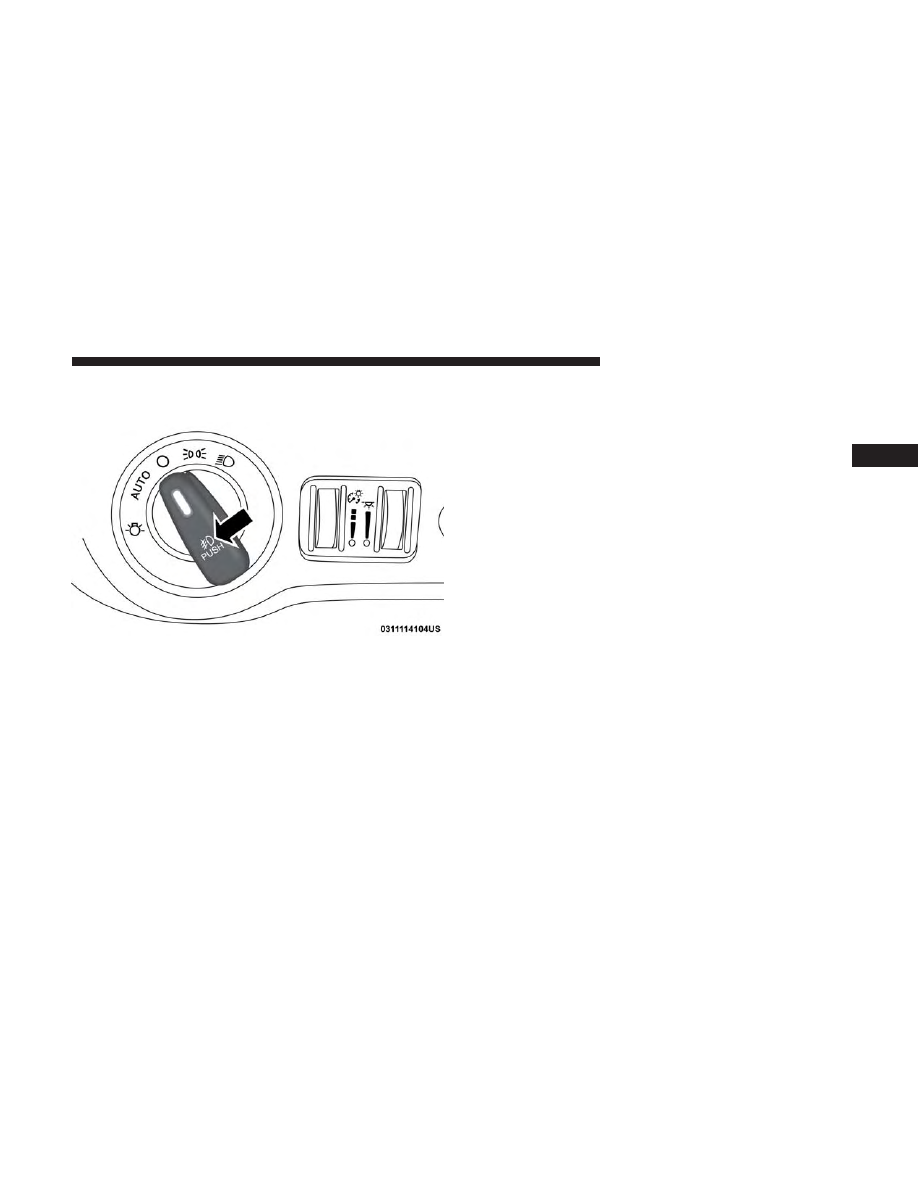

Fog Light Switch

GETTING TO KNOW YOUR VEHICLE

INTERIOR LIGHTS

The interior lights come on when a door is opened.

To protect the battery, the interior lights will turn off
automatically ten minutes after the ignition is moved to the
OFF position. This will occur if the interior lights were
switched on manually or are on because a door is open.
The Battery Protection also includes the glove compart-
ment light and the trunk light. To restore interior light
operation after automatic battery protection is enabled
(lights off), either place the ignition in the ON/RUN
position or cycle the light switch.

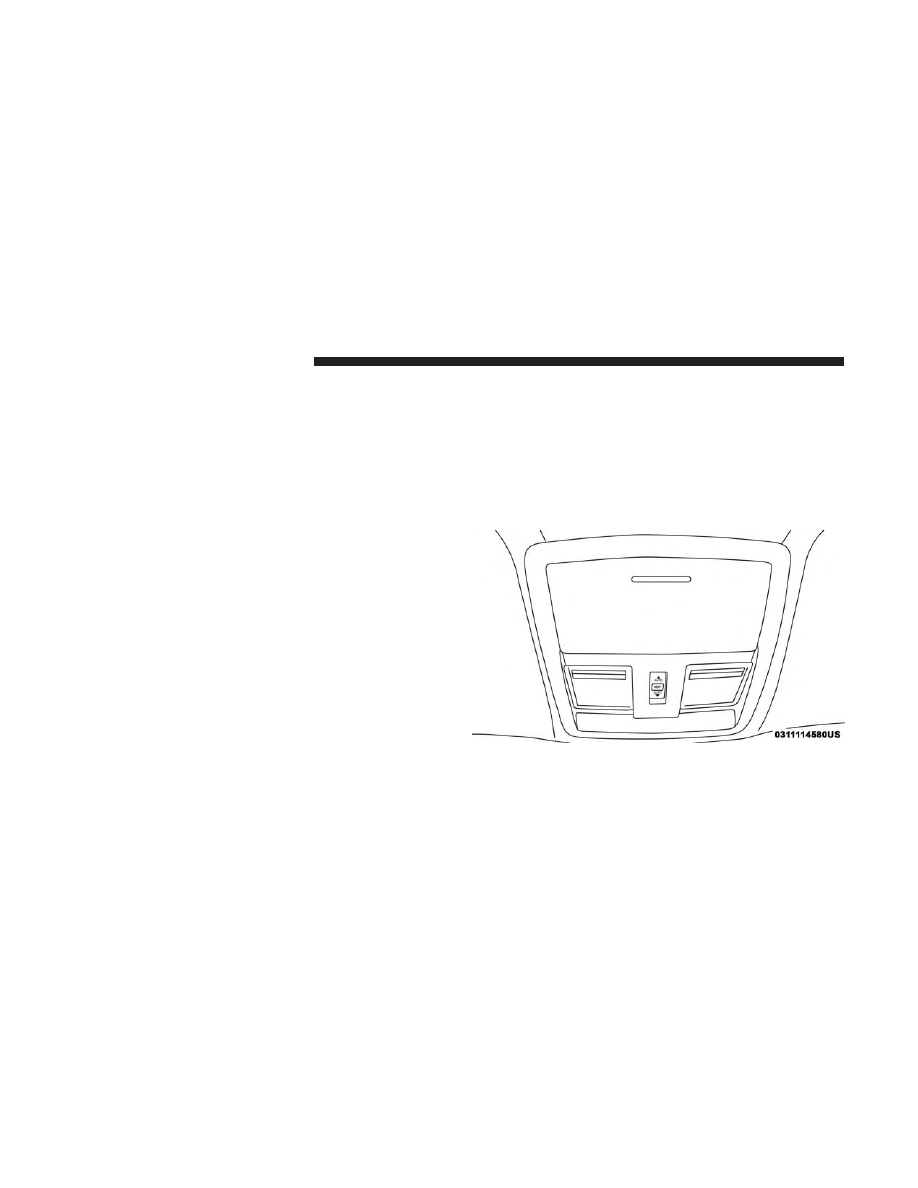

Map/Reading Lights

These lights are mounted between the sun visors on the
overhead console. Each light is turned on by pushing the
lens. Push the lens a second time to turn off the light. These
lights also turn on when a door is opened, when the unlock
button on the remote keyless entry key fob is pushed, or
when the dimmer control is turned fully upward, past the
second detent.

Overhead Console

GETTING TO KNOW YOUR VEHICLE

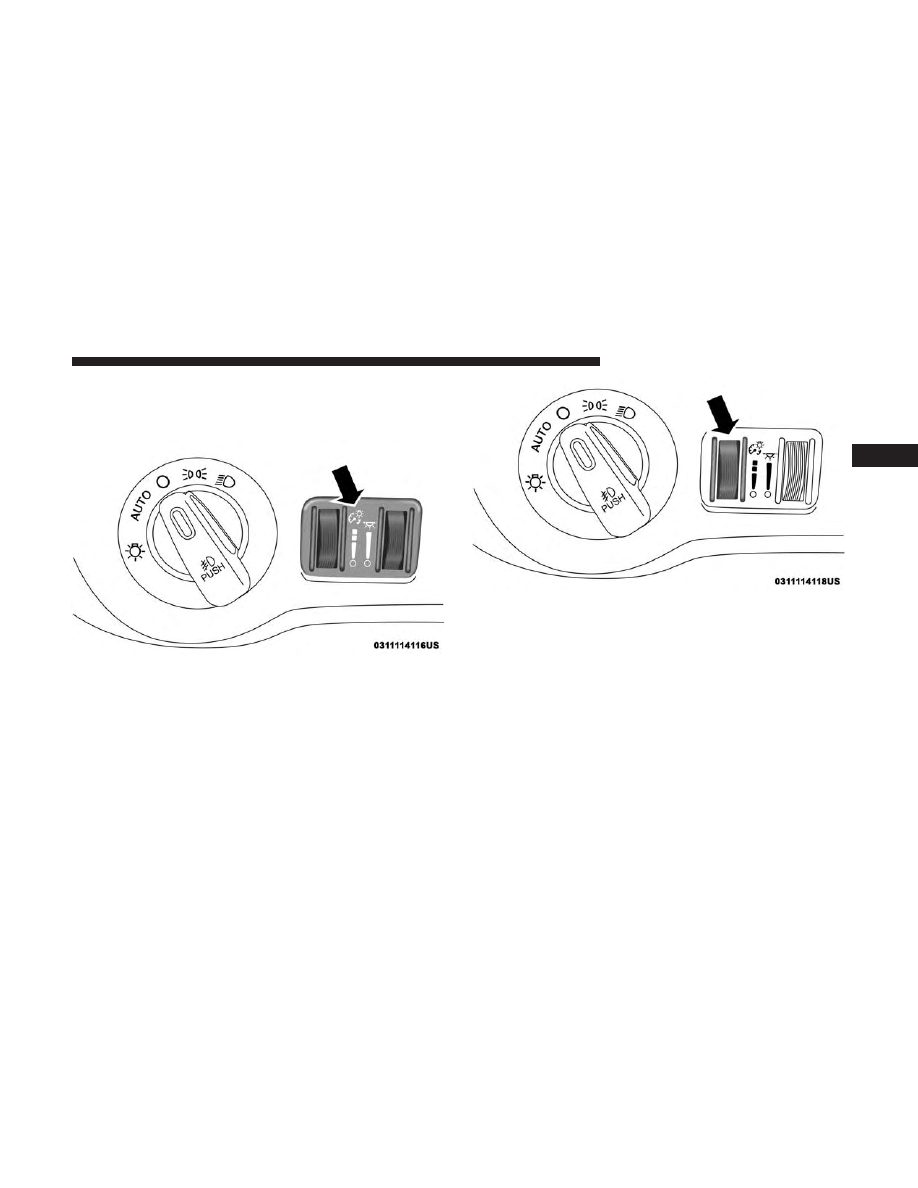

Dimmer Controls

The dimmer control is part of the headlight switch and is
located on the left side of the instrument panel.

With the parking lights or headlights on, rotating the left
dimmer control upward will increase the brightness of the
instrument panel lights and lighted cupholders (if
equipped).

Dome Light Position

Rotate the dimmer control completely upward to the
second detent to turn on the interior lights. The interior
lights will remain on when the dimmer control is in this
position.

Interior Light Defeat (Off)

Rotate the instrument panel dimmer control to the extreme
bottom (O) off position. The interior lights will remain off
when the doors are open.

Dimmer Controls

Instrument Panel Dimmer

GETTING TO KNOW YOUR VEHICLE

Parade Mode (Daytime Brightness Feature)

Rotate the instrument panel dimmer control upward to the
first detent. This feature brightens all text displays such as
the odometer, instrument cluster display, and radio when
the position lights or headlights are on.

WINDSHIELD WIPERS AND WASHERS

The multifunction lever operates the windshield wipers
and washer when the ignition is placed in the ON/RUN or
ACC position. The multifunction lever is located on the left
side of the steering column.

Wiper Operation

Rotate the end of the multifunction lever to the first detent,
past the intermittent settings for low-speed wiper opera-
tion, or to the second detent past the intermittent settings
for high-speed wiper operation.

CAUTION!

• Turn the windshield wipers off when driving

through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.

• In cold weather, always turn off the wiper switch and

allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.

• Always remove any buildup of snow that prevents

the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.

Windshield Wiper/Washer Control

GETTING TO KNOW YOUR VEHICLE

Intermittent Wiper System

Use the intermittent wiper when weather conditions make
a single wiping cycle with a variable pause between cycles
desirable. Rotate the end of the multifunction lever to the
first detent position, and then turn the end of the lever to
select the desired delay interval. There are four delay
settings, which allow you to regulate the wipe interval
from a minimum of one cycle every second to a maximum
of approximately 36 seconds between cycles. The delay
intervals will double in duration when the vehicle speed is
10 mph (16 km/h) or less.

Windshield Washers

To use the washer, push the multifunction lever inward
(toward the steering column) and hold it for as long as
washer spray is desired.

If you activate the washer while the windshield wiper
control is in the delay range, the wipers will operate for
two wipe cycles after releasing the lever and then resume
the intermittent interval previously selected.

If you activate the washer while the windshield wiper is
turned off, the wipers will operate for three wipe cycles
and then turn off.

WARNING!

Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.

Mist Feature

Rotate the end of the lever downward to the MIST position
to activate a single wipe cycle to clear off road mist or spray
from a passing vehicle. The wipers will continue to operate
until you release the multifunction lever.

NOTE:

The mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.

GETTING TO KNOW YOUR VEHICLE

Rain Sensing Wipers — If Equipped

This feature senses rain or snowfall on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of four settings to
activate this feature.

The sensitivity of the system can be adjusted with the
multifunction lever. Wiper delay position 1 is the least
sensitive, and wiper delay position 4 is the most sensitive.
Setting 3 should be used for normal rain conditions.
Settings 1 and 2 can be used if the driver desires less wiper
sensitivity. Setting 4 can be used if the driver desires more
sensitivity. Place the wiper switch in the off position when
not using the system.

NOTE:
• The Rain Sensing feature will not operate when the

wiper switch is in the low or high-speed position.

• The Rain Sensing feature may not function properly

when ice, or dried salt water is present on the wind-
shield.

• Use of Rain-X or products containing wax or silicone

may reduce Rain Sensing performance.

The Rain Sensing system has protection features for the
wiper blades and arms, and will not operate under the
following conditions:
• Low Ambient Temperature — When the ignition is first

turned ON, the Rain Sensing system will not operate
until the wiper switch is moved, vehicle speed is greater
than 0 mph (0 km/h), or the outside temperature is
greater than 32°F (0°C).

• Transmission In NEUTRAL Position — When the igni-

tion is ON, and the transmission is in the NEUTRAL
position, the Rain Sensing system will not operate until
the wiper switch is moved, vehicle speed is greater than
3 mph (5 km/h), or the gear selector is moved out of the
NEUTRAL position.

NOTE:

Rain Sensing can be turned on and off using the

Uconnect System, refer to “Uconnect Settings” in “Multi-
media” for further information.

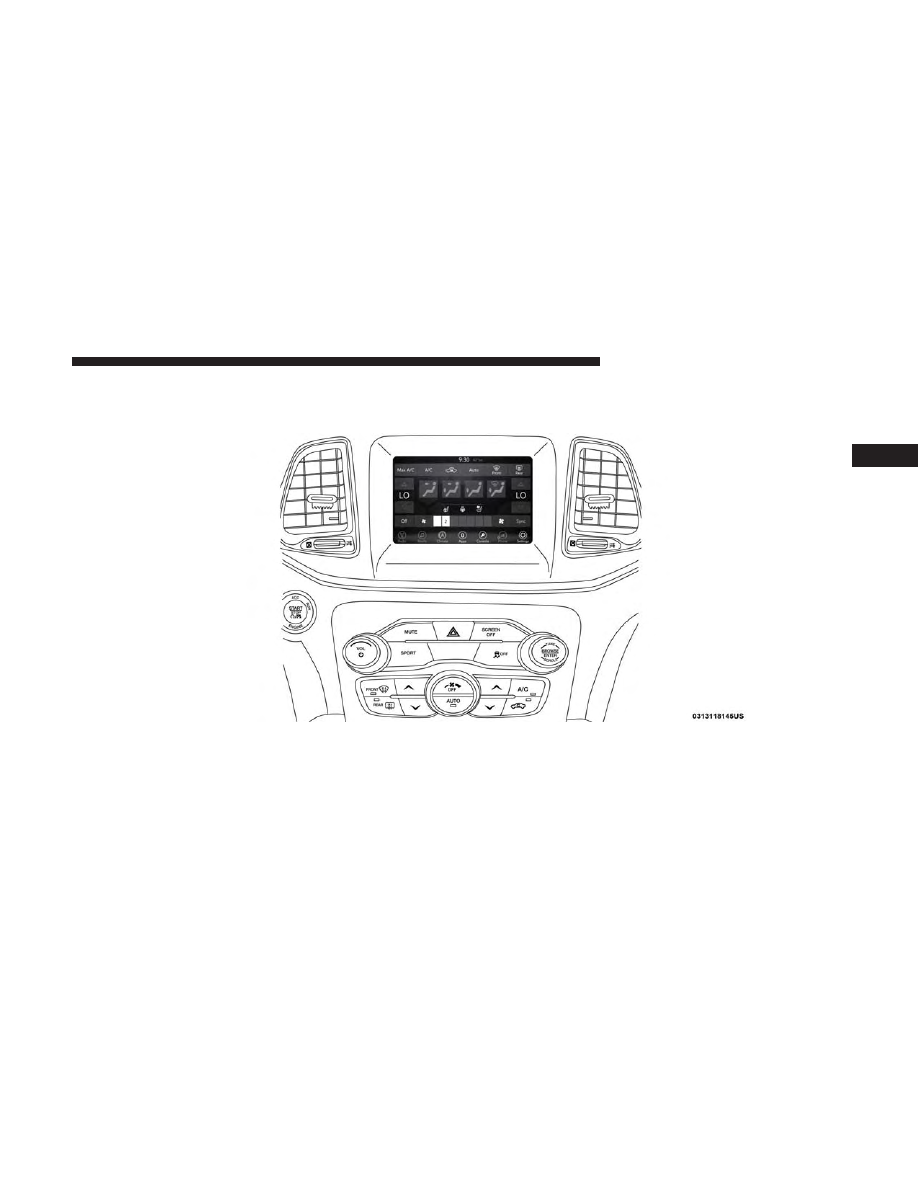

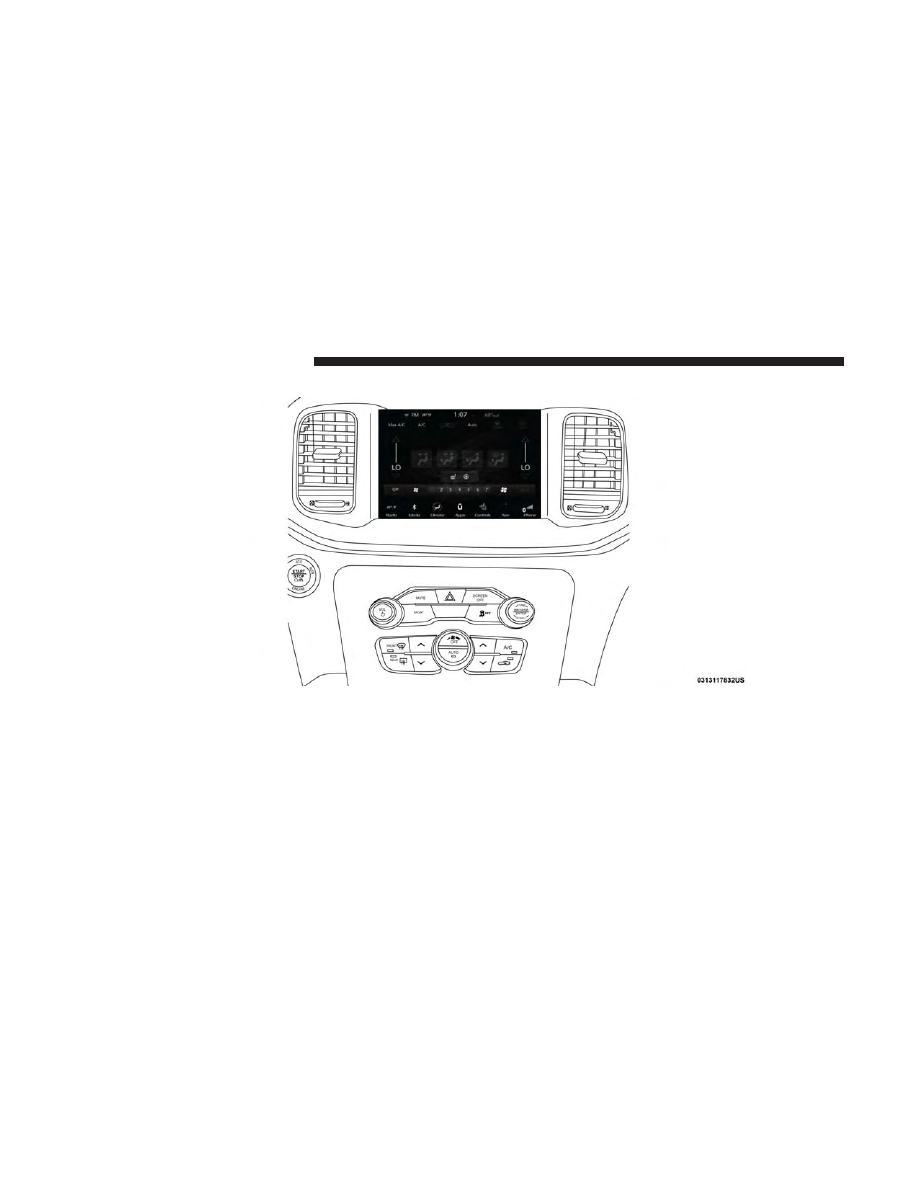

CLIMATE CONTROLS

The Climate Control System allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
touchscreen (if equipped) and on the instrument panel
below the radio.

GETTING TO KNOW YOUR VEHICLE

Automatic Climate Control Descriptions

Icon

Description

MAX A/C Button
Press and release to change the current setting, the indicator illuminates when MAX A/C is on.
Performing this function again will cause the MAX A/C operation to switch into manual mode
and the MAX A/C indicator will turn off.

NOTE:

The MAX A/C button is only available on the touchscreen.

A/C Button
Press and release to change the current setting, the indicator illuminates when A/C is on.

Recirculation Button
Press and release this button on the touchscreen, or push the button on the faceplate, to change
the system between recirculation mode and outside air mode. Recirculation can be used when
outside conditions such as smoke, odors, dust, or high humidity are present. Recirculation can
be used in all modes. Recirculation may be unavailable (button on the touchscreen greyed out)
if conditions exist that could create fogging on the inside of the windshield. The A/C can be
deselected manually without disturbing the mode control selection. Continuous use of the Recir-
culation mode may make the inside air stuffy and window fogging may occur. Extended use of
this mode is not recommended.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

AUTO Button
Automatically controls the interior cabin temperature by adjusting airflow distribution and
amount. Toggling this function will cause the system to switch between manual mode and auto-
matic modes.
Refer to “Automatic Operation” within this section for more information.
Front Defrost Button
Press and release to change the current airflow setting to Defrost mode. The indicator illumi-
nates when this feature is on. Air comes from the windshield and side window demist outlets.
When the defrost button is selected, the blower level may increase. Use Defrost mode with
maximum temperature settings for best windshield and side window defrosting and defogging.
When toggling the Front Mode Defrost button, the climate system will return to the previous
setting.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after ten minutes.
Driver And Passenger Temperature Up And Down Buttons
Provides the driver and passenger with independent temperature control. Push the red button
on the faceplate or touchscreen or press and slide the temperature bar towards the red arrow
button on the touchscreen for warmer temperature settings. Push the blue button on the face-
plate or touchscreen or press and slide the temperature bar towards the blue arrow on the
touchscreen for cooler temperature settings.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

SYNC Button
Press the Sync button on the touchscreen to toggle the Sync feature on/off. The Sync indicator is
illuminated when this feature is enabled. Sync is used to synchronize the passenger temperature
setting with the driver temperature setting. Changing the passenger temperature setting while
in Sync will automatically exit this feature.

NOTE:

The Sync button is only available on the touchscreen.

Faceplate Knob

Touchscreen

Buttons

Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There
are seven blower speeds available. The speeds can be selected using either the blower control
knob on the faceplate or the buttons on the touchscreen.

• Faceplate: The blower speed increases as you turn the blower control knob clockwise from

the lowest blower setting. The blower speed decreases as you turn the blower control knob
counterclockwise.

• Touchscreen: Use the small blower icon to reduce the blower setting, and the large blower

icon to increase the blower setting. Blower can also be selected by pressing the blower bar
area between the icons.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Mode Control

Mode Control
Select Mode by pressing one of the Mode buttons on the touchscreen to change that airflow dis-
tribution mode. The airflow distribution mode can be adjusted so air comes from the instrument
panel outlets, floor outlets, defrost outlets and demist outlets. The Mode settings are as follows:

Panel Mode

Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individually
adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets can be
moved up and down or side to side to regulate airflow direction. There is a shut-off wheel lo-
cated below the air vanes to shut off or adjust the amount of airflow from these outlets.

Bi-Level Mode

Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed
through the defrost and side window demister outlets.

NOTE:

Bi-Level mode is designed under comfort conditions to provide cooler air out of the

panel outlets and warmer air from the floor outlets.

Floor Mode

Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side
window demister outlets.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Mix Mode

Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting works
best in cold or snowy conditions that require extra heat to the windshield. This setting is good
for maintaining comfort while reducing moisture on the windshield.

Climate Control OFF Button
Press and release this button to turn the Climate Controls off.

Climate Control Functions

A/C (Air Conditioning)

The Air Conditioning (A/C) button allows the operator to
manually activate or deactivate the air conditioning sys-
tem. When the air conditioning system is turned on, cool
dehumidified air will flow through the outlets into the
cabin. For improved fuel economy, press the A/C button to
turn off the air conditioning and manually adjust the
blower and airflow mode settings. Also, make sure to select
only Panel, Bi-Level, or Floor modes.

NOTE:
• For Manual Climate Controls, if the system is in Mix,

Floor or Defrost Mode, the A/C can be turned off, but
the A/C system shall remain active to prevent fogging of
the windows.

• If fog or mist appears on the windshield or side glass,

select Defrost mode, and increase blower speed if
needed.

• If your air conditioning performance seems lower than

expected, check the front of the A/C condenser (located
in front of the radiator), for an accumulation of dirt or
insects. Clean with a gentle water spray from the front of
the radiator and through the condenser.

GETTING TO KNOW YOUR VEHICLE

MAX A/C

MAX A/C sets the control for maximum cooling perfor-
mance.

Press and release to toggle between MAX A/C and the
prior settings. The button illuminates when MAX A/C is
on.

In MAX A/C, the blower level and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the selected
setting and MAX A/C to exit.

Recirculation

In cold weather, use of Recirculation mode may lead to
excessive window fogging. The Recirculation feature may
be unavailable (button on the touchscreen greyed out) if
conditions exist that could create fogging on the inside of
the windshield.

Automatic Temperature Control (ATC)

Automatic Operation

1. Push the AUTO button on the faceplate, or the AUTO

button on the touchscreen on the Automatic Tempera-
ture Control (ATC) Panel.

2. Next, adjust the temperature that you would like the

system to maintain by adjusting the driver and passen-
ger temperature control buttons. Once the desired tem-
perature is displayed, the system will achieve and
automatically maintain that comfort level.

3. When the system is set up for your comfort level, it is

not necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.

NOTE:
• It is not necessary to move the temperature settings for

cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.

• The temperature can be displayed in U.S. or Metric units

by selecting the US/Metric customer-programmable fea-
ture. Refer to the “Uconnect Settings” in “Multimedia”
for further information.

To provide you with maximum comfort in the Automatic
mode during cold start-ups, the blower fan will remain on
low until the engine warms up. The blower will increase in
speed and transition into Auto mode.

GETTING TO KNOW YOUR VEHICLE

Dodge Challenger (2019 year). Manual - part 4
