When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.

WARNING!

• Be certain that the seatback is securely locked into

position. If the seatback is not securely locked into
position, the seat will not provide the proper stabil-
ity for child seats and/or passengers. An improperly
latched seat could cause serious injury.

(Continued)

WARNING! (Continued)

• The cargo area in the rear of the vehicle (with the rear

seatbacks in the locked-up or folded down position)
should not be used as a play area by children when
the vehicle is in motion. They could be seriously
injured in a collision. Children should be seated and
using the proper restraint system.

Power Seats — If Equipped

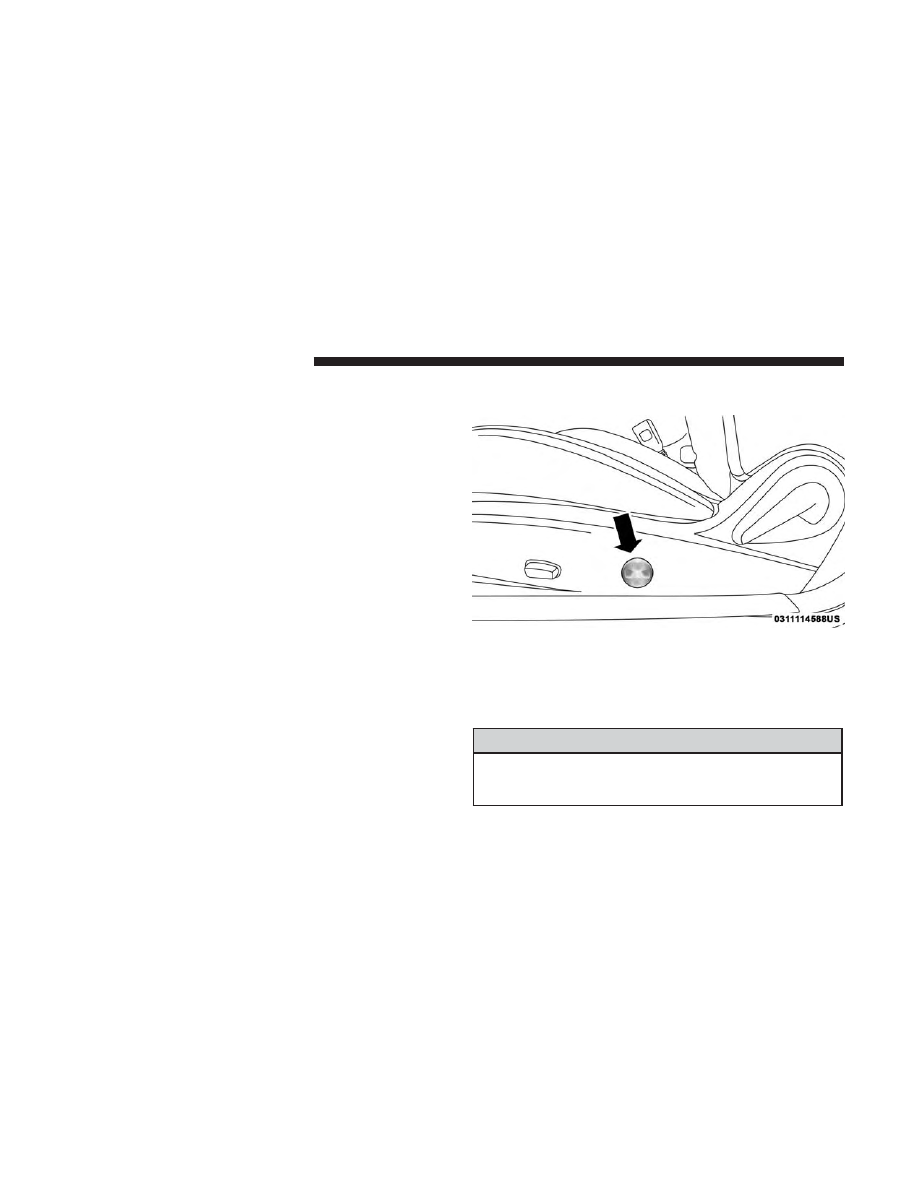

The power seat switches are located on the outboard side
of the front seat cushions. The power seat switches are used
to control the position of the seat.

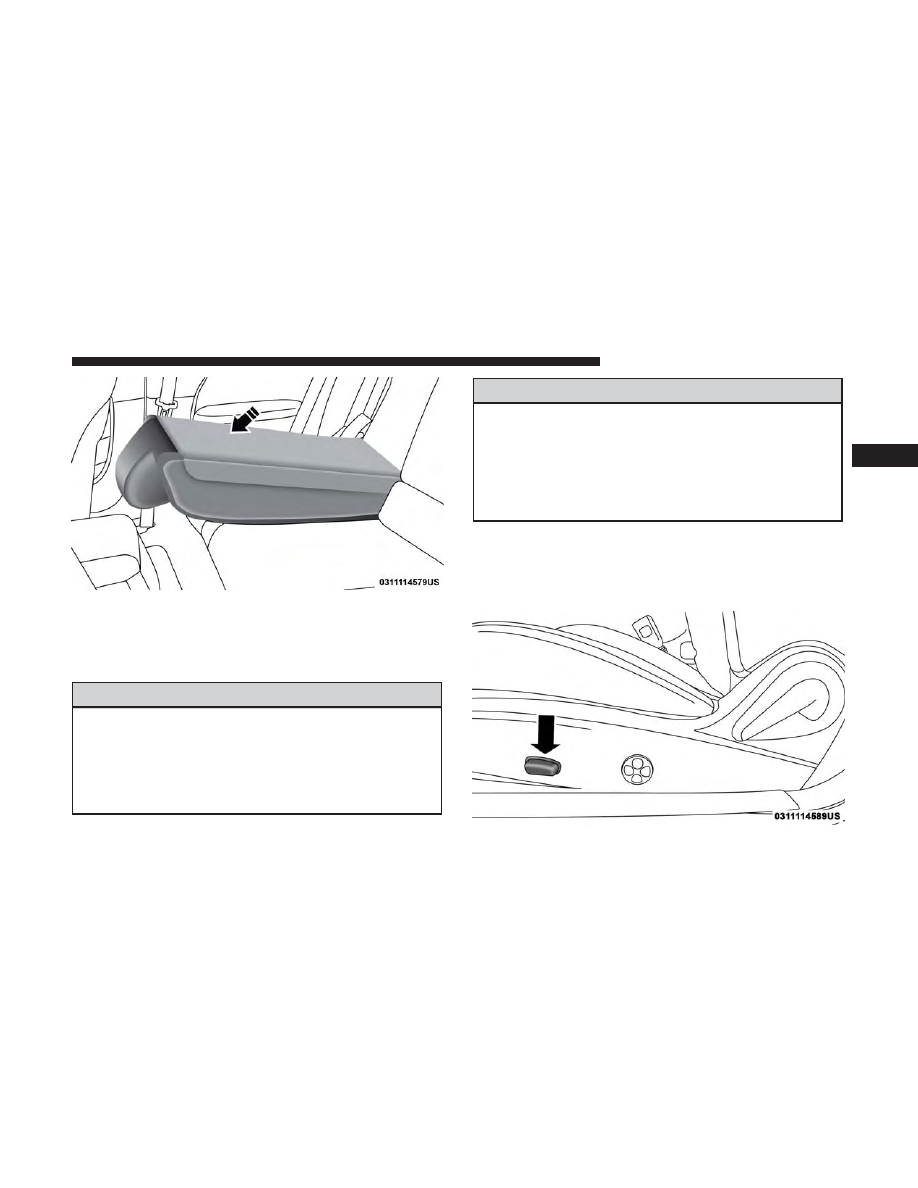

Folded Rear Seat

Power Seat Switch

GETTING TO KNOW YOUR VEHICLE

Adjusting The Seat Forward Or Rearward

The seat can be adjusted both forward and rearward. Push
the seat switch forward or rearward. The seat will move in
the direction of the switch. Release the switch when the
desired position has been reached.

Adjusting The Seat Up Or Down

The height of the seats can be adjusted up or down. Pull
upward or push downward on the seat switch; the seat will
move in the direction of the switch. Release the switch
when the desired position has been reached.

Tilting The Seat Up Or Down

The angle of the seat cushion can be adjusted up or down.
Pull upward or push downward on the front of the seat
switch. The front of the seat cushion will move in the
direction of the switch. Release the switch when the
desired position has been reached.

Power Lumbar — If Equipped

Vehicles equipped with power driver or passenger seats
may also be equipped with power lumbar. The power
lumbar switch is located on the outboard side of the power
seat. Push the switch forward or rearward to increase or

decrease the lumbar support. Push the switch upward or
downward to raise or lower the lumbar support.

Heated Seats — If Equipped

On some models, the front seats may be equipped with
heaters located in the seat cushions and seat backs.

WARNING!

• Persons who are unable to feel pain to the skin

because of advanced age, chronic illness, diabetes,

(Continued)

Power Lumbar Switch

GETTING TO KNOW YOUR VEHICLE

WARNING! (Continued)

spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.

• Do not place anything on the seat or seatback that

insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in
a seat that has been overheated could cause serious
burns due to the increased surface temperature of the
seat.

Front Heated Seats

The front heated seat control buttons are located within the
climate or controls screen of the touchscreen.

You can choose from HI, LO, or OFF heat settings. The
indicator arrows in touchscreen buttons indicate the level
of heat in use. Two indicator arrows will illuminate for HI,
and one for LO. Turning the heating elements off will
return the user to the radio screen.
• Press the heated seat button

once to turn the HI

setting on.

• Press the heated seat button

a second time to turn

the LO setting on.

• Press the heated seat button

a third time to turn the

heating elements off.

If the HI-level setting is selected, the system will automati-
cally switch to LO-level after approximately 60 minutes of
continuous operation. At that time, the display will change
from HI to LO, indicating the change. The LO-level setting
will turn off automatically after approximately 45 minutes.

NOTE:
• Once a heat setting is selected, heat will be felt within

two to five minutes.

• The engine must be running for the heated seats to

operate.

Vehicles Equipped With Remote Start

On models that are equipped with remote start, the heated
seats can be programmed to come on during a remote start.

This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.

GETTING TO KNOW YOUR VEHICLE

WARNING!

• Persons who are unable to feel pain to the skin

because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.

• Do not place anything on the seat or seatback that

Front Ventilated Seats — If Equipped

Located in the seat cushion and seat back are fans that
draw the air from the passenger compartment and move
air through fine perforations in the seat cover to help keep
the driver and front passenger cooler in higher ambient
temperatures. The fans operate at two speeds, HI and LO.

The front ventilated seats control buttons are located
within the Uconnect system. You can gain access to the
control buttons through the climate screen or the controls
screen.
• Press the ventilated seat button

once to choose HI.

• Press the ventilated seat button

a second time to

choose LO.

• Press the ventilated seat button

a third time to turn

the ventilated seat off.

NOTE:

The engine must be running for the ventilated seats

to operate.

Vehicles Equipped With Remote Start

On models that are equipped with remote start, the venti-
lated seats can be programmed to come on during a remote
start.

This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.

GETTING TO KNOW YOUR VEHICLE

Vehicles Without Passenger Seating Installed

All passenger occupants within the vehicle must be in a
seat equipped with a Seat Belt System and Head Restraint
for the safety of the passenger. If the passenger and/or rear
seats have been removed, do not ride in those areas.

This vehicle has been designed to maximize total perfor-
mance. In doing so, the deletion of passenger seats and/or
rear seat may affect the NVH (Noise, Vibration, and
Harshness) characteristics. As a result, the interior (driver
cockpit) Noise, Vibration, and Harshness (NVH) will be
louder overall.

WARNING!

• If the passenger and/or rear seats have been re-

moved, do not ride in those areas. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.

• If this vehicle was not factory equipped with a

passenger seat, NEVER attempt to install a passenger
seat because the safety systems, including the air
bags and seatbelt, may not properly protect you.

(Continued)

WARNING! (Continued)

• It is dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in
this area are more likely to be seriously injured or
killed.

• Only ride in available seating positions equipped

with seat belt systems. Always properly wear your
seat belt. Failure to do so could result in an increased
risk of serious injury or death in the event of an
accident.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly. Occupants, including the
driver, should always wear their seat belts whether
or not an air bag is also provided at their seating
positions to minimize the risk of severe injury or
death in the event of a crash.

• All occupants, including the driver, should not oper-

ate a vehicle or sit in a vehicle’s seat if the head
restraints are not in place of their proper positions in
order to minimize the risk of neck injury in the event
of a crash.

(Continued)

GETTING TO KNOW YOUR VEHICLE

WARNING! (Continued)

• Head restraints should never be adjusted while the

vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.

Passenger Seat Easy Entry

On the passenger seat, pull forward on the lever located on
the side of the seatback in order to dump the seatback and
slide the seat forward. You can also temporarily remove the
seat belt from the guide loop on the seat and allow the seat
belt to retract out of the way. This allows for easier access
to the rear seat. To return the seat to a normal seating
position, first return the seatback to its original recline
location and then slide the entire seat back to the pre-set
lock position.

NOTE:
• The front passenger seat needs to slide back to the

“remembered” pre-set position for the fore-aft adjuster
to be properly locked. For example, if the front passen-
ger has the seat adjusted full rear and exits the vehicle to
let a rear passenger enter using the easy entry handle,
the fore-aft adjuster needs to slide back to the full rear
position. If the adjuster is not returned to the original
pre-set position, the seat will appear to be loose.

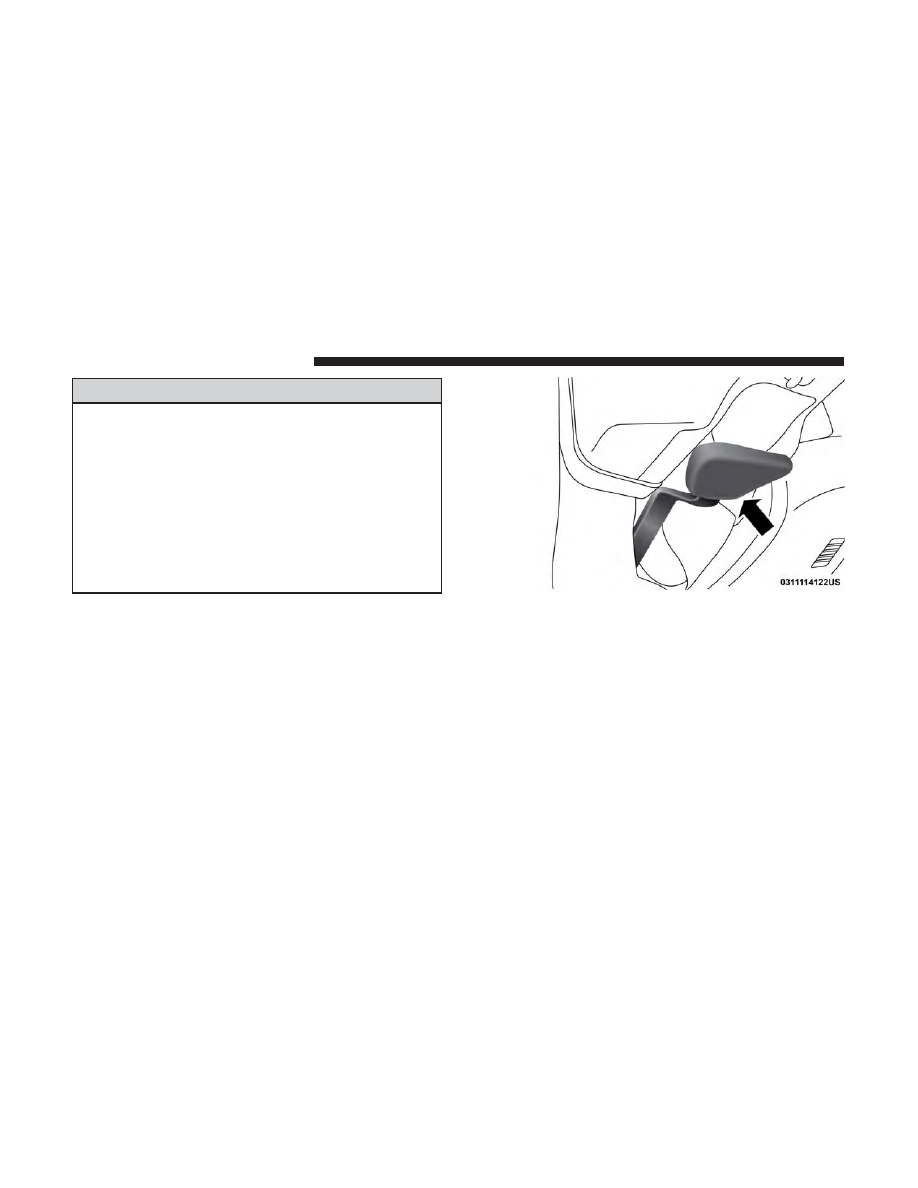

Easy Entry Lever

GETTING TO KNOW YOUR VEHICLE

• Also, if the front passenger uses the easy entry handle

and then lifts up the recliner handle without moving the
seat back to its original pre-set position, the recliner will
not lock until it is moved to the full recline position.

HEAD RESTRAINTS

Head restraints are designed to reduce the risk of injury by
restricting head movement in the event of a rear-impact.
Head restraints should be adjusted so that the top of the
head restraint is located above the top of your ear.

WARNING!

• All occupants, including the driver, should not oper-

ate a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in
order to minimize the risk of neck injury in the event
of a crash.

• Head restraints should never be adjusted while the

vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.

NOTE:

Do not reverse the head restraints (making the rear

of the head restraint face forward) in an attempt to gain
additional clearance to the back of your head.

Reactive Head Restraints — Front Seats

The front driver and passenger seats are equipped with
Reactive Head Restraints (RHR). In the event of a rear
impact, the RHRs will automatically extend forward mini-
mizing the gap between the back of the occupants head
and the RHR.

The RHRs will automatically return to their normal position
following a rear impact. If the RHRs do not return to their
normal position, see your authorized dealer immediately.

GETTING TO KNOW YOUR VEHICLE

To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button located at the base of the head restraint and push
downward on the head restraint.

To remove the head restraint, remove the seat belt from the
seat belt loop. Raise the head restraint as far as it can go.
Then, push the adjustment button and the release button at
the base of each post while pulling the head restraint up. To

reinstall the head restraint, put the head restraint posts into
the holes while pushing the adjustment button and release
button. Then, adjust it to the appropriate height.

NOTE:

It may be necessary to recline the front seat before

removing the head restraint to provide enough clearance
from the roof.

WARNING!

• A loose head restraint thrown forward in a collision

or hard stop could cause serious injury or death to
occupants of the vehicle. Always securely stow re-
moved head restraints in a location outside the
occupant compartment.

• ALL the head restraints MUST be reinstalled in the

vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating
the vehicle or occupying a seat.

• Do not place items over the top of the Reactive Head

Restraint, such as coats, seat covers or portable DVD
players. These items may interfere with the opera-
tion of the Reactive Head Restraint in the event of a
collision and could result in serious injury or death.

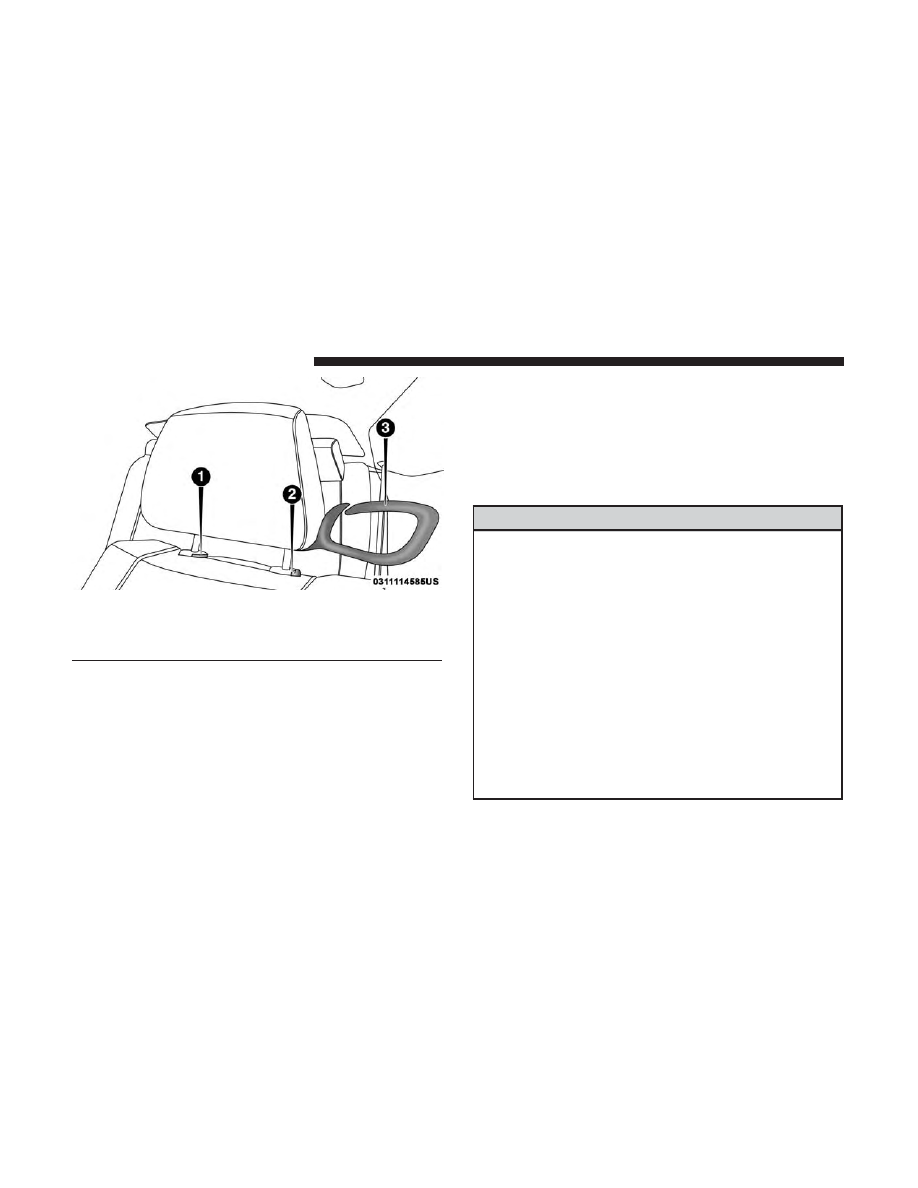

Head Restraint

1 — Release Button
2 — Adjustment Button
3 — Seat Belt Loop

GETTING TO KNOW YOUR VEHICLE

Rear Head Restraints

The rear outboard head restraints are non-adjustable and
are designed to reduce the risk of injury by restricting head
movement in the event of a rear impact.

Vehicles Without Passenger Seating Installed

WARNING!

• If the passenger and/or rear seats have been re-

moved, do not ride in those areas. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.

(Continued)

WARNING! (Continued)

• If this vehicle was not factory equipped with a

passenger seat, NEVER attempt to install a passenger
seat because the safety systems, including the air
bags and seatbelt, may not properly protect you.

• It is dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in
this area are more likely to be seriously injured or
killed.

• Only ride in available seating positions equipped

with seat belt systems. Always properly wear your
seat belt. Failure to do so could result in an increased
risk of serious injury or death in the event of an
accident.

• Be sure everyone in your vehicle is in a seat and

(Continued)

GETTING TO KNOW YOUR VEHICLE

WARNING! (Continued)

• All occupants, including the driver, should not oper-

ate a vehicle or sit in a vehicle’s seat if the head
restraints are not in place of their proper positions in
order to minimize the risk of neck injury in the event
of a crash.

• Head restraints should never be adjusted while the

vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.

STEERING WHEEL

Manual Tilt/Telescoping Steering Column —
If Equipped

This feature allows you to tilt the steering column upward
or downward. It also allows you to lengthen or shorten the
steering column. The tilt/telescoping lever is located below
the steering wheel at the end of the steering column.

To unlock the steering column, pull the lever downward.
To tilt the steering column, move the steering wheel
upward or downward as desired. To lengthen or shorten
the steering column, pull the steering wheel outward or
push it inward as desired. To lock the steering column in
position, push the lever upward until fully engaged.

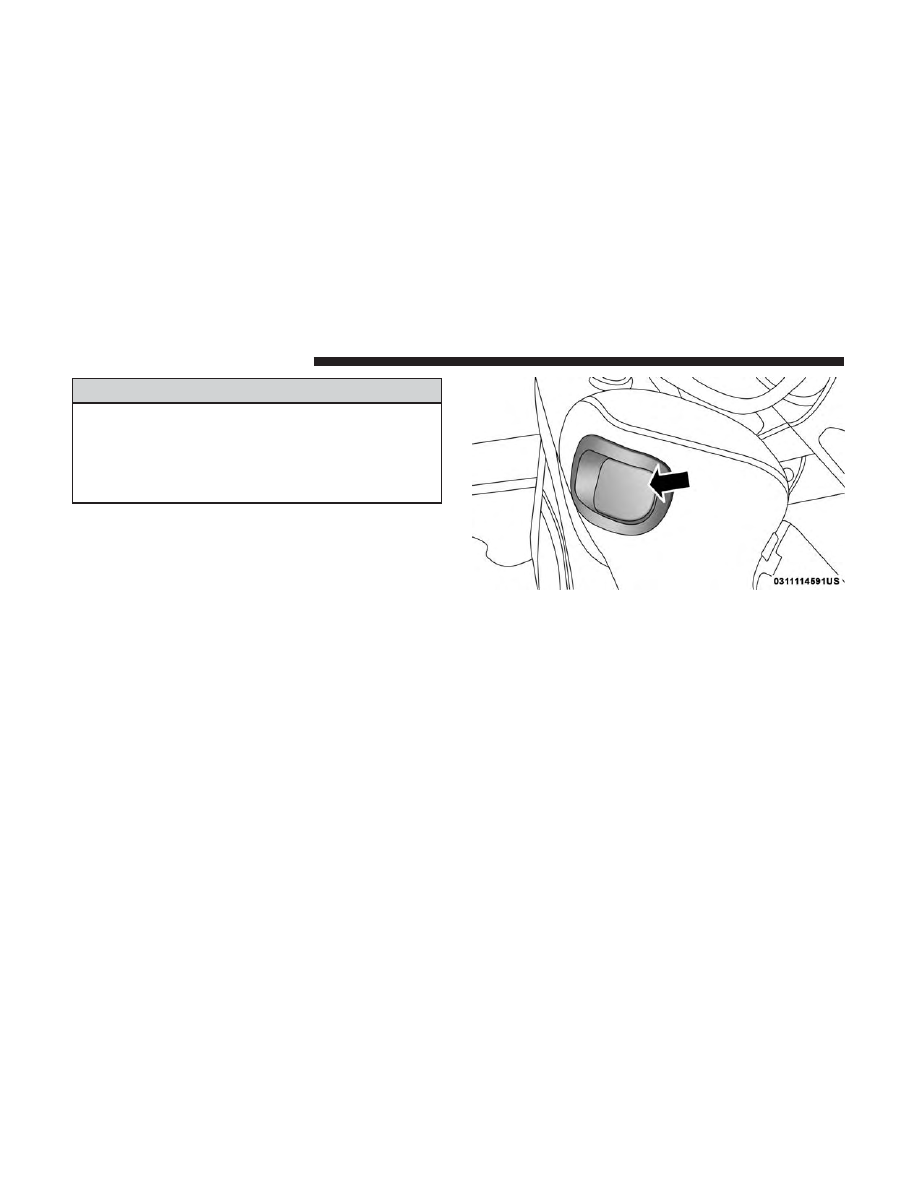

Manual Tilt/Telescoping Control Handle

GETTING TO KNOW YOUR VEHICLE

WARNING!

Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.

Power Tilt/Telescoping Steering Column —
If Equipped

This feature allows you to tilt the steering column upward
or downward. It also allows you to lengthen or shorten the
steering column. The power tilt/telescoping steering col-
umn switch is located below the multifunction switch on
the steering column.

To tilt the steering column, move the switch up or down as
desired. To lengthen or shorten the steering column, pull
the switch toward you or push the switch away from you
as desired.

WARNING!

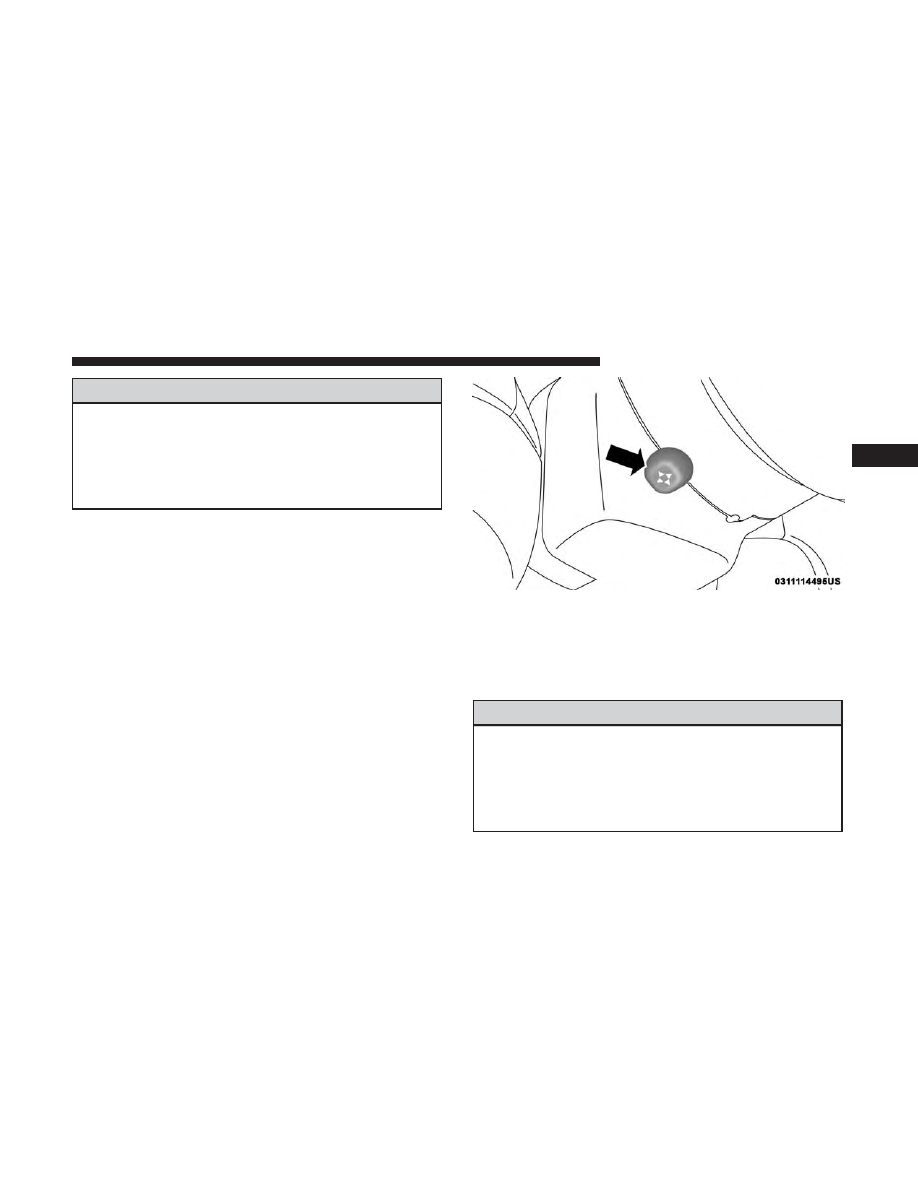

Power Tilt/Telescoping Switch

GETTING TO KNOW YOUR VEHICLE

Heated Steering Wheel — If Equipped

The steering wheel contains a heating element that helps
warm your hands in cold weather. The heated steering
wheel has only one temperature setting. Once the heated
steering wheel has been turned on, it will stay on for an
average of 80 minutes before automatically shutting off.
This time will vary based on environmental temperatures.
The heated steering wheel can shut off early or may not
turn on when the steering wheel is already warm.

The heated steering wheel control button is located within
the Uconnect system. You can gain access to the control
button through the climate screen or the controls screen.
• Press the heated steering wheel button

once to turn

the heating element on.

• Press the heated steering wheel button

a second time

to turn the heating element off.

NOTE:

The engine must be running for the heated steering

wheel to operate.

Vehicles Equipped With Remote Start

On models that are equipped with remote start, the heated
steering wheel can be programmed to come on during a
remote start through the Uconnect system. Refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion.

WARNING!

• Persons who are unable to feel pain to the skin

because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion, or other physical conditions must exercise care
when using the steering wheel heater. It may cause
burns even at low temperatures, especially if used
for long periods.

• Do not place anything on the steering wheel that

insulates against heat, such as a blanket or steering
wheel covers of any type and material. This may
cause the steering wheel heater to overheat.

GETTING TO KNOW YOUR VEHICLE

MIRRORS

Automatic Dimming Mirror

The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.

This mirror automatically adjusts for headlight glare from
vehicles behind you.

NOTE:

The Automatic Dimming feature is disabled when

the vehicle is in REVERSE to improve rear view viewing.

The Automatic Dimming feature can be turned on or off
through the touchscreen.
• Press the mirror dimmer button once to turn the feature

on. The soft key button will illuminate when activated.

• Press the mirror dimmer button a second time to turn

the feature off, and the soft key button will no longer be
illuminated.

CAUTION!

To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.

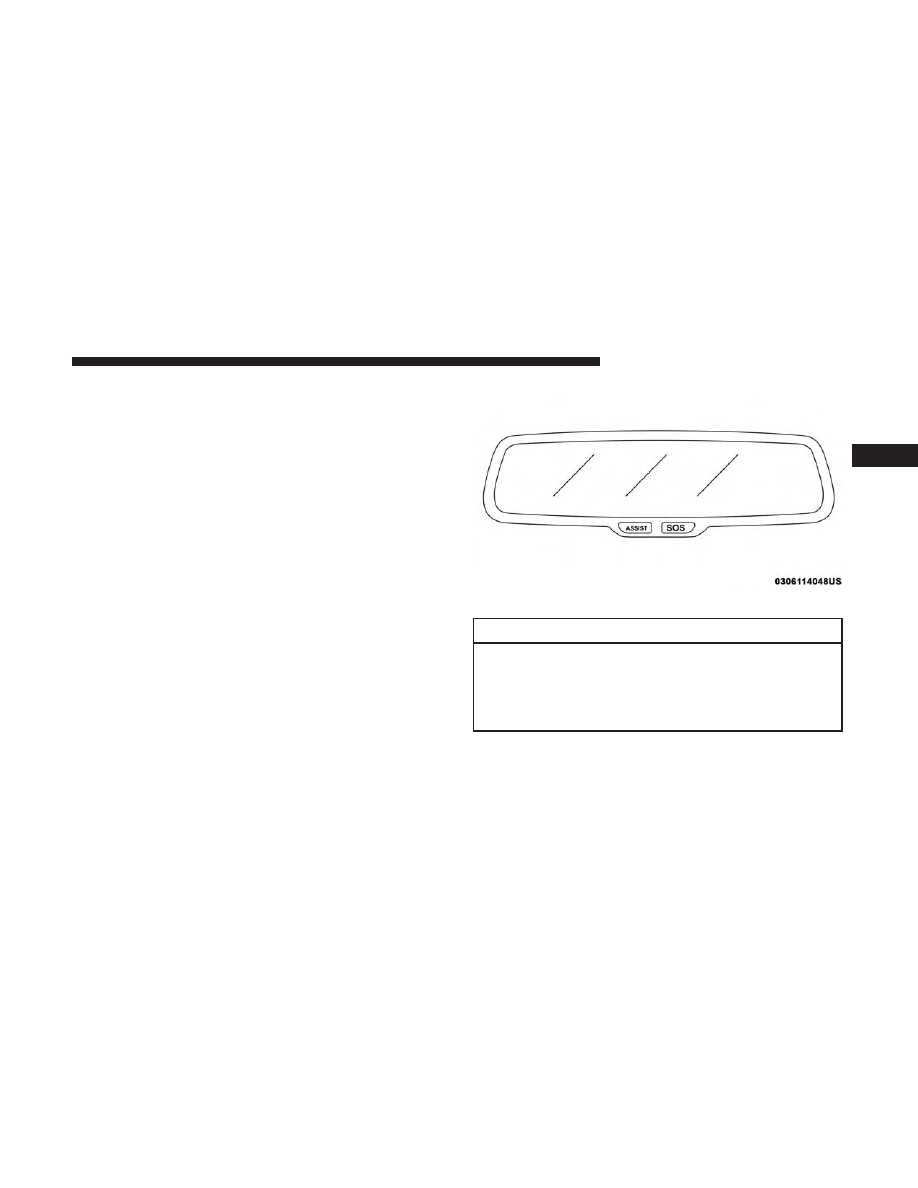

Automatic Dimming Mirror

GETTING TO KNOW YOUR VEHICLE

Outside Mirrors

To receive maximum benefit, adjust the outside mirror(s) to
center on the adjacent lane of traffic and a slight overlap of
the view obtained from the inside mirror.

NOTE:

The passenger side convex outside mirror will give

a much wider view to the rear, and especially of the lane
next to your vehicle.

WARNING!

Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or other
object. Use your inside mirror when judging the size or
distance of a vehicle seen in a side convex mirror.

Power Mirrors

The power mirror controls are located on the driver’s door
trim panel.

The power mirror controls consist of mirror select buttons
and a four-way mirror control switch. To adjust a mirror,
push either the L (left) or R (right) button to select the
mirror that you want to adjust.

NOTE:

A light in the select button will illuminate indicat-

ing the mirror is activated and can be adjusted.

Using the mirror control switch, push on any of the four
arrows for the direction that you want the mirror to move.

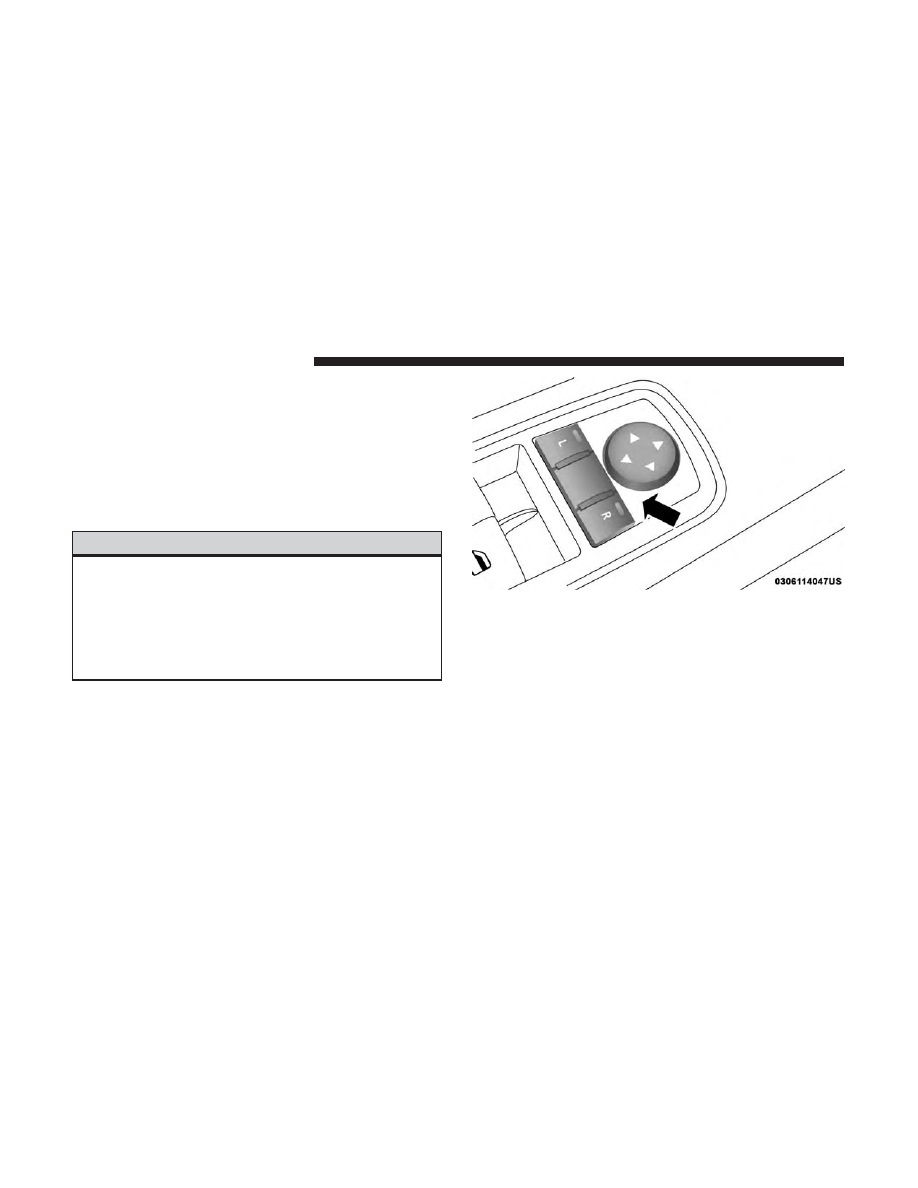

Power Mirror Control

GETTING TO KNOW YOUR VEHICLE

Heated Mirrors — If Equipped

These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the

rear window defroster (if equipped). Refer to “Climate
Controls” in “Getting To Know Your Vehicle” for further
information.

Illuminated Vanity Mirrors

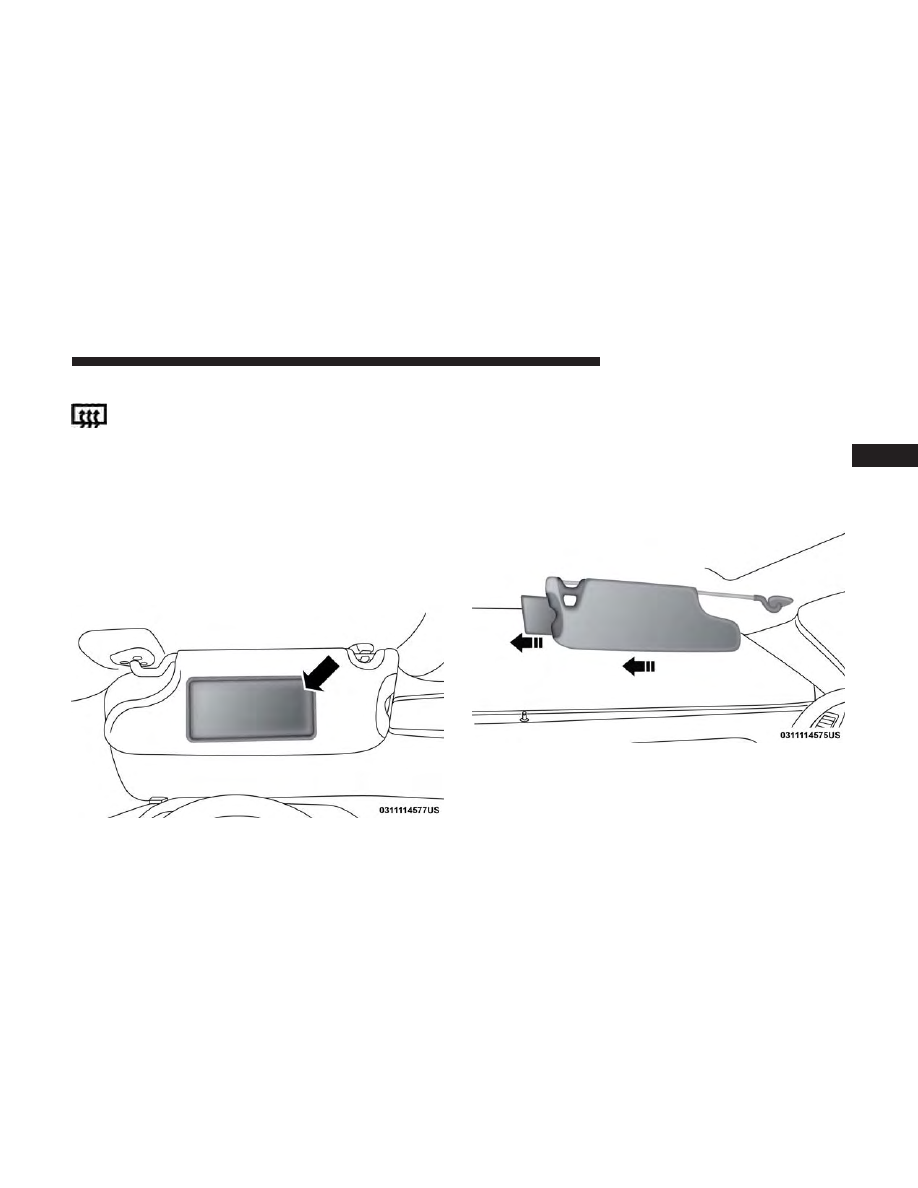

An illuminated vanity mirror is on the sun visor. To use the
mirror, rotate the sun visor downward and swing the
mirror cover upward. The light turns on automatically.
Close the mirror cover to turn off the light.

“Slide-On-Rod” And Extender Features Of Sun
Visor

To use the “Slide-On-Rod” feature of the sun visor, rotate
the sun visor downward and swing the sun visor so it is
parallel to the side window, pull the sun visor rearwards
until it is in the desired position. To use the extender
feature of the sun visor, grab the extender which is located
at the rear of the visor and pull rearward.

Illuminated Vanity Mirror

Slide-On-Rod Extender

GETTING TO KNOW YOUR VEHICLE

EXTERIOR LIGHTS

Headlight Switch

The headlight switch is located on the left side of the
instrument panel. This switch controls the operation of the
headlights, parking lights, instrument panel lights, instru-
ment panel light dimming, interior lights and fog lights.

Rotate the headlight switch clockwise to the first detent for
parking light and instrument panel light operation. Rotate
the headlight switch to the second detent for headlight,
parking light and instrument panel light operation. Push
the switch to enable fog lights (if equipped).

Multifunction Lever

The multifunction lever controls the operation of the turn
signals, headlight beam selection and passing lights. The
multifunction lever is located on the left side of the steering
column.

Daytime Running Lights (DRL) — If Equipped

The Daytime Running Lights will turn on when the engine
is started and will remain on unless the headlamps are
turned to the on position, the parking brake is applied, or
the engine is shut OFF.

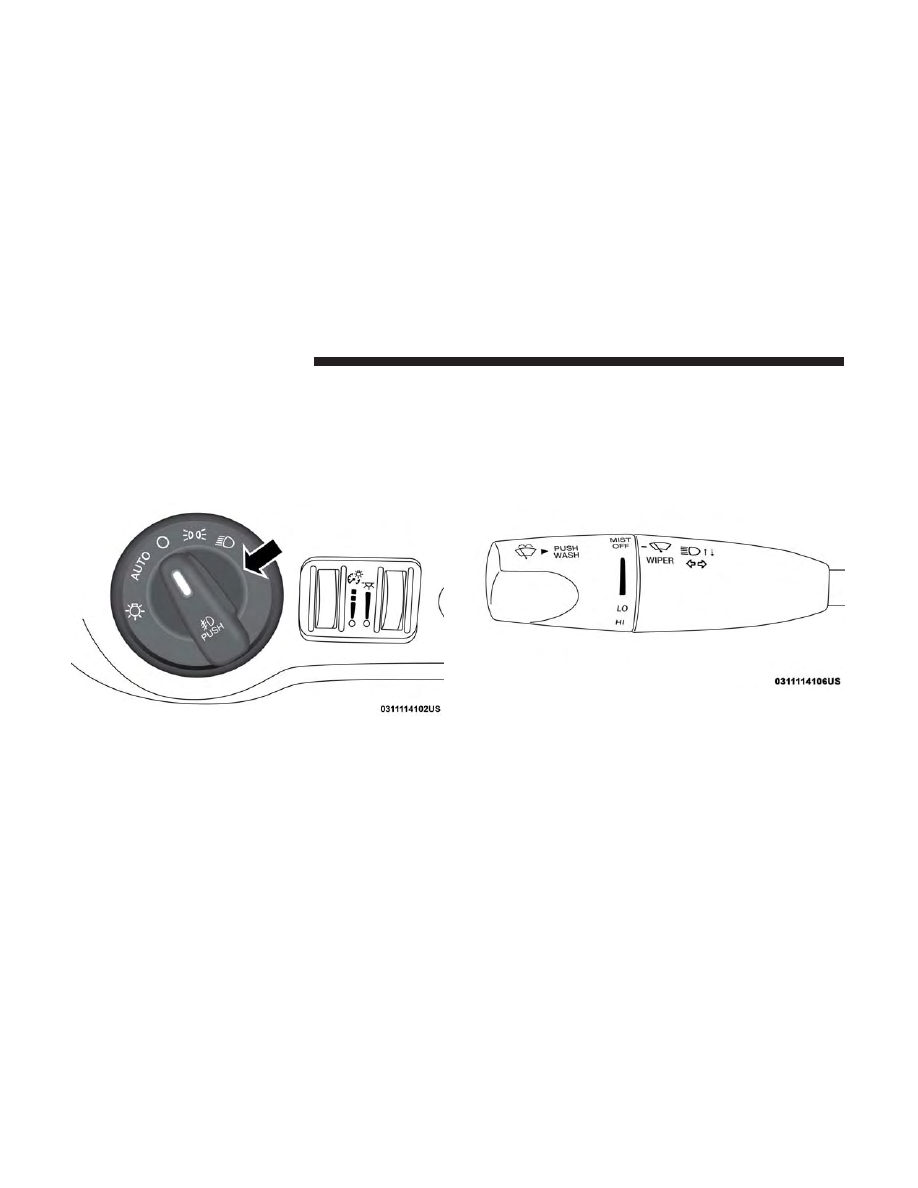

Headlight Switch

Multifunction Lever

GETTING TO KNOW YOUR VEHICLE

Dodge Challenger (2019 year). Manual - part 3
