If brake failure is indicated, immediate repair is necessary
and continued operation of the vehicle in this condition is
dangerous.

Acceleration which causes the rear wheels to slip for a
period of time may result in the red brake light illumi-
nating and a brake switch code being set on ABS
equipped vehicles. Depressing the brake pedal should
extinguish the red brake light.

19. Wait To Start Indicator

The Wait To Start Indicator will illuminate when
the ignition key is first turned to the ON position.

Wait until the Wait To Start Indicator turns OFF then start
the vehicle.

20. Odometer/Trip Odometer
The odometer shows the total distance the vehicle has
been driven.

If the odometer reading is changed during repair or
replacement, be sure to keep a record of the reading
before and after the service so that the correct mileage can
be determined.

The trip odometer shows individual trip mileage. To
toggle between the odometer and the trip odometer,
press the Odometer/Trip Odometer Button. To reset the
Trip Odometer, press and hold the button while in trip
mode, until the Trip Odometer resets.

NOTE:

There is also an engine hour function. This

indicates the total number of hours the engine has been
running. To display the engine hours perform the follow-
ing: Place the ignition in RUN, but do not start the
engine. With the odometer value displayed, hold the trip
button down for a period of 6 seconds. The odometer will
change to trip value first, then it will display the engine

148

UNDERSTANDING YOUR INSTRUMENT PANEL

hour value. The engine hours will be displayed for a
period of 30 seconds until the ignition is turned off or the
engine is started.

21. LAMP OUT Light
The LAMP OUT indicator in the instrument cluster alerts
the driver if a defective bulb or wiring circuit is detected
for headlamps, turn signal lamps, and stop lamps.

22. TOW/HAUL (Automatic Transmissions Only)
The TOW/HAUL button is located at the end of the gear
shift lever. This light will illuminate when the TOW/
HAUL button has been selected.

23. SERV 4WD Indicator
The 4WD indicator will be illuminated whenever the
4WD mode is engaged for either the manual or electric
shift 4WD systems. The SERV 4WD indicator monitors
the electric shift 4WD system. If the SERV 4WD light

stays on or comes on during driving, it means that the
4WD system is not functioning properly and that service
is required.

24. LOW WASH Light
This light comes on when the washer fluid level falls
below approximately 1/4 filled. The light will remain on
until fluid is added and one minute has elapsed.

25. Odometer/Trip Odometer Button
Press this button to toggle between the odometer and the
trip odometer display. Holding the button in resets the
trip odometer reading when in trip mode.

26. Fuel Gauge
Shows level of fuel in tank when ignition switch is in the
ON position.

UNDERSTANDING YOUR INSTRUMENT PANEL

149

27. Low Fuel Warning Light

Glows when the pointer is between “E” and 1/8
indication mark (approximately 15% of tank vol-
ume) on the fuel gauge. When the fuel gauge

pointer is on “E” (equivalent to Distance To Empty [DTE]
= 0 on the overhead console if so equipped) there is
reserve fuel capacity, which corresponds to approxi-
mately 8% of tank volume. This reserve capacity was put
in place to prevent the likelihood of customers running
out of fuel when operating at maximum load conditions
in areas where there aren’t many gas stations.

Ram fuel tank volumes are as follows:

• 34 gallons - 2500/3500 short box models
• 35 gallons - 2500/3500 long box models

28. Transmission Oil Temperature Warning Light
(Automatic Transmissions Only)

This light indicates that there is excessive trans-
mission fluid temperature that might occur
with severe usage such as trailer towing. If this
light comes on, stop the vehicle and run the

engine at idle or faster, with the transmission in NEU-
TRAL until the light goes off.

29. Check Gages

This light illuminates when the Voltmeter, Engine
Oil Pressure or Engine Coolant Temperature

gages indicate a reading either too high or too low.
Examine the gages carefully, and follow the instructions
above for each indicated problem.

150

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

When the ignition switch is turned to OFF, the

Fuel Gage, Voltmeter, Oil Pressure and Engine Coolant
Temperature gages may not show accurate readings.
When the engine is not running, turn the ignition switch
to ON to obtain accurate readings.

ELECTRONIC DIGITAL CLOCK

The clock and radio each use the display panel built into
the radio. A digital readout shows the time in hours and
minutes whenever the ignition switch is in the “ON” or
“ACC” position.

When the ignition switch is in the “OFF” position, or
when the radio frequency is being displayed, time keep-
ing is accurately maintained.

Clock Setting Procedure

1. Turn the ignition switch to the “ON” or “ACC”
position. Using the point of a ballpoint pen or similar
object, press either the “H” (Hour) or “M” (Minute)
buttons on the radio. The display will show the time.

2. Press the “H” button to set hours or the “M” button to
set minutes. The time setting will increase each time you
press a button.

UNDERSTANDING YOUR INSTRUMENT PANEL

151

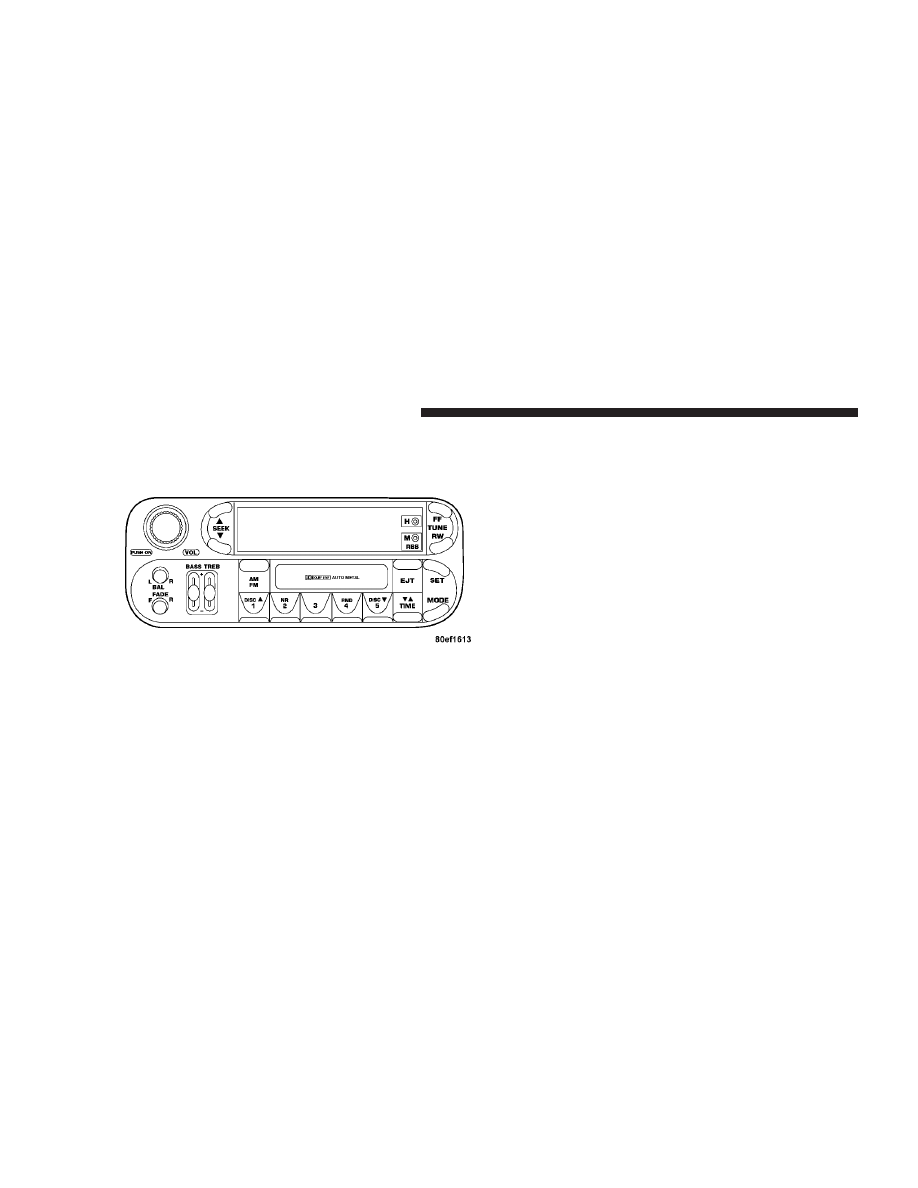

SALES CODE RBB—AM/FM STEREO RADIO
WITH CASSETTE TAPE PLAYER AND CD
CHANGER CAPABILITY

Operating Instructions

NOTE:

Power to operate the radio is supplied through

the ignition switch. It must be in the ON or ACC position
to operate the radio.

NOTE:

When first learning the control functions, the

user should set the controls as shown in the following
list.
Tone Controls…As illustrated.
Speaker Control…Centered.

Power Button

The volume control/power button pops out when
pressed, this turns the sound system ON in the mode last
used. Pushing the button back in turns the sound system
OFF.

Electronic Volume Control

The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
volume control to the right increases the volume and to
the left decreases it.

When the audio system is turned on, the sound will be
set at the same volume level as last played.

152

UNDERSTANDING YOUR INSTRUMENT PANEL

For your convenience, the volume can be turned down,
but not up, when the audio system is off and the ignition
is ON.

Seek

Press and release the SEEK button to search for the next
station in either the AM or FM mode. Press the top of the
button to seek up and the bottom to seek down. The
radio will remain tuned to the new station until you
make another selection. Holding the button will bypass
stations without stopping until you release it.

Tune

Press the TUNE control up or down to increase or
decrease the frequency. If the button is pushed and held,
the radio will continue to tune until the button is
released. The frequency will be displayed and continu-
ously updated while the button is pushed.

To Set The Push-Button Memory

When you are receiving a station that you wish to
commit to push-button memory, press the SET button.
The symbol SET 1 will now show in the display window.
Select the “1–5” button you wish to lock onto this station
and press and release that button. If a button is not
selected within 5 seconds after pressing the SET button,
the station will continue to play but will not be locked
into push-button memory.

You may add a second station to each push-button by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2 in
both AM and FM. This allows a total of 10 AM and 10 FM
stations to be locked into push-button memory. The
stations stored in SET 2 memory can be selected by
pressing the push-button twice.

UNDERSTANDING YOUR INSTRUMENT PANEL

153

Every time a preset button is used a corresponding
button number will be displayed.

Balance

The balance control adjusts the left-to-right speaker bal-
ance. Press the BAL button in and it will pop out. Adjust
the balance and push the button back in.

Fade

The fade control provides for balance between the front
and rear speakers. Press the FADE button in and it will
pop out. Adjust the balance and push the button back in.

Bass and Treble Tone Control

The tone controls consist of 2 separate bands. The bass
band is on the left, and the treble band is on the right.
Each band is adjusted by a slider control with a detent at
the mid-position. Moving the control up or down in-
creases or decreases amplification of that band. The mid
position provides a balanced output.

AM/FM Selection

Press the AM/FM button to change from AM to FM. The
operating mode will be displayed next to the station
frequency. The display will show ST when a stereo
station is received in the FM mode.

Mode Button

Press the MODE button to select between the cassette
tape player, CD changer, or the Satellite Radio (if
equipped). When the Satellite Radio (if equipped) is
selected “SA” will appear in your radio display.

A CD or tape may remain in the player while in the
Satellite or radio mode.

Cassette Player Features

With ignition OFF and the sound system OFF, you can
eject the tape cassette by pushing the EJECT button.

154

UNDERSTANDING YOUR INSTRUMENT PANEL

You can turn the tape player ON by inserting a cassette or
activating the MODE button (with a cassette in the radio),
but only when the ignition and radio are on.

Each time a cassette is inserted the tape player will begin
playing on the side of the cassette that is facing up in the
player.

Music Search
Pressing the SEEK button while playing a tape will start
the Music Search mode. Press the SEEK button up for the
next selection on the tape and down to return to the
beginning of the current selection, or return to the
beginning of the previous selection if the tape is within
the first 5 seconds of the current selection.

The SEEK symbol appears on the display when Music
Search is in operation. Music Search shuts off automati-
cally when a selection has been located.

Selective Music Search
Press the SEEK button up or down to move the track
number to skip forward or backward 1 to 7 selections.
Press the SEEK button once to move 1 selection, twice to
move 2 selections, etc.

Fast Forward And Rewind Buttons
Pressing the TUNE button up or down momentarily
activates Fast Forward or Rewind and makes the direc-
tional arrows appear on the display.

To stop Fast Forward or Rewind, press the TUNE button
again.

Time Button
Press the time button to toggle between station frequency
and time of day.

Pressing this button while playing a cassette tape will
change the side of the tape being played.

UNDERSTANDING YOUR INSTRUMENT PANEL

155

NR (Noise Reduction)
Pushing the Number 2 Pre-set button when a tape is
playing deactivates the Dolby Noise Reduction System*.
When Dolby is ON, the NR symbol appears on the
display. Each time a tape is inserted the Dolby will turn
ON.

* “Dolby” noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of Dolby Labo-
ratories Licensing Corporation.

CD Changer Control Capability — If Equipped

This radio is compatible with a remote mounted CD
changer available through Mopar Accessories. The fol-
lowing instructions are for the radio controls that operate
this CD changer.

Mode Button
To activate the CD changer, press the MODE button until
CD information appears on the display.

Push-Button
While the CD changer is playing, press the NUMBER 1
push-button or the NUMBER 5 push-button to select a
disc numbered higher or lower than the one currently
being played.

Seek Button
Press the SEEK up or down to select another track on the
same disc. A SEEK symbol will appear on the display.

Fast Forward And Rewind Buttons
Press and hold the FF button for fast forward. Press and
hold the RW button for fast reverse.

The audio output can be heard when fast forward and
fast reverse are activated.

Random Play (RND)
Press the Random button to play the tracks on the
selected disc in random order for an interesting change of
pace.

156

UNDERSTANDING YOUR INSTRUMENT PANEL

Random can be cancelled by pressing the button a second
time or by ejecting the CD from the changer.

CD Diagnostic Indicators
When driving over a very rough road, the CD player may
skip momentarily. Skipping will not damage the disc or
the player, and play will resume automatically.

As a safeguard and to protect your CD player, one of the
following warning symbols may appear on your display.

A CD HOT symbol indicates the player is too hot.

CD HOT will pause the operation. Play can be resumed
when the operating temperature is corrected or another
MODE is selected.

An ERR symbol will appear on the display if the laser is
unable to read the Disc data for the following reasons:

• Excessive vibration
• Disc inserted upside down
• Damaged disc
• Water condensation on optics

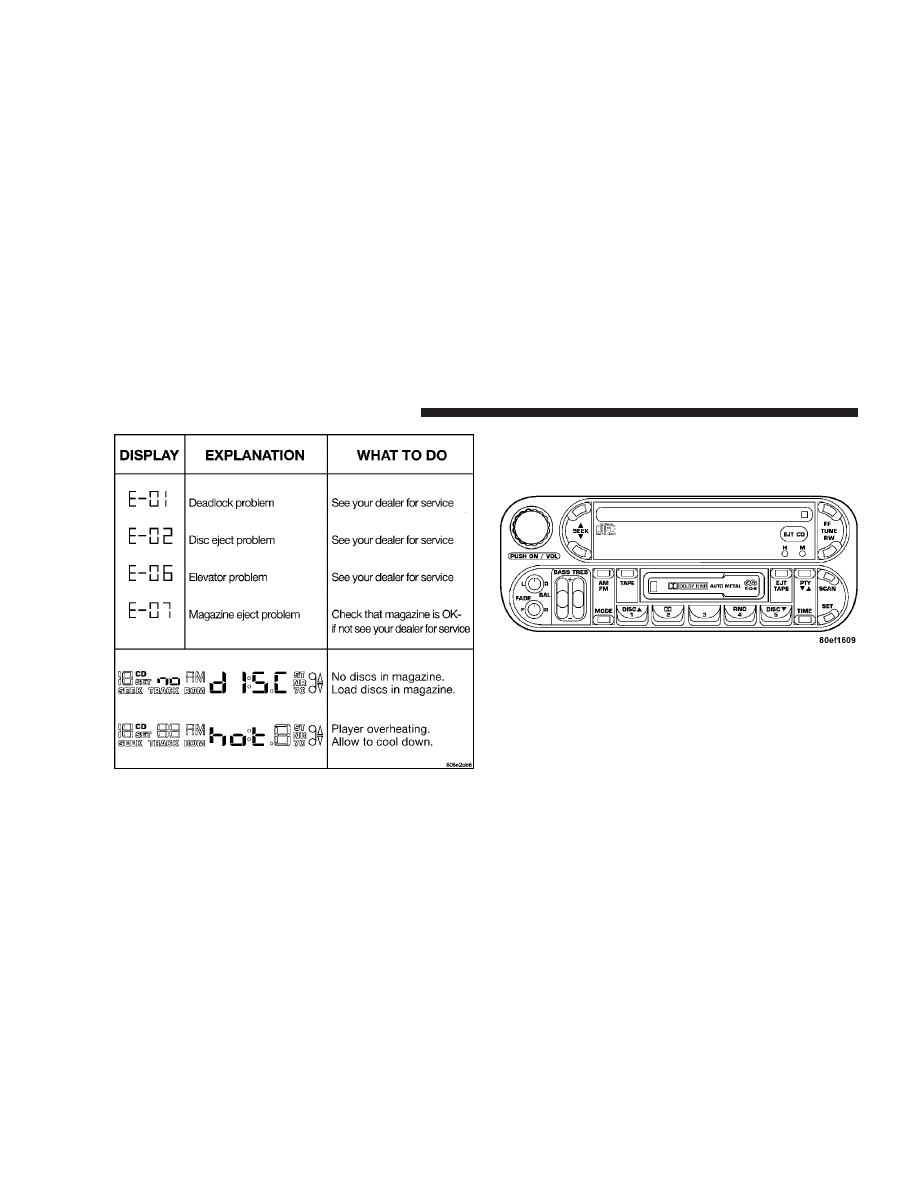

Radio Display Messages

Your radio has been designed to display certain messages
when a problem is detected with the CD player.

UNDERSTANDING YOUR INSTRUMENT PANEL

157

SALES CODE RAZ—AM/ FM STEREO RADIO
WITH CASSETTE TAPE PLAYER, CD PLAYER
AND CD CHANGER CONTROLS — IF EQUIPPED

Operating Instructions — Radio

NOTE:

Power to operate the radio is controlled by the

ignition switch. It must be in the ON or ACC position to
operate the radio.

158

UNDERSTANDING YOUR INSTRUMENT PANEL

Power Switch, Volume Control

Press the ON/VOL control to turn the radio on. Turn the
volume control clockwise to increase the volume. The
volume will be displayed and continuously updated
while the button is pressed.

Seek Button (Radio Mode)

Press and release the Seek button to search for the next
station in either the AM or FM mode. Press the top of the
button to seek up and the bottom to seek down. Holding
the button will by pass stations until you release the
button.

Tuning

Press the TUNE control up or down to increase or
decrease the frequency. If you press and hold the button,
the radio will continue to tune until you release the
button. The frequency will be displayed and continu-
ously updated while the button is pressed.

PTY (Program Type) Button

Pressing this button once will turn on the PTY mode for
5 seconds. If no action is taken during the 5 second time
out the PTY icon will turn off. Pressing the PTY button
within 5 seconds will allow the program format type to
be selected. Many radio stations do not currently broad-
cast PTY information.

Toggle the PTY button to select the following format types:

Program Type

Radio Display

Adult Hits

Adlt Hit

Classical

Classicl

Classic Rock

Cls Rock

College

Country

Information

Inform

Jazz

Foreign Language

Language

UNDERSTANDING YOUR INSTRUMENT PANEL

159

Program Type

Radio Display

News

Nostalgia

Nostalga

Oldies

Personality

Persnlty

Public

Rhythm and Blues

R & B

Religious Music

Rel Musc

Religious Talk

Rel Talk

Rock

Soft

Soft Rock

Soft Rck

Soft Rhythm and Blues

Soft R&B

Sports

Talk

Top 40

Weather

By pressing the SEEK button when the PTY icon is
displayed, the radio will be tuned to the next frequency
station with the same selected PTY name. The PTY
function only operates when in the FM mode.

The radio display will flash “SEEK” and the selected PTY
program type when searching for the next PTY station. If
no station is found with the selected PTY program type,
the radio will return to the last preset station.

If a preset button is activated while in the PTY (Program
Type) mode, the PTY mode will be exited and the radio
will tune to the preset station.

Pressing PTY, then SCAN will scan the FM Band and stop
at all RDS stations. Each RDS station will be played for a
5 second scan once around the FM Band and stop at the
last station. The PTY icon will then turn off.

160

UNDERSTANDING YOUR INSTRUMENT PANEL

Balance

The Balance control adjusts the left-to-right speaker bal-
ance. Push in the button and it will pop out. Adjust the
balance and push the button back in. The balance will be
displayed and continuously updated while the button is
turned.

Fade

The Fade control provides for balance between the front
and rear speakers. Push in the button and it will pop out.
Adjust the balance and push the button back in. The fade
will be displayed and continuously updated while the
button is turned.

Tone Control

Slide the Bass and/or Treble controls up or down to
adjust the sound for the desired tone. The treble, and bass
will be displayed and continuously updated while the
slide is moved.

AM/FM Selection

Press the AM/FM button to change from AM to FM. The
operating mode will be displayed next to the station
frequency. The display will show ST when a stereo
station is received.

Scan Button

Pressing the SCAN button causes the tuner to search for
the next station, in either AM or FM, pausing for 5
seconds at each listenable station before continuing to the
next.

Pressing the AM/FM button continues the search in the
alternate frequency band.

To stop the search, press SCAN a second time.

UNDERSTANDING YOUR INSTRUMENT PANEL

161

To Set The Radio Push-button Memory

When you are receiving a station that you wish to
commit to push-button memory, press the SET button.
SET 1 will show in the display window. Select the
push-button you wish to lock onto this station and press
and release that button. If a station is not selected within
5 seconds after pressing the SET button, the station will
continue to play but will not be locked into push-button
memory.

You may add a second station to each push-button by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2 in
both AM and FM. This allows a total of 10 AM and 10 FM
stations to be locked into memory. You can recall the
stations stored in SET 2 memory by pressing the push-
button twice.

To Change From Clock To Radio Mode

Press the Time button to change the display between
radio frequency and time.

Operating Instructions — Tape Player

Insert the cassette with the exposed tape side toward the
right and the mechanical action of the player will gently
pull the cassette into the play position.

NOTE:

When subjected to extremely cold temperatures,

the tape mechanism may require a few minutes to warm
up for proper operation. Sometimes poor playback may
be experienced due to a defective cassette tape. Clean and
demagnetize the tape heads at least twice a year.

Seek Button

Press the SEEK button up for the next selection on the
tape and down to return to the beginning of the current
selection.

162

UNDERSTANDING YOUR INSTRUMENT PANEL

Press the SEEK button up or down to move the track
number to skip forward or backward 1 to 6 selections.
Press the SEEK button once to move 1 selection, twice to
move 2 selections, etc.

Fast Forward (FF)

Press the FF button up momentarily to advance the tape
in the direction that it is playing. The tape will advance
until the button is pressed again or the end of the tape is
reached. At the end of the tape, the tape will play in the
opposite direction.

Rewind (RW)

Press the RW button momentarily to reverse the tape
direction. The tape will reverse until the button is pressed
again or until the end of the tape is reached. At the end of
the tape, the tape will play in the opposite direction.

Tape Eject

Press the EJT Tape button and the cassette will disengage
and eject from the radio.

Scan Button

Press this button to play 10 seconds of each selection.
Press the scan button a second time to cancel the feature.

Changing Tape Direction

If you wish to change the direction of tape travel (side
being played), press the PTY button. The lighted arrow in
the display window will show the new direction.

Metal Tape Selection

If a standard metal tape is inserted into the player, the
player will automatically select the correct equalization
and the 70 symbol will appear in the display window.

UNDERSTANDING YOUR INSTRUMENT PANEL

163

Dodge Diesel (2004 year). Manual - part 10
