P0344-CAMSHAFT POSITION SENSOR INTERMITTENT

9 - 430

ENGINE - ELECTRICAL DIAGNOSTICS - 3.7L/4.7L/5.7L

DR/DH

P0344-CAMSHAFT POSITION SENSOR INTERMITTENT (CONTINUED)

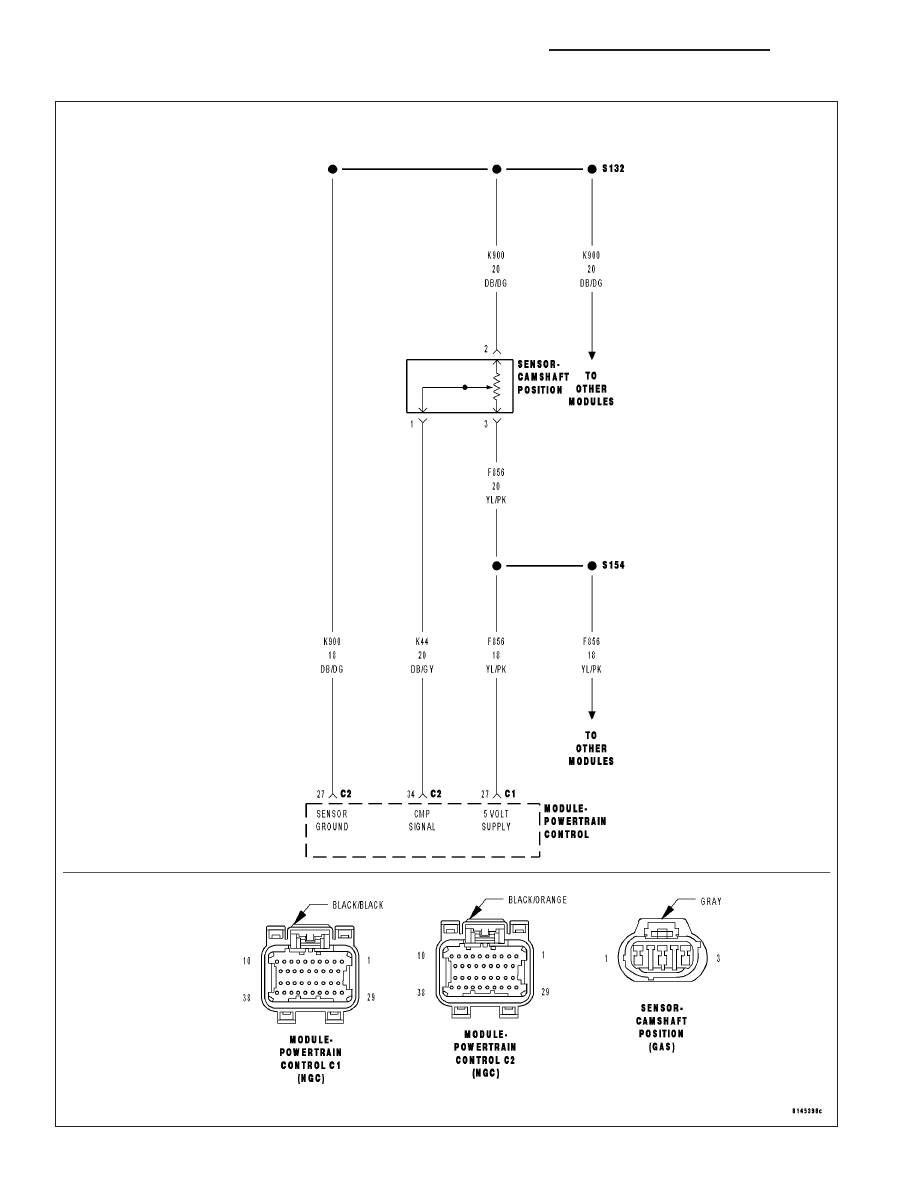

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
While cranking the engine and engine running.

Set Condition:
When the failure counter reaches 20. One Trip Fault. Three good trips to turn off the MIL.

Possible Causes

(F856) 5-VOLT SUPPLY CIRCUIT OPEN

(F856) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

(K44) CMP SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

(K44) CMP SIGNAL CIRCUIT OPEN

(K44) CMP SIGNAL CIRCUIT SHORTED TO GROUND

(K44) CMP SIGNAL CIRCUIT SHORTED TO THE (F856) 5-VOLT SUPPLY

TONE WHEEL/PULSE RING

CAMSHAFT POSITION SENSOR

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

ACTIVE DTC

Ignition on, engine not running.

With a scan tool, read DTCs.

Is the DTC active at this time?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.

CHECKING CAMSHAFT POSITION SENSOR SIGNAL WITH A LAB SCOPE

Turn the ignition off.

With a lab scope probe and the Miller special tool #6801, backprobe the (K44) CMP Signal circuit in the CMP
harness connector.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Ignition on, engine not running.

Observe the lab scope screen.

Start the engine.

Observe the lab scope screen.

Are there any irregular or missing signals?

Yes

>> Go To 3

No

>> Go To 8

DR/DH

ENGINE - ELECTRICAL DIAGNOSTICS - 3.7L/4.7L/5.7L

9 - 431

P0344-CAMSHAFT POSITION SENSOR INTERMITTENT (CONTINUED)

3.

WIRE HARNESS INSPECTION

Turn the ignition off.

Visually inspect the related wire harness including the ground circuit.
Look for any chafed, pierced, pinched, or partially broken wires.

Visually inspect the related wire harness connectors. Look for broken,
bent, pushed out, or corroded terminals.

Make sure the Crankshaft Position Sensor and the Camshaft Position
Sensor are properly installed and the mounting bolt(s) are torqued to
the proper specification.

Refer to any TSBs that may apply.

Were any of the above conditions present?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

4.

(F856) 5-VOLT SUPPLY CIRCUIT OPEN OR SHORTED TO GROUND

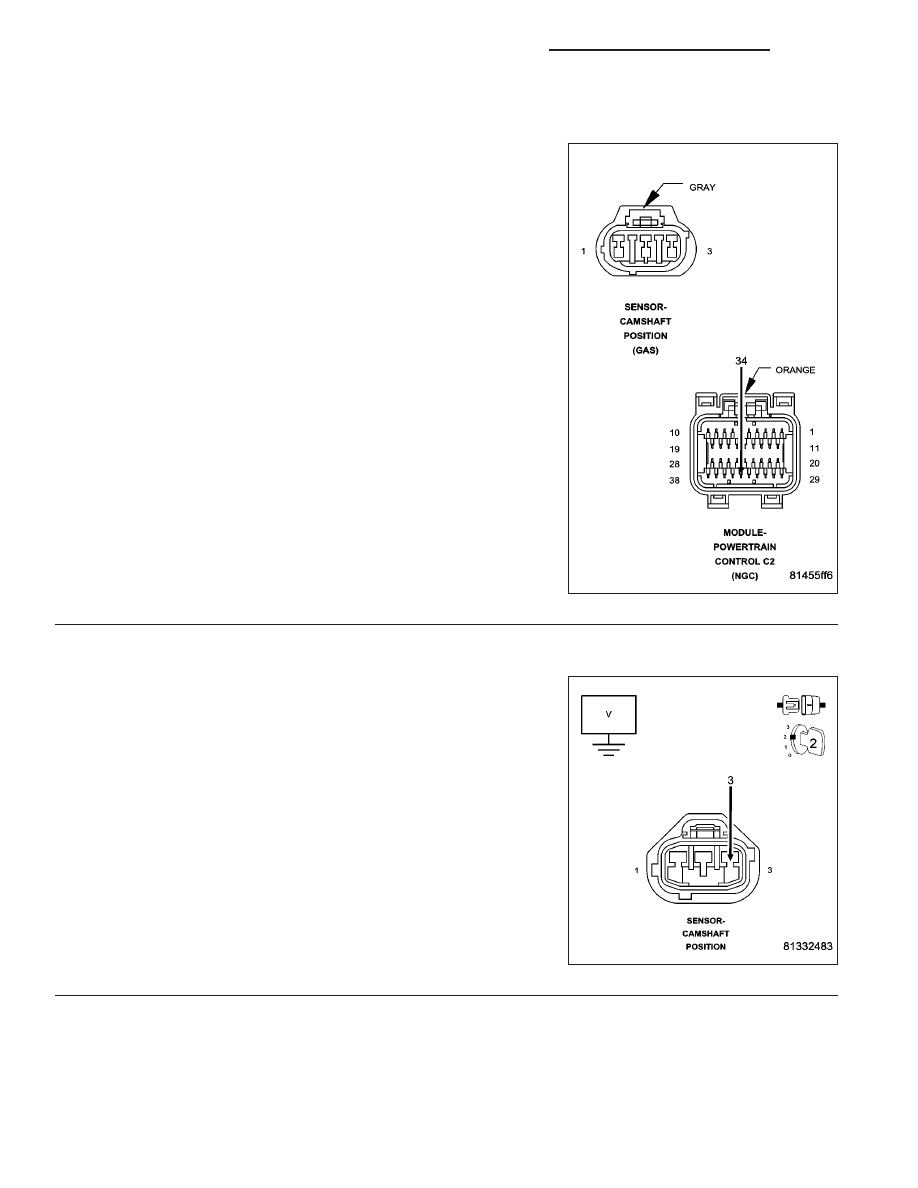

Disconnect the CMP Sensor connector.

Ignition on, engine not running.

Measure the voltage on the (F856) 5-volt Supply circuit in the CMP
harness connector.

Is the voltage between 4.5 and 5.2 volts?

Yes

>> Go To 5

No

>> Repair the open or short to ground in the (F856) 5-volt

Supply circuit. Use Miller special tool #8815 when check-
ing for an open circuit to prevent PCM harness connector
terminal damage.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

9 - 432

ENGINE - ELECTRICAL DIAGNOSTICS - 3.7L/4.7L/5.7L

DR/DH

P0344-CAMSHAFT POSITION SENSOR INTERMITTENT (CONTINUED)

5.

TONE WHEEL/PULSE RING INSPECTION

Turn the ignition off.

Carefully disconnect the Battery Ground cable.

Remove the Camshaft Position Sensor.

Inspect the Tone Wheel/Pulse Ring for damage, foreign material, or excessive movement.

Were any problems found?

Yes

>> Repair or replace the Tone Wheel/Pulse Ring as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 6

6.

CHECKING CRANKSHAFT POSITION SENSOR SIGNAL WITH A LAB SCOPE

NOTE: An intermittent condition in the Crank Position Sensor can cause the P0344 to set.
Install the CMP Sensor and connect the Battery cable.

With a lab scope probe and the Miller special tool #6801, backprobe the (K24) CKP Signal circuit in the CKP har-
ness connector.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Ignition on, engine not running.

Wiggle the related wire harness and lightly tap on the Crank Position Sensor.

Observe the lab scope screen.

Start the engine.

Observe the lab scope screen.

Are there any irregular or missing signals?

Yes

>> Replace the Crank Position Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 7

7.

CAMSHAFT POSITION SENSOR

If there are no possible causes remaining, view repair.

Repair

Replace the Camshaft Position Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

DR/DH

ENGINE - ELECTRICAL DIAGNOSTICS - 3.7L/4.7L/5.7L

9 - 433
