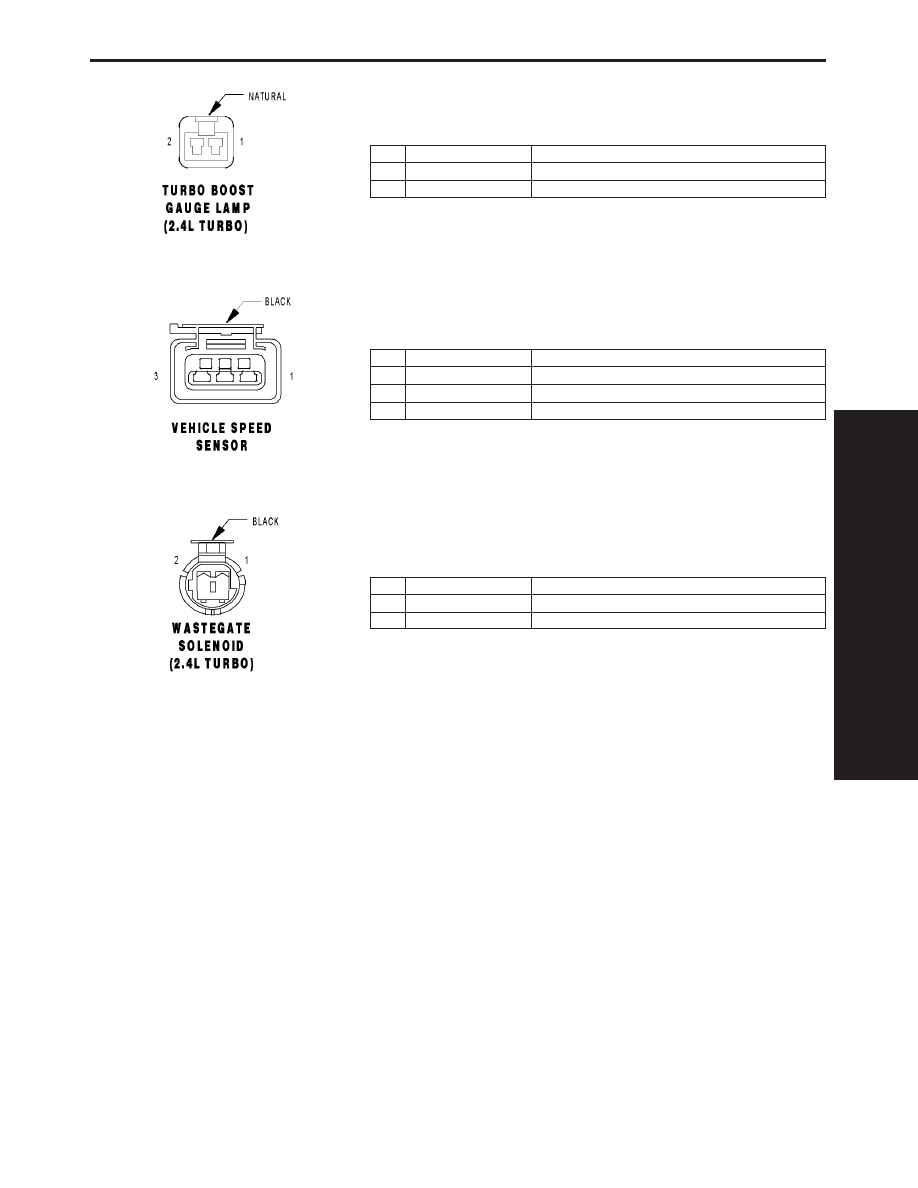

TURBO BOOST GAUGE LAMP (2.4L TURBO) - NATURAL 2 WAY

CAV

CIRCUIT

FUNCTION

1

E2 20OR

PANEL LAMPS DRIVER

2

Z3 20BK/OR

GROUND

VEHICLE SPEED SENSOR - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K7 20OR

5 VOLT SUPPLY

2

K4 20BK/LB

SENSOR GROUND

3

G7 20WT/OR

VEHICLE SPEED SIGNAL

WASTEGATE SOLENOID (2.4L TURBO) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K137 18DB/GY

WASTEGATE SOL CONTROL

2

Z1 20BK

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

381

CONNECTOR PINOUTS

10.0

SCHEMATIC DIAGRAMS

10.1

PL

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

383

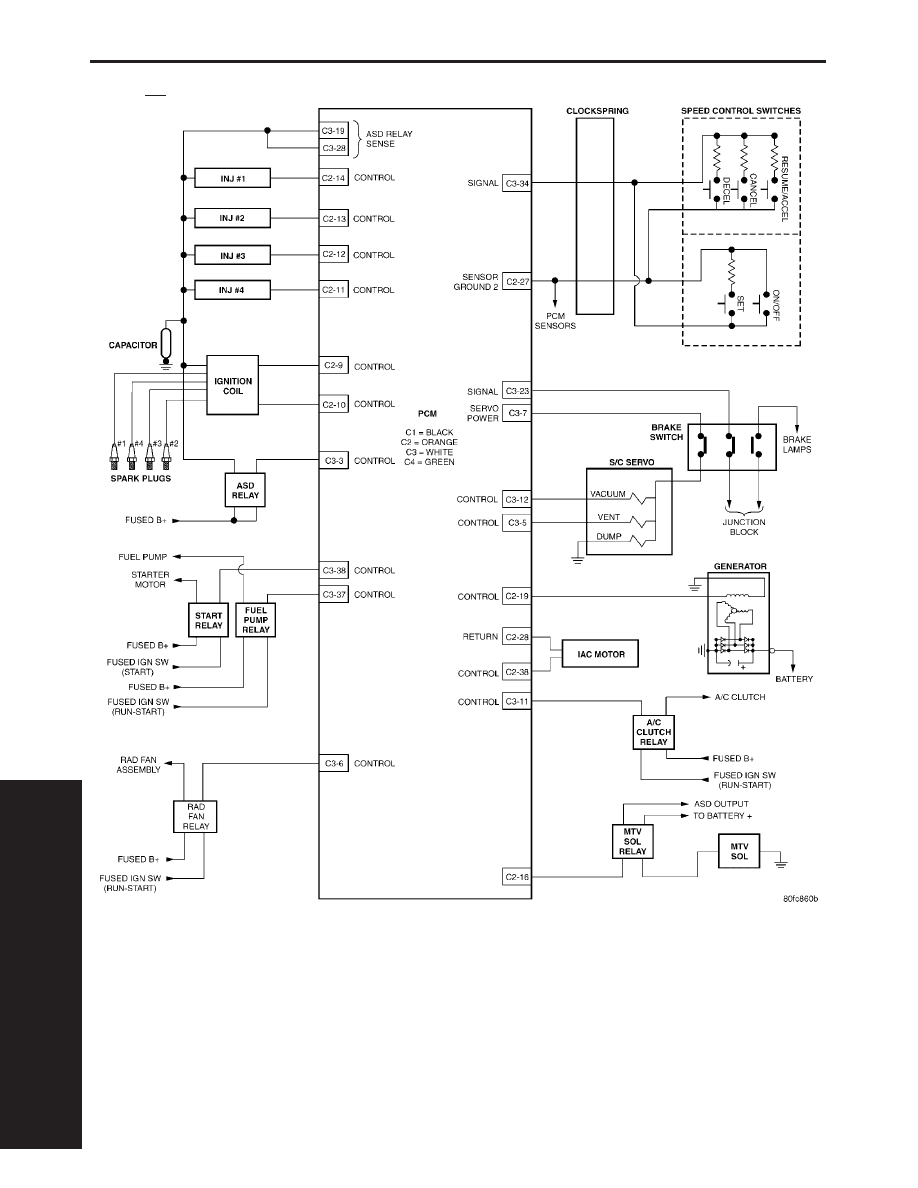

SCHEMATIC DIAGRAMS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

384

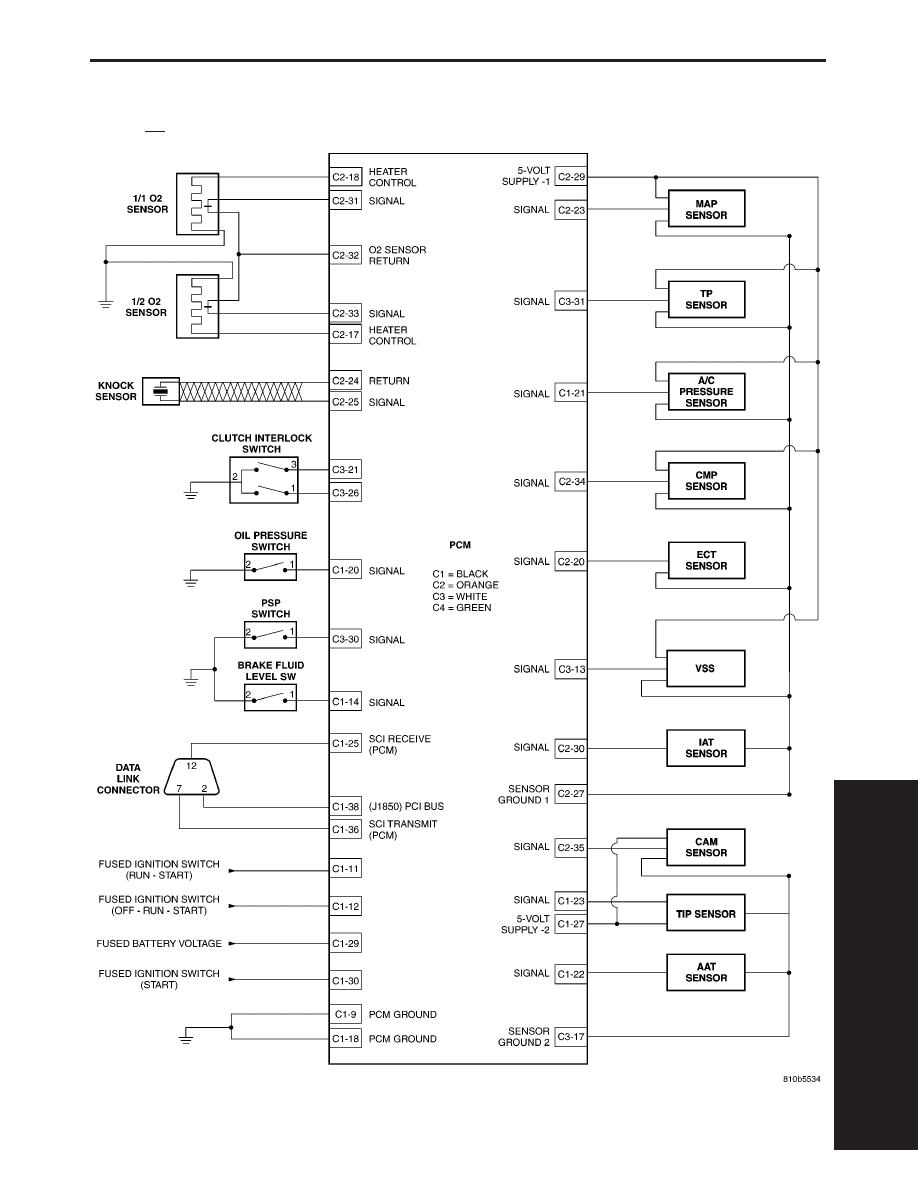

SCHEMATIC DIAGRAMS

10.1

PL (Continued)

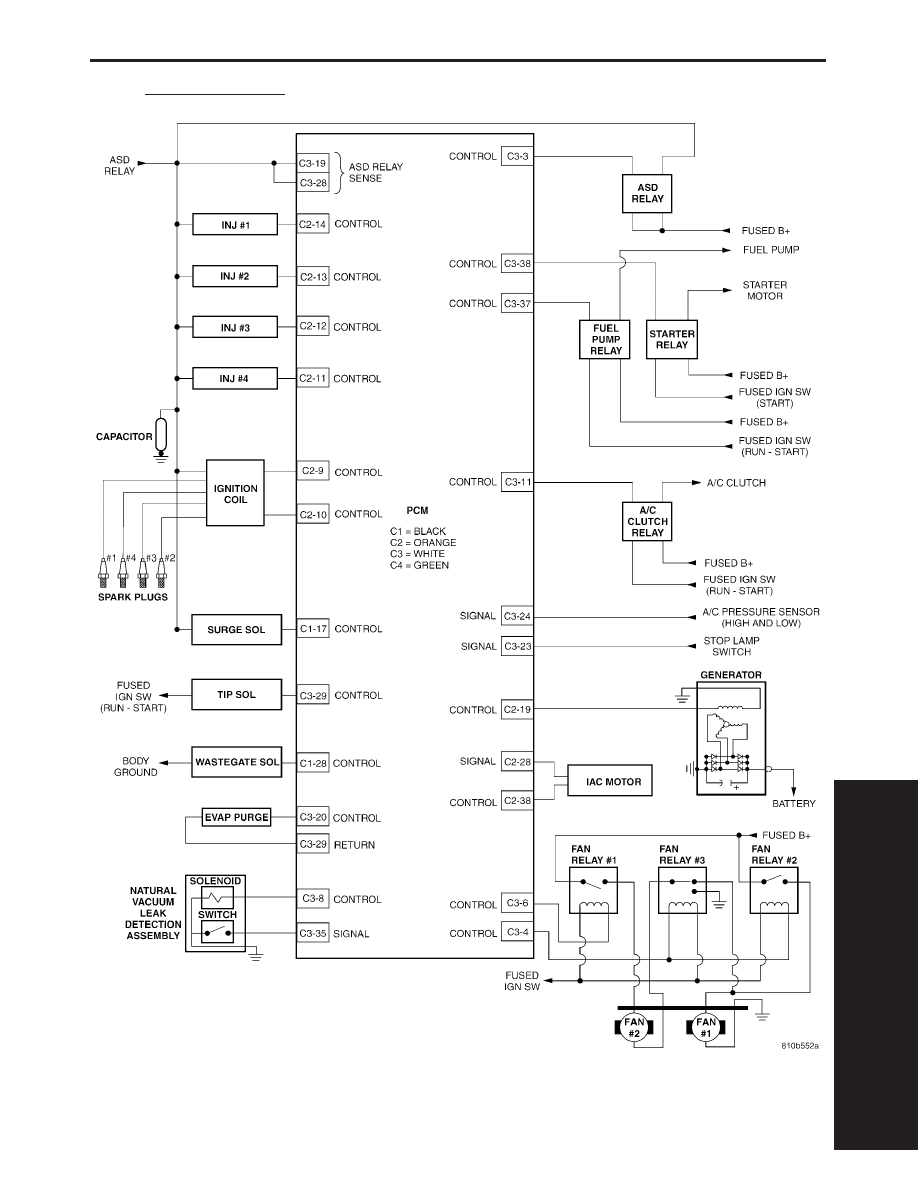

10.2
