FUEL FILL DOOR

REMOVAL

(1) Open the fuel filler door.
(2) Remove the screws attaching the door to the

quarter panel (Fig. 5).

(3) Remove the door from the panel.

INSTALLATION

(1) Position the fuel filler door on the quarter

panel with the screw holes aligned.

(2) Install the screws attaching the fuel filler door

to the quarter panel.

GRILLE

REMOVAL

(1) Release hood latch, open and support hood on

prop rod.

(2) Remove the fascia. (Refer to 13 - FRAME &

BUMPERS/BUMPERS/FRONT

FASCIA

-

REMOVAL).

(3) Remove the nut and remove the emblem. (Fig.

6)

(4) Using a trim stick C-4755 or equivalent,

release the grille clips and remove the grille.

(5) Using a trim stick C-4755 or equivalent,

release the grille surround clips and remove the
grille surrounds.

IMPORT

(1) Release hood latch, open and support hood on

prop rod.

(2) Remove screws attaching grille to fascia (Fig.

7).

(3) Pull grille away from fascia, reach between

grille and fascia with pliers and compress lower grille
clips.

(4) Pull grille away from fascia and remove grille

from vehicle.

INSTALLATION

(1) Install the grille and install the grille sur-

rounds (Fig. 6).

(2) Seat the all the retaining clips fully.
(3) Install the emblem and install the nut.

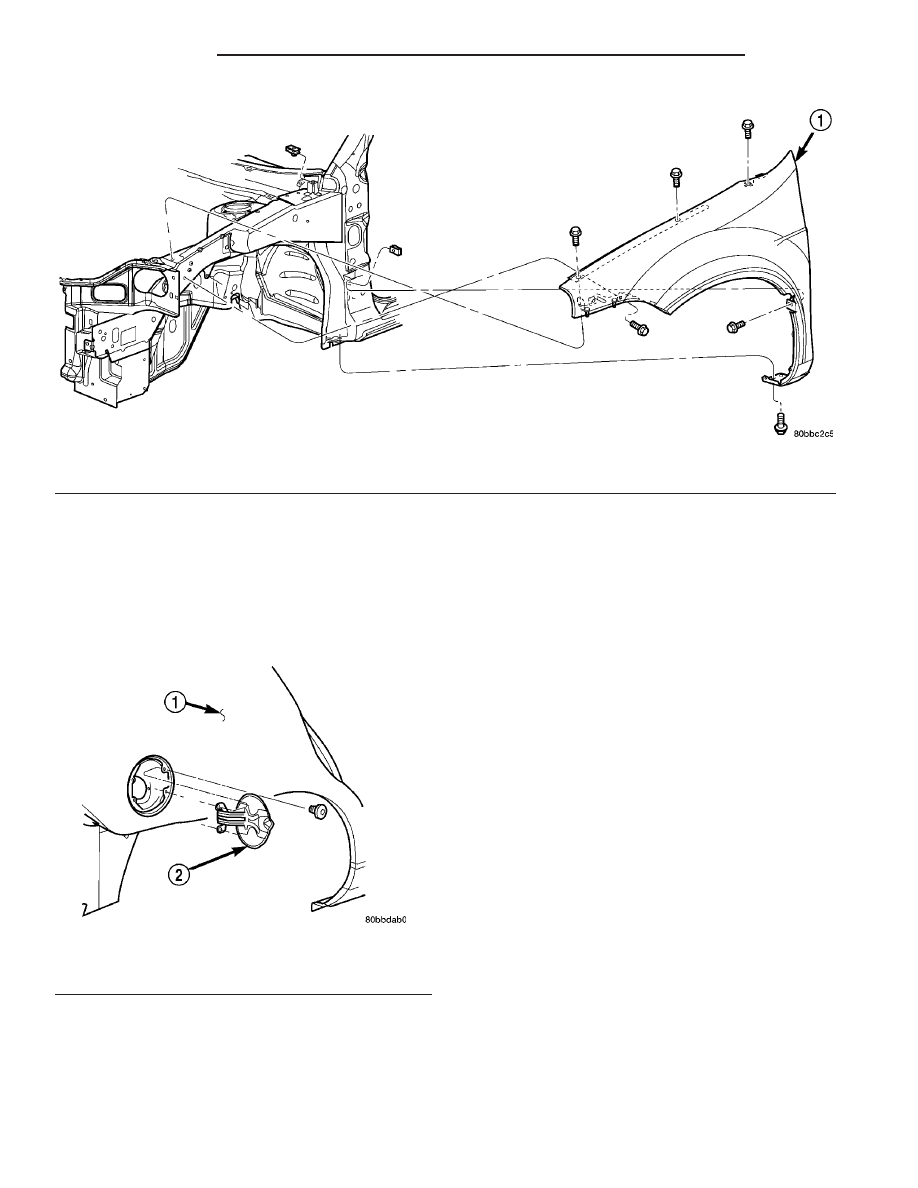

Fig. 4 Fender

1 - FENDER

Fig. 5 Fuel Filler Door

1 - BODY ASSEMBLY
2 - FUEL FILLER DOOR

23 - 40

EXTERIOR

PL/SRT-4

FRONT FENDER (Continued)

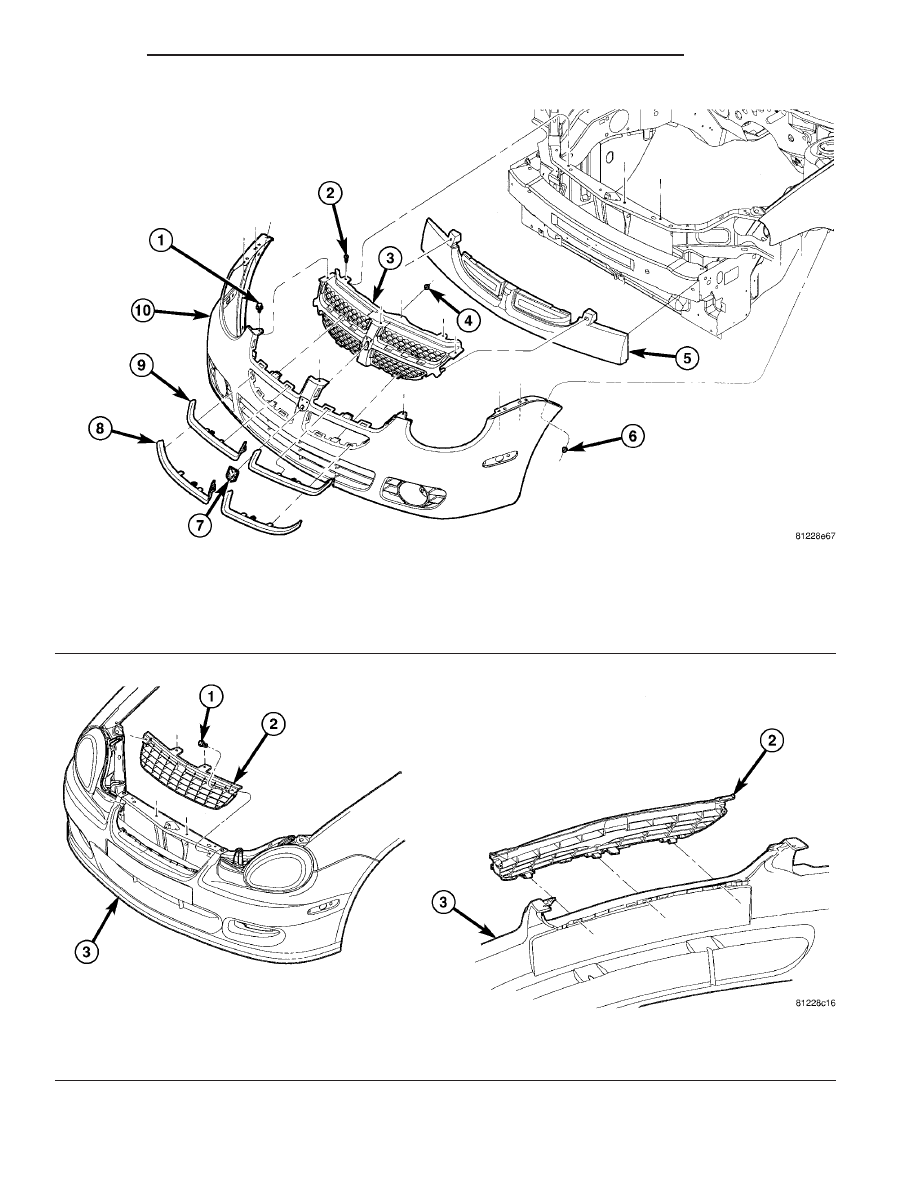

Fig. 6 FRONT FASCIA - DOMESTIC

1 - PUSH PIN FASTENER(S)
2 - ATTACHING SCREW(S)
3 - GRILLE
4 - EMBLEM NUT
5 - FRONT BUMPER FOAM

6 - FASCIA TO FENDER NUT
7 - EMBLEM
8 - SURROUND LOWER GRILLE
9 - SURROUND UPPER GRILLE
10 - FRONT FASCIA

Fig. 7 GRILLE - IMPORT

1 - ATTACHING SCREW(S)
2 - GRILLE

3 - FASCIA

PL/SRT-4

EXTERIOR

23 - 41

GRILLE (Continued)

(4) Install the fascia. (Refer to 13 - FRAME &

BUMPERS/BUMPERS/FRONT FASCIA - INSTAL-
LATION)

IMPORT

(1) Align lower grille clips and center grille tab

into fascia slots (Fig. 7).

(2) Push lower grille forward until lower clips are

seated into fascia slots. A click should be heard when
clips are totally engaged into fascia slots.

(3) Seat top of grille to fascia and install screws

attaching grille to fascia.

SIDE VIEW MIRROR

REMOVAL

(1) Remove side view mirror bezel or door trim

panel as necessary.

(2) Remove nuts attaching mirror to door inner

panel (Fig. 8).

(3) Manual mirrors snap left side manual remote

from bezel.

(4) Electrical mirrors disconnect.
(5) Remove mirror from vehicle.

INSTALLATION

(1) Position side view mirror on vehicle and install

nuts attaching mirror to door inner panel.

(2) Connect electrical mirror connector.
(3) Install nuts attaching mirror.
(4) Install mirror bezel or door trim panel as nec-

essary.

SIDE VIEW MIRROR TRIM
BEZEL

REMOVAL

(1) Disengage clips attaching side view mirror

bezel to stanchion. Left side only with manual mir-
rors (Fig. 8).

(2) Remove mirror bezel from vehicle.

INSTALLATION

(1) Place mirror bezel in position.
(2) Engage clips attaching side view mirror bezel

to stanchion.

AIR EXHAUSTER

REMOVAL

(1) Hoist rear end of vehicle and support on safety

stands.

(2) From behind rear bumper fascia below quarter

panel, disengage clips attaching body vent to trunk
well.

(3) Remove body vent from vehicle (Fig. 9).

INSTALLATION

(1) Place body vent in vehicle.
(2) From behind rear bumper fascia below quarter

panel, engage clips attaching body vent to trunk well.

(3) Lower vehicle.

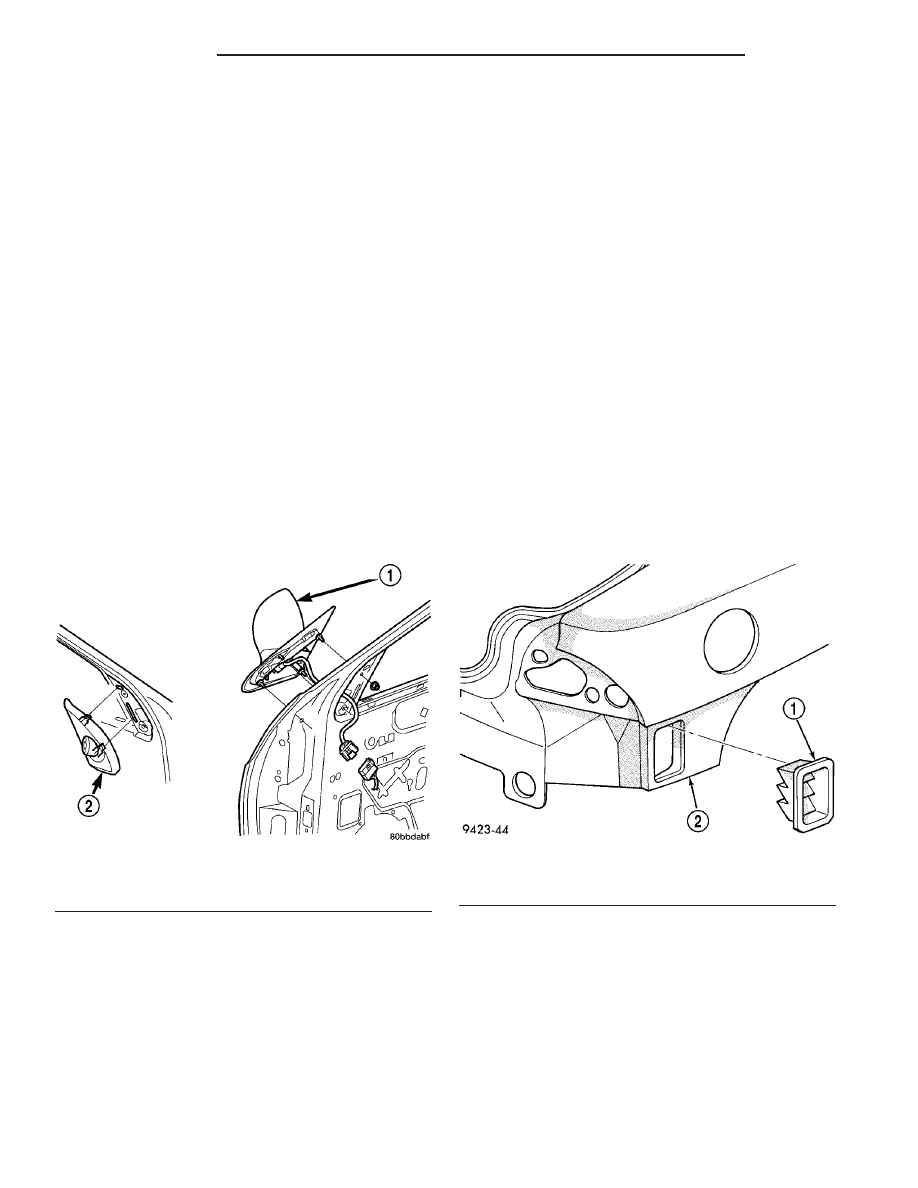

Fig. 8 Side View Mirror

1 - MIRROR ASSEMBLY
2 - MIRROR BEZEL

Fig. 9 Body Vent

1 - BODY VENT
2 - TRUNK WELL SIDE PANEL

23 - 42

EXTERIOR

PL/SRT-4

GRILLE (Continued)

REAR WHEELHOUSE SPLASH
SHIELD

REMOVAL

(1) Remove the wheel. (Refer to 22 - TIRES/

WHEELS - REMOVAL)

(2) Remove the two screws and the three push-pin

fasteners (Fig. 10).

INSTALLATION

(1) Install the shield.
(2) Install the three push-pin fasteners and two

screws.

(3) Install the wheel. (Refer to 22 - TIRES/

WHEELS - INSTALLATION)

SPOILER

REMOVAL

(1) Remove the decklid cover. (Refer to 23 - BODY/

DECKLID/HATCH/LIFTGATE/TAILGATE/COVER

-

REMOVAL)

(2) Remove the four nuts and remove the spoiler.

(Fig. 11)

INSTALLATION

(1) Install the spoiler and nuts (Fig. 11).
(2) Tighten nuts to 3 N·m (30 in. lbs.) torque.

(3) Install the decklid cover. (Refer to 23 - BODY/

DECKLID/HATCH/LIFTGATE/TAILGATE/COVER

-

INSTALLATION)

SIDE VIEW MIRROR GLASS

REMOVAL

WARNING: ALWAYS WEAR EYE AND HAND PRO-
TECTION WHEN SERVICING THE MIRROR ASSEM-
BLY. FAILURE TO OBSERVE THESE WARNINGS
MAY RESULT IN PERSONAL INJURY FROM BRO-
KEN GLASS.

(1) Carefully pull/pry the broken glass holder from

the mirror assembly.

(2) Disconnect the heated mirror electrical connec-

tors from the terminals on the mirror glass holder, if
equipped.

INSTALLATION

CAUTION: It is important to make sure the motor is
square to the glass holder (attaching fingers) prior
to glass holder attachment, otherwise the glass
holder could be installed incorrectly causing poor
retention and possible repeat failure.

(1) Position the new mirror glass holder to the

mirror assembly.

NOTE: Position the mirror glass holder so that the
moisture drain hole on the mirror glass holder
assembly is facing downward.

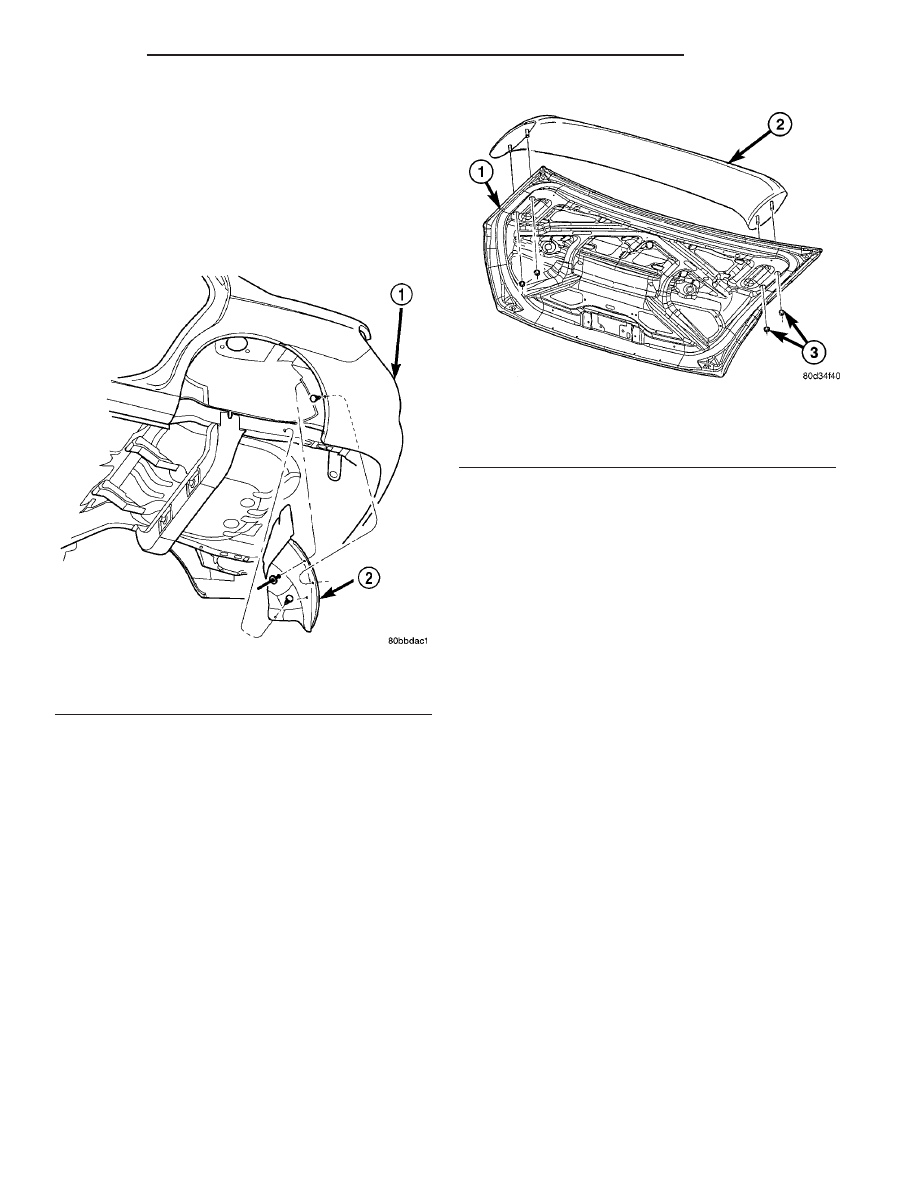

Fig. 10 Rear Wheel Housing Splash Shield

1 - REAR FASCIA
2 - REAR WHEEL HOUSING SPLASH SHIELD

Fig. 11 SPOILER

1 - DECKLID
2 - SPOILER
3 - NUTS

PL/SRT-4

EXTERIOR

23 - 43
