(27) Install differential assembly with bearing

races and select shim (Fig. 73). Shim selection was
determined before transaxle assembly (Refer to 21 -
TRANSMISSION/TRANSAXLE/MANUAL/DIFFER-
ENTIAL - ADJUSTMENTS).

(28) Install a 1 mm (0.04 in.) bead of Mopar

t Gas-

ket Maker to differential cover and install to case.
Torque differential cover-to-case bolts to 54 N·m (40
ft. lbs.).

(29) Install a 1 mm (0.04 in.) bead of Mopar

t Gas-

ket Maker to extension housing. Install extension
housing to differential cover and case and torque
bolts to 28 N·m (250 in. lbs.) (Fig. 74).

(30) Install both axle new output shaft seals using

driver handle C-4171 and installer 8476 (Fig. 75)
(Fig. 76).

(31) Install impact blocker (If Equipped) (Fig. 77).
(32) Apply a 1 mm (0.04 in.) bead of Mopar

t Gas-

ket Maker to shift cover assembly. Place shift cover
and transaxle geartrain into neutral and install shift

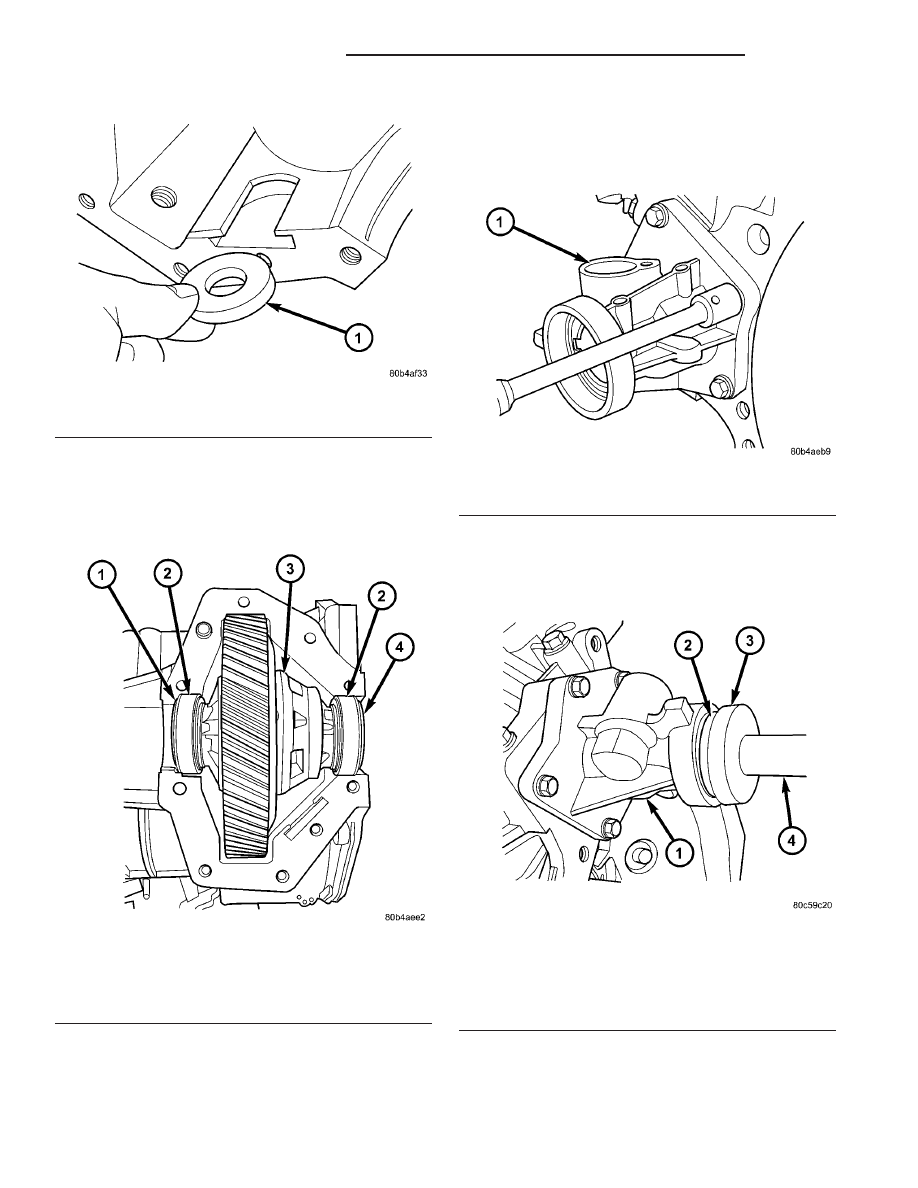

Fig. 72 Differential Magnet

1 - MAGNET

Fig. 73 Differential Shim/Slinger Orientation

1 - SLINGER
2 - BEARING RACE
3 - DIFFERENTIAL ASSEMBLY
4 - SHIM (SELECT)

Fig. 74 Extension Housing-to-Case Bolts

1 - EXTENSION HOUSING

Fig. 75 Axle Seal Installation (Extension Housing

Side)

1 - EXTENSION HOUSING
2 - SEAL
3 - INSTALLER 8476
4 - DRIVER HANDLE C-4171

21 - 80

T850 MANUAL TRANSAXLE

PL/SRT-4

T850 MANUAL TRANSAXLE (Continued)

cover (Fig. 78) and torque bolts to 28 N·m (250 in.
lbs.).

(33) Reinstall shift selector lever if previously

removed.

(34) Install input shaft bearing retainer (Fig. 79).

Torque bolts to 12 N·m (105 in. lbs.).

(35) If previously removed, install clutch release

lever pivot ball(s) using slide hammer C-3752 and
remover/installer 6891 (Fig. 80) (Fig. 81).

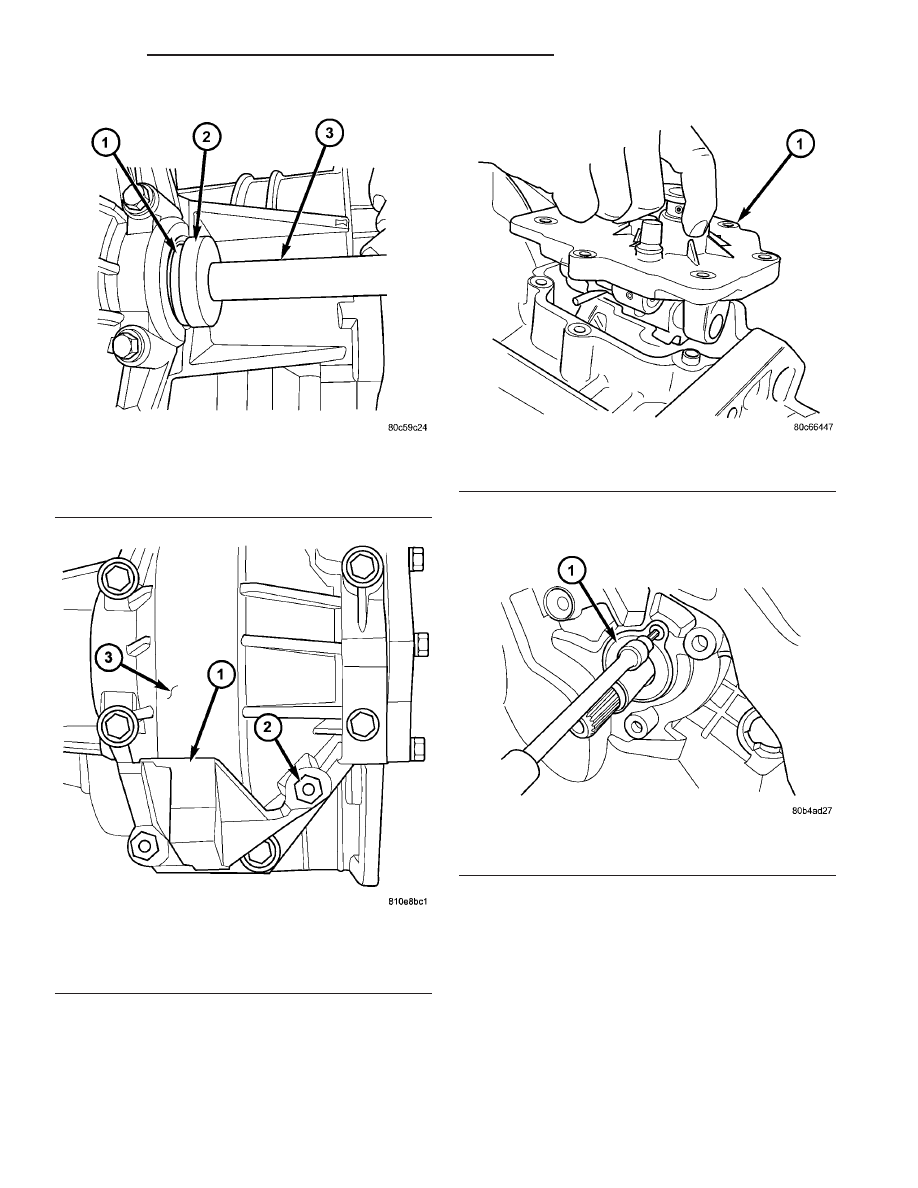

Fig. 76 Axle Seal Installation—Typical

1 - SEAL
2 - INSTALLER 8476
3 - DRIVER HANDLE C-4171

Fig. 77 Impact Blocker (SRT-4 Models)

1 - IMPACT BLOCKER (SRT-4 Models)
2 - NUT (2)
3 - DIFFERENTIAL COVER

Fig. 78 Shift Cover Removal/Installation

1 - SHIFT COVER ASSEMBLY

Fig. 79 Input Bearing Retainer

1 - INPUT BEARING RETAINER

PL/SRT-4

T850 MANUAL TRANSAXLE

21 - 81

T850 MANUAL TRANSAXLE (Continued)

(36) Install clutch release bearing to lever. Apply

grease to interface (contact) points. Make sure
release bearing retainers engage lever pocket as
shown in (Fig. 82).

(37) Apply grease to pivot ball(s), and on release

lever at slave cylinder contact point.

(38) Install clutch release bearing/lever assembly

into position by sliding bearing onto input bearing
retainer, and using moderate hand pressure to seat
release lever to pivot ball (Fig. 83). A “pop” sound
should be heard. Verify proper engagement by lightly
pulling outward on lever at pivot ball location, and
then actuating lever and bearing to ensure proper
operation.

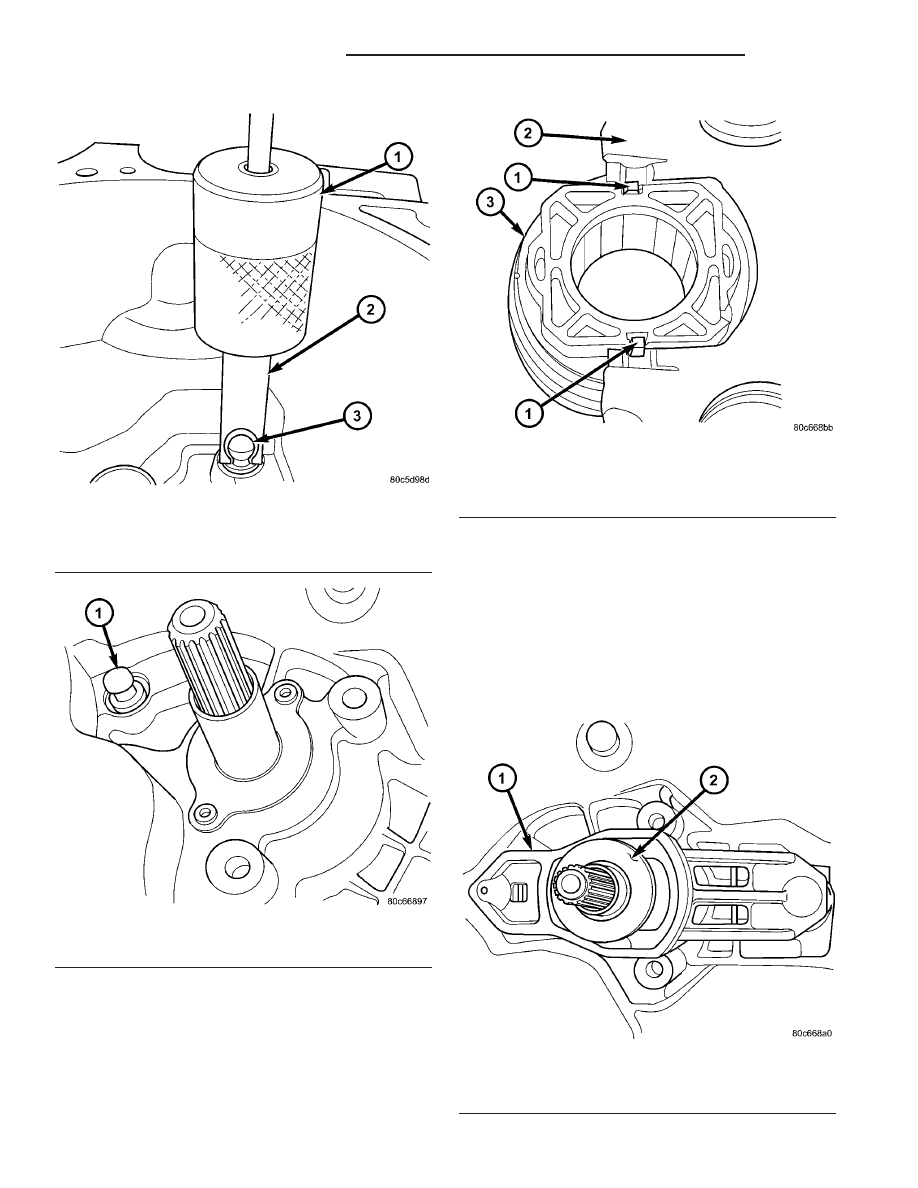

Fig. 80 Pivot Ball Removal/Installation

1 - C-3752 SLIDE HAMMER
2 - REMOVER/INSTALLER 6891
3 - PIVOT BALL

Fig. 81 Pivot Ball Position

1 - PIVOT BALL (1)

Fig. 82 Release Bearing-to-Lever

1 - RETAINER (2)
2 - RELEASE LEVER
3 - RELEASE BEARING

Fig. 83 Release Bearing and Lever

1 - RELEASE LEVER
2 - RELEASE BEARING

21 - 82

T850 MANUAL TRANSAXLE

PL/SRT-4

T850 MANUAL TRANSAXLE (Continued)

INSTALLATION

(1) Install modular clutch to input shaft assembly.
(2) Install transaxle assembly to transmission jack

and secure.

(3) Install transaxle into position. Install and

torque transaxle-to-block bolts to 108 N·m (80 ft.
lbs.).

(4) Install upper mount/bracket to transaxle and

torque bolts to 68 N·m (50 ft. lbs.) (Fig. 84).

(5) Raise engine/transaxle assembly into position.

Install and torque through-bolt to 122 N·m (90 ft.
lbs.).

(6) Install four (4) modular clutch-to-driveplate

bolts (Fig. 85). Align driveplate and modular clutch
alignment marks placed on disassembly. Start with
the tight-tolerance (slotted) hole, install and torque
bolts to 88 N·m (65 ft. lbs.).

(7) Install structural collar and lateral bending

brace (Fig. 86) (Fig. 87). Install and finger tighten all
bolts. Torque structural collar horizontal bolts to 108
N·m (80 ft. lbs.). Torque structural collar vertical
bolts to 54 N·m (40 ft. lbs.). Torque lateral bending
brace bolts to 61 N·m (45 ft. lbs.).

(8) Install intercooler pipe and power steering

hoses into position and secure with nuts (Fig. 88).

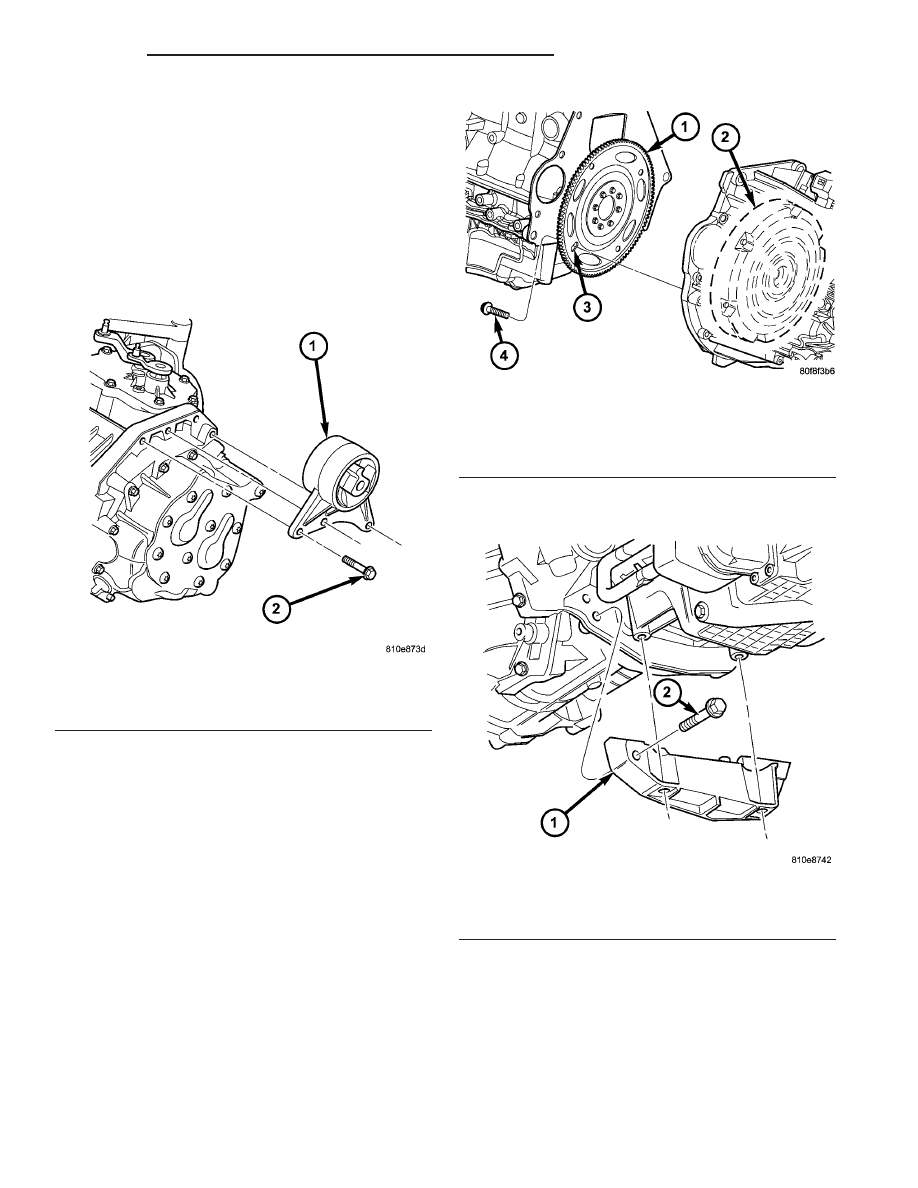

Fig. 84 Transaxle Upper Mount and Fasteners

1 - MOUNT/BRACKET
2 - BOLT (3)

Fig. 85 Modular Clutch-to-Driveplate Bolts

1 - DRIVEPLATE
2 - MODULAR CLUTCH ASSEMBLY
3 - TIGHT TOLERANCE HOLE
4 - BOLT (4)

Fig. 86 Structural Collar Removal/Installation

1 - STRUCTURAL COLLAR
2 - BOLT

PL/SRT-4

T850 MANUAL TRANSAXLE

21 - 83

T850 MANUAL TRANSAXLE (Continued)
