Dodge Neon / Neon SRT-4. Manual - part 224

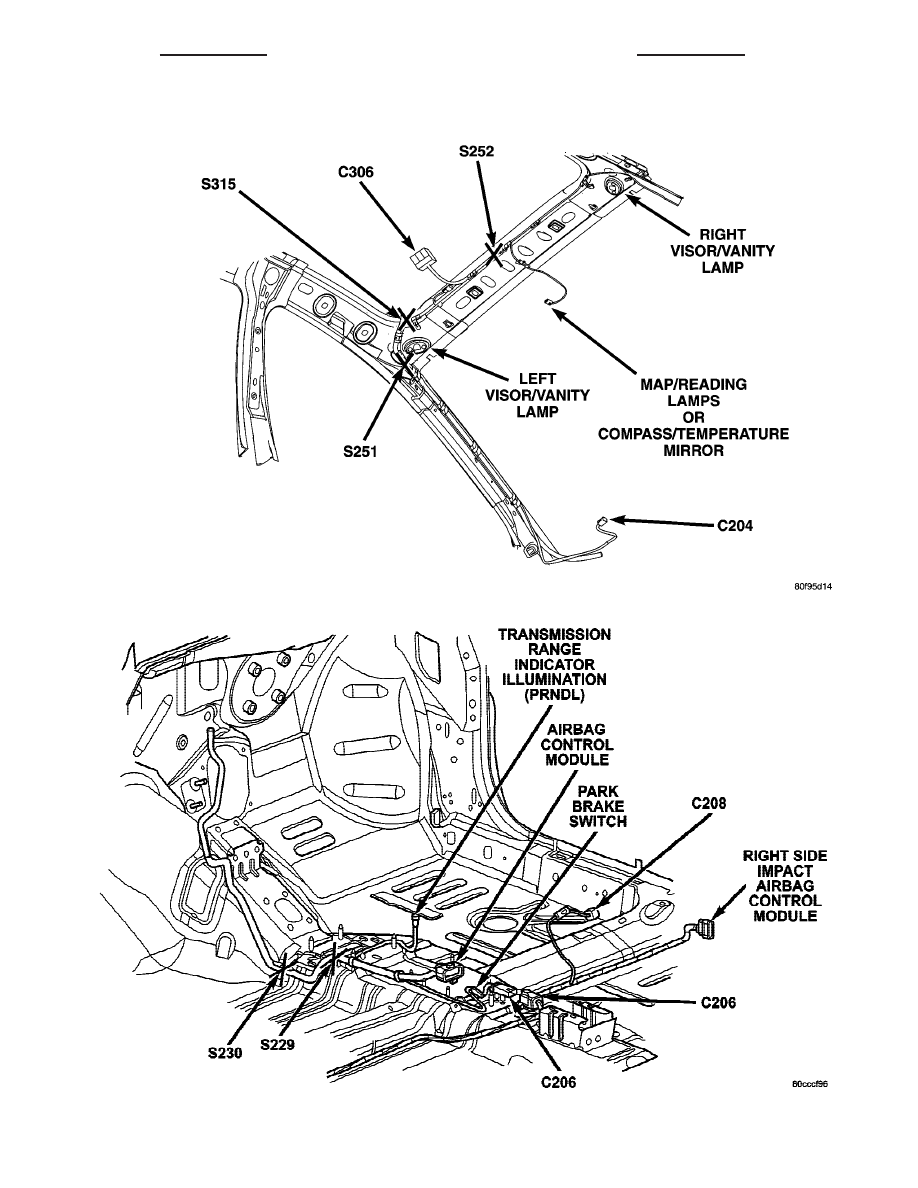

Fig. 49 ROOF - RHD

Fig. 50 CENTER CONSOLE - RHD

8W - 91 - 58

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

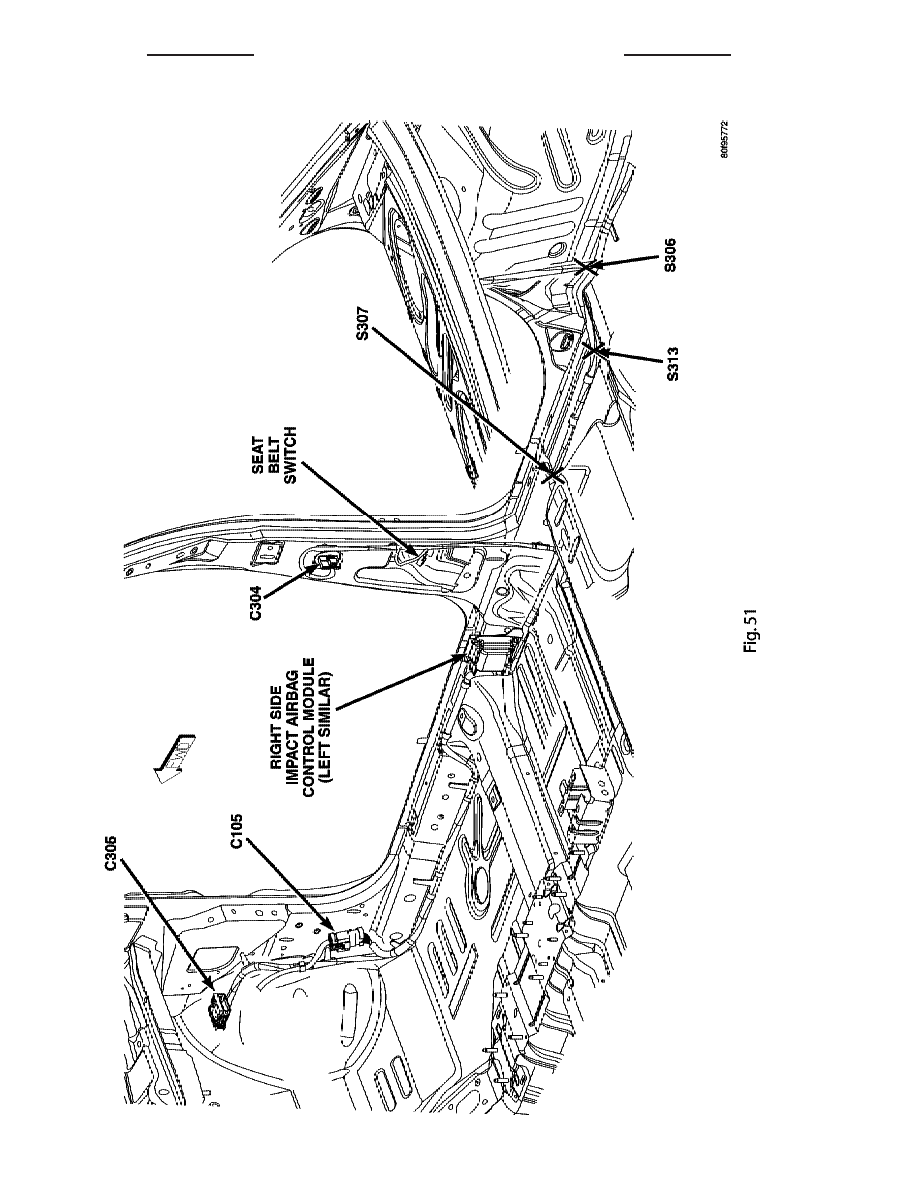

Fig.

51

BODY

(RIGHT)

-

RHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 59

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

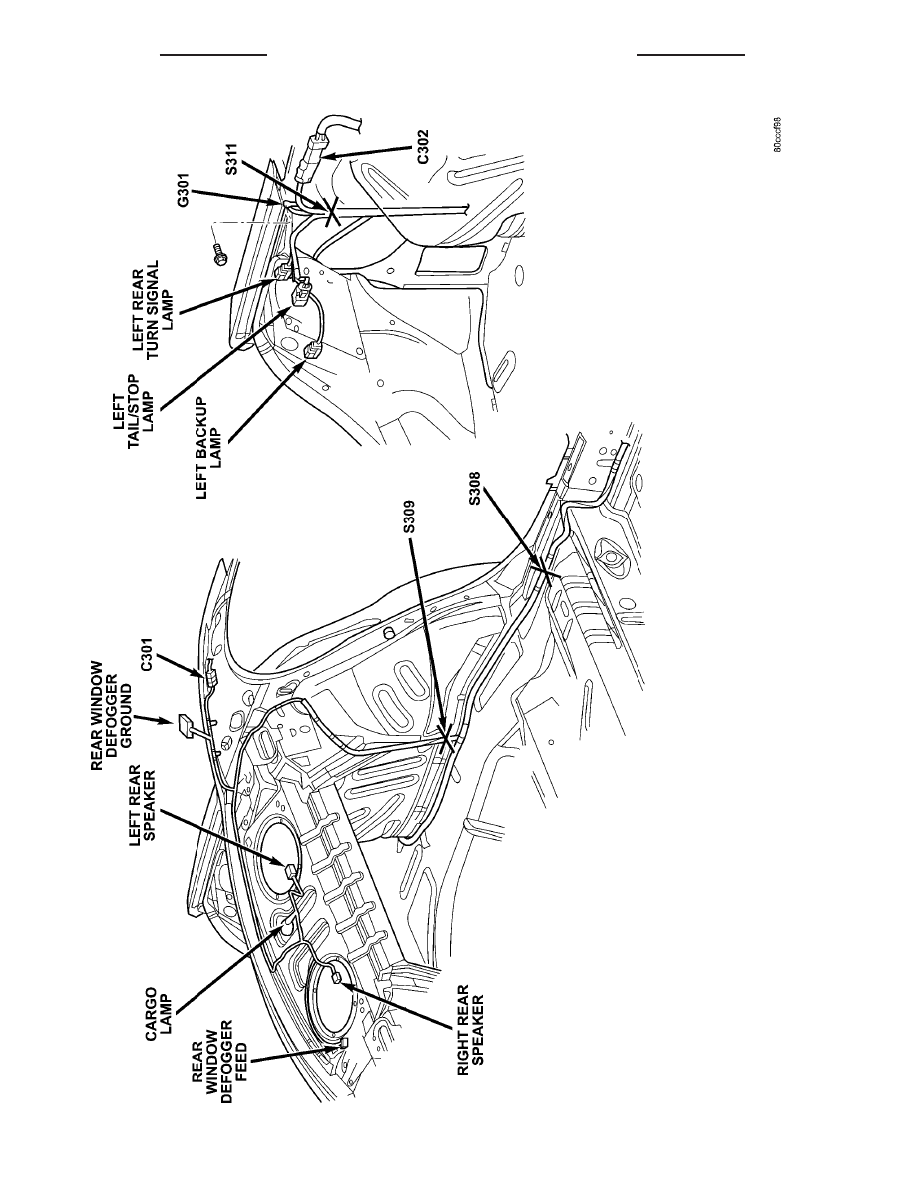

Fig.

52

BODY

(LEFT

REAR)

-

RHD

8W - 91 - 60

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

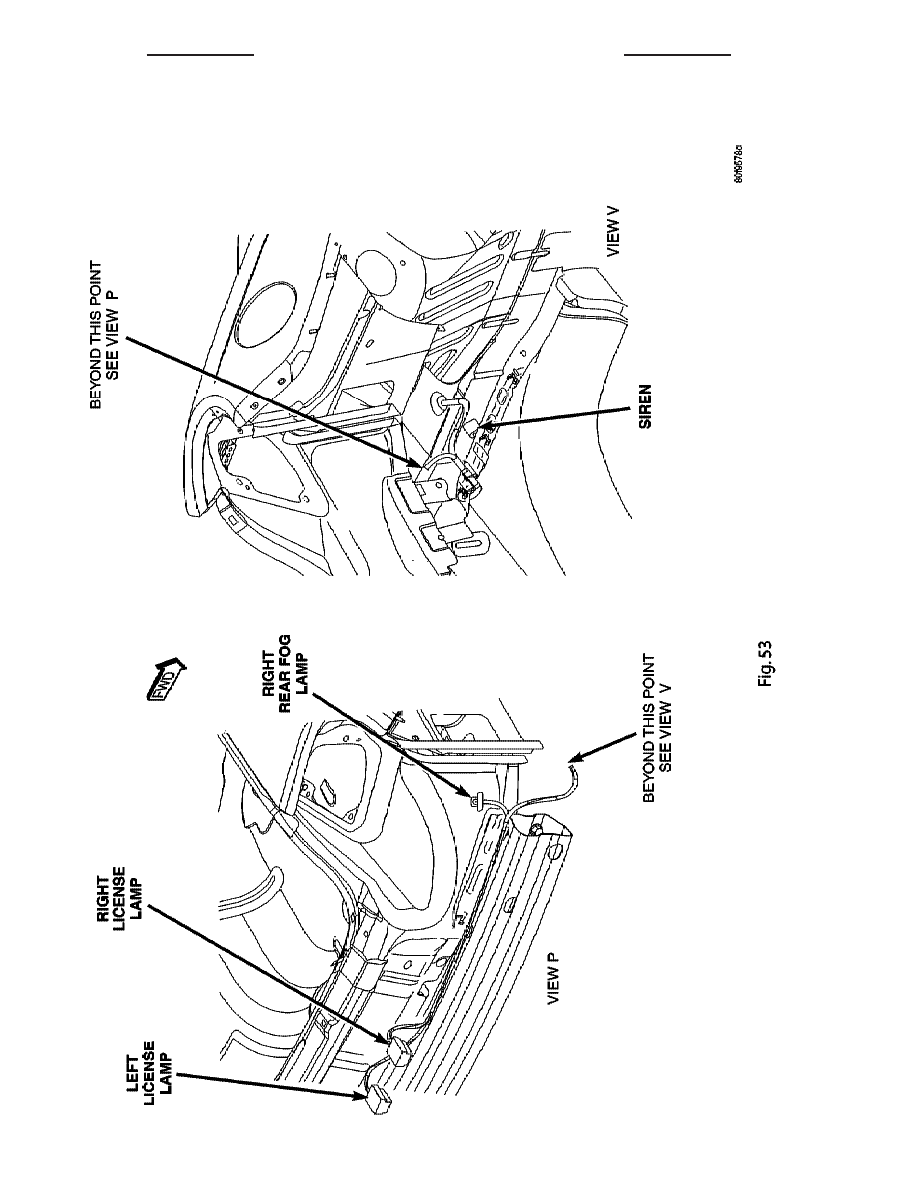

Fig.

53

BODY

(REAR)

-

RHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 61

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
