Fig. 39 ENGINE (LEFT REAR) - RHD

8W - 91 - 50

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

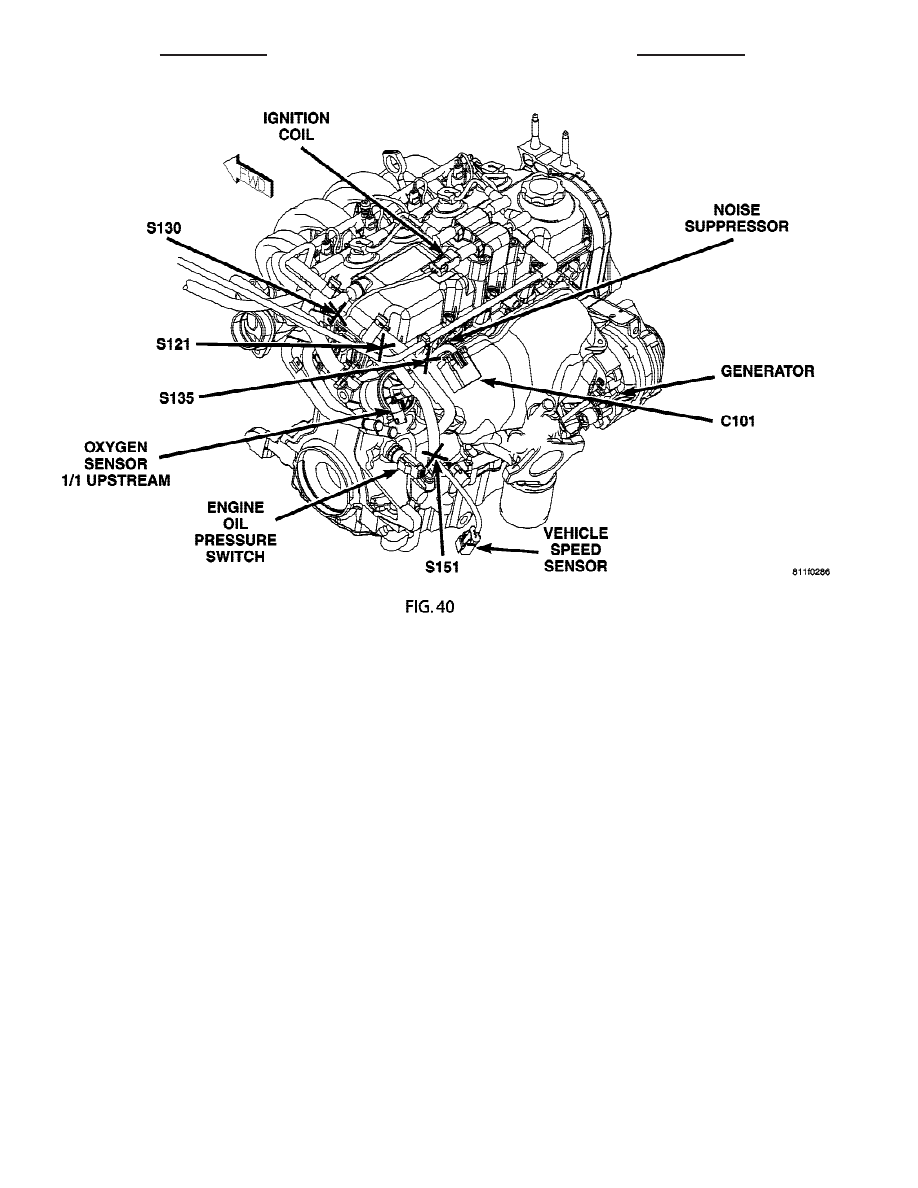

Fig. 40 ENGINE (LEFT FRONT) - RHD

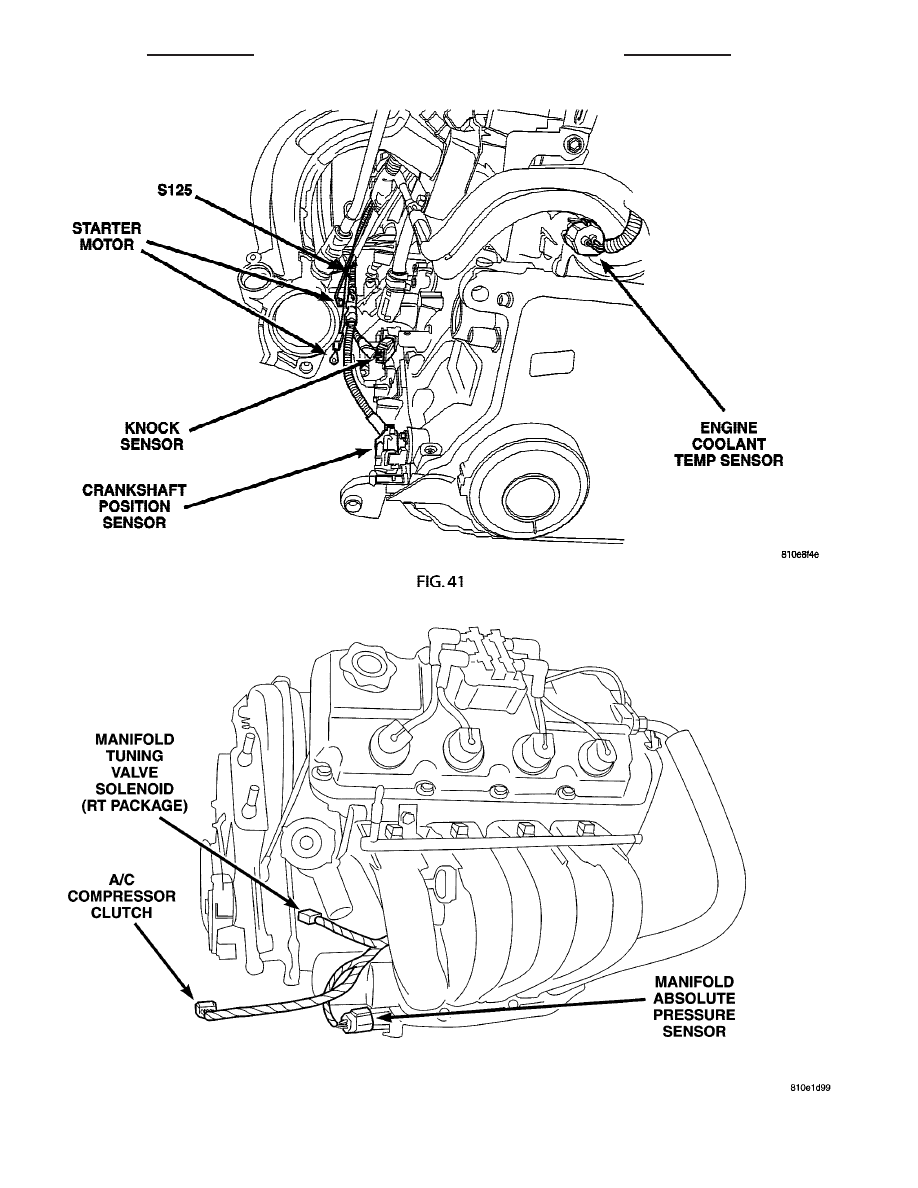

Fig. 41 ENGINE (TOP) - RHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 51

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

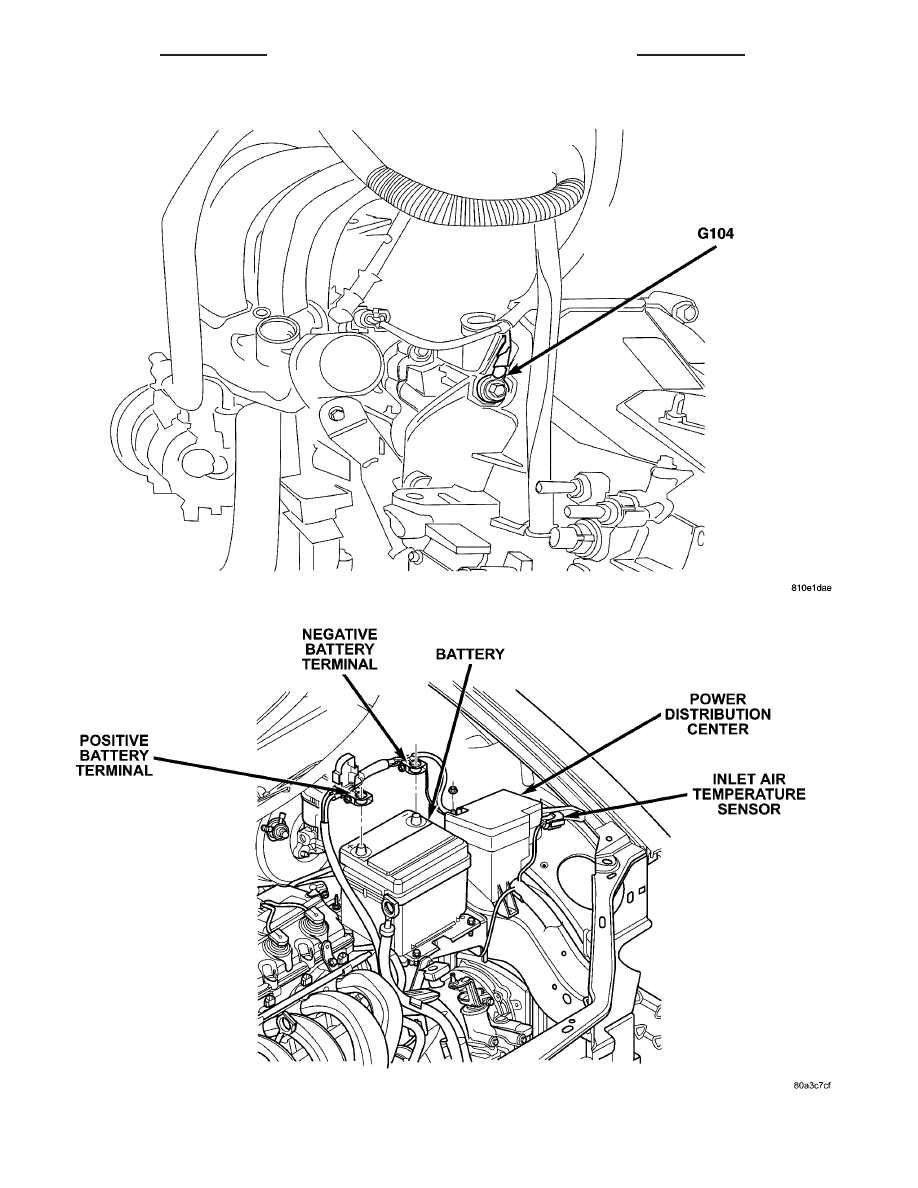

Fig. 42 ENGINE (FRONT) -RHD

Fig. 43 LEFT SIDE ENGINE - RHD

8W - 91 - 52

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

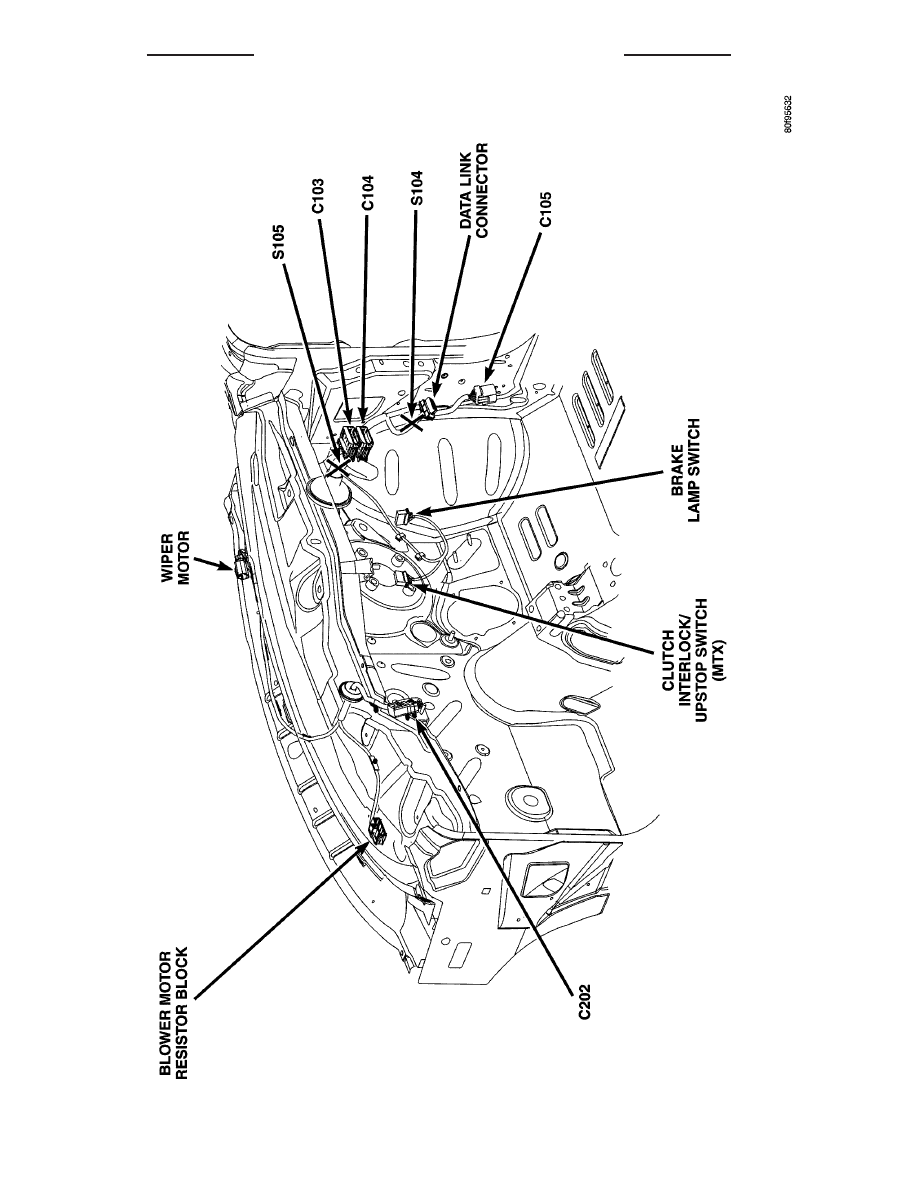

Fig.

44

DASH

P

ANEL/PLENUM

-

RHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 53

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
