Fig.

35

ENGINE

COMP

AR

TMENT

(LEFT)

-

RHD

8W - 91 - 46

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

36

ENGINE

COMP

AR

TMENT

(LEFT

FRONT)

-

RHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 47

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

37

ENGINE

COMP

AR

TMENT

(RIGHT

SIDE)

-

RHD

8W - 91 - 48

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

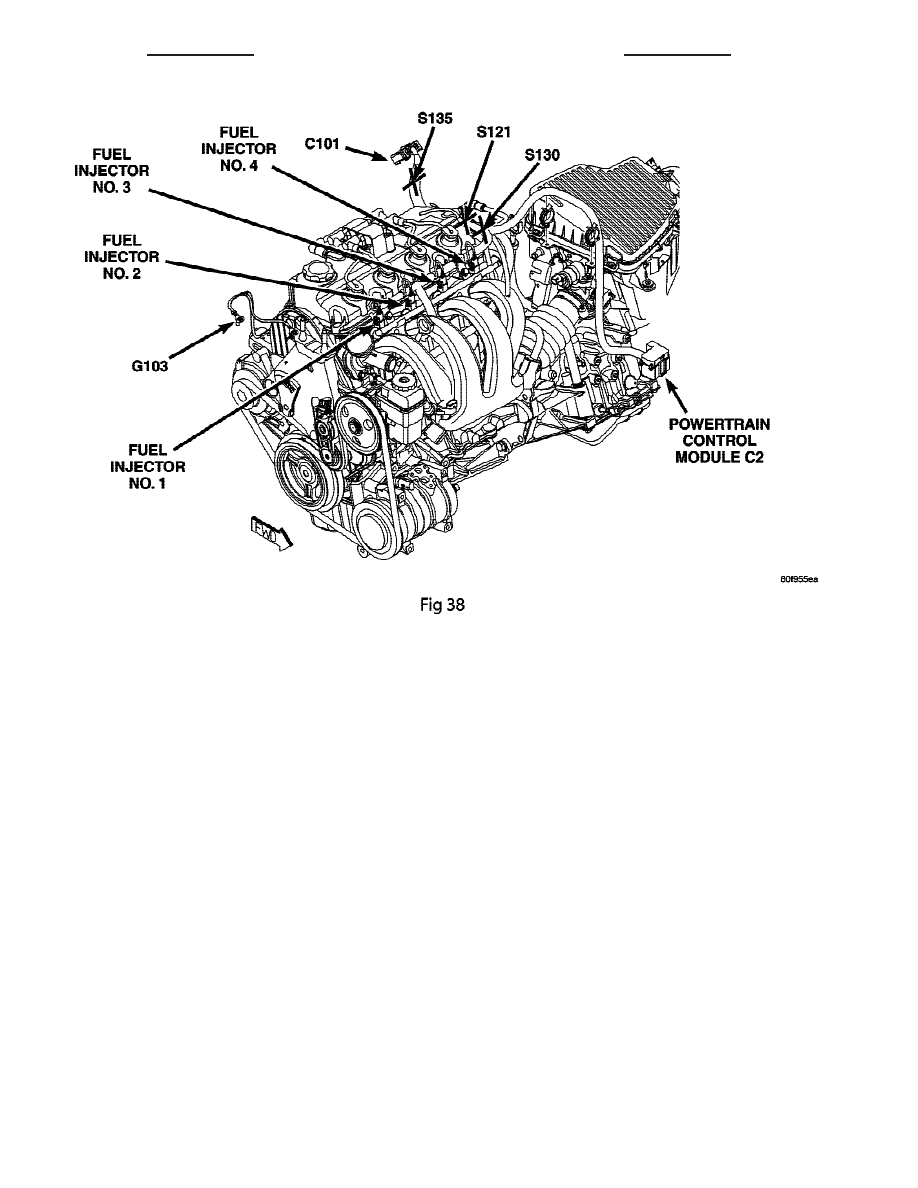

Fig. 38 ENGINE (RIGHT FRONT) - RHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 49

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
