CONNECTOR NAME/
NUMBER

COLOR

LOCATION

FIG.

Starter Motor

-

Left Front Engine

40

Sunroof Motor

BK

Center Roof Support Bracket

N/S

Sunroof Switch

BK

Near Sunroof Opening

N/S

Sunroof Vent Switch

Near Sunroof Opening

N/S

Throttle Position Sensor

BK

On Throttle Body

34

Trans Range Indicator
Illumination (PRNDL)

BK

At Shift Lever

46, 50

Transmission Range Sensor
(EATX)

DK GY

Lower Left Front Engine
Compartment

36

Transmission Solenoid/
Pressure Switch Assembly
(EATX)

BK

Lower Left Engine Compartment

36

Vehicle Speed Sensor

BK

Right Front Wheel Opening

39

Windshield Washer Pump

RD

Right Rear Engine Compartment

34

Wiper/Washer Switch

GY

Lower Center of Instrument Panel

46

Wiper Motor

BK

Left Rear of Engine Compartment

44

GROUNDS - RHD

GROUND

LOCATION

FIG.

G102

Left Front of Engine Compartment

36

G103

Right Front of Engine Compartment

37, 38

G104

Near Engine Starter Motor

42

G105

Near Negative Battery Terminal

N/S

G106

Left Front of Engine Compartment

N/S

G201

Lower Center of Instrument Panel

45, 47

G203

Lower Center of Instrument Panel

45, 47

G301

Inner Left Rear Quarter Panel

52

G302

Inner Right Rear Quarter Panel

54

G303

Inner Left Rear Quarter Panel

N/S

G304

At Decklid

58

8W - 91 - 42

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

SPLICES - RHD

SPLICE

LOCATION

FIG.

S104

In Data Link Connector T/O

36, 44

S105

Near Grommet to Engine Compartment

36, 44

S106

Inside Power Distribution Center

35

S107

Near Brake Fluid Level Switch T/O

34, 35

S109

Near Power Distribution Center

35

S110

Left Front Engine Compartment

36

S111

Near Right Headlamp

37

S112

Near Brake Fluid Level Switch T/O

34, 35

S113

Near Throttle Position Sensor T/O

34, 36

S116

Near Power Distribution Center

35

S117

Near A/C Compressor Clutch T/O

37

S118

In T/O for Transmission Range Sensor

36

S119

Right Front Engine Compartment

37

S121

In Powertrain Control Module C2 T/O

38, 39

S124

Near Powertrain Control Module-C1 T/O

38

S125

Near Starter Motor T/O

40

S130

Near Ignition Coil T/O

39

S131

Near Right Headlamp

37

S135

Near Crankshaft Position Sensor T/O

38, 39

S136

Near Inline C101 T/O

35

S138

Near Transmission Range Sensor T/O

36

S141

Near High Note Horn T/O

N/S

S142

Near High Note Horn T/O

N/S

S144

In T/O for Transmission Solenoid/Pressure Switch Assembly

36

S150

Left Front Engine Compartment

36

S151

Near Engine Oil Switch T/O

39

S152

Near Left Headlamp

35

S154

Left Front Facia

36

S155

Near T/O for Radiator Fan Motor

37

S202

Near C202 T/O

48

S204

Near Inline C202 T/O

45, 46, 48

S205

Near Remote Keyless Entry Module T/O

48

S206

Near Remote Keyless Entry Module T/O

48

S207

Near Instrument Cluster T/O

48

S208

Near Instrument Cluster T/O

48

S209

Near G201

48

S211

In Inline C103/C104/C305 T/O

47

S212

Near Instrument Cluster T/O

48

S213

Near Instrument Cluster T/O

48

S215

Near Fuse Block T/O

48

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 43

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

SPLICE

LOCATION

FIG.

S216

Near Instrument Cluster T/O

48

S217

Near Fuse Block T/O

48

S218

Near Fuse Block T/O

48

S219

Near Fuse Block T/O

48

S220

Near Fuse Block T/O

48

S221

Center Instrument Panel

48

S223

Near Fuse Block T/O

48

S229

Near Transmission Range Indicator Illumination (PRNDL)

46, 50

S230

Near Transmission Range Indicator Illumination (PRNDL)

46, 50

S231

Near Sentry Key Immobilizer Module T/O

46, 48

S232

Near Sentry Key Immobilizer Module T/O

46, 48

S233

Near G201

47

S234

Near G201

47

S235

Below Left Seat

N/S

S236

Below Left Seat

N/S

S237

Below Left Seat

N/S

S238

Near Power Seat Switch T/O

N/S

S239

Left Center Instrument Panel

48

S240

Near Driver Power Mirror T/O

56

S242

Near Driver Power Mirror T/O

56

S243

Right Upper Instrument Panel

48

S244

Near RKE Module T/O

48

S248

Passenger Door

55

S251

Near Inline C204

49

S252

Near Left Visor/Vanity Lamp T/O

49

S306

Near Rear Lighting T/O

51, 54

S307

Near Fuel Pump Module T/O

51, 54

S308

Body Below Left Rear Door Opening

52

S309

Body Rear of Left Rear Door Opening

52

S310

Near Ground Point G302 T/O

54

S311

Near Inline C302 T/O

52, 54

S312

Near Decklid Switch T/O

58

S313

Near Rear Lighting T/O

51, 54

S314

Near G302 T/O

54

S315

Near Left Visor/Vanity Lamp T/O

49

S320

Left Decklid Arm

58

S351

Near Sunroof Motor T/O

N/S

S352

Near Sunroof Switch T/O

N/S

8W - 91 - 44

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PL/SRT-4

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

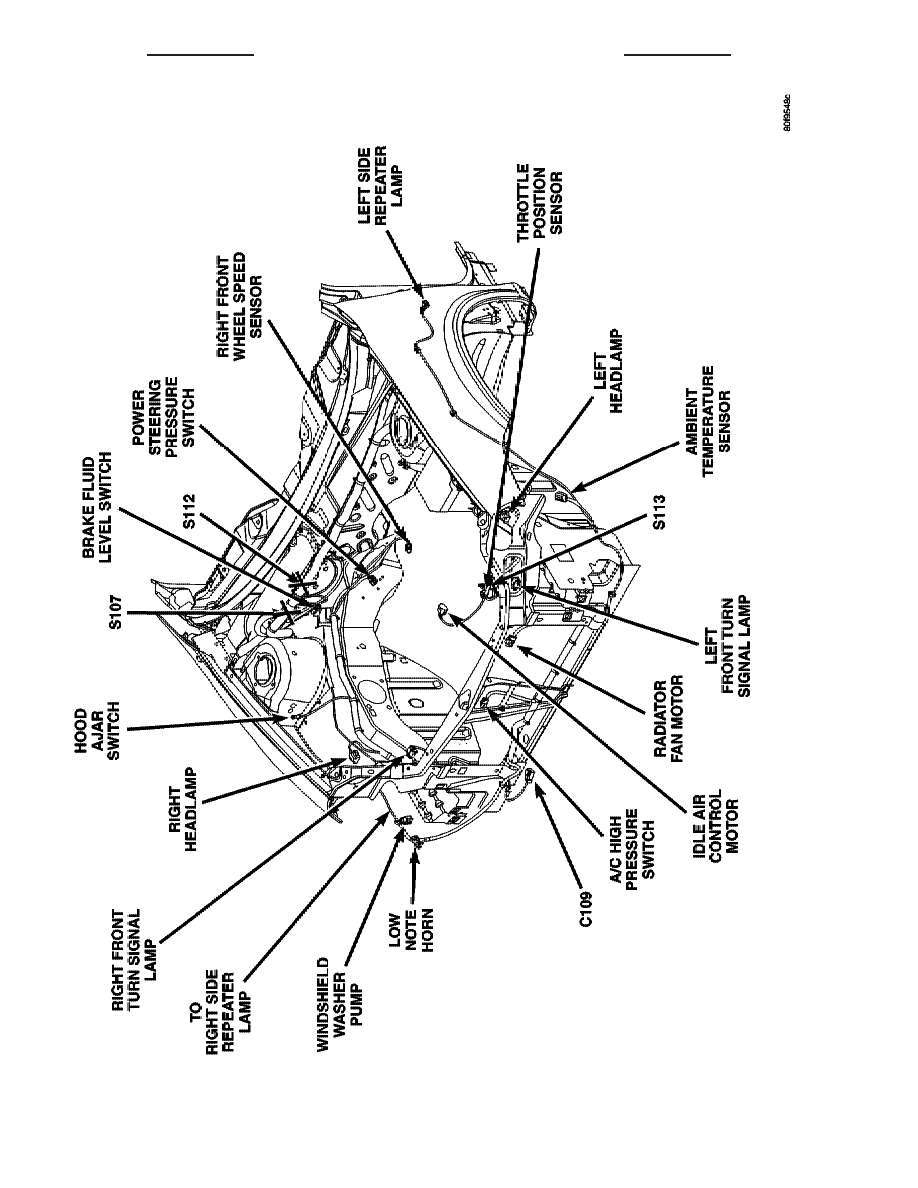

Fig.

34

ENGINE

COMP

AR

TMENT

-

RHD

PL/SRT-4

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 45

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
