When Monitored:
With the ignition on, battery voltage greater than 10.4 volts, and no APPS 1 and APPS 2 DTCs present.

Set Condition:
The PCM detects that the correlation between APPS 1 and APPS 2 is not plausible. Idle may be affected when
the brake pedal is pressed or if a brake switch circuit error is present. Acceleration rate and engine output are
limited. One trip fault and the code will set within 5 seconds. ETC light is flashing.

Possible Causes

INTERMITTENT DTC

(F856) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

(K23) APP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

(K167) APP SENSOR GROUND 1 CIRCUIT OPEN OR HIGH RESISTANCE

(K858) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

(K29) APP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE

(K400) APP SENSOR GROUND 2 CIRCUIT OPEN OR HIGH RESISTANCE

ACCELERATOR PEDAL POSITION SENSOR

POWERTRAIN CONTROL MODULE (PCM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

NOTE: Diagnose and repair any APPS, system voltage, or sensor supply voltage DTCs before continuing
with this test.
With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 815

2.

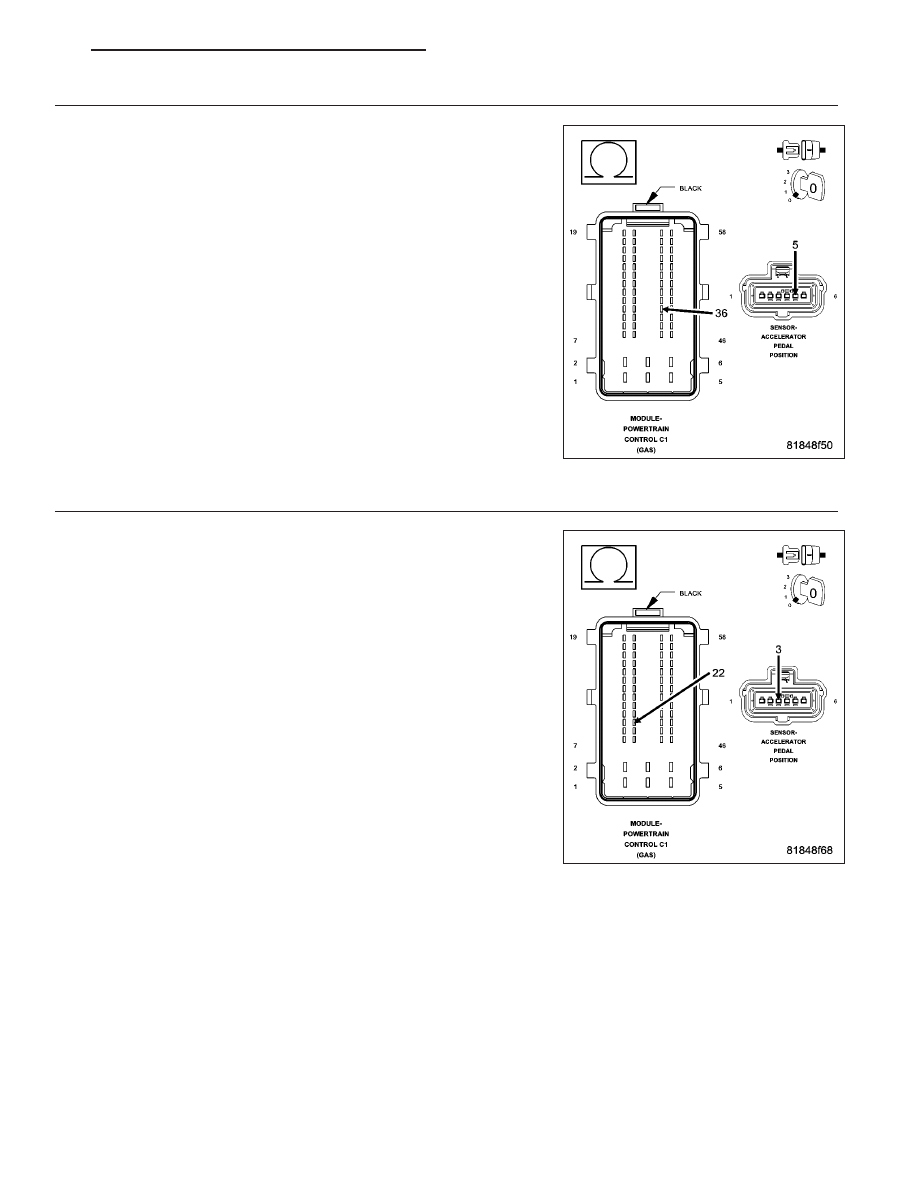

(F856) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

Turn the ignition off.

Disconnect the Accelerator Pedal Position Sensor connector.

Disconnect the Powertrain Control Module (PCM) connector.

Measure the resistance of the (F856) 5 Volt Supply circuit between the
Accelerator Pedal Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 3

No

>> Repair the (F856) 5 Volt Supply circuit for an open circuit or

high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

3.

(K23) APP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K23) APP Signal 1 circuit between the
Accelerator Pedal Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 4

No

>> Repair the (K23) APP Signal 1 circuit for an open circuit or

high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 816

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

4.

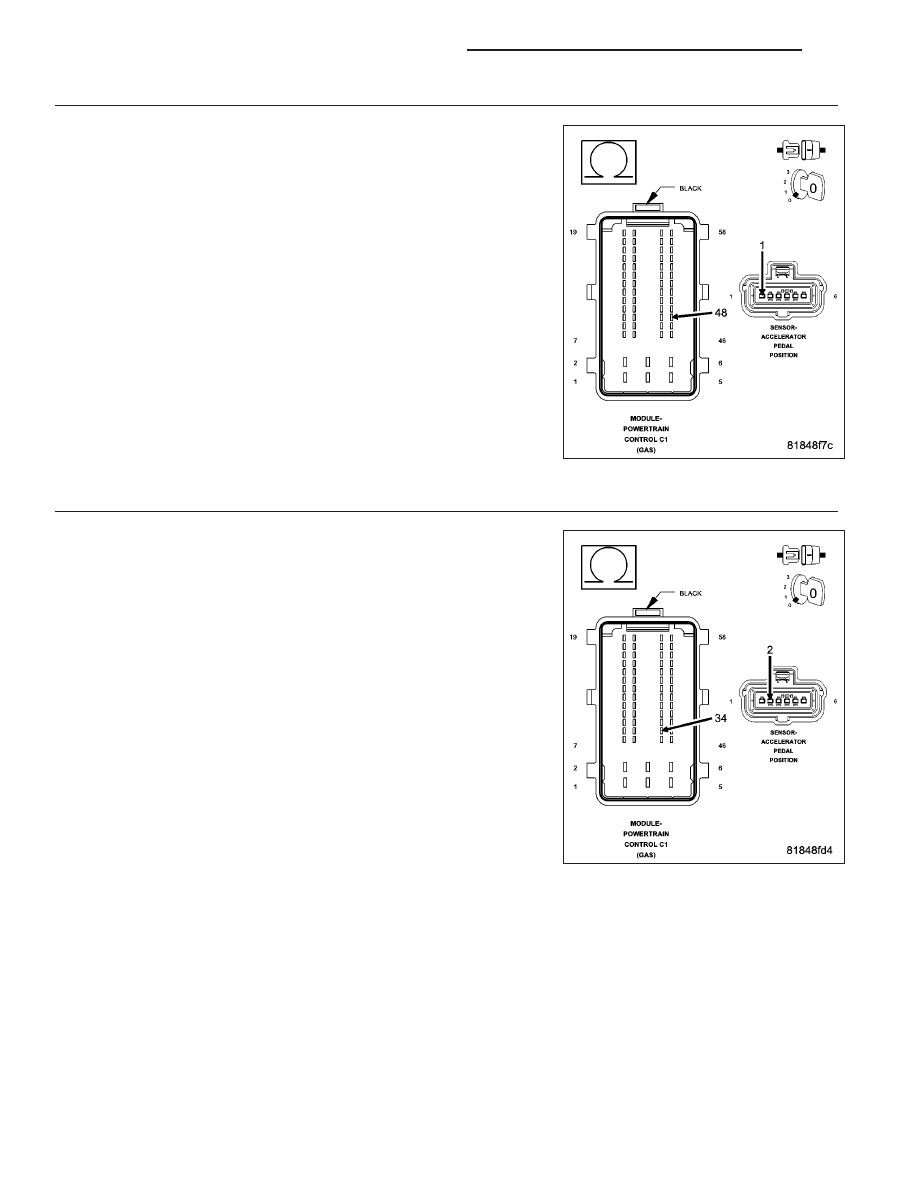

(K167) APP SENSOR GROUND 1 CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K167) APP Sensor Ground 1 circuit
between the Accelerator Pedal Position Sensor harness connector and
the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 5

No

>> Repair the (K167) APP Sensor Ground 1 circuit for an open

circuit or high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

5.

(K858) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K858) 5 Volt Supply circuit between the
Accelerator Pedal Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 6

No

>> Repair the (K858) 5 Volt Supply circuit for an open circuit or

high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 817

6.

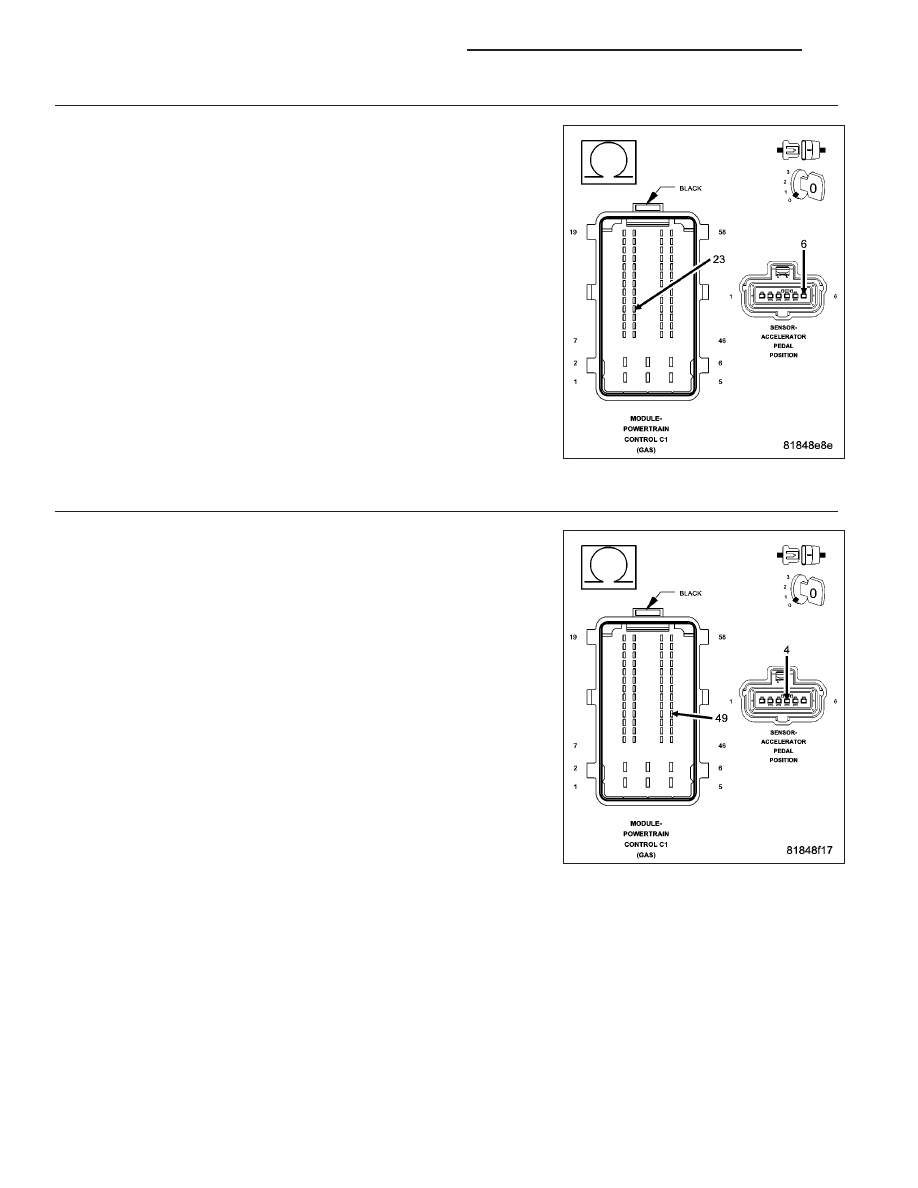

(K29) APP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K29) APP Signal 2 circuit between the
Accelerator Pedal Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 7

No

>> Repair the (K29) APP Signal 2 circuit for an open circuit or

high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

7.

(K400) APP SENSOR GROUND 2 CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K400) APP Sensor Ground 2 circuit
between the Accelerator Pedal Position Sensor harness connector and
the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 8

No

>> Repair the (K400) APP Sensor Ground 2 circuit for an open

circuit or high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 818

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM
