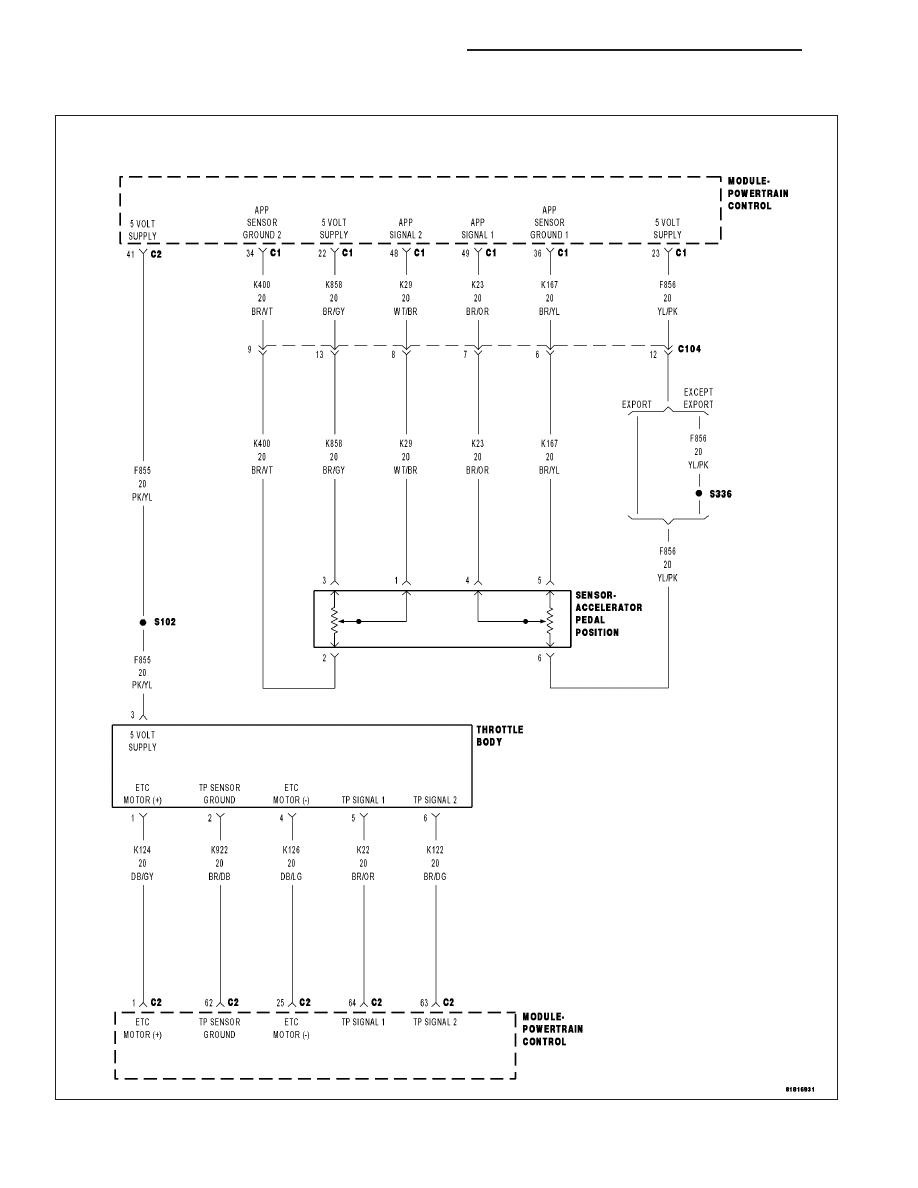

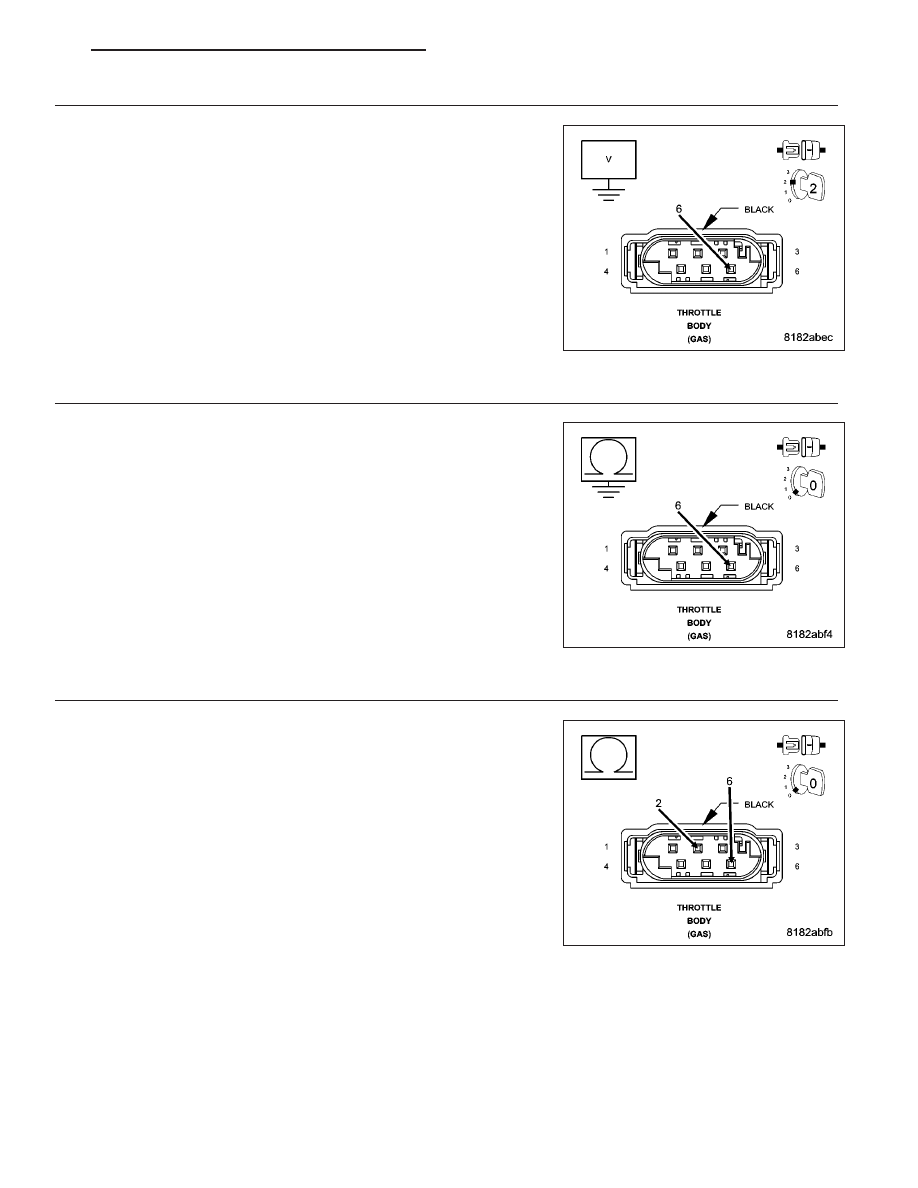

17. (K122) TP SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE Turn the ignition off. Disconnect the Powertrain Control Module (PCM) connector. Turn the ignition on. Measure the voltage of the (K122) TP Signal 2 circuit in the Throttle Is there any voltage present? Yes >> Repair the (K122) TP Signal 2 circuit for a short to voltage. Perform the PCM Verification Test Ver. 1 (Refer to 9 - No >> Go to 18 18. (K122) TP SIGNAL 2 CIRCUIT SHORTED TO GROUND Turn the ignition off. Measure the resistance between ground and the (K122) TP Signal 2 cir- Is the resistance above 100 ohms? Yes >> Go to 19 No >> Repair the (K122) TP Signal 2 circuit for a short to ground. Perform the PCM Verification Test Ver. 1 (Refer to 9 - 19. (K122) TP SIGNAL 2 CIRCUIT SHORTED TO (K922) TP SENSOR GROUND CIRCUIT Measure the resistance between the (K122) TP Signal 2 circuit and the Is the resistance above 100 ohms? Yes >> Go to 20 No >> Repair the (K122) TP Signal 2 circuit for a short to the (K922) TP Sensor Ground circuit. Perform the PCM Verification Test Ver. 1 (Refer to 9 - PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 811 |
