3.

CLOCKSPRING

Turn the ignition off.

Disconnect the Steering Control Module (SCM) C5 connector.

Connect a jumper wire between the (V71) S/C Signal 1 circuit and the (V937) S/C Switch Ground circuit in the
Steering Control Module (SCM) C5 connector, not at the harness connector.

Turn the ignition on.

With a scan tool, read the (V71) S/C Signal 1 voltage.

NOTE: The (V71) S/C Signal 1 voltage should be below .2 volts with the jumper wire in place.

Is the (V71) S/C Signal 1 voltage below .2 volts with the jumper wire in place?

Yes

>> Replace the Clockspring in accordance with the Service Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 4

4.

STEERING CONTROL MODULE (SCM)

Turn the ignition off.

Disconnect the Steering Control Module (SCM) C2 connector.

Connect a jumper wire between the (V71) S/C Signal 1 circuit and the
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
C2 harness connector.

Turn the ignition on.

With a scan tool, read the (V71) S/C Signal 1 voltage.

NOTE: The (V71) S/C Signal 1 voltage should be below .2 volts
with the jumper wire in place.

Is the (V71) S/C Signal 1 voltage below .2 volts with the jumper
wire in place?

Yes

>> Replace the Steering Control Module (SCM) in accordance

with the Service Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 5

5.

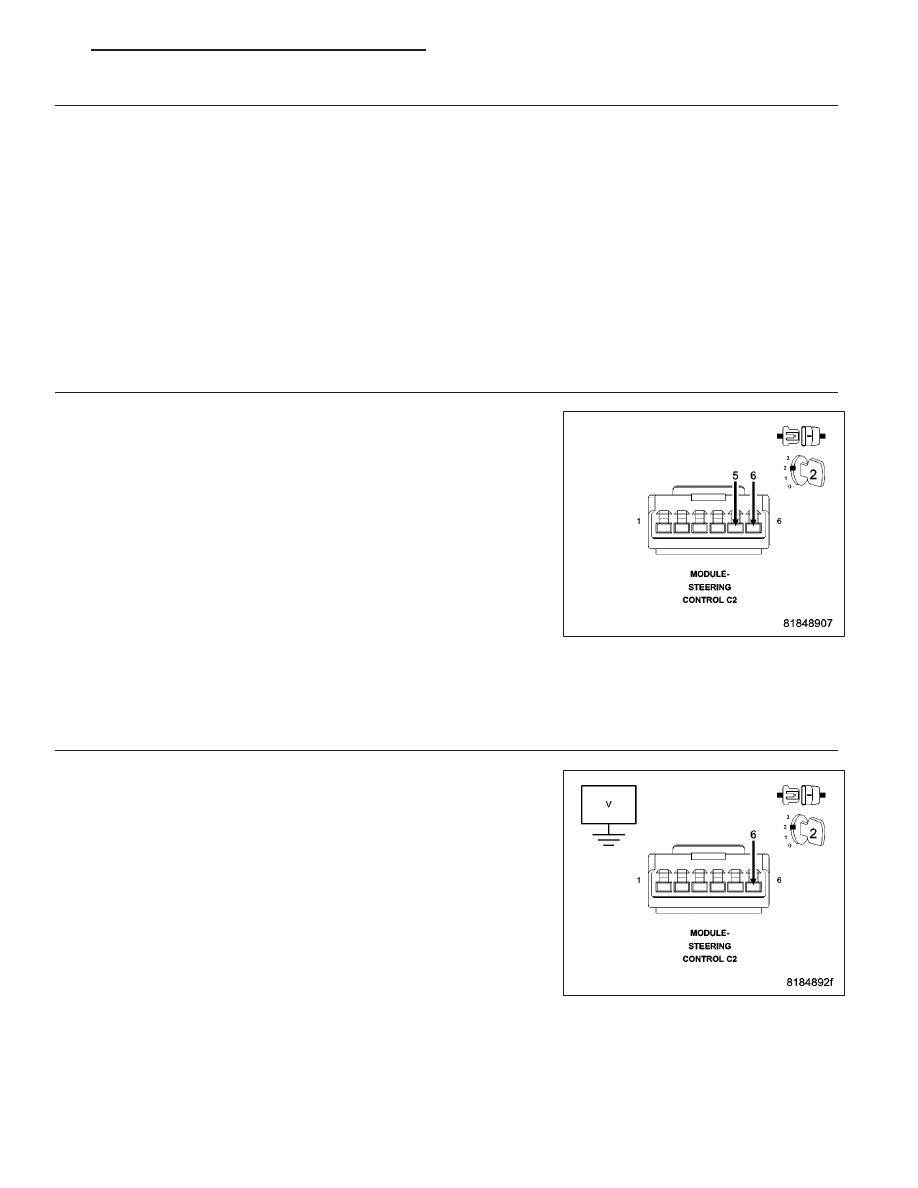

(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

Measure the voltage of the (V71) S/C Signal 1 circuit in the Steering
Control Module (SCM) C2 harness connector.

Is there any voltage present?

Yes

>> Repair the (V71) S/C Signal 1 circuit for a short to voltage.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 6

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 503

6.

(V71) S/C SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

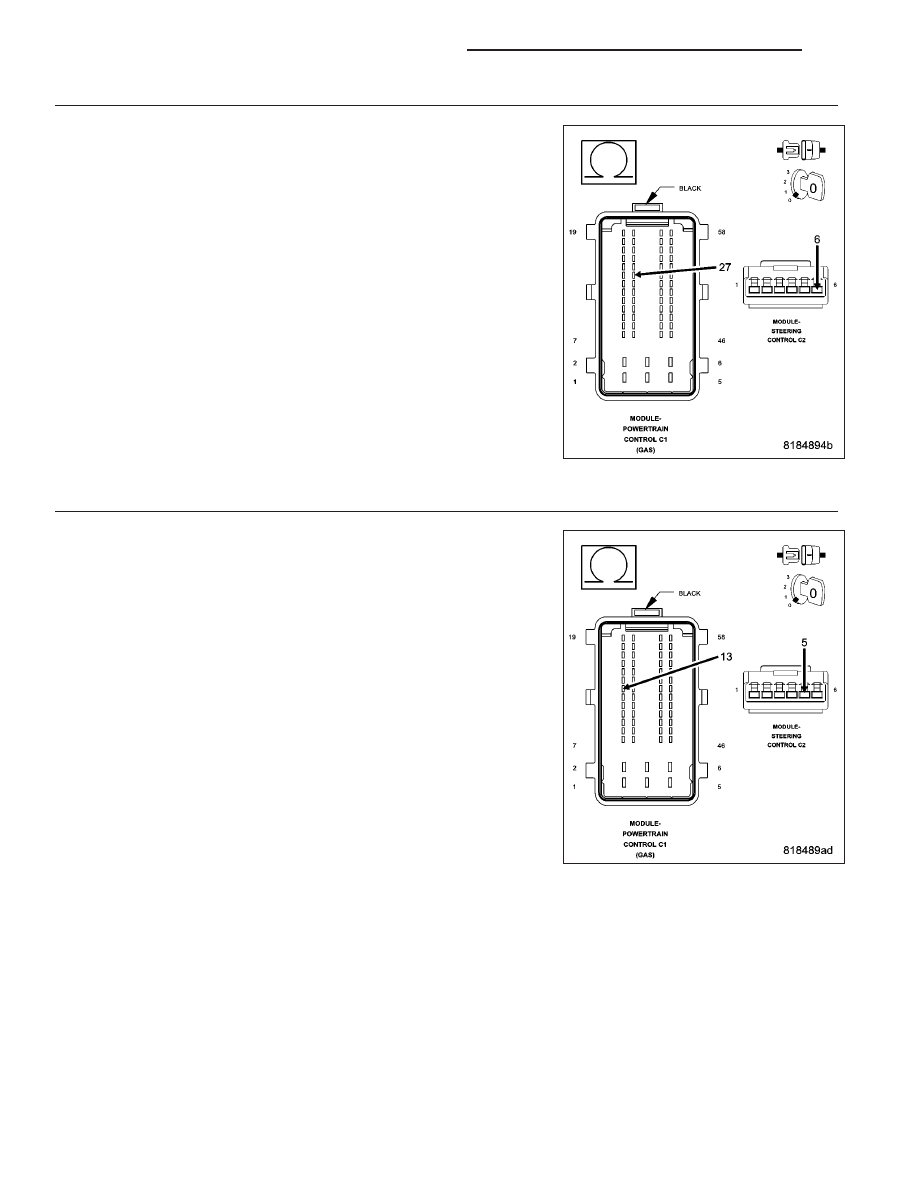

Measure the resistance of the (V71) S/C Signal 1 circuit between the
Steering Control Module (SCM) C2 harness connector and the Power-
train Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 7

No

>> Repair the (V71) S/C Signal 1 circuit for an open circuit or

high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

7.

(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (V937) S/C Switch Ground circuit
between the Steering Control Module (SCM) C2 harness connector and
the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 8

No

>> Repair the (V937) S/C Switch Ground circuit for an open

circuit or high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 504

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

8.

POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace the Powertrain Control Module (PCM) in accordance with the Service Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 505

P0585-SPEED CONTROL SWITCH 1-2 CORRELATION

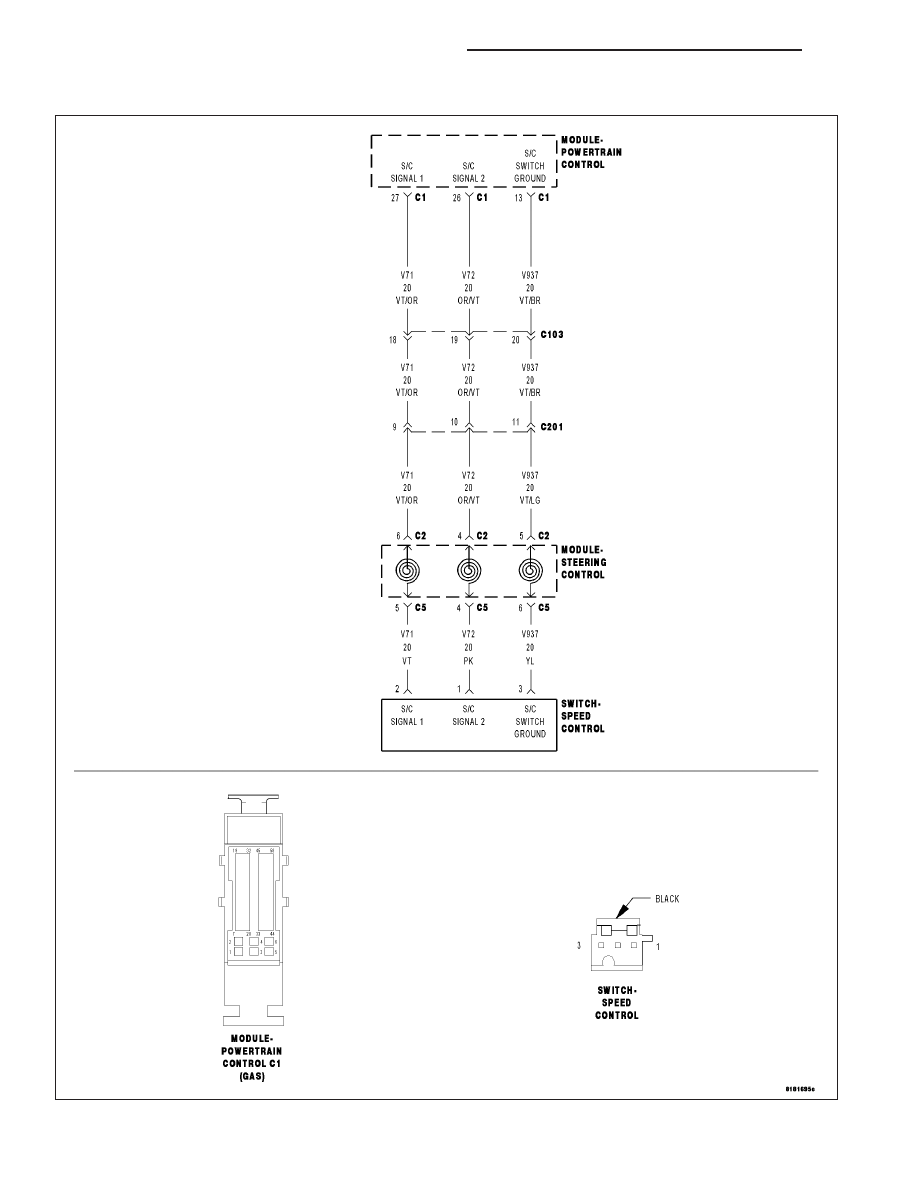

For a complete wiring diagram Refer to Section 8W
