P0501-VEHICLE SPEED SENSOR 1 PERFORMANCE (MTX NON-ABS)

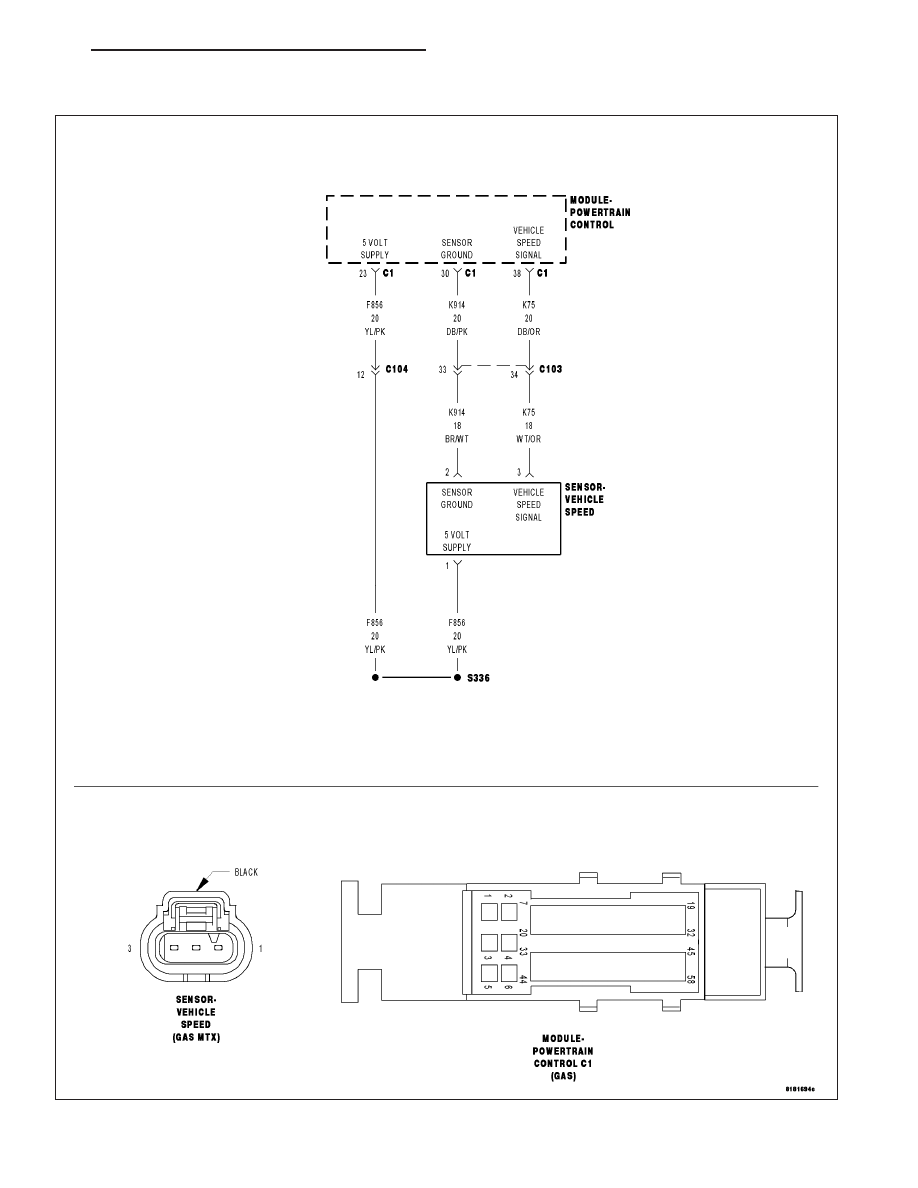

For a complete wiring diagram Refer to Section 8W

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 431

When Monitored:
With the ignition on and battery voltage greater than 10.4 volts.

Set Condition:
The PCM detects an implausible voltage on the Vehicle Speed Sensor circuit.

Possible Causes

INTERMITTENT DTC

(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO VOLTAGE

(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO GROUND

(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K75) VEHICLE SPEED SIGNAL CIRCUIT

(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT

(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT

(F856) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

(K75) VEHICLE SPEED SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(K914) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

VEHICLE SPEED SENSOR

POWERTRAIN CONTROL MODULE (PCM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Start the engine.

Allow the engine to reach normal operating temperature.

NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.

NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

9 - 432

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

2.

(F856) 5 VOLT SUPPLY CIRCUIT VOLTAGE

Turn the ignition off.

Disconnect the Vehicle Speed Sensor connector.

Turn the ignition on.

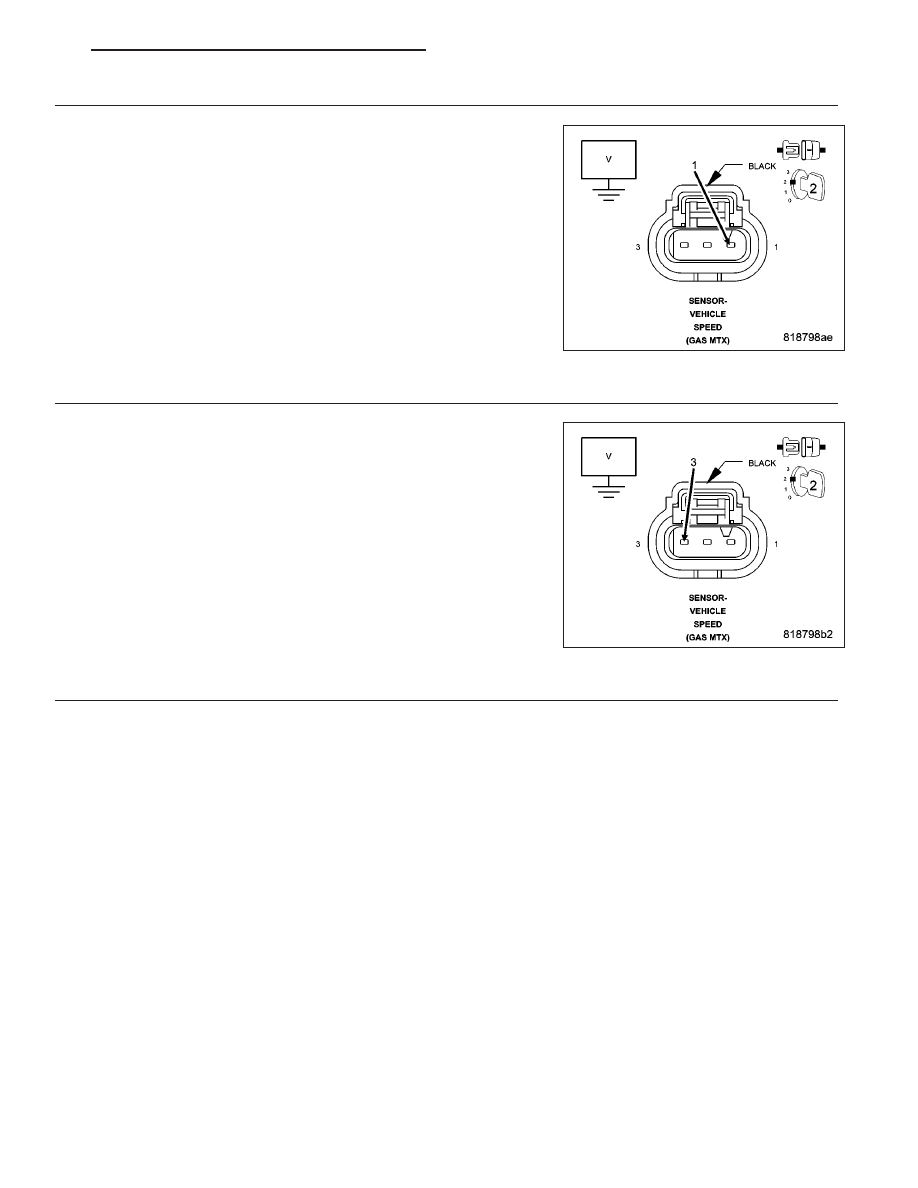

Measure the voltage of the (F856) 5 Volt Supply circuit in the Vehicle
Speed Sensor harness connector.

Is the voltage between 4.5 and 5.5 volts?

Yes

>> Go to 3

No

>> Go to 7

3.

(K75) VEHICLE SPEED SIGNAL CIRCUIT VOLTAGE

Measure the voltage of the (K75) Vehicle Speed Signal circuit in the
Vehicle Speed Sensor harness connector.

Is the voltage between 4.5 and 5.5 volts?

Yes

>> Go to 4

No

>> Go to 11

4.

(K914) SENSOR GROUND CIRCUIT TEST

Turn the ignition off.

Using a 12 volt test light connected to 12 volts, check the (K914) Sensor Ground in the Vehicle Speed Sensor
harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.

Is the test light illuminated and bright?

Yes

>> Go to 5

No

>> Go to 15

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 433

5.

(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K75) VEHICLE SPEED SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

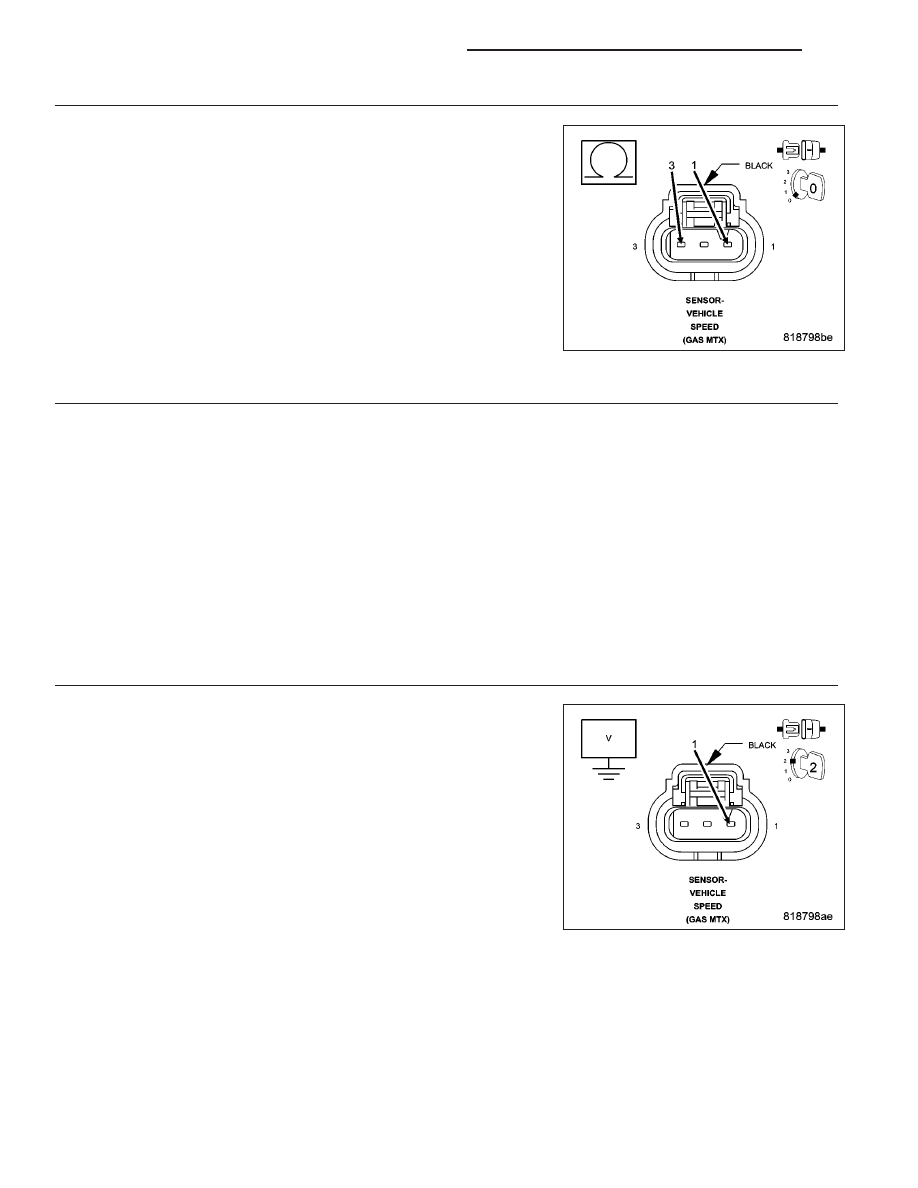

Measure the resistance between the (F856) 5 Volt Supply circuit and
the (K75) Vehicle Speed Signal circuit in the Vehicle Speed Sensor har-
ness connector.

Is the resistance above 100 ohms?

Yes

>> Go to 6

No

>> Repair the (F856) 5 Volt Supply circuit for a short to the

(K75) Vehicle Speed Signal circuit.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

6.

VEHICLE SPEED SENSOR

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Vehicle Speed Sen-
sor and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Inspect the Vehicle Speed Sensor for any condition that would result in an incorrect signal, such as damage, cor-
rosion, or contamination.

Were any problems found?

Yes

>> Repair as necessary.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace the Vehicle Speed Sensor.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

7.

(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

Measure the voltage of the (F856) 5 Volt Supply circuit in the Vehicle
Speed Sensor harness connector.

Is there any voltage present?

Yes

>> Repair the (F856) 5 Volt Supply circuit for a short to volt-

age.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 8
