P0223-THROTTLE POSITION SENSOR 2 CIRCUIT HIGH

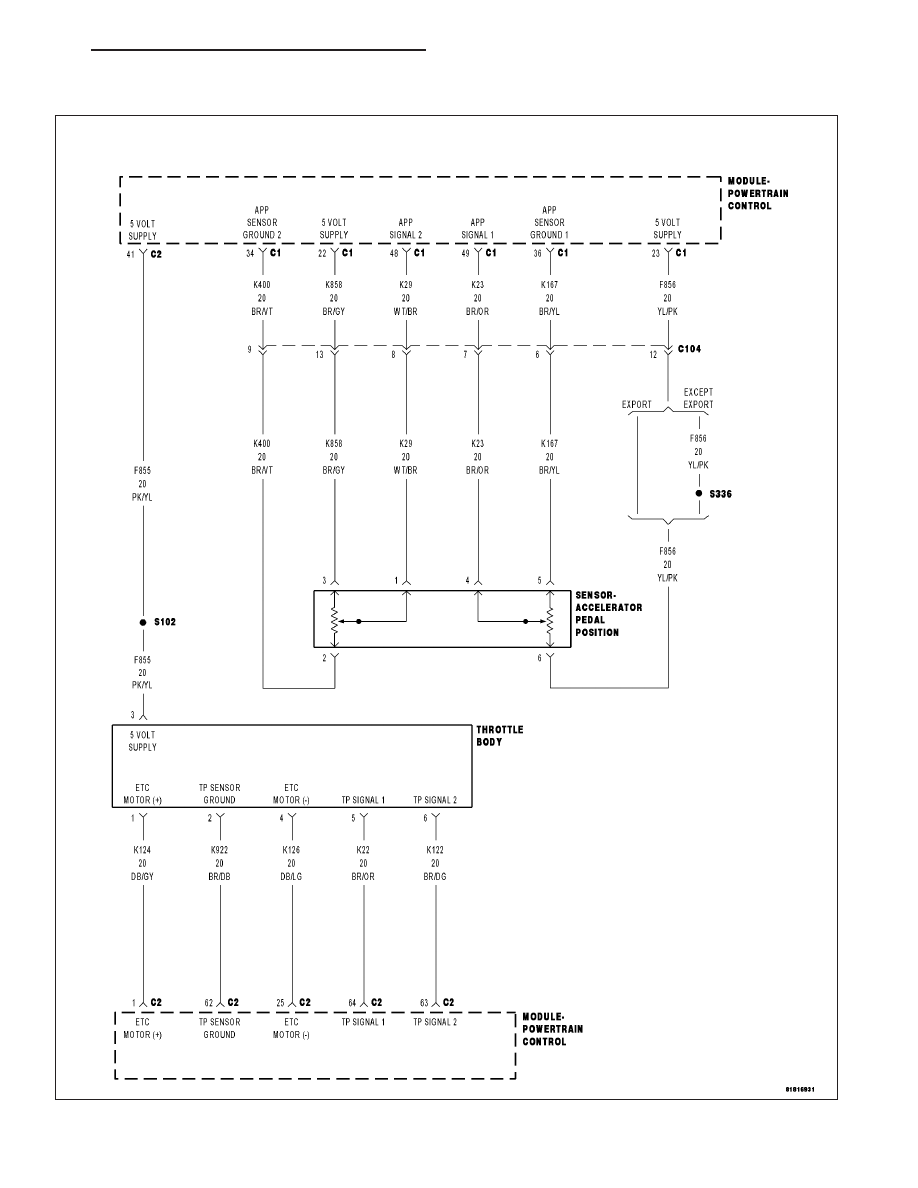

For a complete wiring diagram Refer to Section 8W

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 215

When Monitored:
With the ignition on and battery voltage greater than 10.4 volts.

Set Condition:
The PCM detects that the (K122) TP Signal 2 circuit is shorted high.

Possible Causes

INTERMITTENT DTC

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (F855) 5 VOLT SUPPLY CIRCUIT

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT

(K122) TP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE

(K922) TP SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

THROTTLE BODY

POWERTRAIN CONTROL MODULE (PCM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

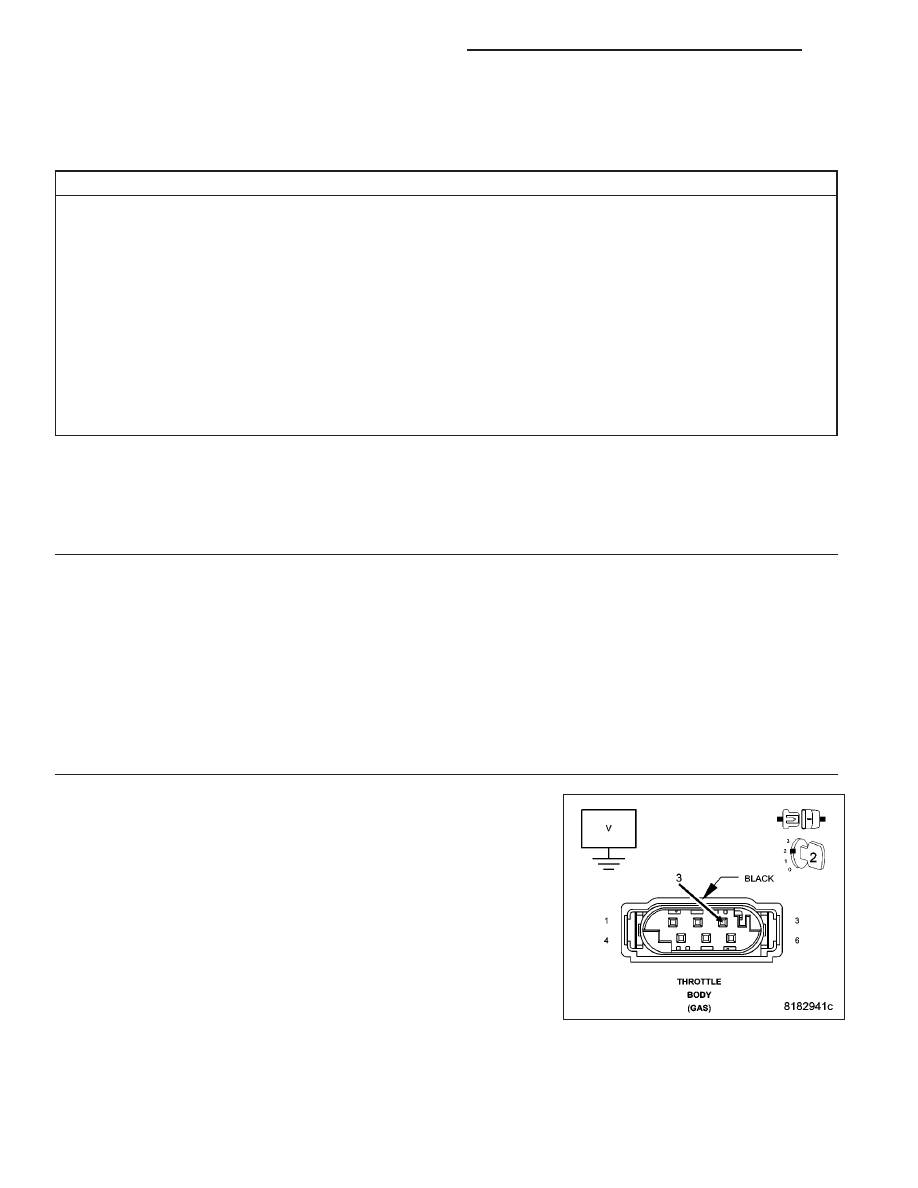

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Throttle Body connector.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

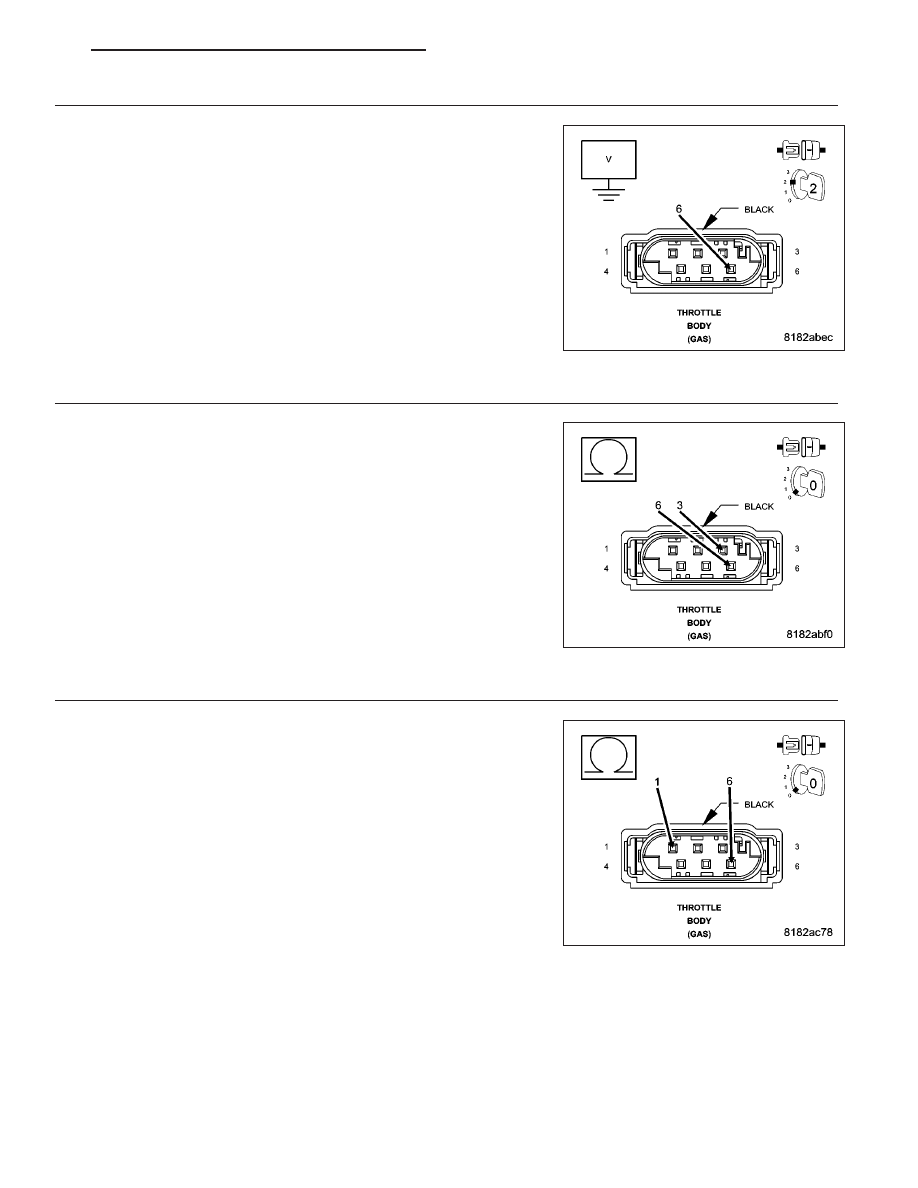

Measure the voltage of the (F855) 5 Volt Supply circuit in the Throttle
Body harness connector.

Is there any voltage present?

Yes

>> Repair the (F855) 5 Volt Supply circuit for a short to volt-

age.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 3

9 - 216

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

3.

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE

Measure the voltage of the (K122) TP Signal 2 circuit in the Throttle
Body harness connector.

Is there any voltage present?

Yes

>> Repair the (K122) TP Signal 2 circuit for a short to voltage.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 4

4.

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (F855) 5 VOLT SUPPLY CIRCUIT

Measure the resistance between the (K122) TP Signal 2 circuit and the
(F855) 5 Volt Supply in the Throttle Body harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the (K122) TP Signal 2 circuit for a short to the

(F855) 5 Volt Supply circuit.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 5

5.

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT

Measure the resistance between the (K122) TP Signal 2 circuit and the
(K124) ETC Motor (+) in the Throttle Body harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the (K124) ETC Motor (+) circuit for a short to the

(F855) 5 Volt Supply circuit.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 6

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 217

6.

(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT

Measure the resistance between the (K122) TP Signal 2 circuit and the
(K126) ETC Motor (-) in the Throttle Body harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the (K122) TP Signal 2 circuit for a short to the

(K126) ETC Motor (-) circuit.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 7

7.

(K122) TP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE

Turn the ignition off.

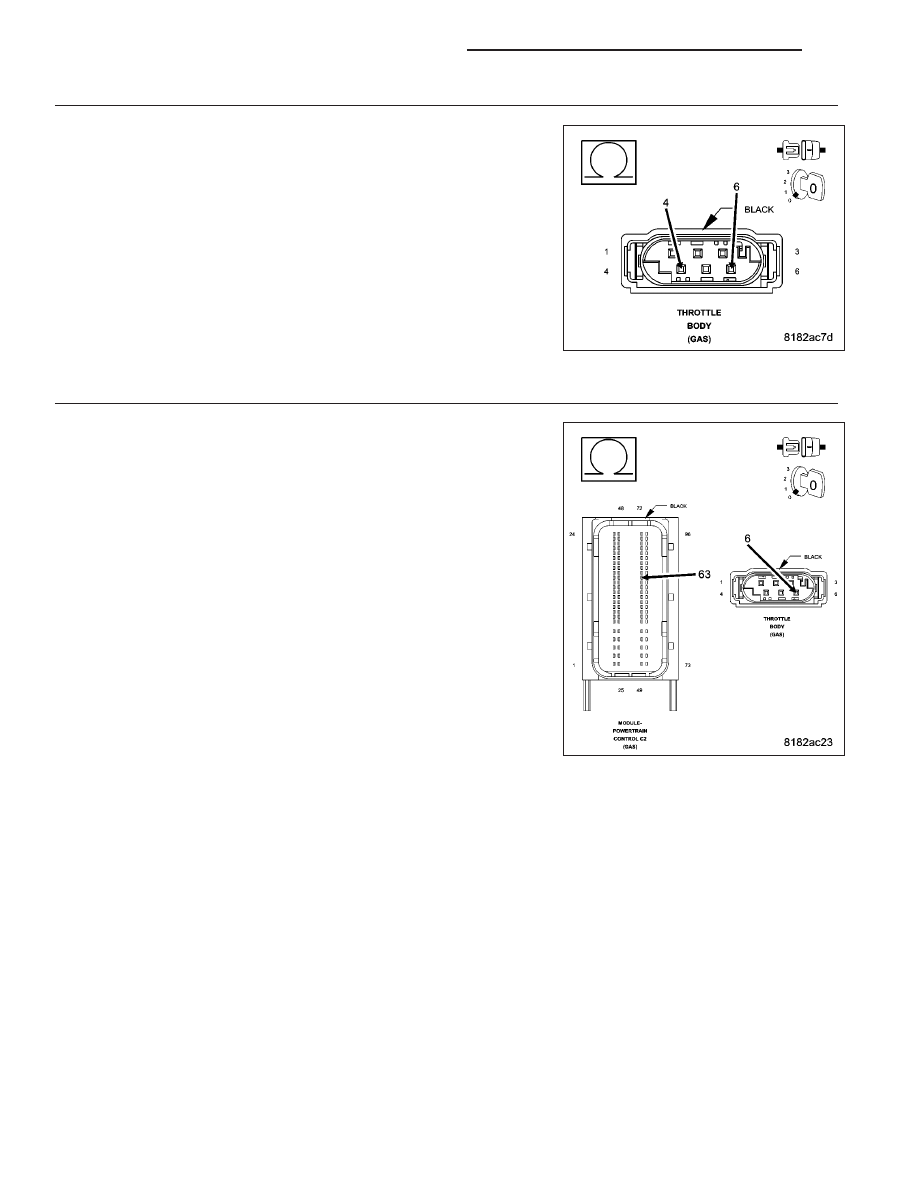

Measure the resistance of the (K122) TP Signal 2 between the Throttle
Body harness connector and the Powertrain Control Module (PCM) har-
ness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 8

No

>> Repair the (K122) TP Signal 2 for an open circuit or high

resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 218

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM
