Dodge Caliber. Manual - part 726





When Monitored:
With battery voltage greater than 10 volts, ASD relay energized, and engine speed less than 3000 rpm.

Set Condition:
The PCM detects an open condition on the Fuel Injector 1 circuit.

Possible Causes

INTERMITTENT DTC

(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE

(K11) INJECTOR 1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

FUEL INJECTOR 1

POWERTRAIN CONTROL MODULE (PCM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Turn the ignition on.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

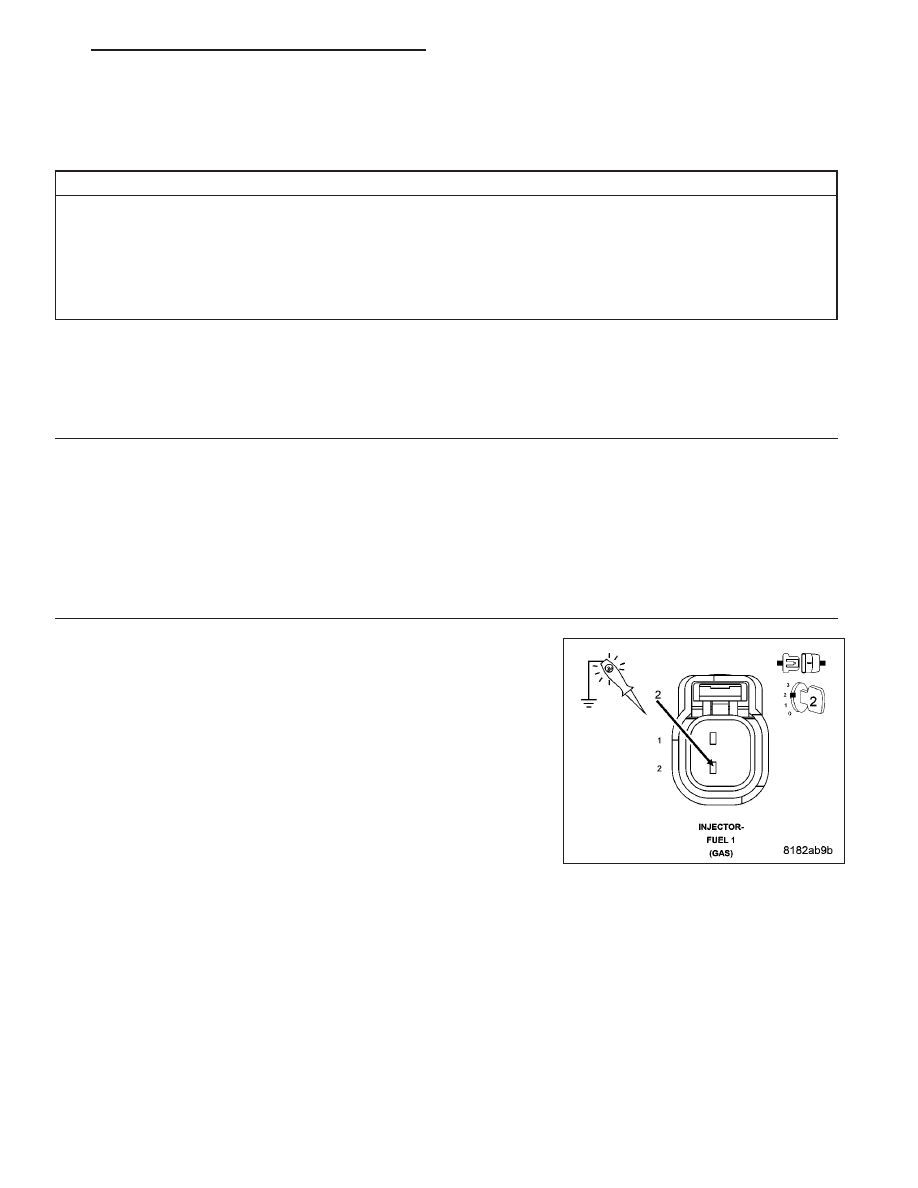

2.

(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE

Turn the ignition off.

Disconnect the Fuel Injector 1 harness connector.

Turn the ignition on.

Using a 12 volt test light connected to ground, check the (K343) Fused
Main Relay Output circuit in the Fuel Injector 1 harness connector.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

>> Go to 3

No

>> Repair the (K343) Fused Main Relay Output circuit for an

open circuit or high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 191

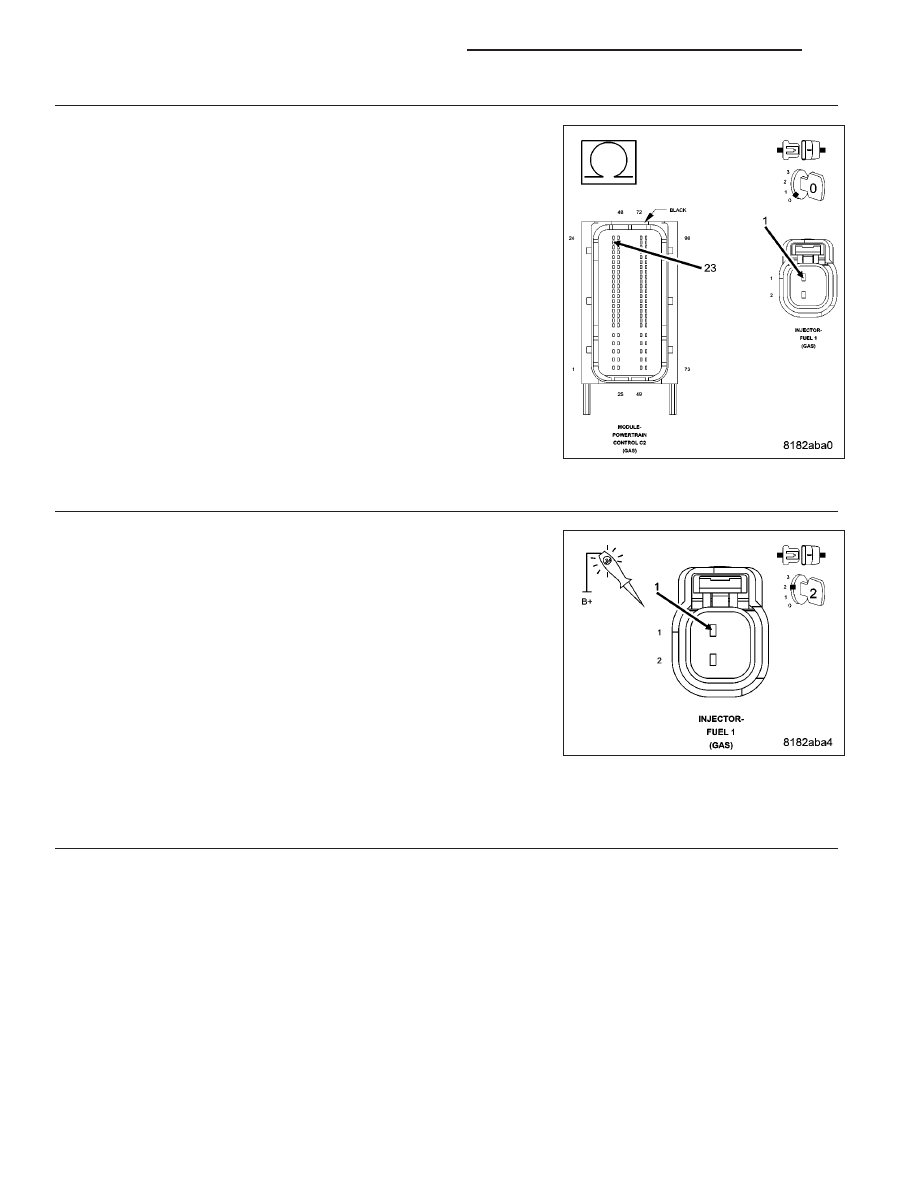

3.

(K11) INJECTOR 1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) harness connector.

Measure the resistance of the (K11) Injector 1 Control circuit between
the Fuel Injector 1 harness connector and the Powertrain Control Mod-
ule (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 4

No

>> Repair the (K11) Injector 1 Control circuit for an open circuit

or high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

4.

FUEL INJECTOR 1

Connect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

With the scan tool, actuate the Fuel Injector 1 control to the ON (100%)
position.

Using a 12 volt test light connected to 12 volts, check the (K11) Injector
1 Control circuit in the Fuel Injector 1 harness connector.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

>> Replace the Fuel Injector 1 in accordance with the Service

Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 5

5.

POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between Fuel Injector 1 and the
Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

9 - 192

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

P0202-FUEL INJECTOR 2 CIRCUIT/OPEN

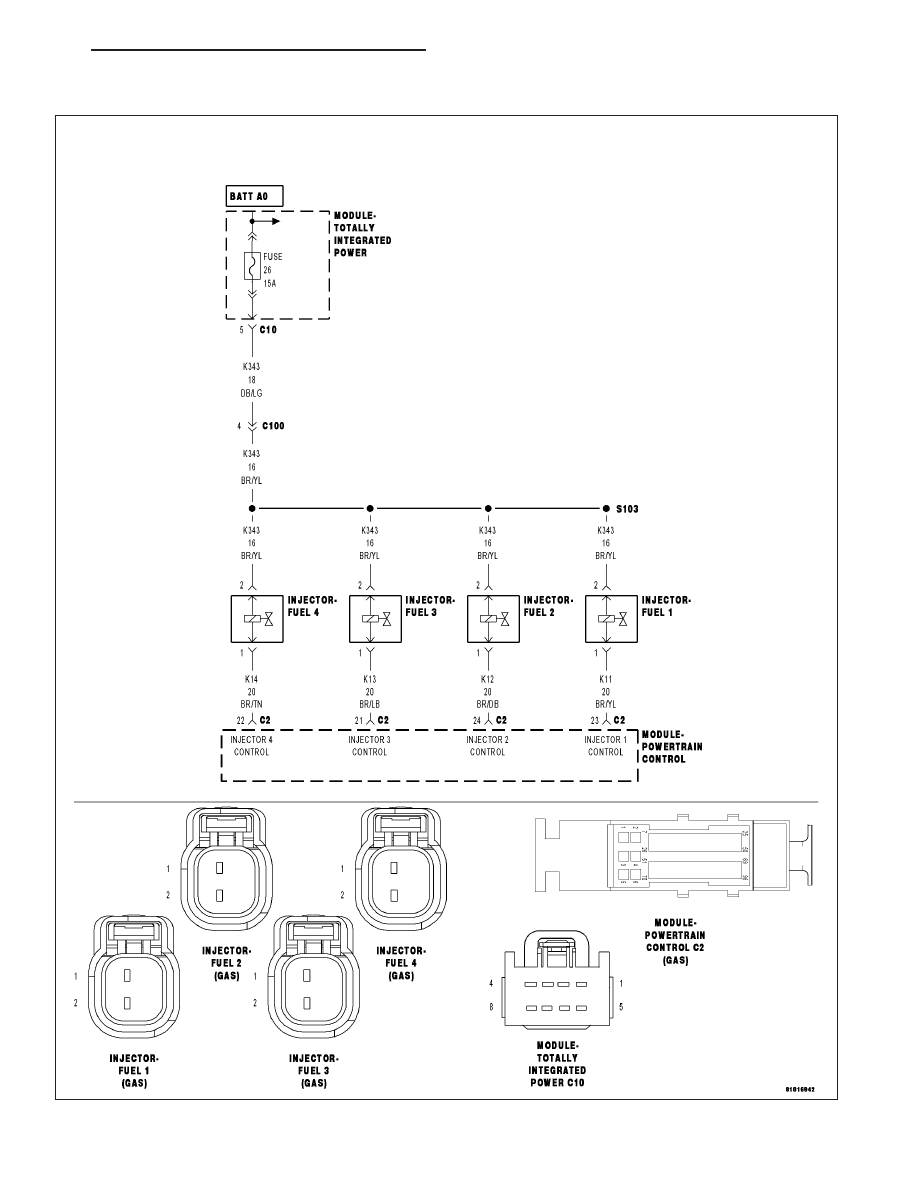

For a complete wiring diagram Refer to Section 8W

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 193

When Monitored:
With battery voltage greater than 10 volts, ASD relay energized, and engine speed less than 3000 rpm.

Set Condition:
The PCM detects an open condition on the Fuel Injector 2 circuit.

Possible Causes

INTERMITTENT DTC

(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE

(K12) INJECTOR 2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

FUEL INJECTOR 2

POWERTRAIN CONTROL MODULE (PCM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Turn the ignition on.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE

Turn the ignition off.

Disconnect the Fuel Injector 2 harness connector.

Turn the ignition on.

Using a 12 volt test light connected to ground, check the (K343) Fused
Main Relay Output circuit in the Fuel Injector 2 harness connector.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

>> Go to 3

No

>> Repair the (K343) Fused Main Relay Output circuit for an

open circuit or high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 194

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM
